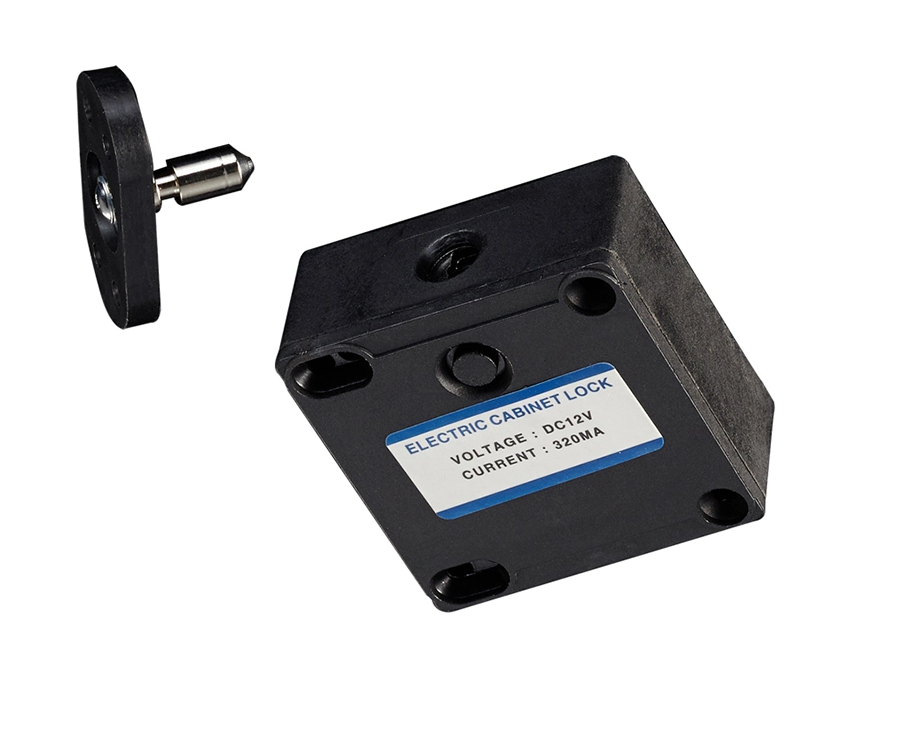

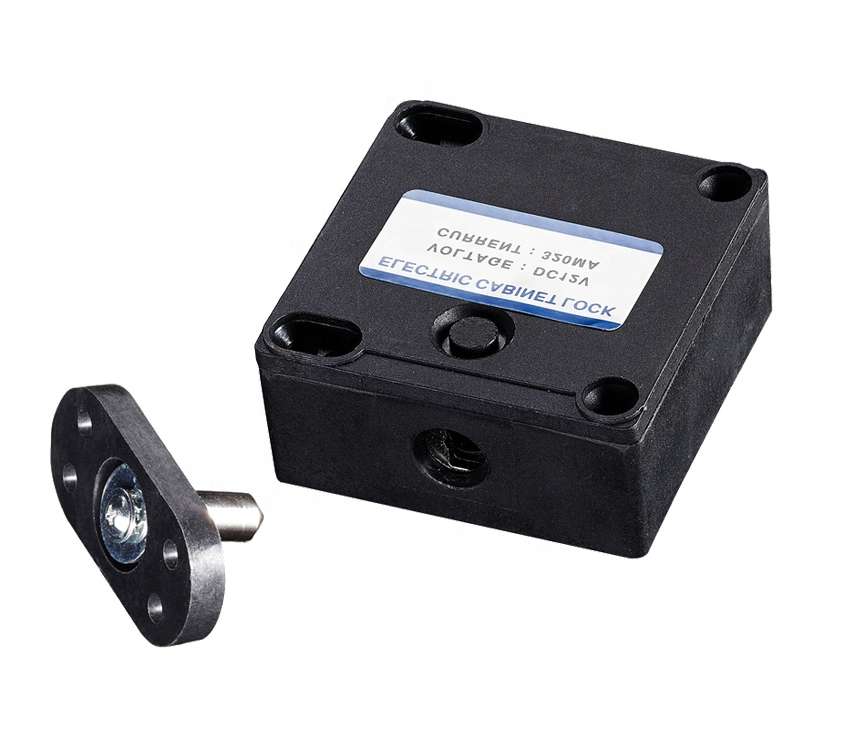

Cabinet electric strike CL301
Price 83,64 € (23% VAT included)
68,00 € net price
DESCRIPTION
The CL301 cabinet electric strike is intended for mounting on cupboard doors, as well as wooden and metal drawers. It has a built-in actuator for automatic door opening. Optionally, a version with a door closing / opening sensor is possible.
PRODUCT MAIN FEATURES:
- Application: changing room, office, school, hotel
- Designed for cupboard doors and wooden and metal shulfades
- It is equipped with an actuator for automatic door opening
- An additional option is the possibility of having a door closing / opening sensor
TECHNICAL DATA
| Dimensions (Height*Width*Depth) | 55*55*25mm |
| Pin length | 18mm |
| Pin diameter | 7mm |
| Power supply | 12V DC |
| Current | 320mA |
| Current consumption | 12V/60mA |
| Material | Anodized aluminum, zinc |
| Weight | 0,12kg |
| Additional functions | Low power consumption |
| Appliance | Cabinet locks, wooden and metal drawers |
