Remote reader for a code for apartment vG-BLreader 2



Price 223,86 € (23% VAT included)

                182,00 € net price



Ask for a product



Description


The basic task of the vG-BLreader2 reader is to supervise and grant access to the selected object to people from any place and at any time. The apartment code reader allows you to secure external doors using an electric strike, electromagnetic lock, sliding doors or garage doors. It is perfect for apartments, flats and all rental rooms that we do not have daily access to, but we want to have control over them. The operation is intuitive and very easy to learn. The administrator gives the selected person the right to open by generating a code and sending it via SMS. The code reader is operated with the TTlock application, in which you can generate codes for a specified period of time, add proximity cards, check the history of events, check the statistics of entries and presence of the user. The device we offer is easy to install and has an IP66 protection degree.



Works for:

PIN code

Mifare card 13,56MHz

TTlock app







Fingerprint (to order)



vG-BLreader 2 presentation





Permanent backlight

  • To turn on the permanent keyboard backlight, enter the code sequence *49#administrator code#1#
  • To turn off the permanent keyboard backlight, enter the code sequence *49#administrator code#0#







Resistance for weather conditions



Generating and sending the code - video

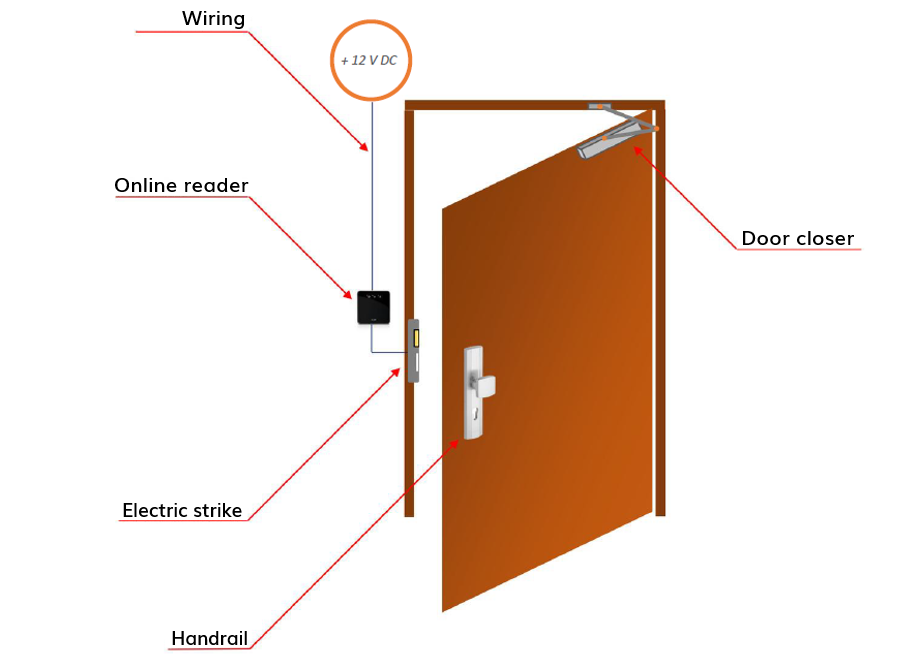

Reader mounting



Connections template



Dimensions



Available version with fingerprint (to order)



Technical data

Dimensions 79x125x15,5 mm
Access TTlock APP, PIN code, Mifare card 13,56MHz, fingerprint (to order)
Material Aluminium, tempered glass
Reading range 0-10 mm
Reading time ~ 1.5s
Internal memory For 1000 users / 20,000 cards
Protection IP66
External power supply 12 V DC
Relay for controlling the actuator 500mA
Working temperature -20 up to +70°C
Communication Bluetooth 4.1
Warranty 2 years
