Cabinet lock KR-EM1408
Price 28,29 € (23% VAT included)
23,00 € net price
Description
The KR-EM1408 cabinet lock is an electromagnetic lock operating on a microswitch with a very durable housing that can withstand pressure up to 250 kg. The device is perfect for e.g. storage cabinets, logistic cabinets, etc. Has a door opening sensor
Microswitch |
Product main features:
- Solenoid driven, support 12V & 24V
- Lock shells are made from low carbon steel, anti-force performance: 250kg
- Three times surface treatment: copper plated, nickle plated and matt chrome plated
- Omron micro detective switch from Japan, 500,000-time working life
- Mechanical emergency lever, can be unlocked manually in case of power failure
- AWG24 wires with PVC protecting tube
- Support customizing wires and connectors
- Is equipped with a door opening sensor

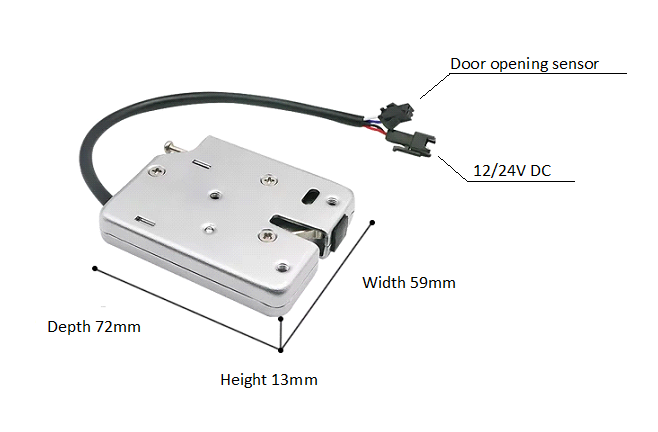

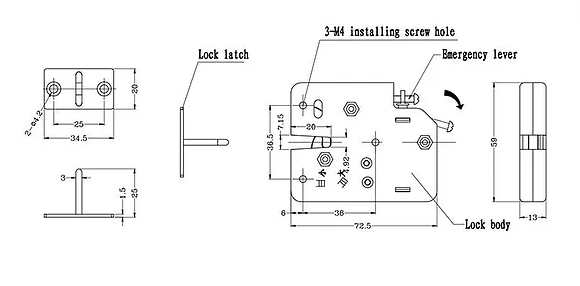

Dimensions
Technical data
Dimensions (Height*Width*Depth) | 13*59*72mm |
Weight of the lock | 171g |
Material of lock body | SUS430 |
Material of lock bolt | Zinc alloy nickel plating |
Surface treatment | Passivation |
Application | storage locker; cabinet; logistic locker; electricity meter box |
Working voltage | DC12V~DC24V |
Working current | 0.8A~2A |
Maximum power | 24W |
Response time | Less than 20ms |
Working temperature | -20℃ ~ +55℃ |
Working humidity | 5% ~ 95%RH |
Working life | 500000 times |
Signal detection / Travel switch (open/close) | Omron or other brands |
Certification | CE; ISO9001; RoHS |
