Cabinet lock I-CB-08
Price 79,95 € (23% VAT included)
65,00 € net price
Description

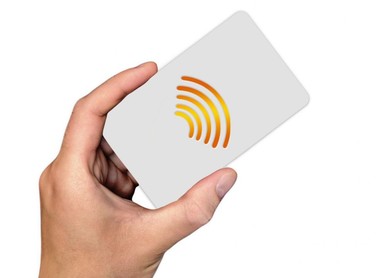

The lock can be opened with a Mifare 13.56MHz card |
 |
The I-CB-08 locker lock can be mounted on wooden or metal doors. It is ideal for offices, schools, hotels as well as airports, shopping centers and sports complexes. It is possible to order a lock that supports Unique / Temic TK4100 cards at a frequency of 125 kHz.
The lock can work in private and public mode
Private mode
- in this mode, the codes are assigned permanently to users (max. 15 users)
Public mode
- the so-called first free; this mode works just like in swimming pools, i.e. the locker is open and anyone who comes can put their clothes there and secure them with any code. After the visit, the user opens the locker with his code and leaves it open for the next user
Switching from private to public mode
Switching from public to private mode

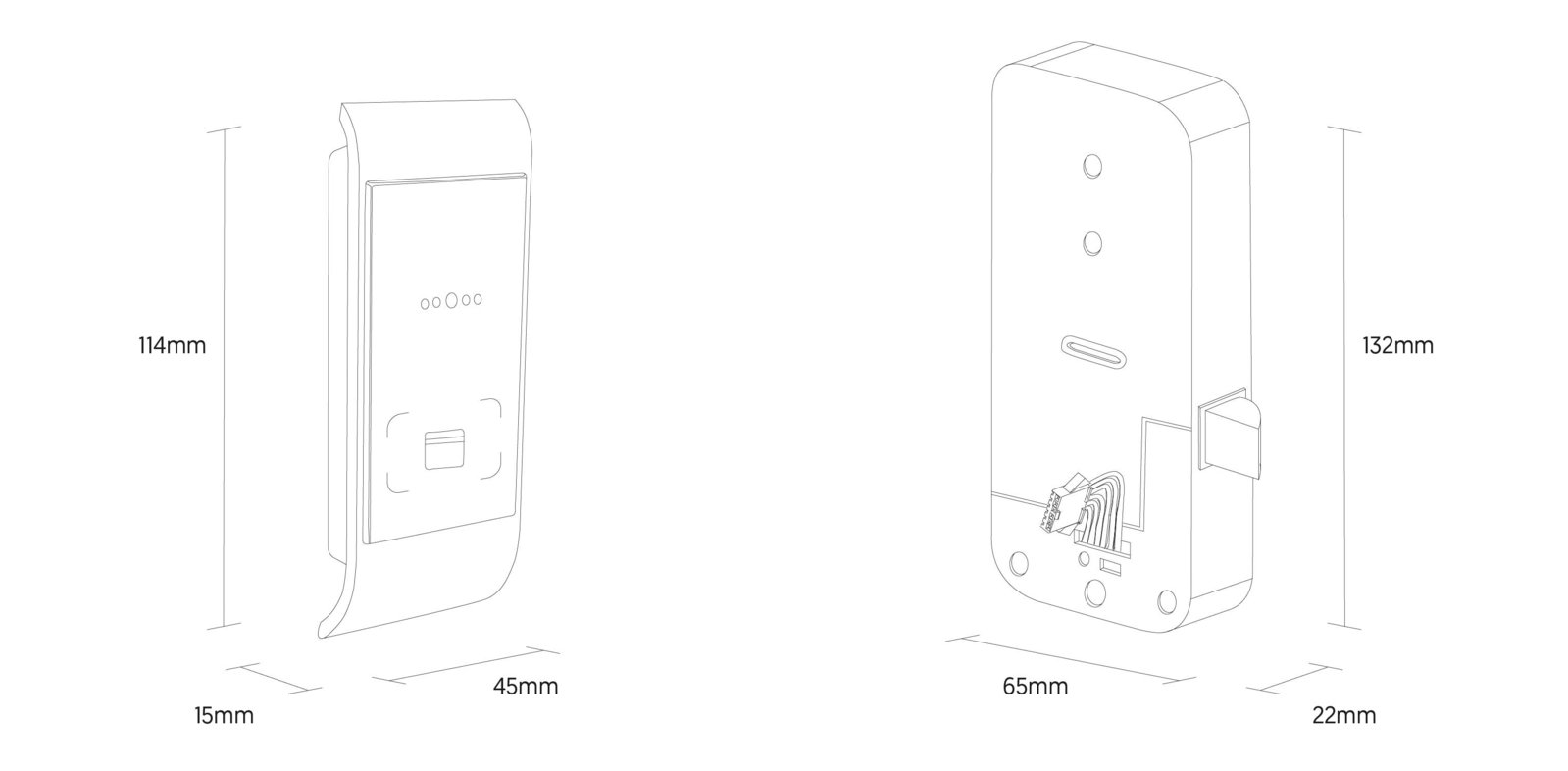

Dimensions

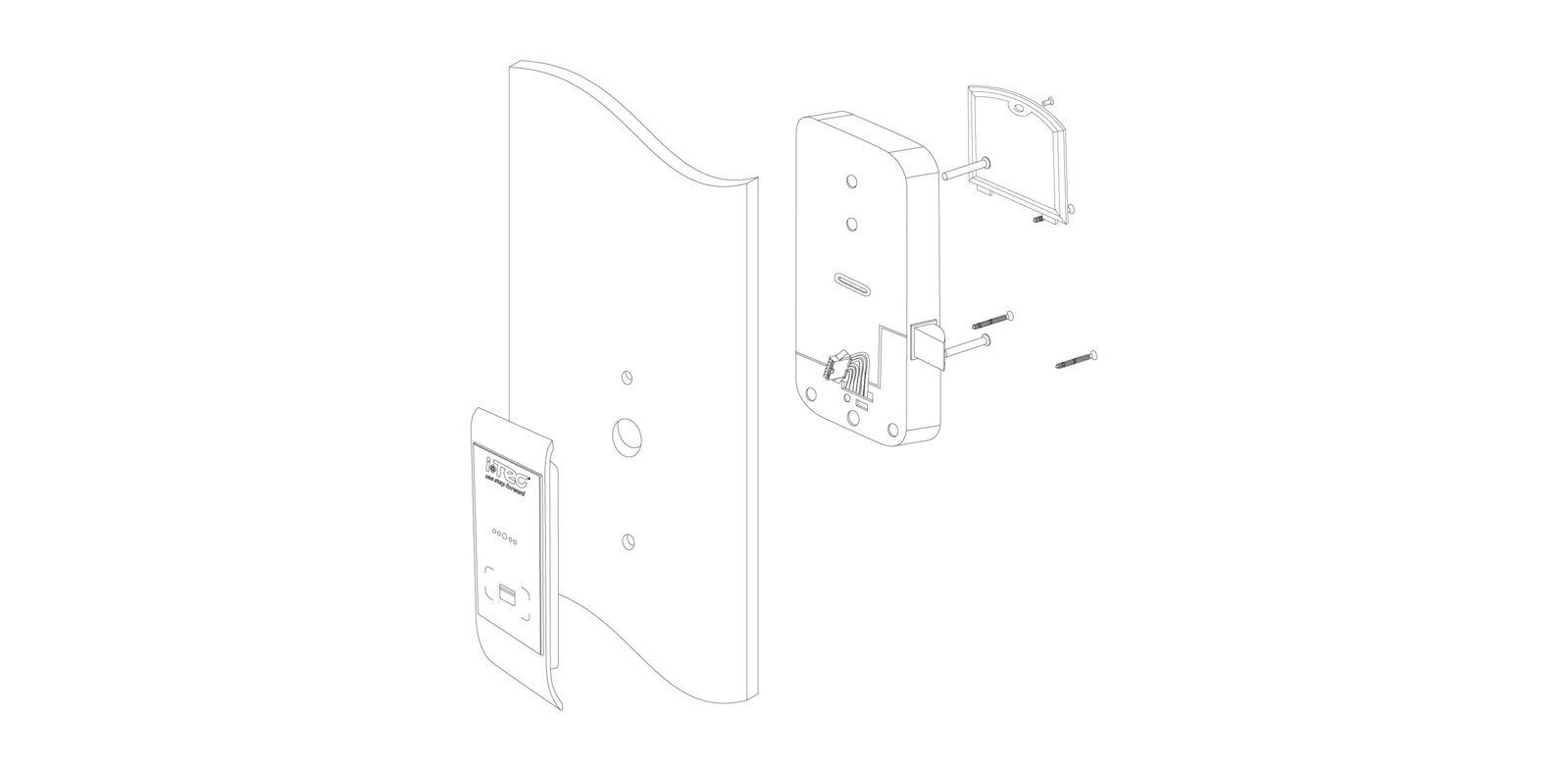

Assembly diagram
Technical data
| Way of opening | Mifare 13,56MHz card (optional Unique / Temic TK4100 125kHz) |
| Material | Zinc alloy |
| Power supply | DC 4,5V (AA*3) |
| Low battery alarm | 3 Long tick before operation |
| Power consumption (idle) | 8uA |
| Power consumption (in operation) | 180mA |
| Working humidity | 20-80% |
| Working temperature | -20°C - +70°C |
| Autoblock | Yes, after 7 seconds |
| Battery lifetime | ~8 months |
| Open time | 7 seconds |
| Reading distance | ≤ 55mm |
| Door thickness | ≥ 16mm |
