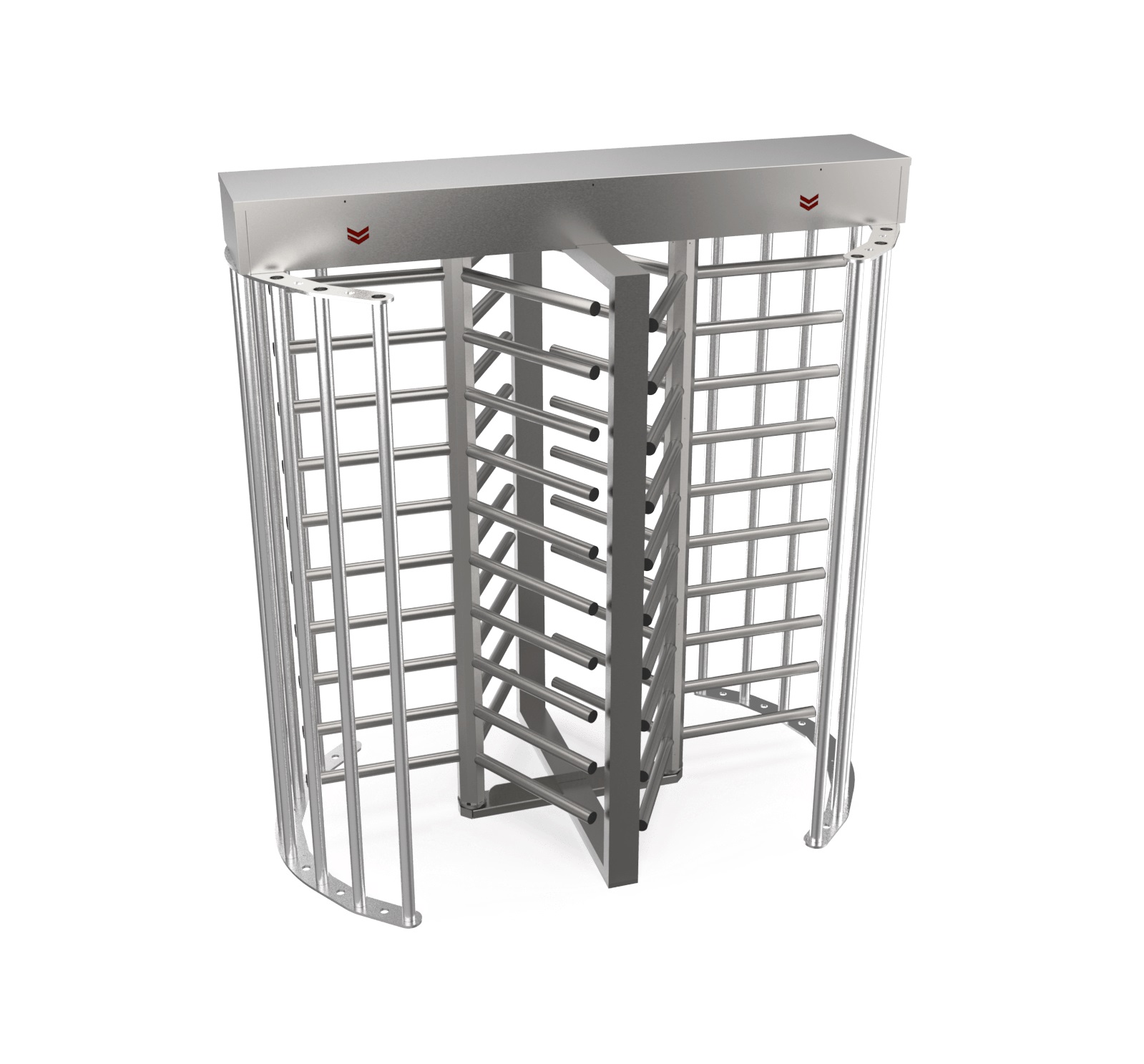

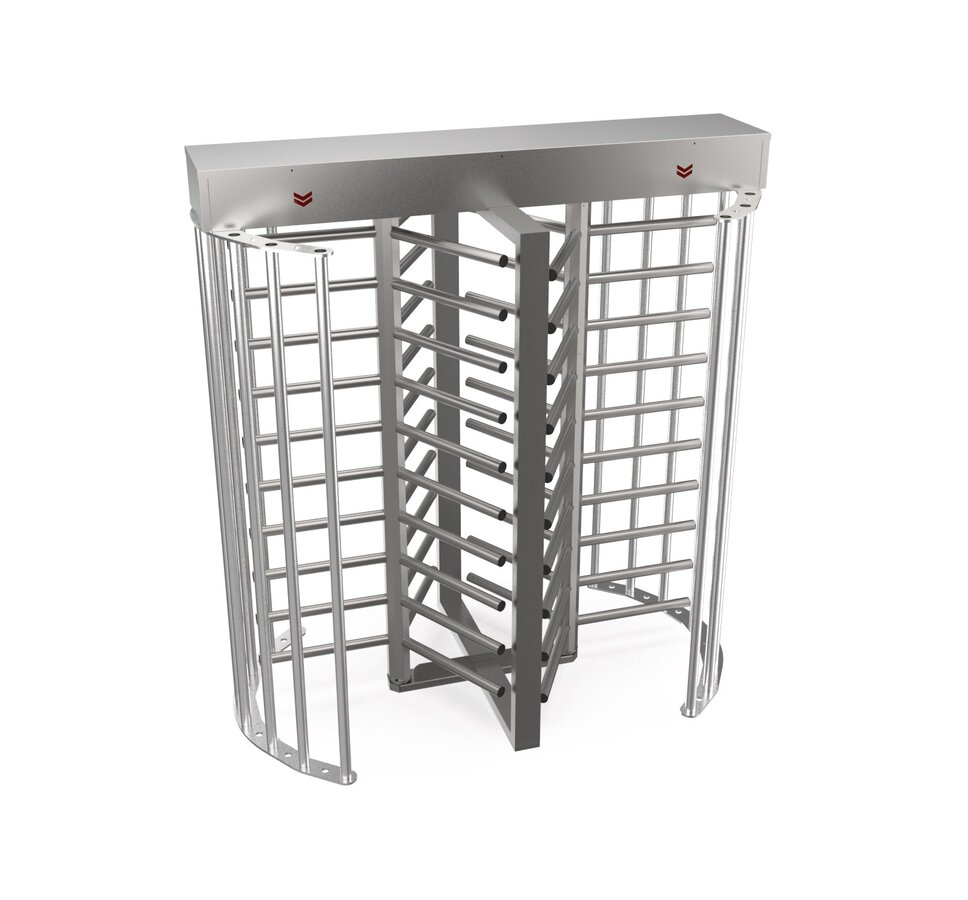

Full height turnstile BW-BFI103 Double
Price 11 426,70* € (23% VAT included)
9290,00* € net price
*price applies to the turnstile with semi-automatic drive
DESCRIPTION
The BW-BFI103 Double is a dual high-security access control turnstile constructed from AISI 304 stainless steel, designed for environments requiring increased throughput and robust performance; it provides adjustable bidirectional passage, A→B/B→A signaling, adjustable transition time, memory mode, audible warning and a standard bidirectional LED display, while in emergency conditions (fire alarm) the arms automatically switch to free-rotation mode (NC). With a 56 cm passage width and a flow rate of up to 40 people per minute, it is suitable for heavy-traffic indoor and outdoor applications.
Product main features:
- Dual-body design for increased flow capacity
- AISI 304 stainless steel chassis
- Adjustable bidirectional operation
- A→B and B→A signaling (5VDC)
- Adjustable passage time
- Memory mode
- Audible warning
- Standard bidirectional LED display
- Emergency free-rotation mode (NC)
- High security level
-
Suitable for indoor and outdoor use

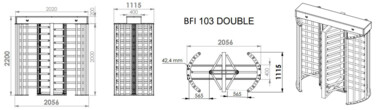

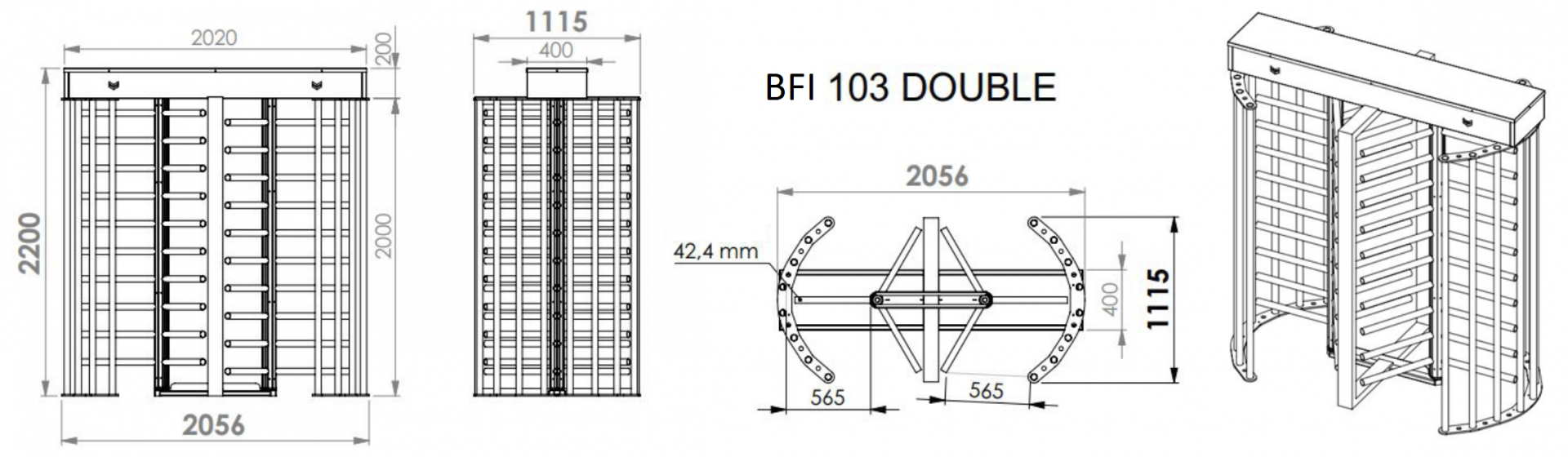

Dimensions
Technical data
| Chassis Material | AISI 304 stainless steel |
| Passage Direction | Bidirectional, adjustable |
| Operation | Manual |
| Functions | A→B/B→A signaling (5VDC), adjustable timing, memory mode, audible warning |
| Emergency Mode | Free-rotation (NC) triggered by fire alarm |
| Power Supply | 100–230 VAC, 47–60 Hz |
| Power Consumption | 7.5W in transition / 8W on standby |
| Operating Temperature | -10°C to +70°C (optional heater: down to -30°C) |
| Passage Speed | Up to 40 people/min |
| Passage Width | 56 cm |
| LED Display | Bidirectional, standard |
| Weight | ~220 kg |
| Areas of Use | Indoor and outdoor |
| Options (change the price) | 3- or 4-arm rotor, double-body version, pushbutton, remote control, passage LED spot lighting, counter, thermostat heater |
