Fixed Bollard FXB-CT DEFENDER
Price determined individually
Description
FXB-CT DEFENDER Shallow Mount Fixed Bollard is designed for perimeter protection in locations where deep foundations are not possible or desirable. With an installation depth of only 400 mm, it minimizes interference with existing underground infrastructure. Its St37 steel construction provides high impact resistance, while its protective performance has been verified by crash testing in accordance with PAS68:2013.
Product main features:
- Shallow installation requiring a depth of only 400 mm.
- Crash-tested in accordance with PAS68:2013.
- Designed to withstand the impact of a 7.5-ton vehicle travelling at 50 mph.
- Heavy-duty St37 steel construction.
- Optional stainless-steel sleeve.
- Optional flashing light mounted on top of the bollard.
- Suitable for pedestrian areas, military sites, industrial facilities, government buildings and commercial properties.

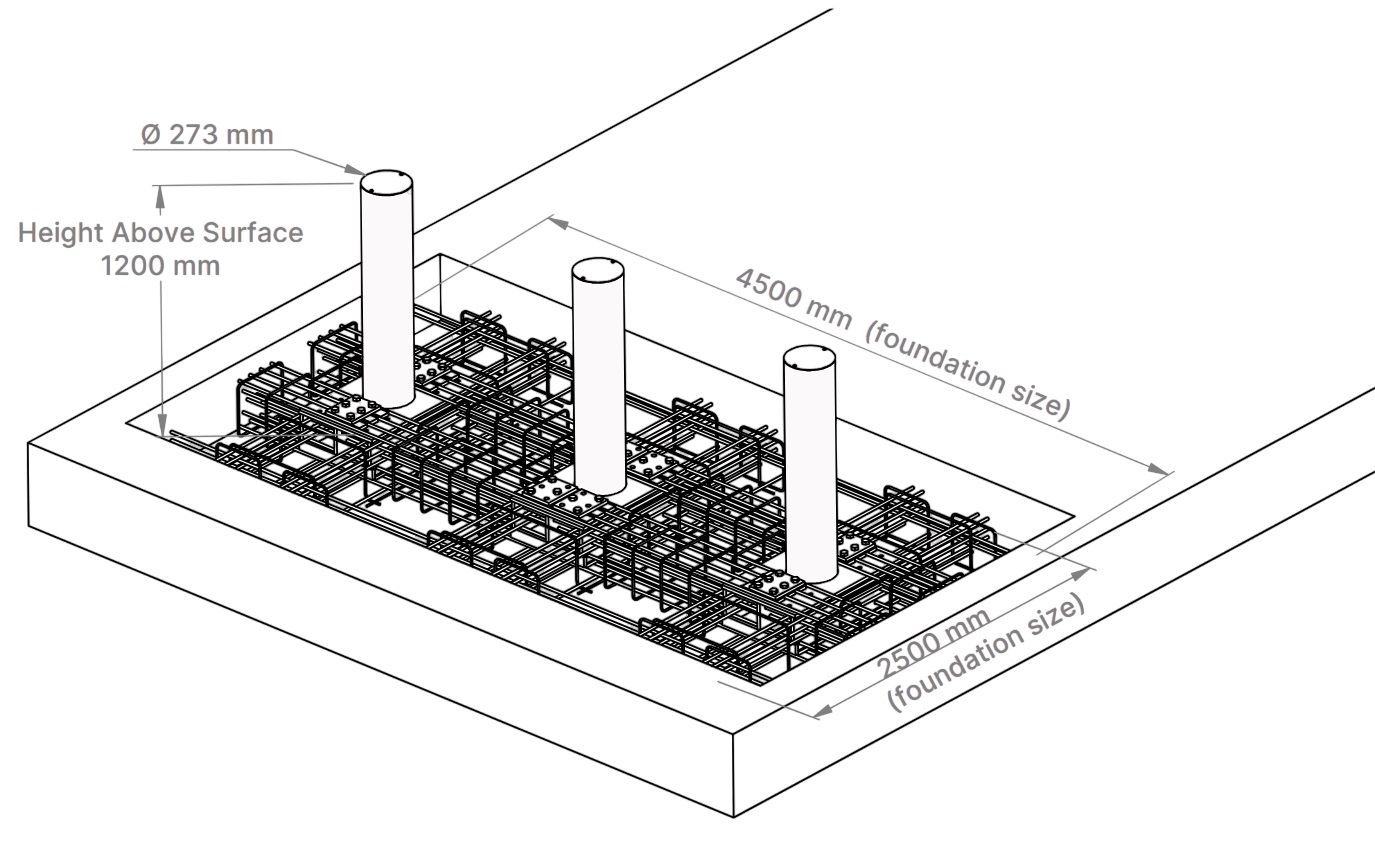

Dimensions
Technical data
| Bollard type | Shallow mount fixed bollard |
| Height above surface | 1200 mm |
| Bollard diameter | 273 mm |
| Installation depth | 400 mm |
| Foundation dimensions | 4500 × 2500 × 400 mm for a triple unit |

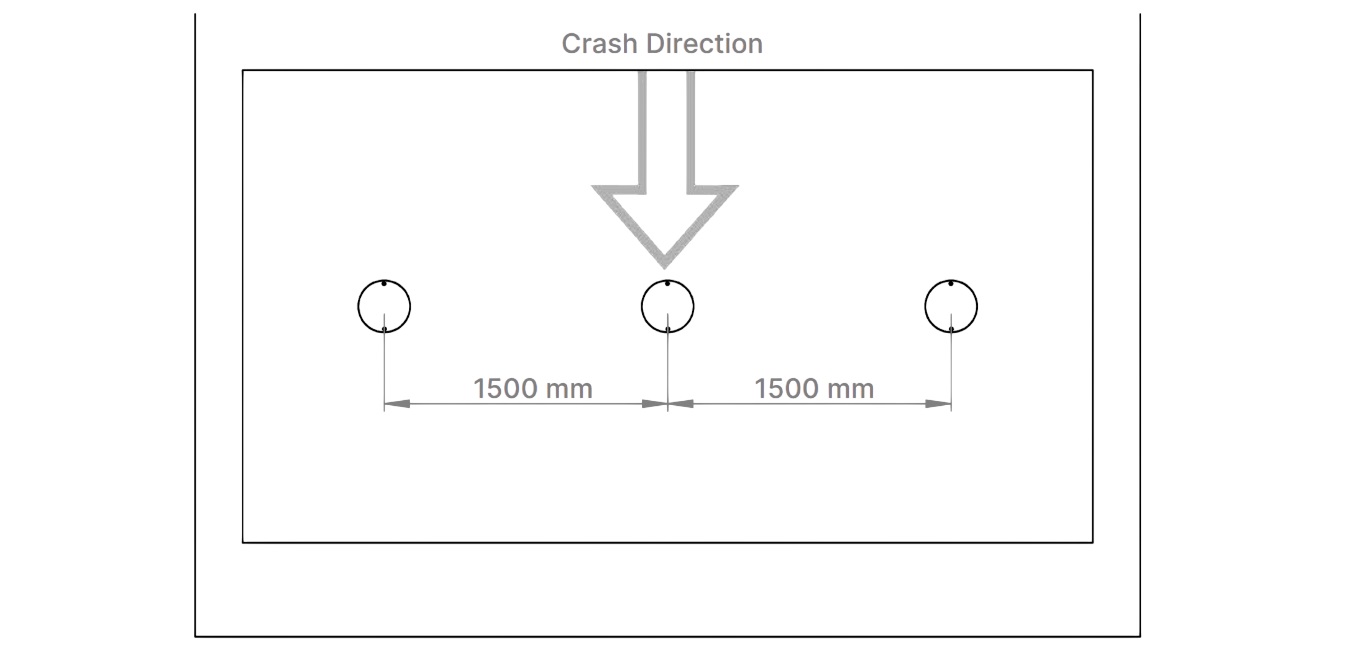

| Bollard spacing | 1500 mm |
| Material | St37 steel |
| Optional finish | Stainless-steel sleeve |
| Crash-test standard | PAS68:2013 |
| Crash-test rating | V/7200(N3C)80/90:0.5/59.1 |
| Impact energy | 1852 kJ |
| Test conditions | 7.5 t vehicle at 50 mph |
| Optional accessories | Flashing light, different colour options |
| Application | Permanent perimeter protection and vehicle-restricted areas |
