Built-in Hydraulic Bollard RAB-800
Price determined individually
Description
RAB-800 Built-in Hydraulic Bollard is an automatic retractable security solution designed for high-security vehicle entrances. Its integrated hydraulic unit allows the bollard to operate independently as a single unit or as part of a group of bollards. PLC-based electronics enable integration with card readers, biometric devices, remote controls and other access control systems. In the event of a power failure, the bollard can be operated using a manual hydraulic hand pump.
Product main features:
- Built-in hydraulic pump for independent bollard operation.
- Suitable for single-unit installation or groups of bollards.
- Raising and lowering time of 4–8 seconds.
- Emergency Fast Operation mode with a raising time of approximately 1.5 seconds.
- Manual hydraulic hand pump for operation during power failure.
- PLC control compatible with card readers, biometric readers and remote controls.
- Expandable with photocells, induction loops, traffic lights, UPS and SCADA systems.

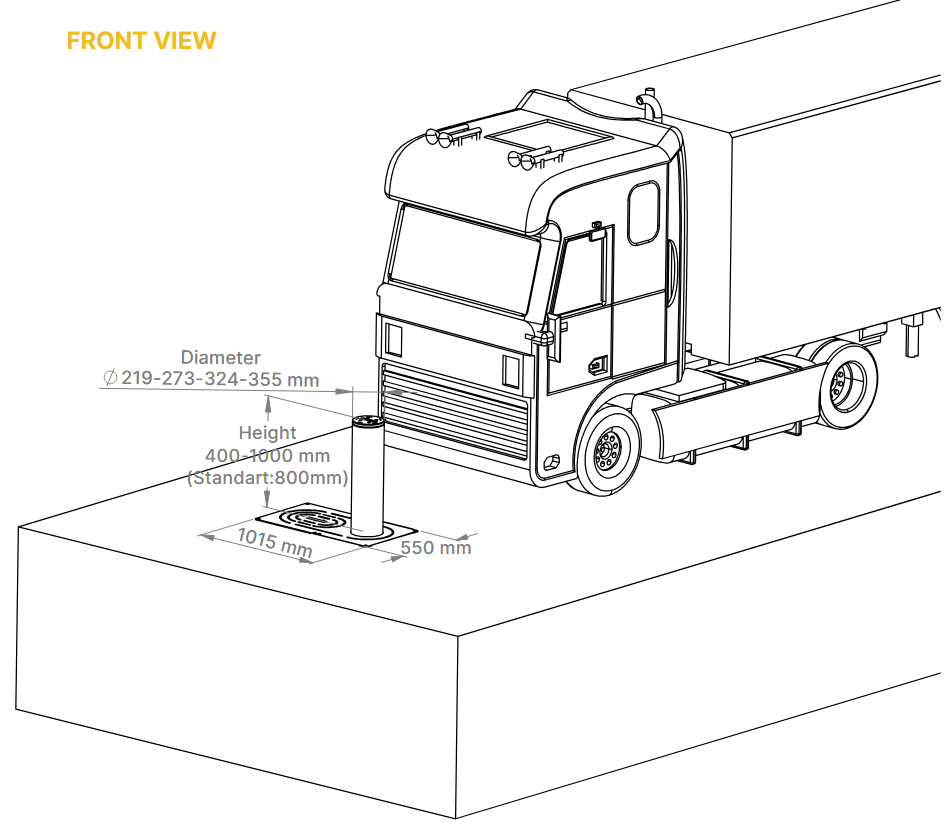

Dimensions
Technical data
| Bollard type | Automatic retractable hydraulic bollard with built-in pump |
| Raised height | 400–1000 mm |
| Standard raised height | 800 mm |
| Available diameters | 219 / 273 / 324 / 355 mm |
| Raising and lowering time | 4–8 s |
| Emergency Fast Operation | Approx. 1.5 s with charged accumulator |
| Material | ST37 steel with AISI 316 stainless-steel sleeve |
| Operating pressure | 50–140 bar |
| Drive | Electric motor operated by contactor |
| Control system | Optima control card / PLC electronics |
| Power-failure operation | Manual hydraulic hand pump |
| Motor protection | Thermal breaker |
| Control panel | Desktop keyboard |
| Standard power supply | 380 V, 3-phase, 50–60 Hz |
| Optional power supply | 220 V / 440 V / other, 3-phase, via transformer |
| Power consumption | 5.5–11 kW, depending on configuration |
| Electrical protection | 32 A–63 A, 3P, C-curve fuse |
| Operating temperature | -15°C to 65°C |
| Operating humidity | Up to 95%, non-condensing |
| Optional accessories | Remote controls, radio receiver, UPS, photocells, induction loops, red/green traffic lights, drainage pump, wrong-way alarm, high-speed alarm, SCADA and Optima Cloud |
