Datasheet PL Orbit
Cabinet lock Digilock Orbit
Price 131,61 € (23% VAT included)
107,00 € net price
DESCRIPTION
The Orbit Digilock electronic lock combines 13.56 MHz RFID technology with Bluetooth Low Energy (BLE) connectivity. With capacitive wake for touchless activation and visual and audible indicators, it ensures convenient and reliable operation. The lock supports both shared and assigned modes and is managed via the DigiLink cloud application. Its compact design, inside mount, and adjustable key insert position make it suitable for both new and retrofit installations. Powered by four lithium 123A batteries, and featuring IP55 protection and ADA compliance, Orbit Digilock is a robust and secure solution for modern access control.
Product main features
- 13.56 MHz RFID and Bluetooth Low Energy (BLE) support
- Capacitive wake for touchless activation
- Visual and audible indicators

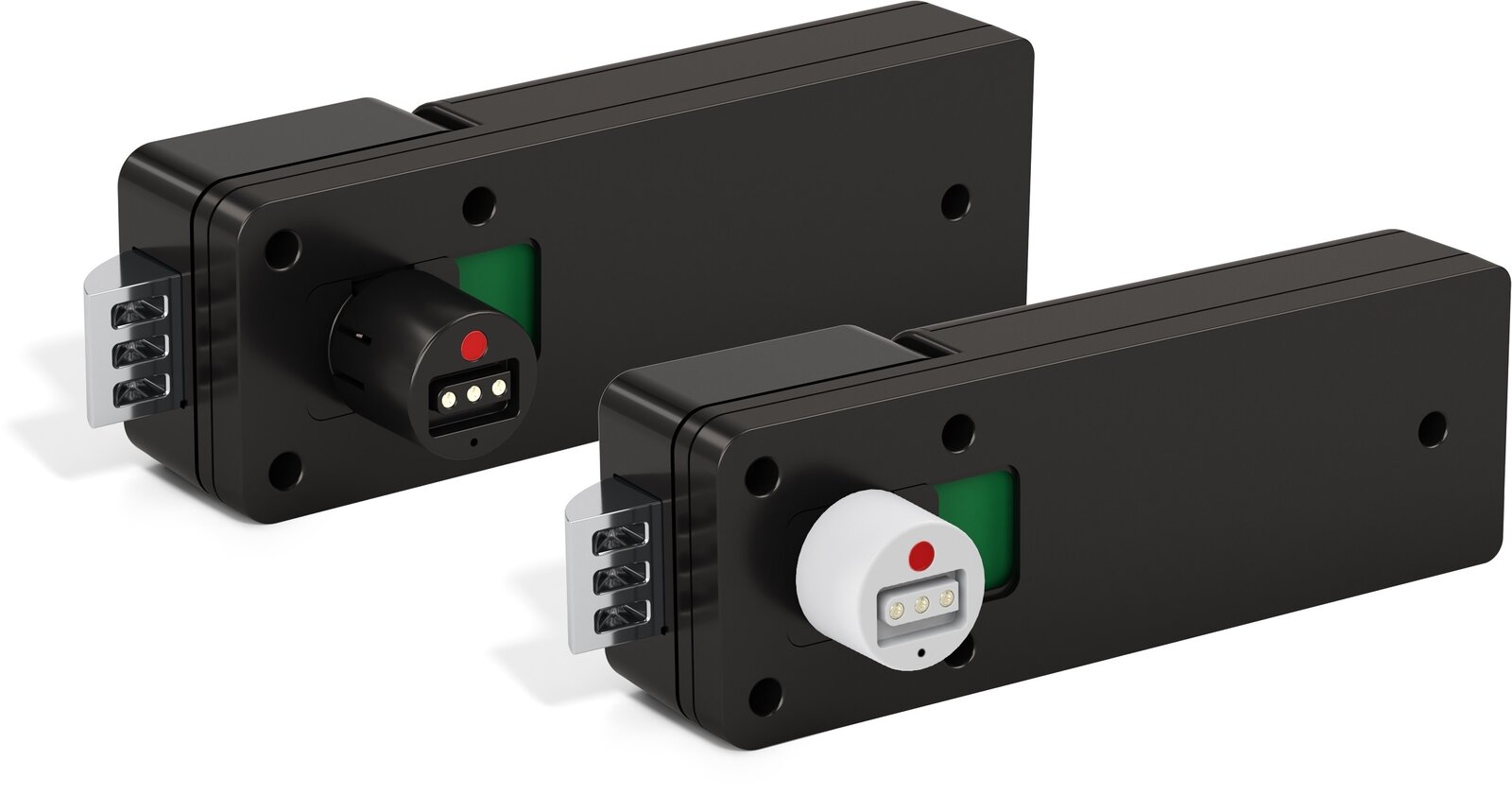

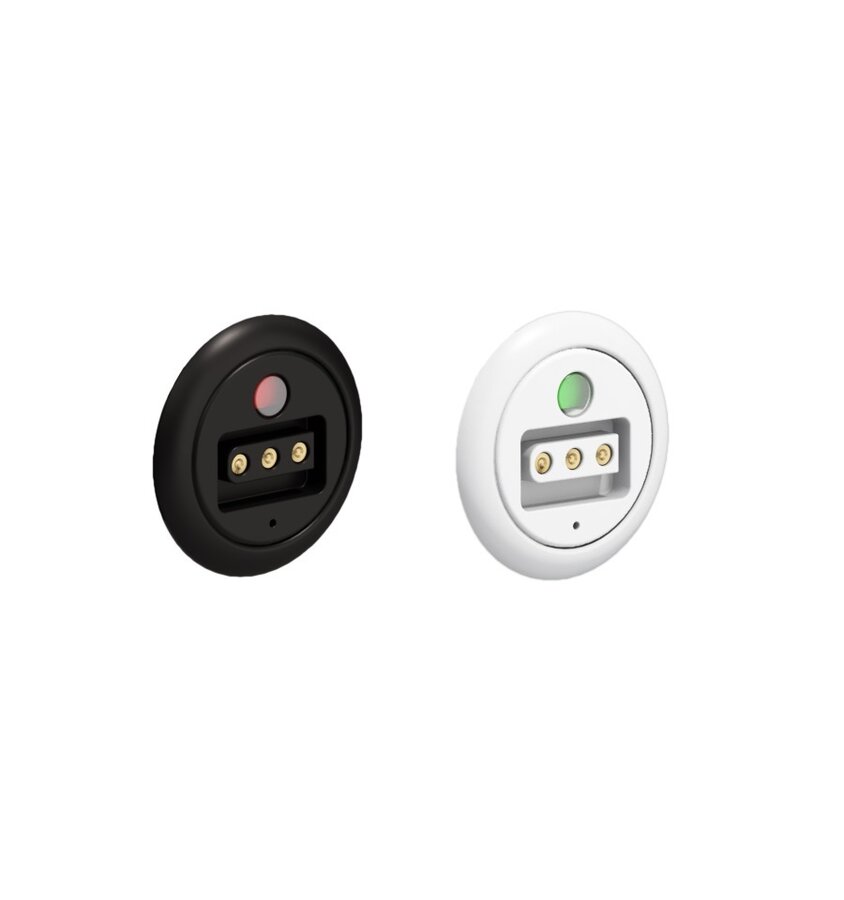

- Key insert available in white or black finish

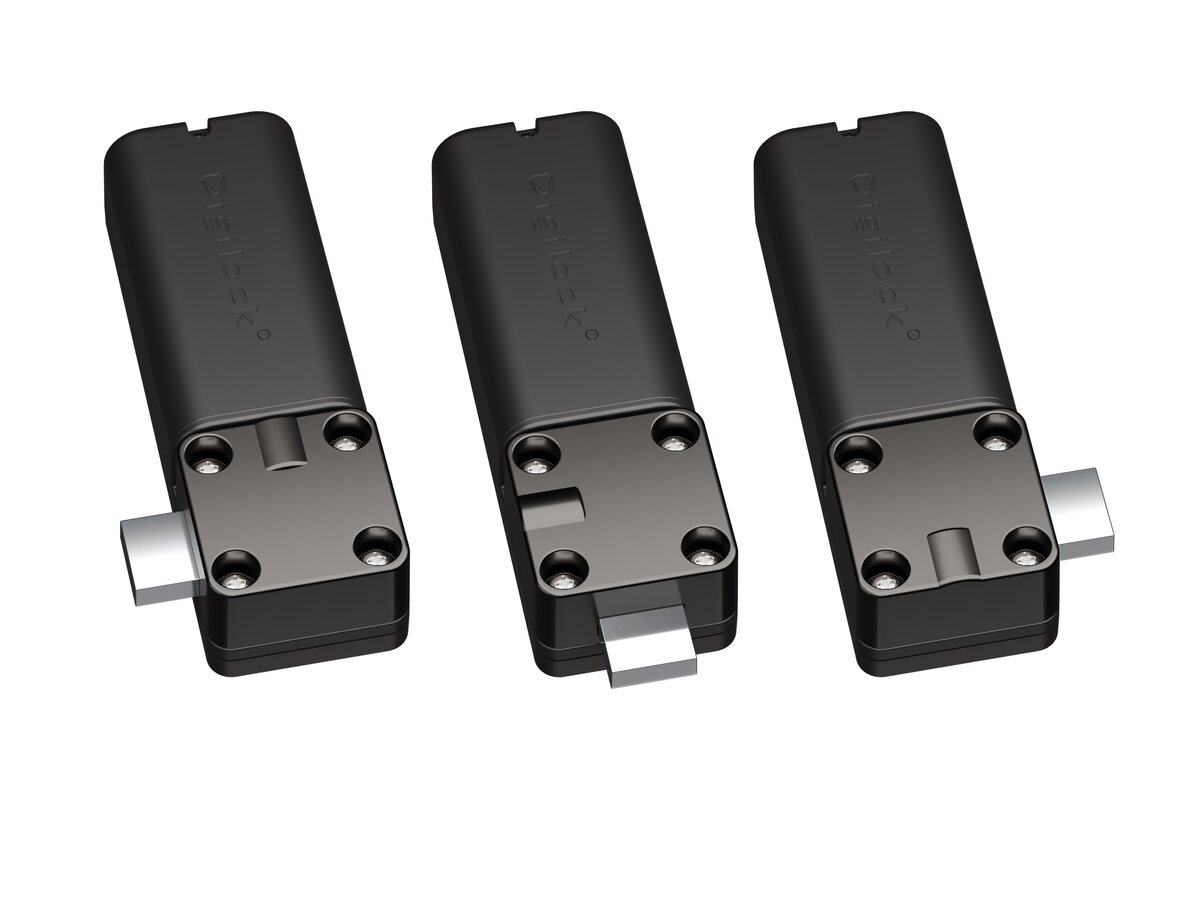

- Multi-directional locking mechanism with 12.7 mm motorized deadbolt
- Shared or assigned use, managed via DigiLink®
- Powered by 4 lithium 123A batteries, IP55 rated, ADA compliant
Two working modes
- Permanently assigned - means that one user can operate one or more lockers
- The "first free" (pool) system - a system used in swimming pools, means that the locker is always open and the new user can choose any locker. After entering the code or presenting the card (depending on the lock model), the cabinet remains closed. At the end of the stay, the user opens the locker and leaves it open for another new user.
|
Deadbolt |
|
1/2 ”(12.7 mm) mechanical latch, designed to operate in" first free "mode and permanently assigned |
|
Deadlatch |
|
|
Advanced Versions
- Advanced Version (+€10 net) – management via tablet and keys. Compared to the Basic version, it provides much broader management capabilities – instead of 20 users and 6 Manager Keys, it allows assigning up to 250 users and 250 Manager Keys per lock. The system also offers full audit trail functionality, a visual battery level indicator, and access to data analytics, enhancing control and security.
- Online Version (+€60 net) – compared to the Basic and Advanced versions, this option moves management to the DigiLink cloud, enabling complete remote administration of locks, users, and credentials through the application. It allows instant assignment or removal of access rights, use of an online dashboard for full visibility and reporting, and real-time access to history and data analytics.
Dimensions

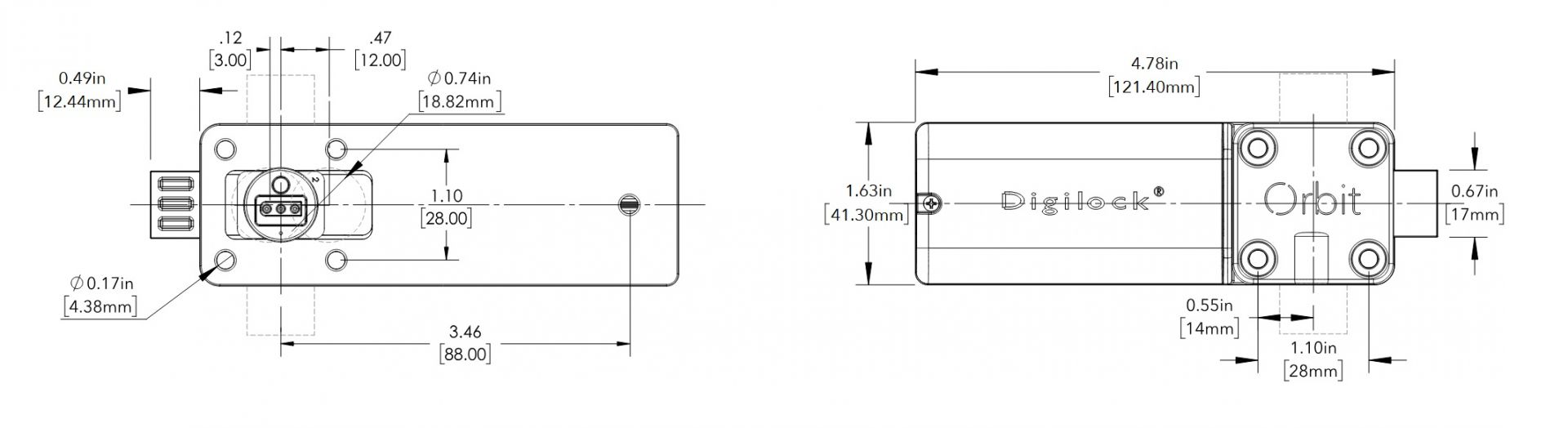

Front view | Back view

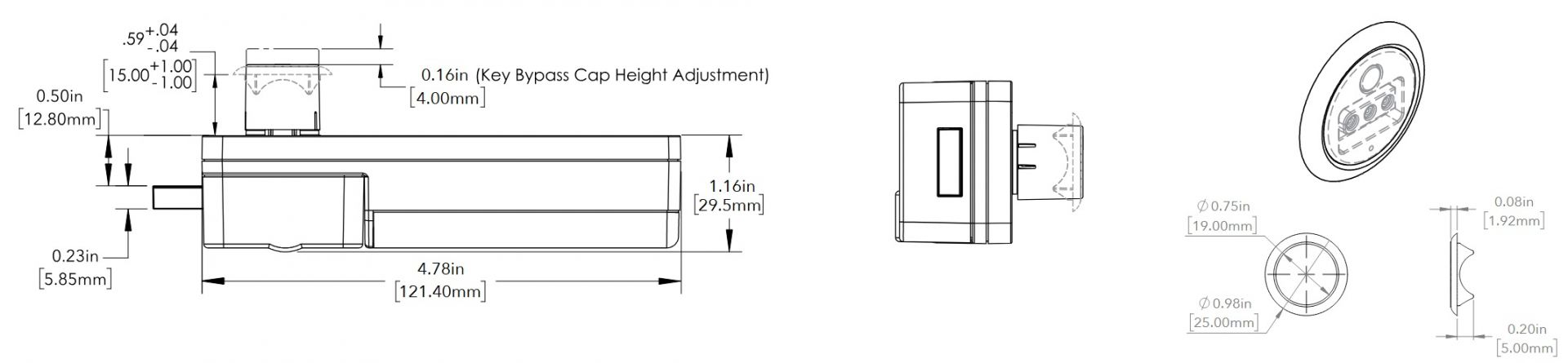

Top View | Side view | Bypass Trim
Technical data
| Technology | 13.56 MHz RFID + BLE (Bluetooth Low Energy) |
| RFID Standards | ISO 14443A/B, ISO 15693, HID™ iCLASS™, MIFARE® (Classic, Ultralight, DESFire EV1/EV2, Plus S), FeliCa, LEGIC Advant, HID™ SEOS™ |
| Housing | Key insert available in white / black |
| Functionality | Shared or assigned use |
| Management | DigiLink® cloud application |
| Locking mechanism | 12.7 mm (½") motorized deadbolt, multi-directional |
| Installation | Inside mount, adjustable key insert position |
| Door thickness | Up to 0.75" (19 mm) |
| Power supply | 4 × lithium 123A batteries |
| Additional features | Capacitive wake, auto unlock, LED + sound indicators, ADA compliant |
| Certifications | IP55, FCC, CE, IC |
| Colors | White / Black |
| Support | On-site updates, lifetime support |
| Warranty | 2 years |
