Karta katalogowa bramka wysoka BW-412 PL

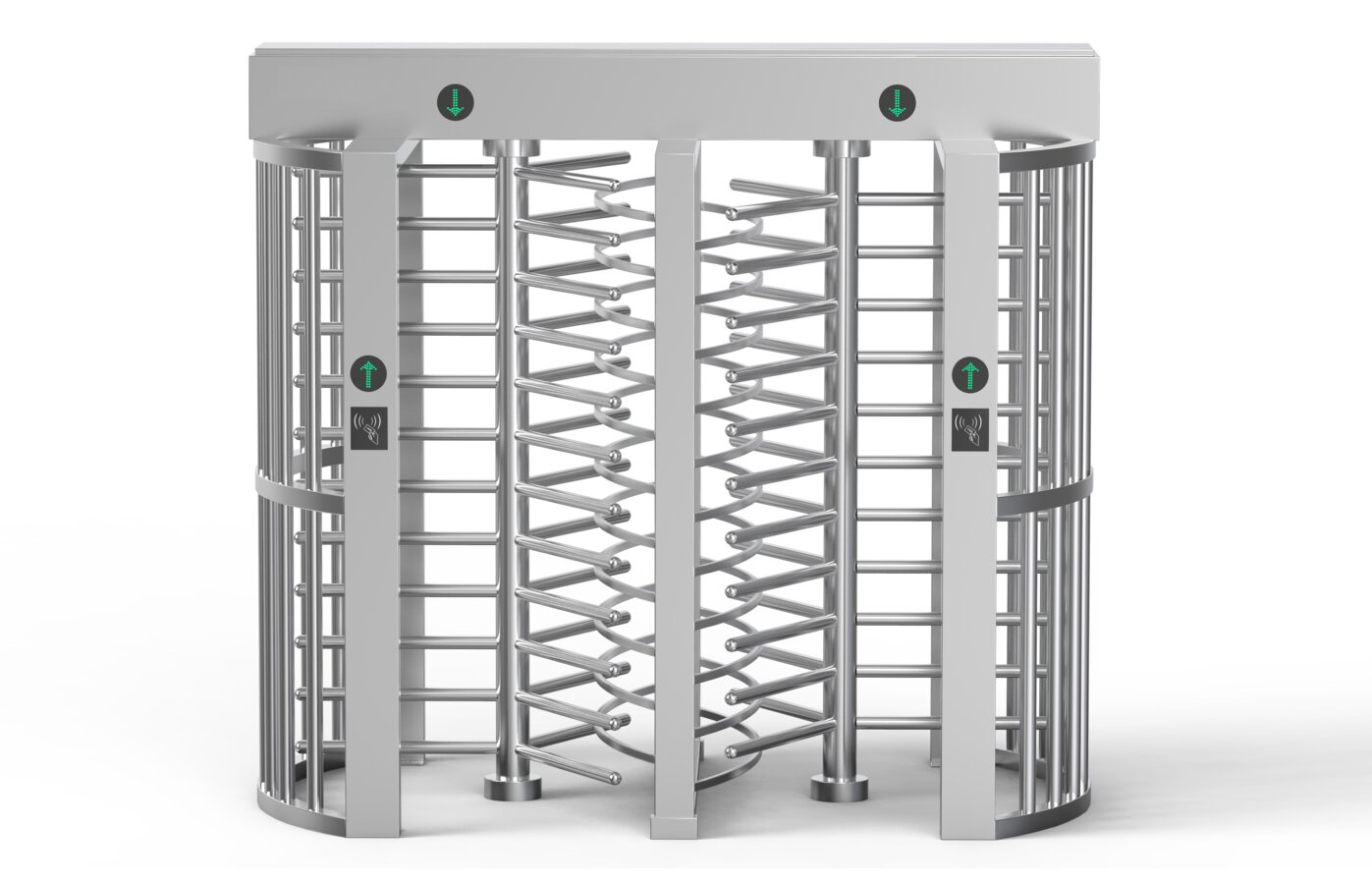

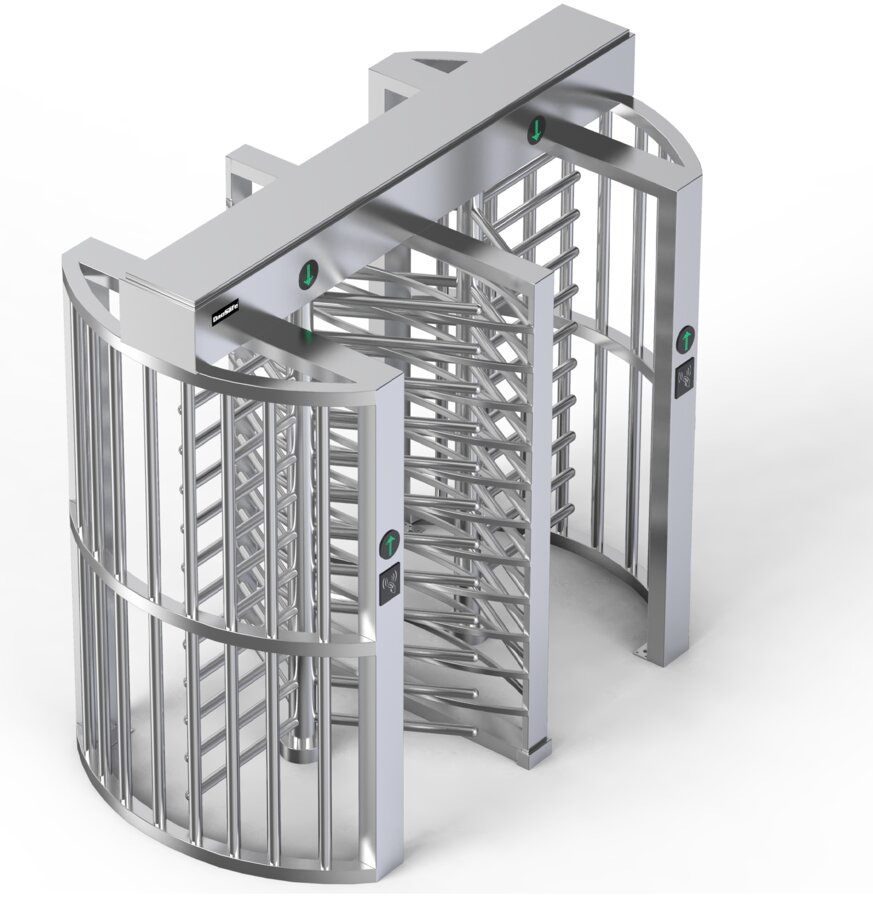

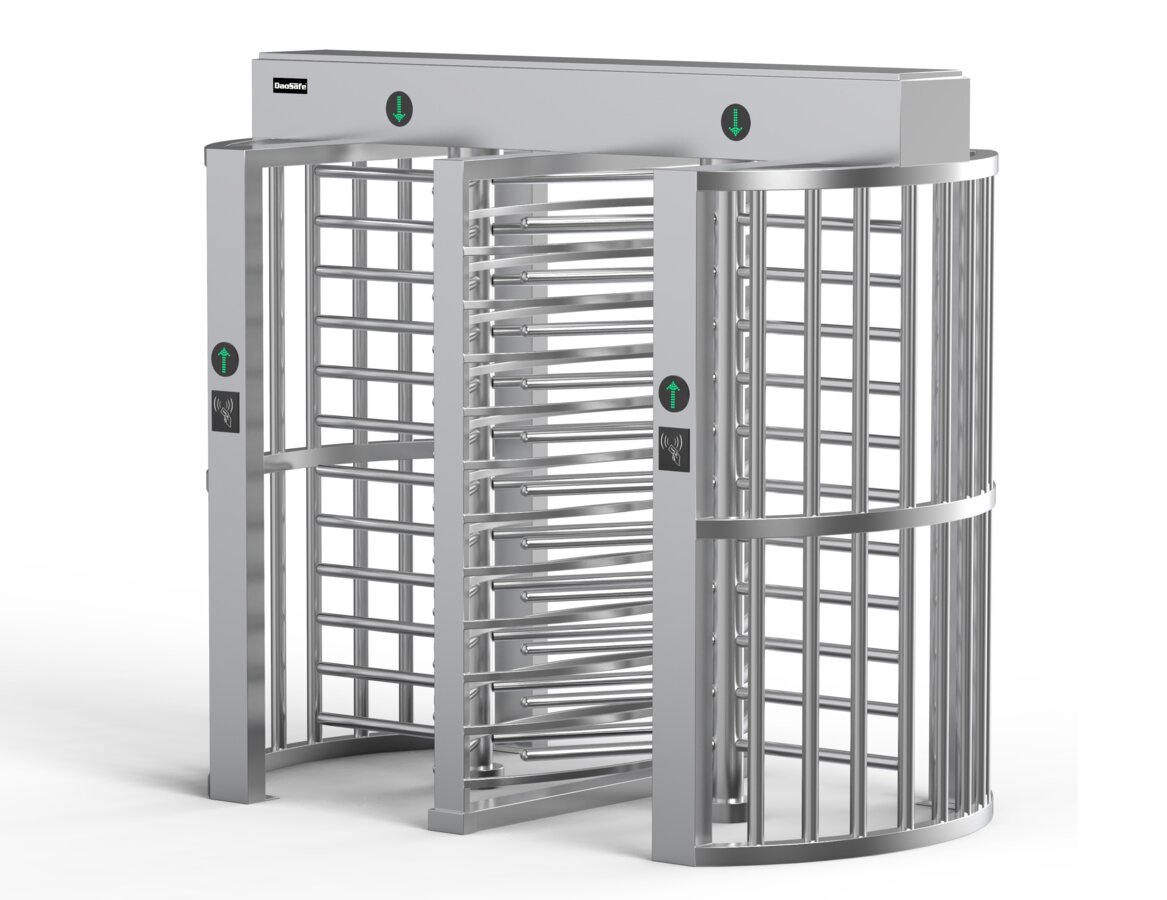

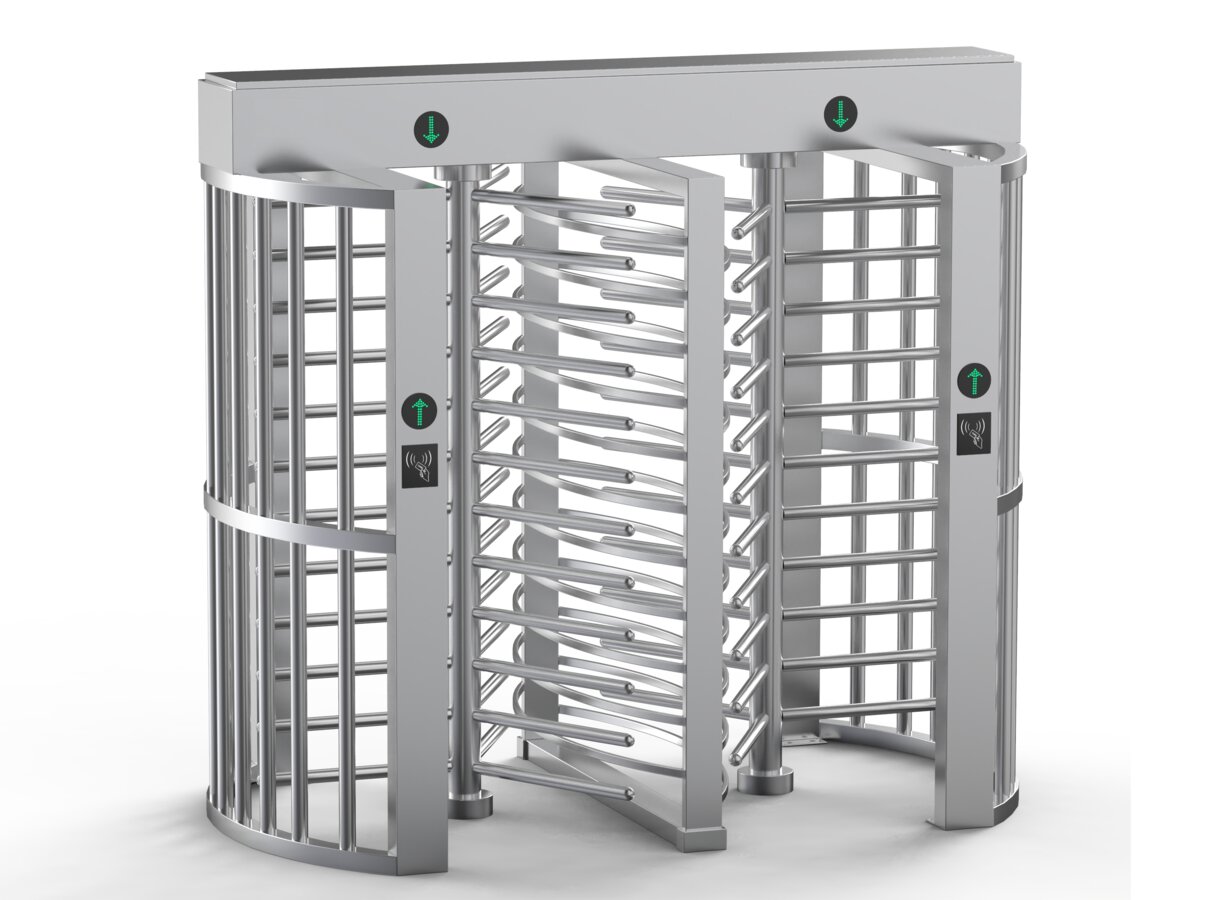

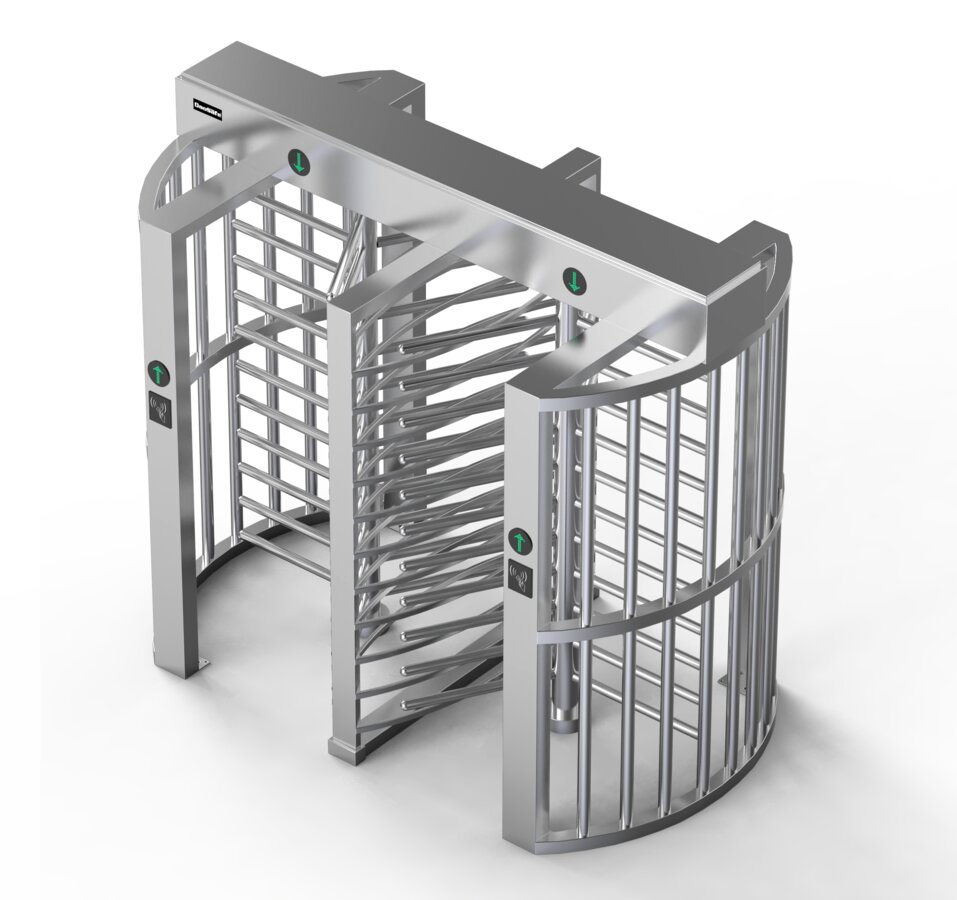

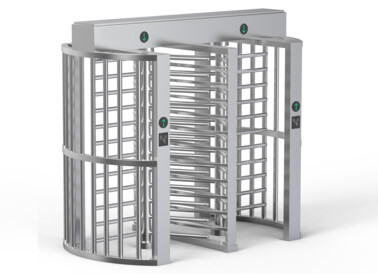

Double full height turnstile BW-412
Price 8413,20* € (23% VAT included)
6840,00* € net price
*price applies to the turnstile with semi-automatic drive
DESCRIPTION
The BW-412 turnstile is a device that provides high-quality access control even in the most crowded places such as stadiums, factories or companies. This model has two transition segments. Turnstile can work bidirectional.
PRODUCT MAIN FEATURES:
- Long lifetime and high reliability
- Mechanism is equipped in automatic, regulated hydraulic motor
- Low noise
- Automatic lock function (if a passing person does not pass the gate within 5 seconds (can be adjusted), the arms will be blocked
- Just one person can pass through the gate at one time
- Passage will be opened automatically in case of power failure

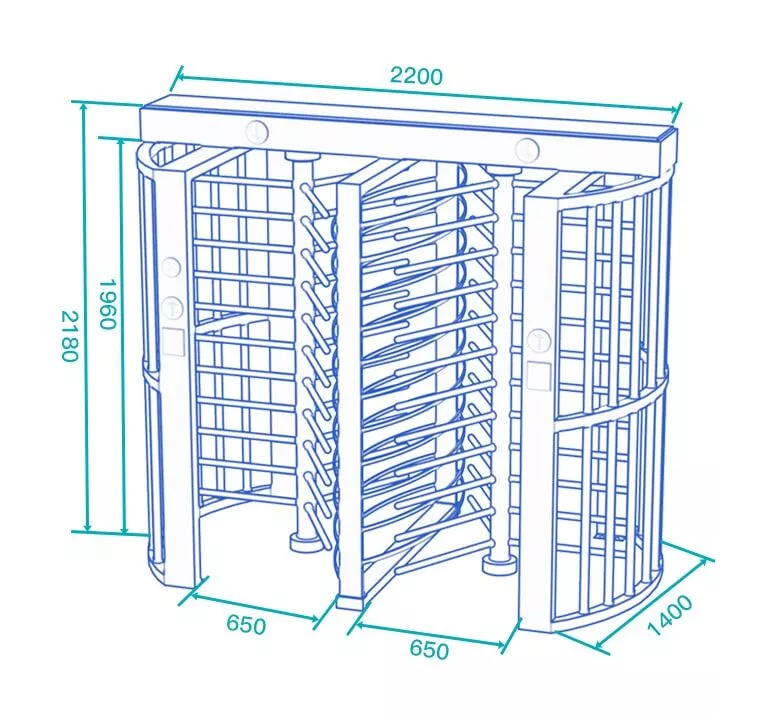

DIMENSIONS
TECHNICAL DATA
| Materials | Stainless steel 304 |
| Dimensions | 2200 * 1400 * 2180 mm |
| Weight | 320 kg |
| Passage width | 2 * 650 mm |
| Passage direction | Unidirectional / Bidirectional |
| Power supply | AC220V/110V, 50/60Hz |
| Operational voltage | 24V DC |
| Power consumption | 40W |
| Working temperature | -15°C - 60°C |
| Humidity | 95% |
| Throughput | 35-40 people per minute |
| Emergency function | Passage will be opened automatically in case of power failure |
| Communication | Dry contact, relay signal, RS485 |
