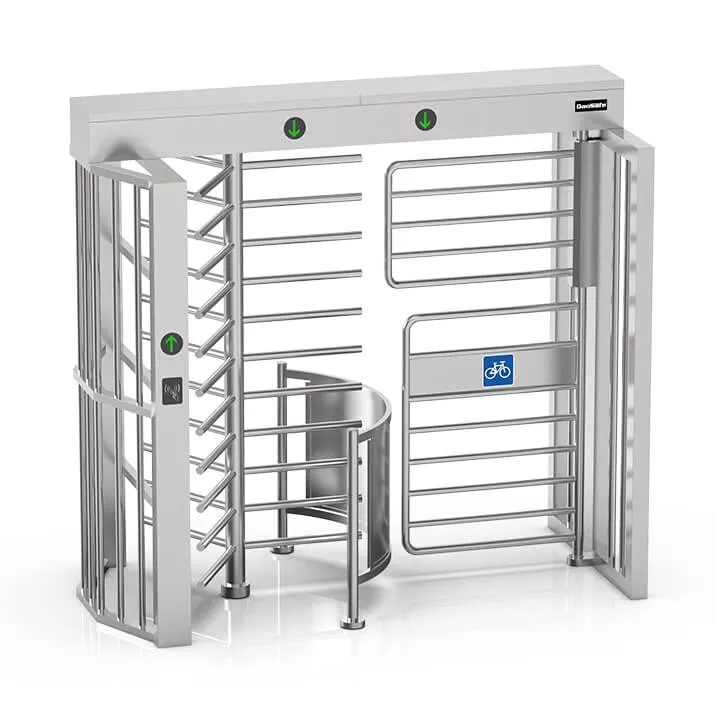

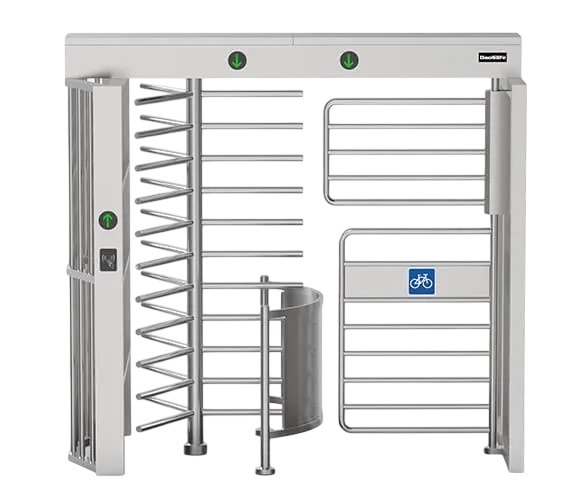

Full height turnstile BW-409
Price 7970,40* € (23% VAT included)
6480,00* € net price
*price applies to the turnstile with semi-automatic drive
DESCRIPTION
The BW-409 is a full-height turnstile with a dedicated bicycle access gate, designed for facilities requiring high-level security and controlled pedestrian flow. Manufactured entirely from 304 stainless steel, it is suitable for both indoor and outdoor installations and heavy-duty operation. The turnstile provides anti-tailgating protection, automatic arm release during power failure (fire safety compliant), and seamless integration with access control systems.
PRODUCT MAIN FEATURES:
-
Full-height turnstile with dedicated bicycle access gate
-
Passage width: 600 mm for pedestrians and 900 mm for bicycles
-
304 stainless steel construction for indoor and outdoor use
-
Smooth and silent operation with hydraulic buffering
-
Anti-tailgating – one person per cycle
-
Clear LED indicators for access status
-
Integration with RFID, biometric, QR, and peripheral devices

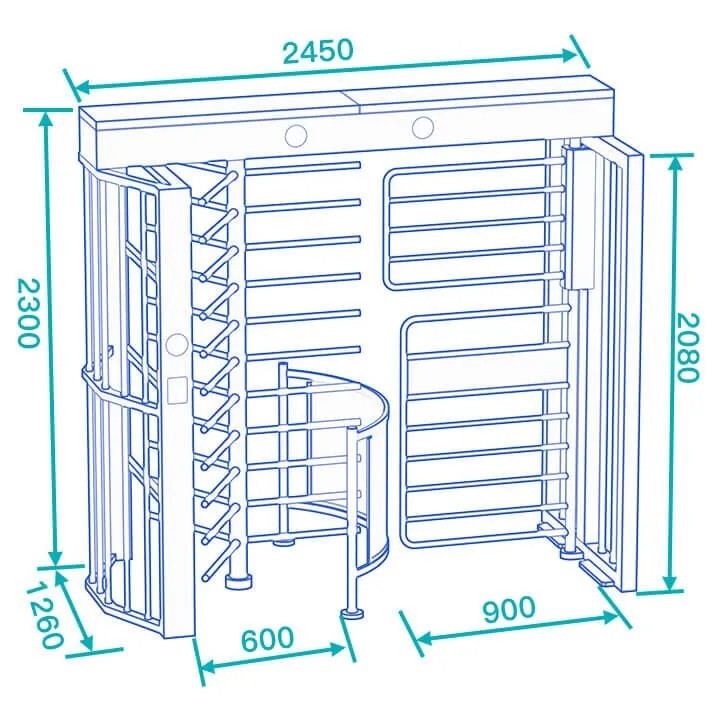

DIMENSIONS
TECHNICAL DATA
| Framework Material | 304 Full Stainless Steel |
| Dimensions (L×W×H) | 2450 × 1260 × 2300 mm |
| Weight | 380 kg / pc |
| Passage Width | 600 mm / lane (pedestrian), 900 mm / lane (bicycle) |
| Arm Support | 120° rotors with 3 sections |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 10 million cycles |
| Power Supply | AC 220V / 110V, 50/60 Hz |
| Operating Voltage | 24 V DC |
| Power Consumption | 40 W |
| Operating Temperature | –15 °C to +60 °C |
| Operating Humidity | 0–95% (no freeze) |
| Working Environment | Indoor / Outdoor with solid rain protection roof |
| Flow Rate | Up to 30 people per minute |
| LED Indicator | Yes |
| Emergency Mode | Automatic arm open when power off |
| Communication | Dry contact, relay signal, RS485 |
