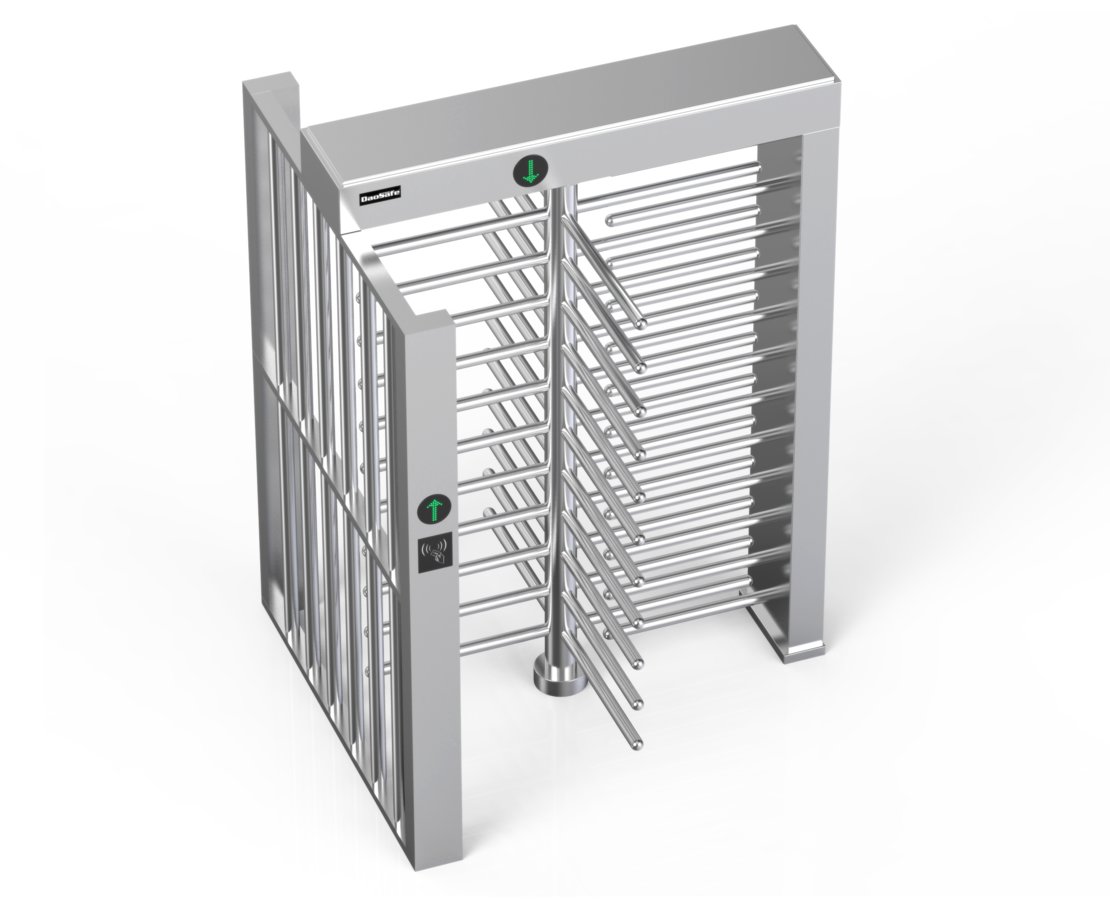

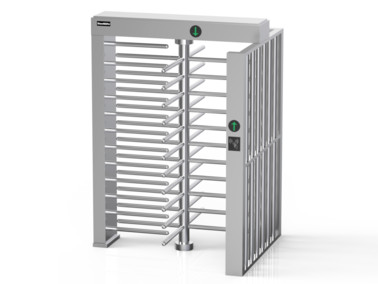

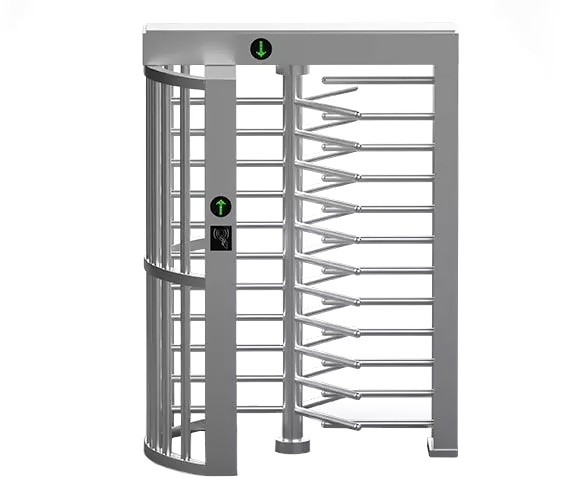

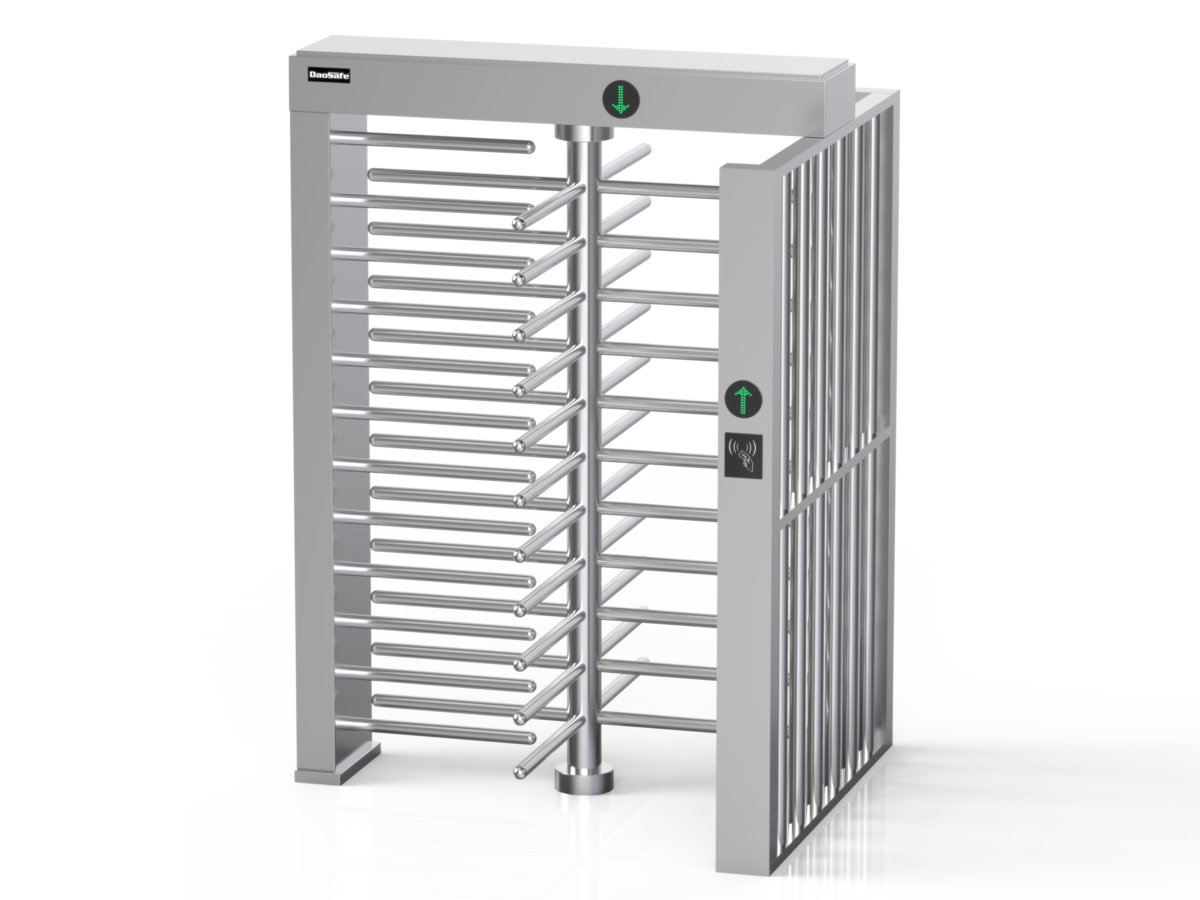

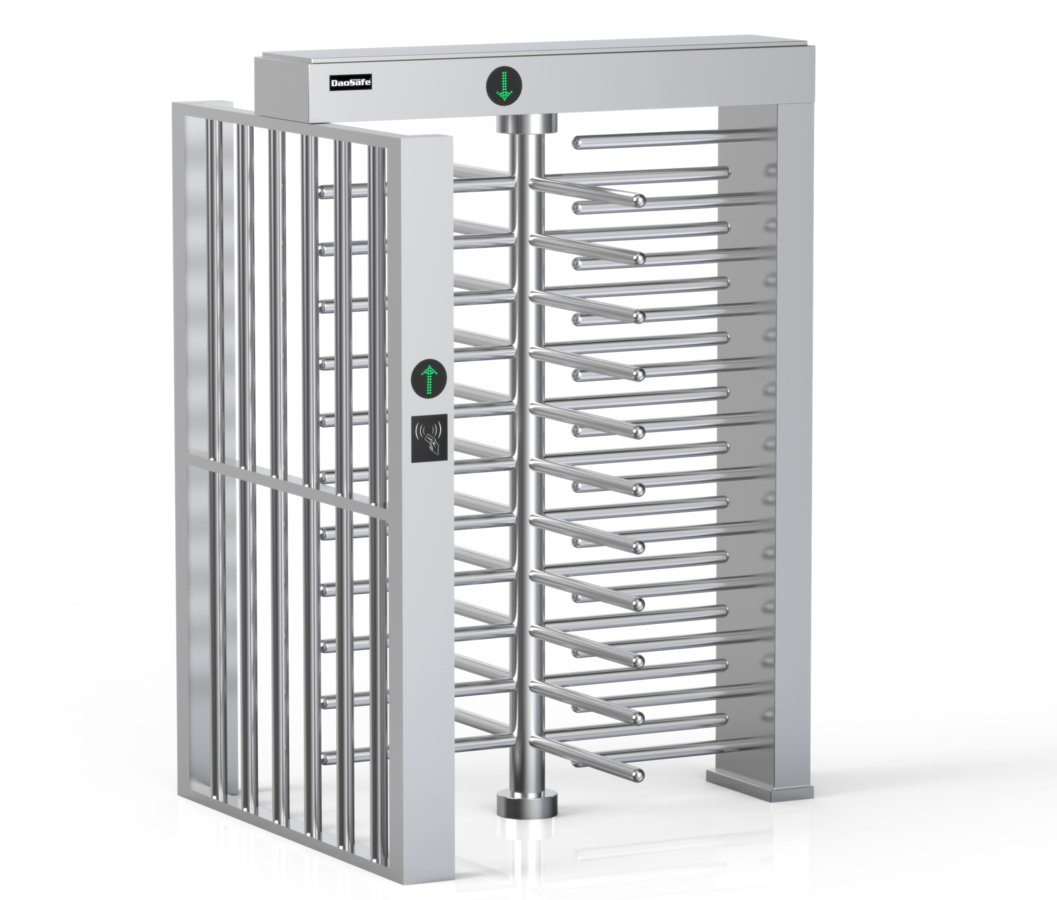

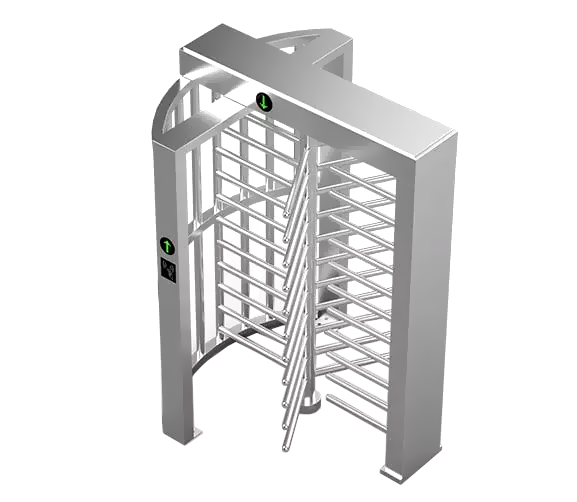

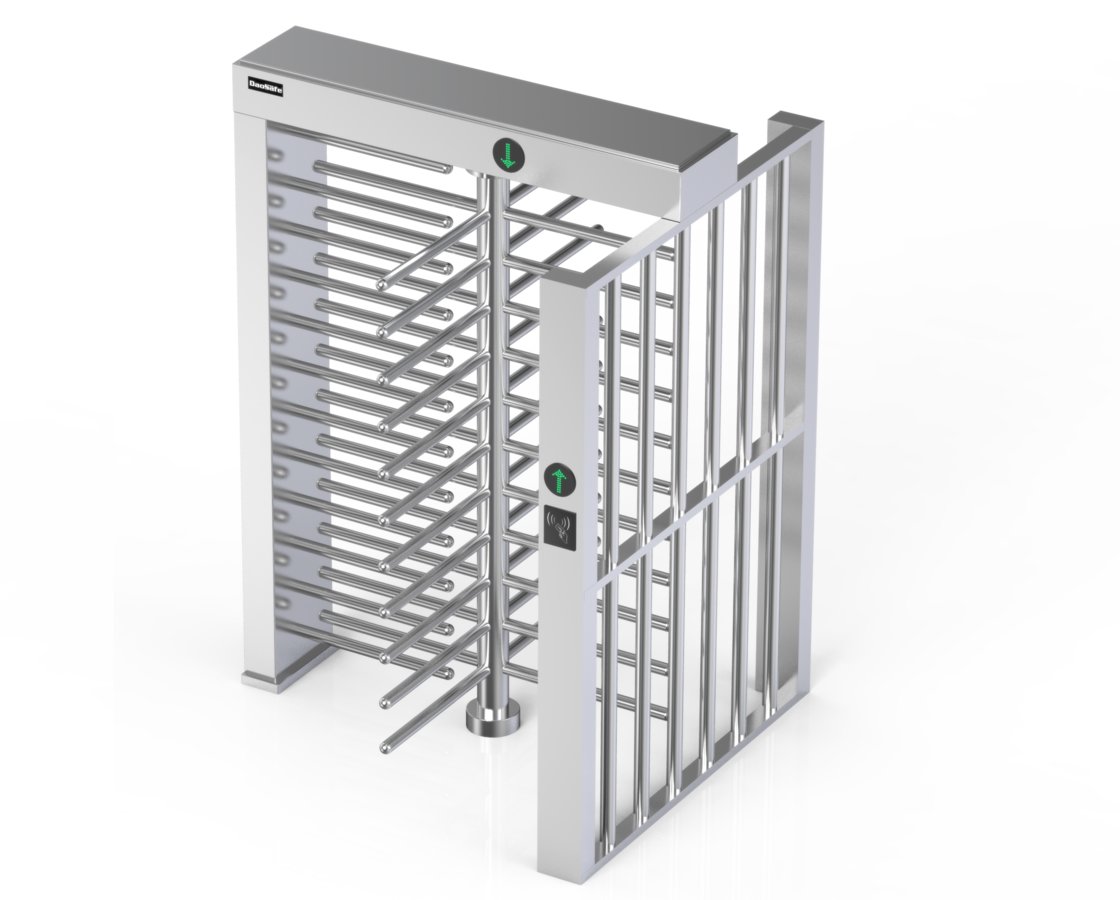

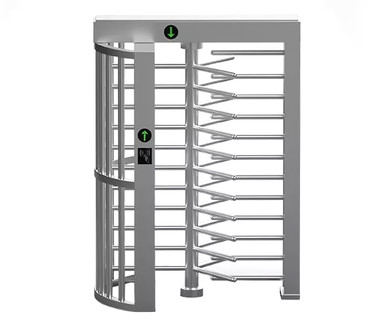

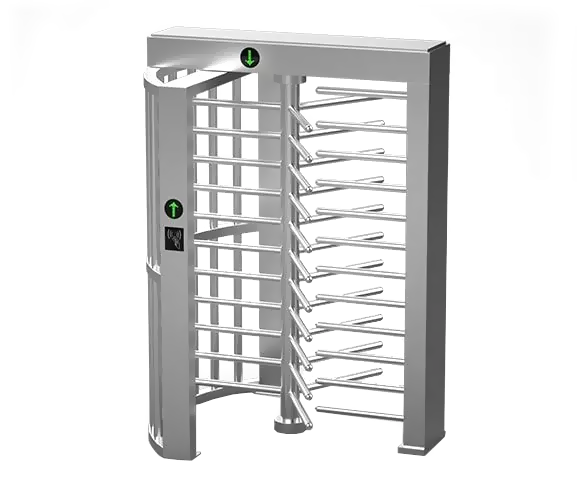

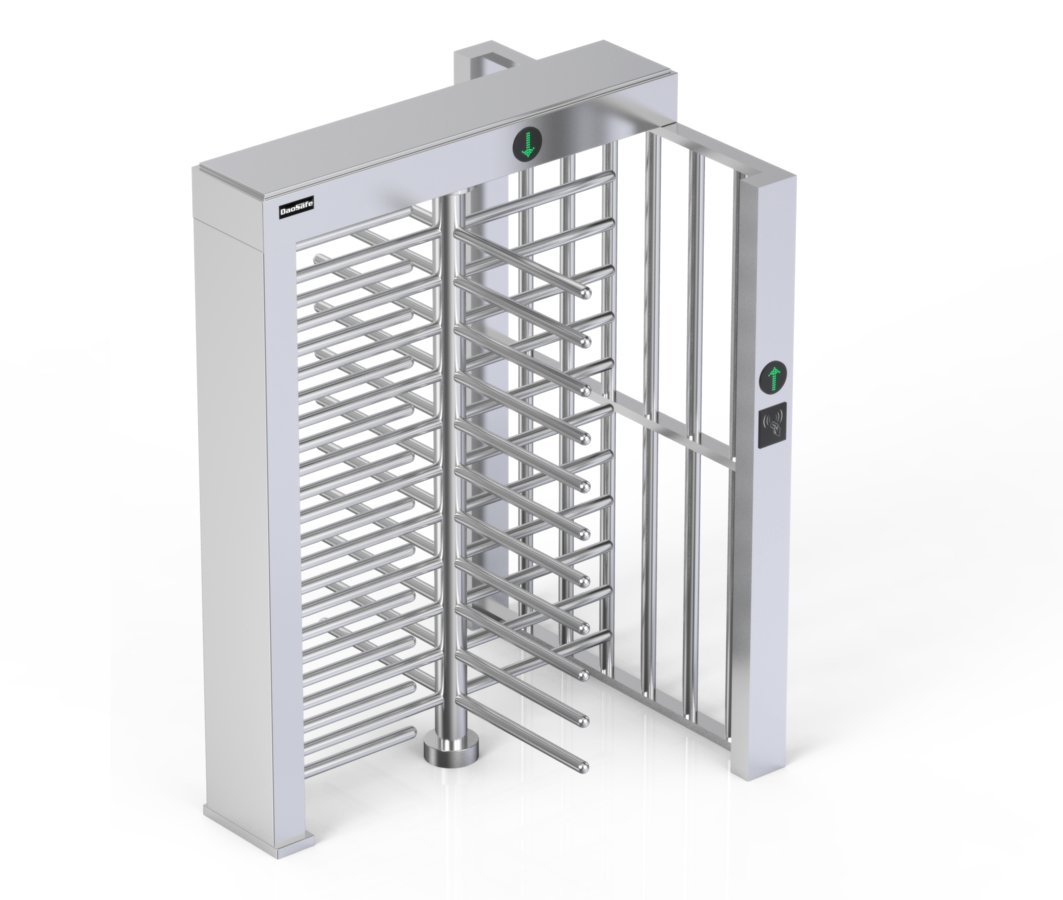

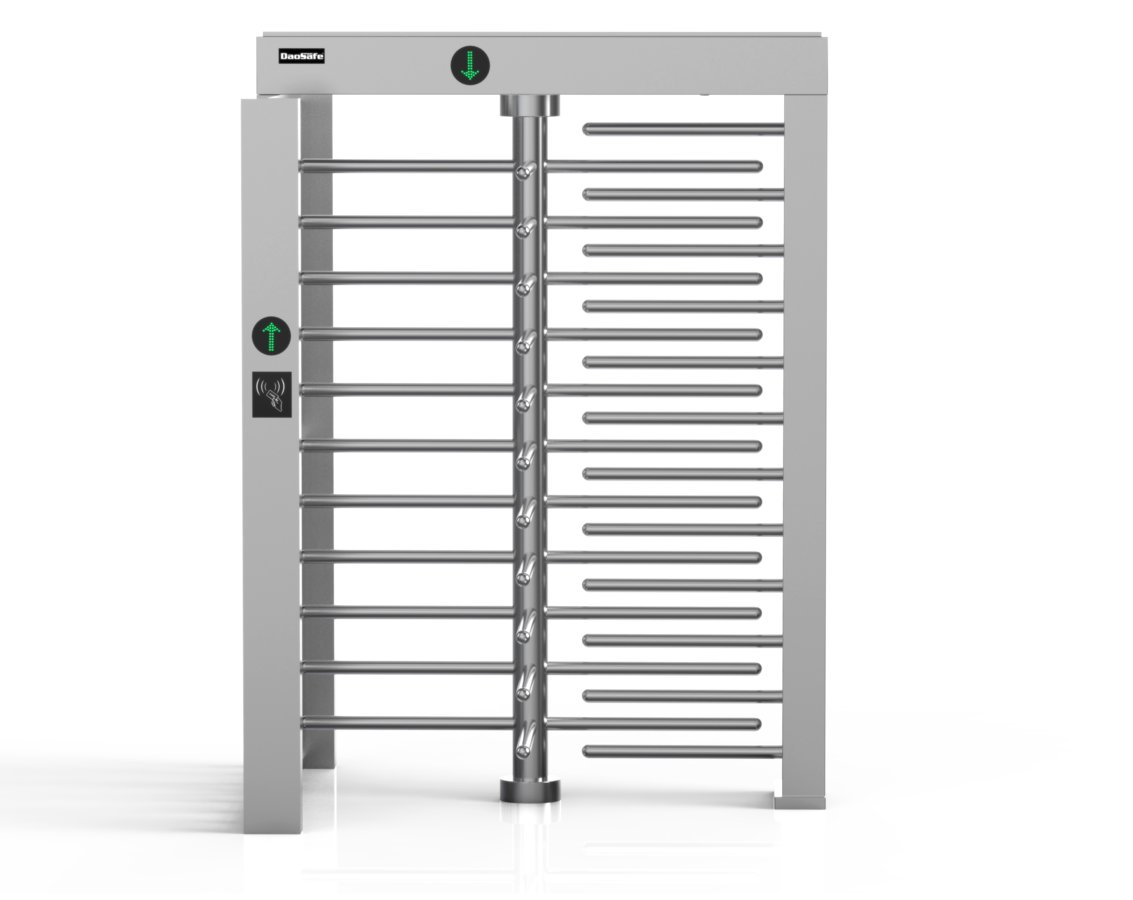

Full height turnstile BW-411



Price 7761,30* € (23% VAT included)

                6310,00* € net price

*price applies to the turnstile with semi-automatic drive



Ask for a product



DESCRIPTION


Product main features:

  • High gate ensuring the highest level of access control security
  • The gate body is made of stainless steel, which is durable, corrosion-resistant, waterproof and durable
  • Compatible with any access control system
  • Works with any device (e.g. display, counter, reader)
  • In the event of a failure, the gate opens automatically to allow passage when the power is turned off
  • Anti-congestion feature - only one person can pass at a time
  • Suitable for high security areas. (e.g .: embassy, ​​stadium, bank, prison, oil field, construction site, station)
  • Can work bidirectional
  • The gate is equipped with LED diodes showing whether the user can pass or not
  • It is suitable for both outside and inside





Dimensions



Technical data

Dimensions 1460*1250*2180mm
Material Stainless steel 304
Arms 120 ° rotors with 3 sections or 90 ° rotors with 4 sections
Net weight 200 kg
Passage width 650mm
Passage direction Optional: one-way or two-way
Power supply AC220V/110V, 50/60Hz
Voltage 24V DC
Energy consumption 40W
Working temperature -15°C up to 60°C
Working humidity 0-95%
Working environment External/Internal
Troughput 35-40 persons per minute
Emergency opening Automatic lowering of the arms after disconnecting the power supply
Communication Dry Contact, Relay Signal, RS485
