Sensor Gate BS-DSQ30
Price 5670,30 € (23% VAT included)
4610,00 € net price
DESCRIPTION

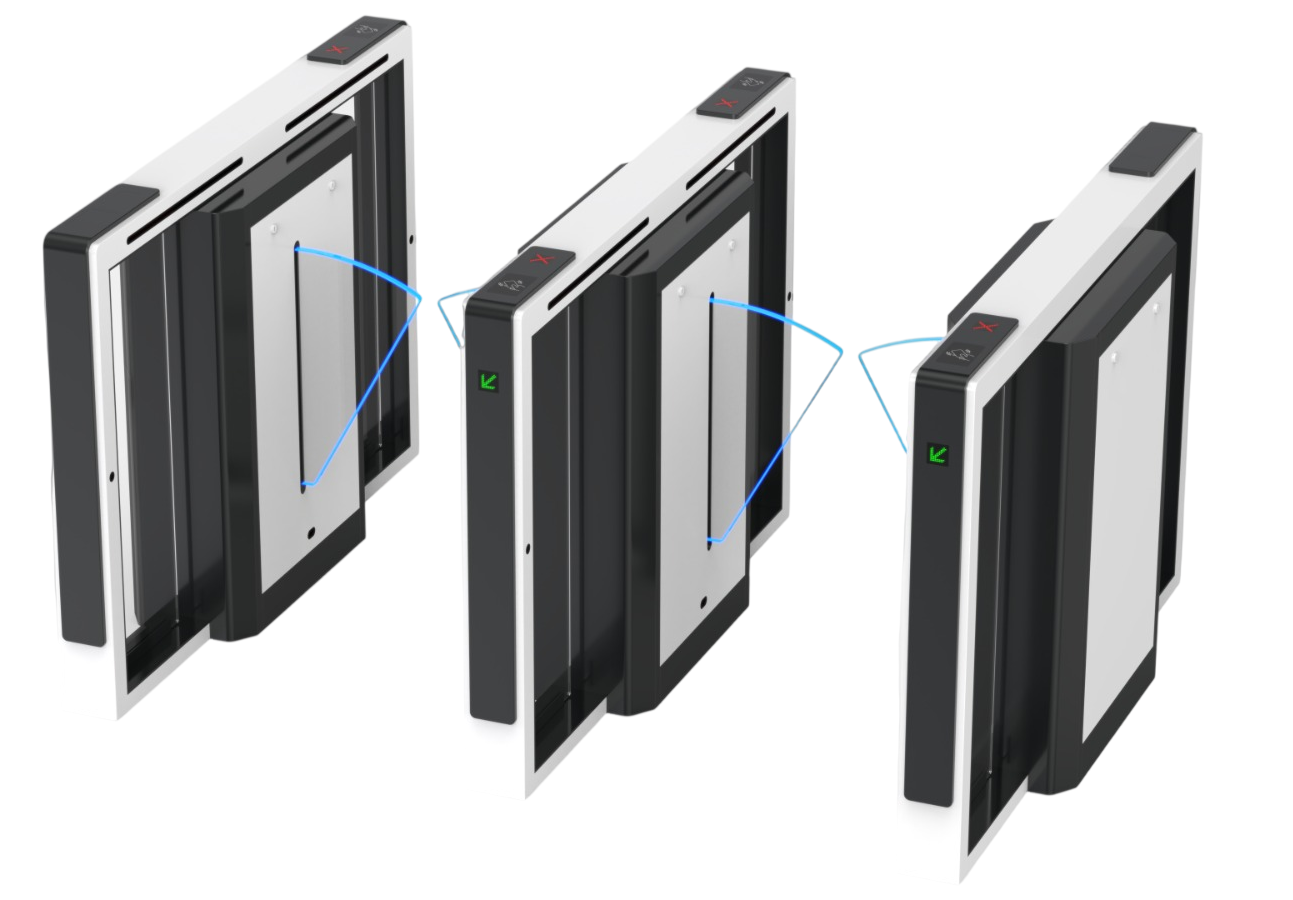

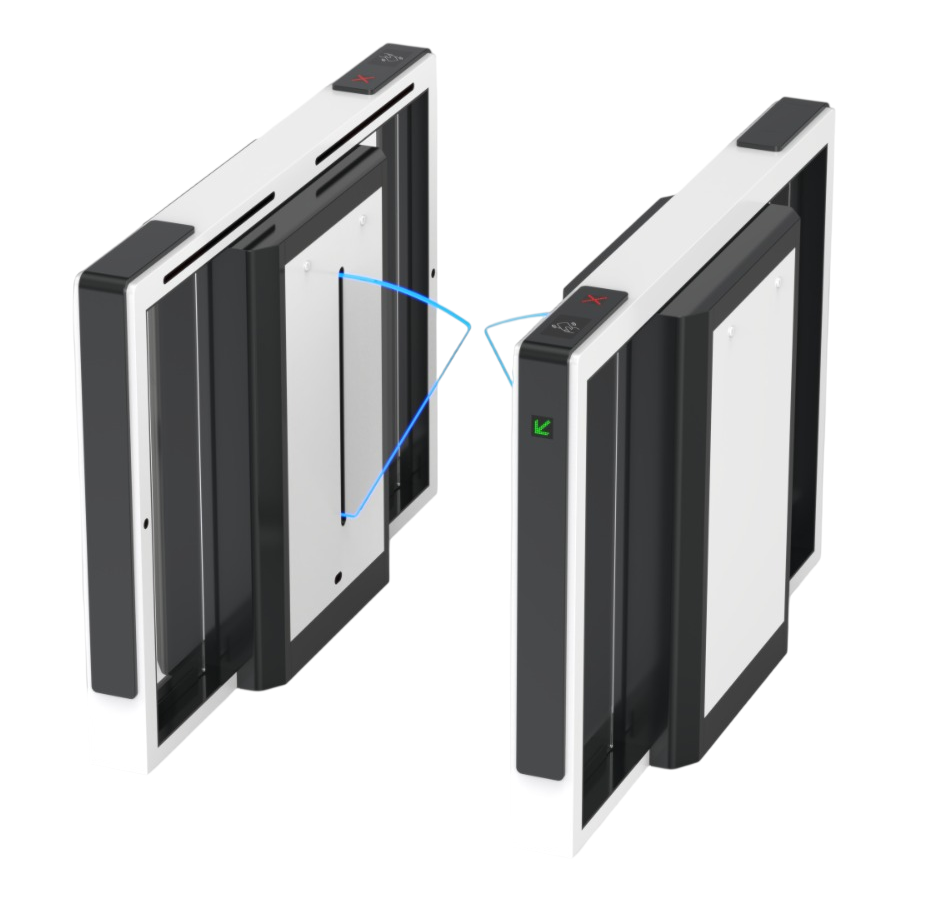

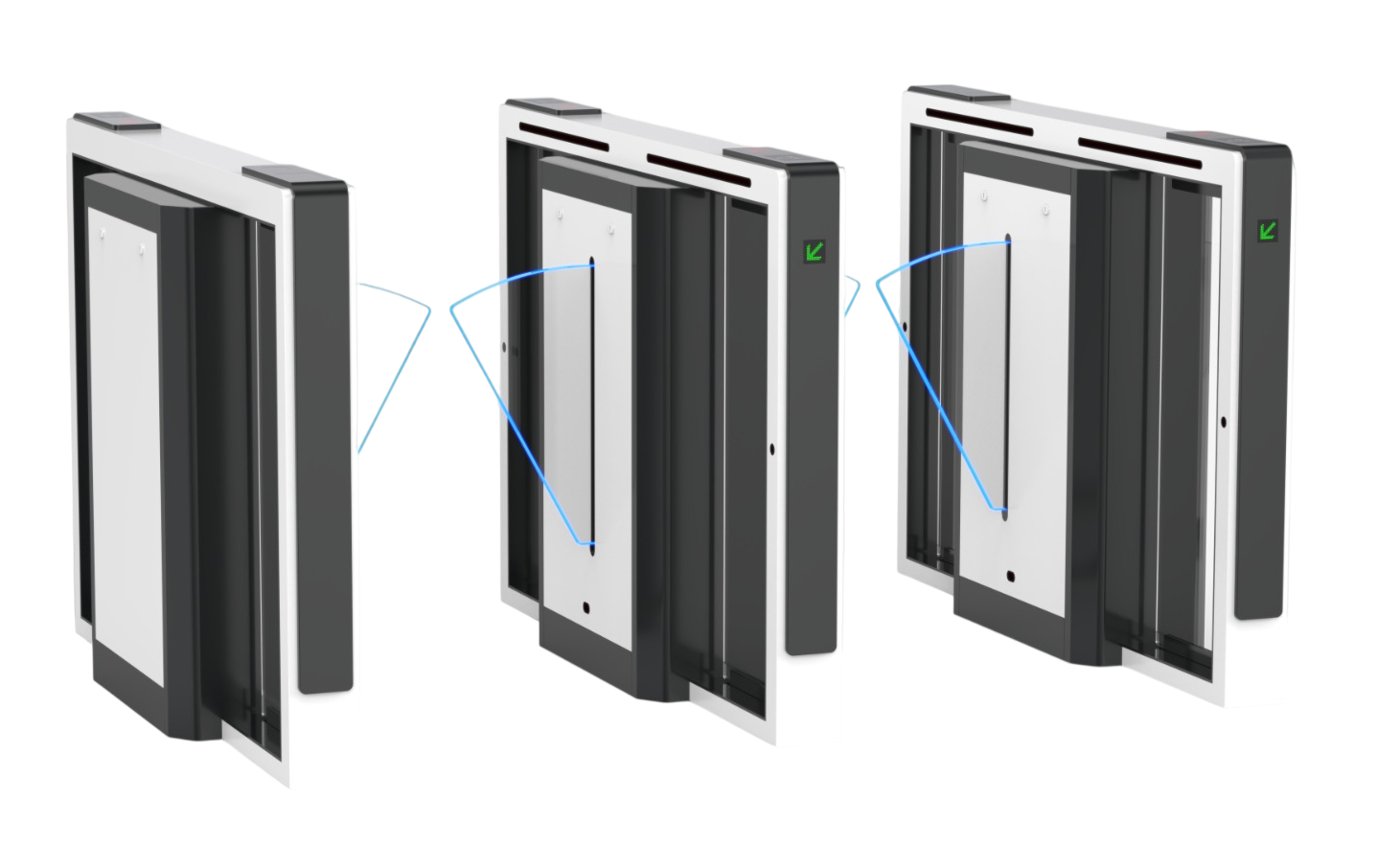

The BS-DSQ30 sensory gate (DS-Q30 Quantum) is a highly robust and reliable optical flap turnstile designed for locations with extremely high pedestrian traffic, such as metro stations, transport hubs, and office buildings. It delivers smooth and quiet operation, a throughput of up to 45 persons per minute, and a high level of safety ensured by advanced infrared sensors. Its classic black-and-white design gives the gate a timeless and elegant appearance, perfectly suited for modern, high-end environments.
PRODUCT MAIN FEATURES:
-
High throughput: up to 45 persons per minute
-
Extremely durable construction for heavy-duty operation
-
Smooth and quiet movement without mechanical impact
-
LED indicators (green / red) showing passage status
-
Automatic flap opening in emergency situations (fire safety compliant)
-
Selectable single-direction or bi-directional operation
-
Integration with all types of access control systems
DIMENSIONS
TECHNICAL DATA
| Framework Material | Steel with white and black stoving varnish |
| Swipe Card Panel Material | Tempered glass |
| Arm Material | Plexiglas (transparent) |
| Dimensions (L×W×H) | 1400 × 280 × 978 mm |
| Weight | 65 kg / pc |
| Passage Width | 550 mm |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 12 million cycles |
| Power Supply | AC 220V / 110V, 50/60 Hz |
| Operating Voltage | 24 V DC |
| Power Consumption | 20 W |
| Operating Temperature | –20 °C to +75 °C |
| Operating Humidity | 0–95% (no freeze) |
| Working Environment | Indoor / Outdoor |
| Flow Rate | 45 people per minute |
| Infrared Sensors | 7 pairs (standard) |
| LED Indicator | Yes |
| Emergency Mode | Arms open automatically |
| Communication | Dry contact, relay signal, RS485 |
