Sensor Gate BS-DSQ70H
Price 7490,70 € (23% VAT included)
6090,00 € net price
DESCRIPTION

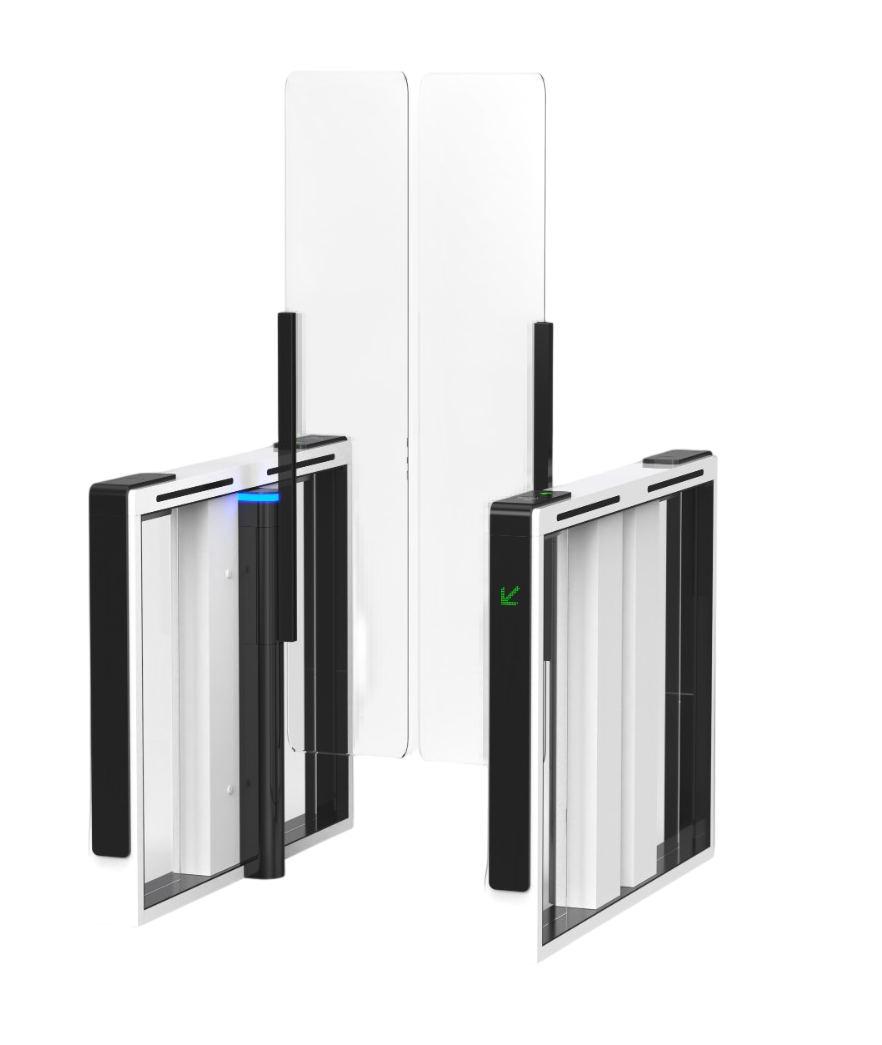

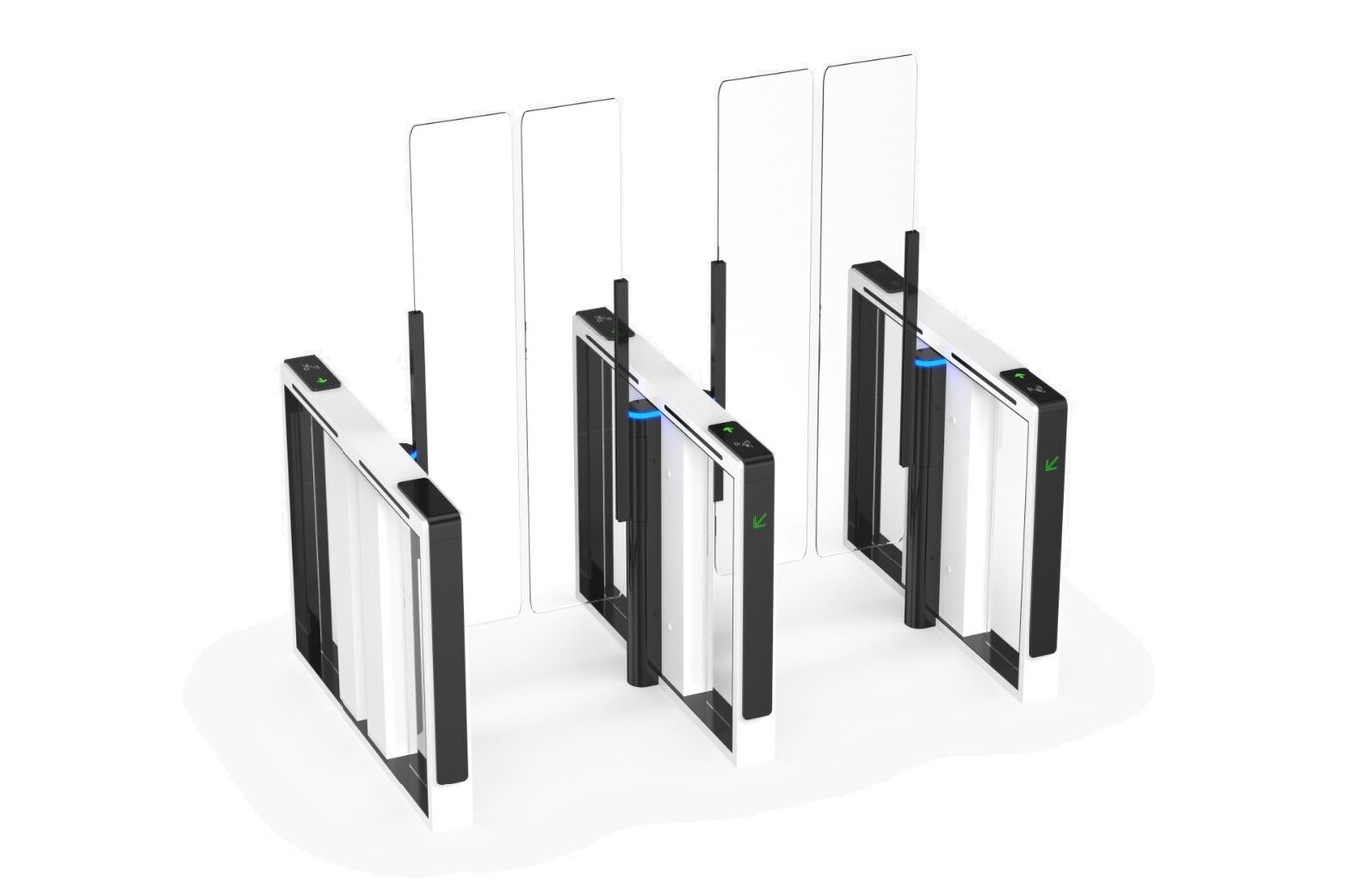

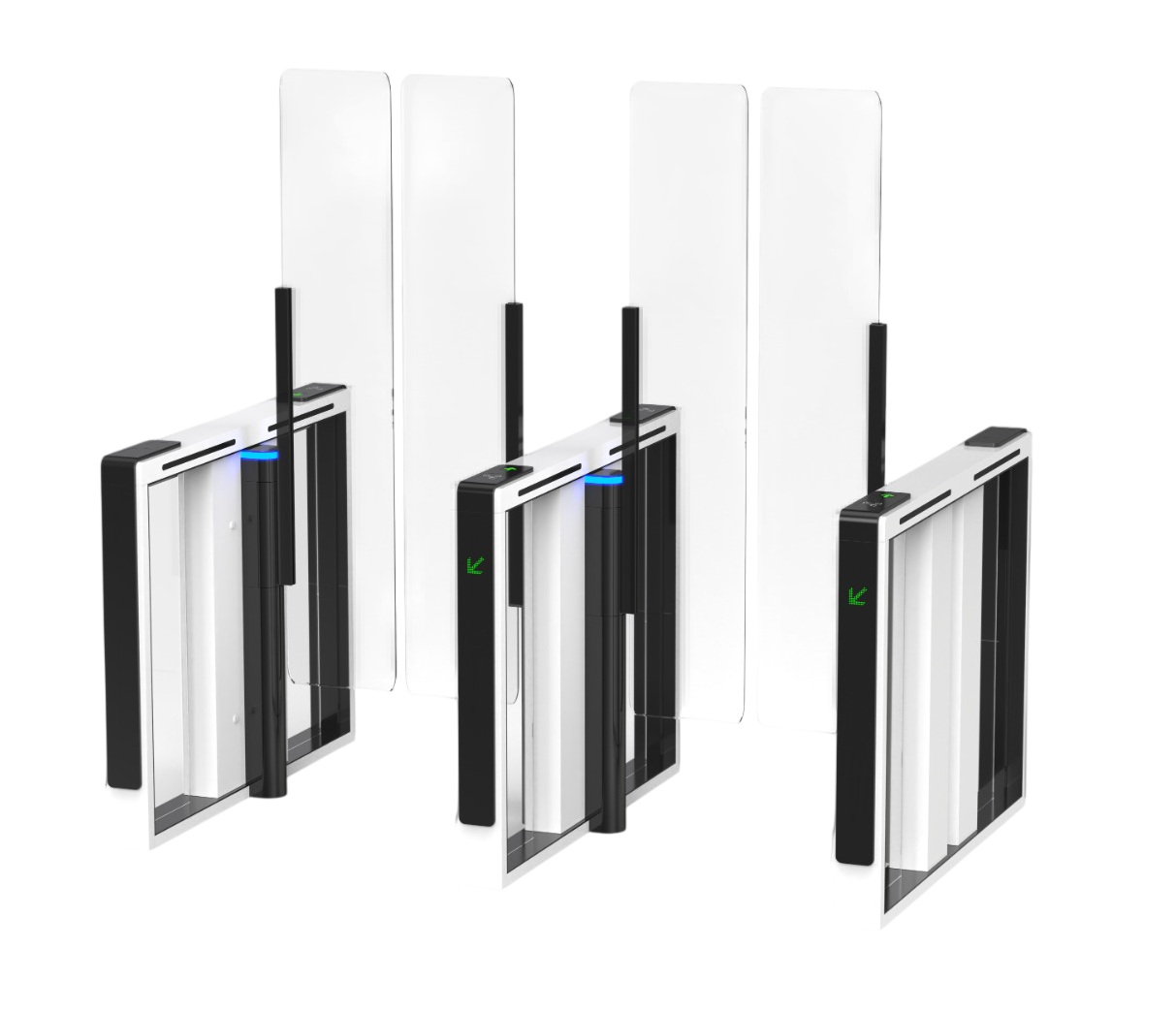

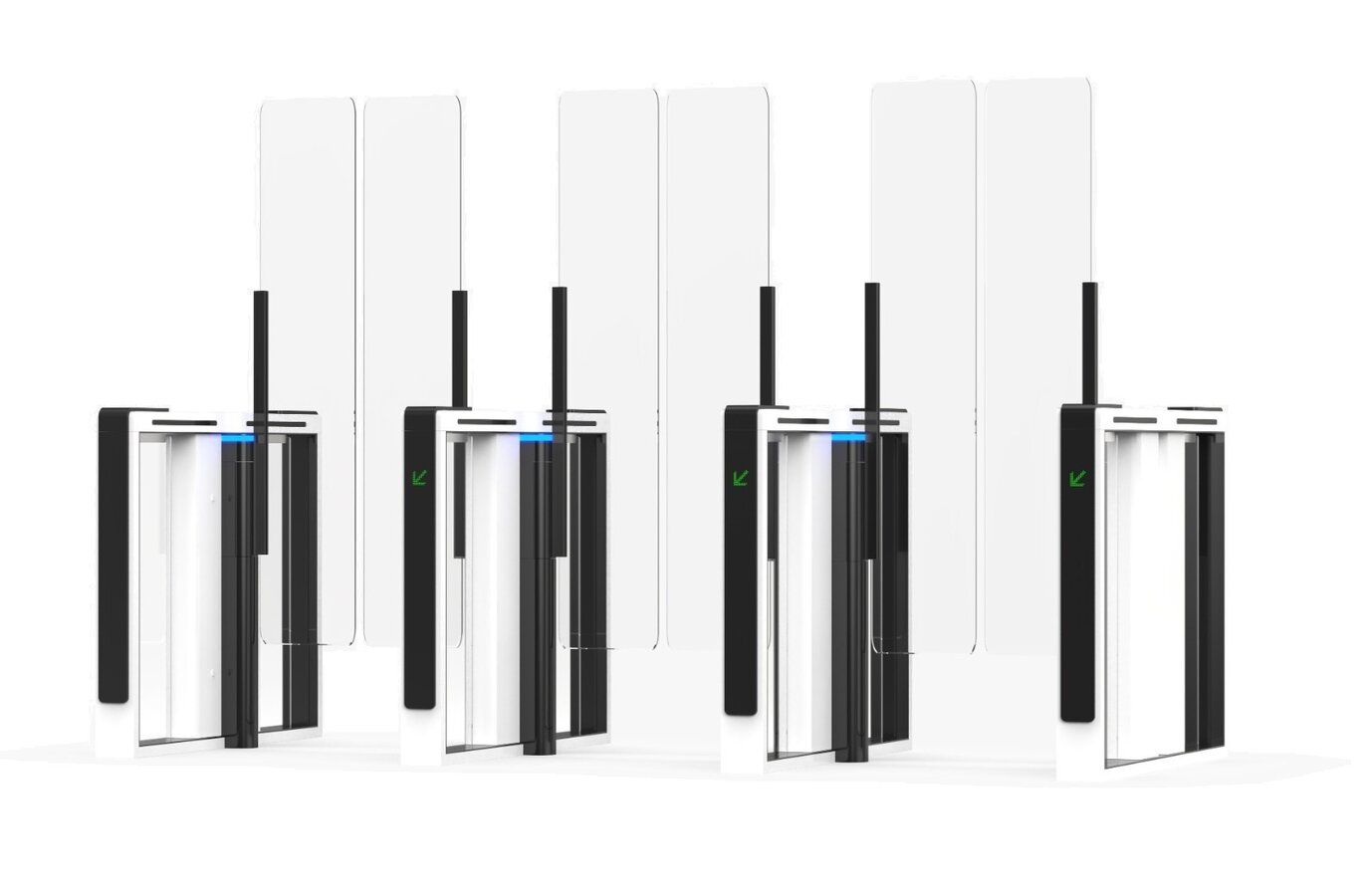

The BS-DSQ70H sensory gate (DS-Q70 Quantum) is one of the fastest speed gates available on the market, designed for locations with extremely high pedestrian traffic. With an opening and closing speed of just 0.2 seconds and a throughput of up to 45 persons per minute, it ensures smooth and efficient access control. The adjustable passage width from 600 to 1100 mm allows comfortable access for wheelchair users and pedestrians with large luggage. Its timeless black-and-white design makes it an ideal solution for high-end applications.
PRODUCT MAIN FEATURES:
-
Ultra-fast opening and closing speed – 0.2 seconds
-
High throughput: up to 45 persons per minute
-
Wide passage from 600 to 1100 mm for wheelchairs and luggage
-
Elegant, timeless black and white appearance
-
Green and red LED indicators showing passage status
-
Automatic arm opening in case of power failure (fire safety compliant)
-
Seamless integration with all types of access control systems
TECHNICAL DATA
| Framework Material | Steel with black or white stoving varnish |
| Card Reader Panel Material | Tempered glass |
| Arm Material | Transparent plexiglass |
| Dimensions (L×W×H) | 1400 × 120 × 978 mm |
| Weight | ~75 kg / unit |
| Passage Width | 600–1100 mm |
| Arm Height | 900–1800 mm |
| Passing Direction | Single-directional or bi-directional |
| MCBF | 15,000,000 cycles |
| Power Supply | AC 220V / 110V, 50/60 Hz |
| Operating Voltage | 24 V DC |
| Power Consumption | 20 W |
| Operating Temperature | -20°C to +75°C |
| Operating Humidity | 0–95% (non-condensing) |
| Working Environment | Indoor / outdoor |
| Flow Rate | Up to 45 people/min |
| Infrared Sensors | 6 pairs (standard) |
| LED Indicator | Yes |
| Emergency Mode | Automatic arm opening |
| Communication | Dry contact, relay signal, RS485 |
