Karta katalogowa bramka sensoryczna BS-DS9000 PL
Speedgate BS-DS9000
Price 6334,50 € (23% VAT included)
5150,00 € net price
DESCRIPTION

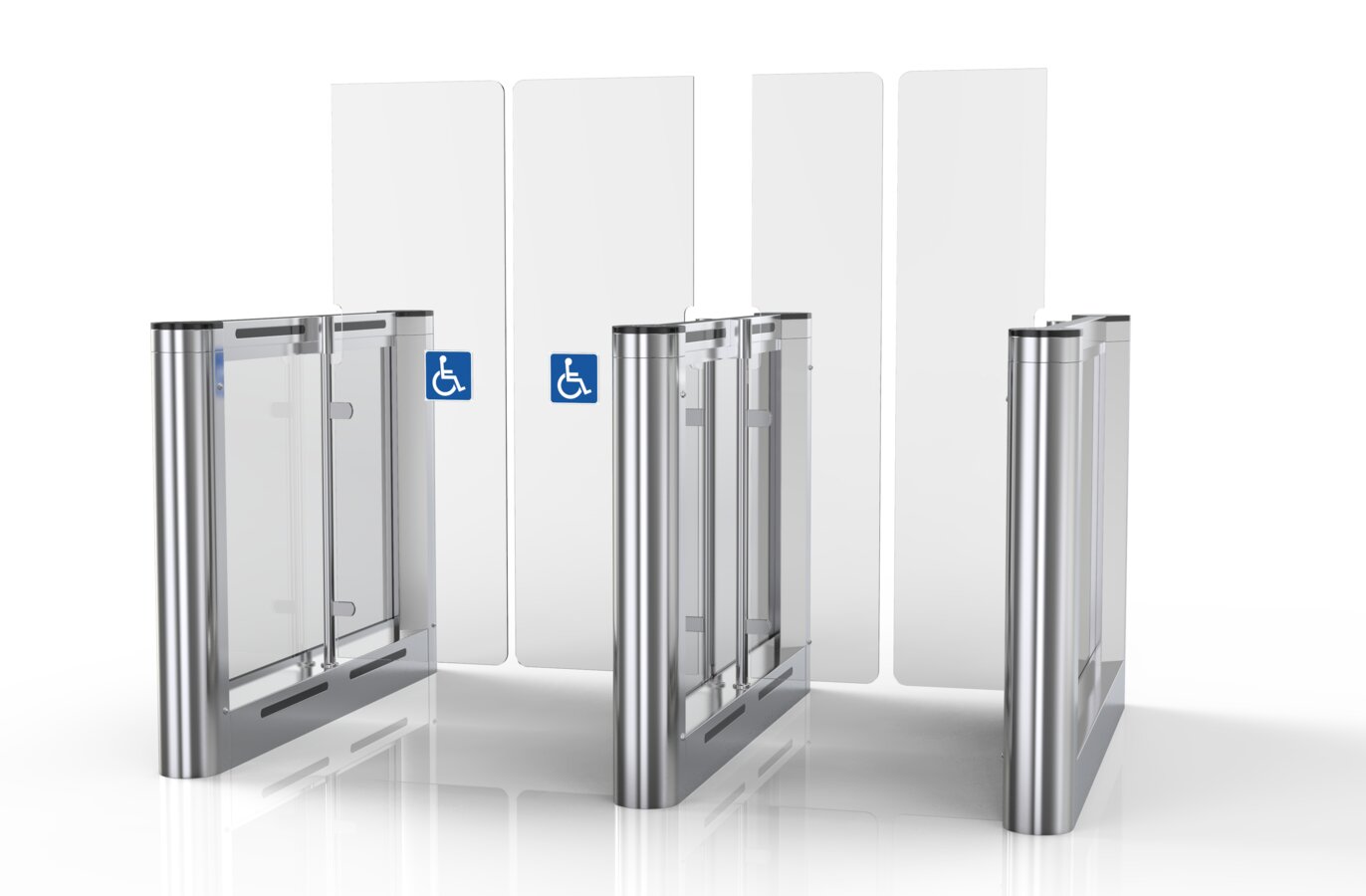

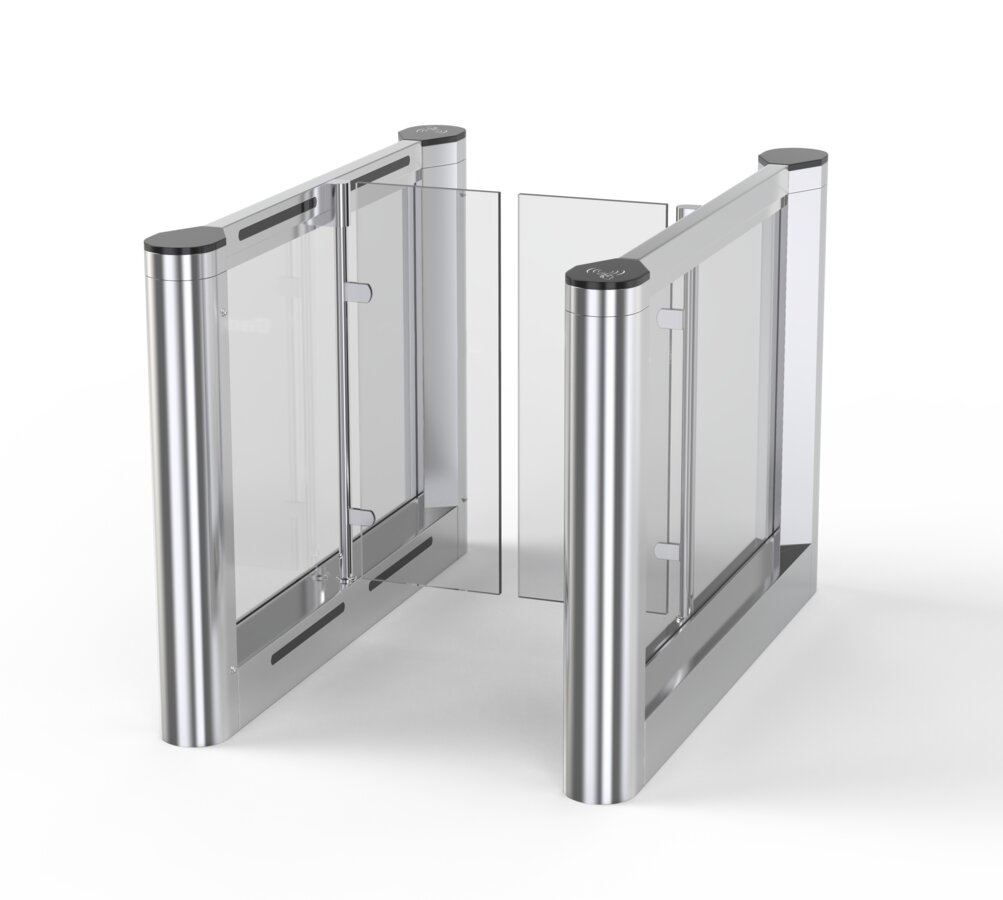

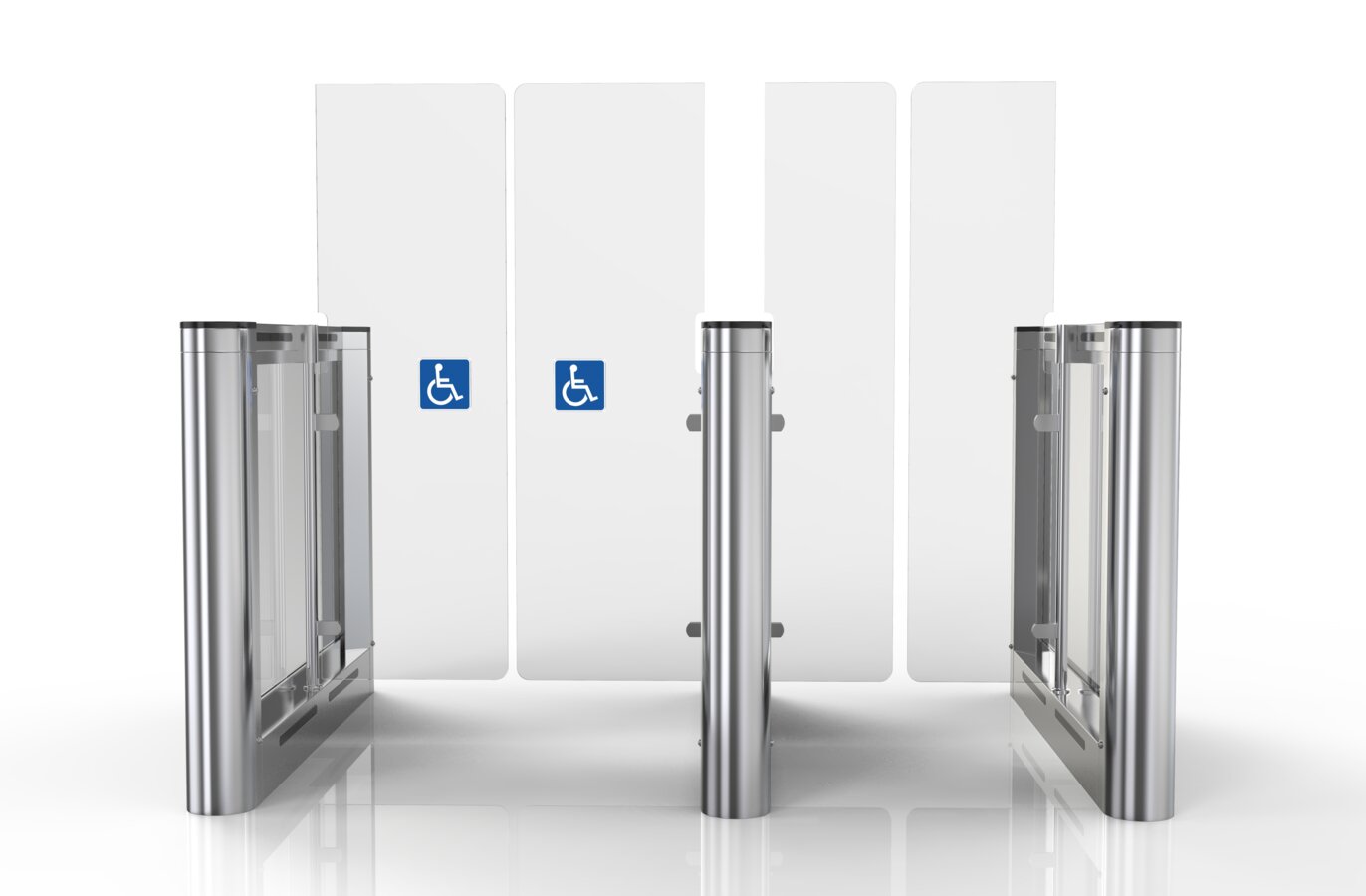

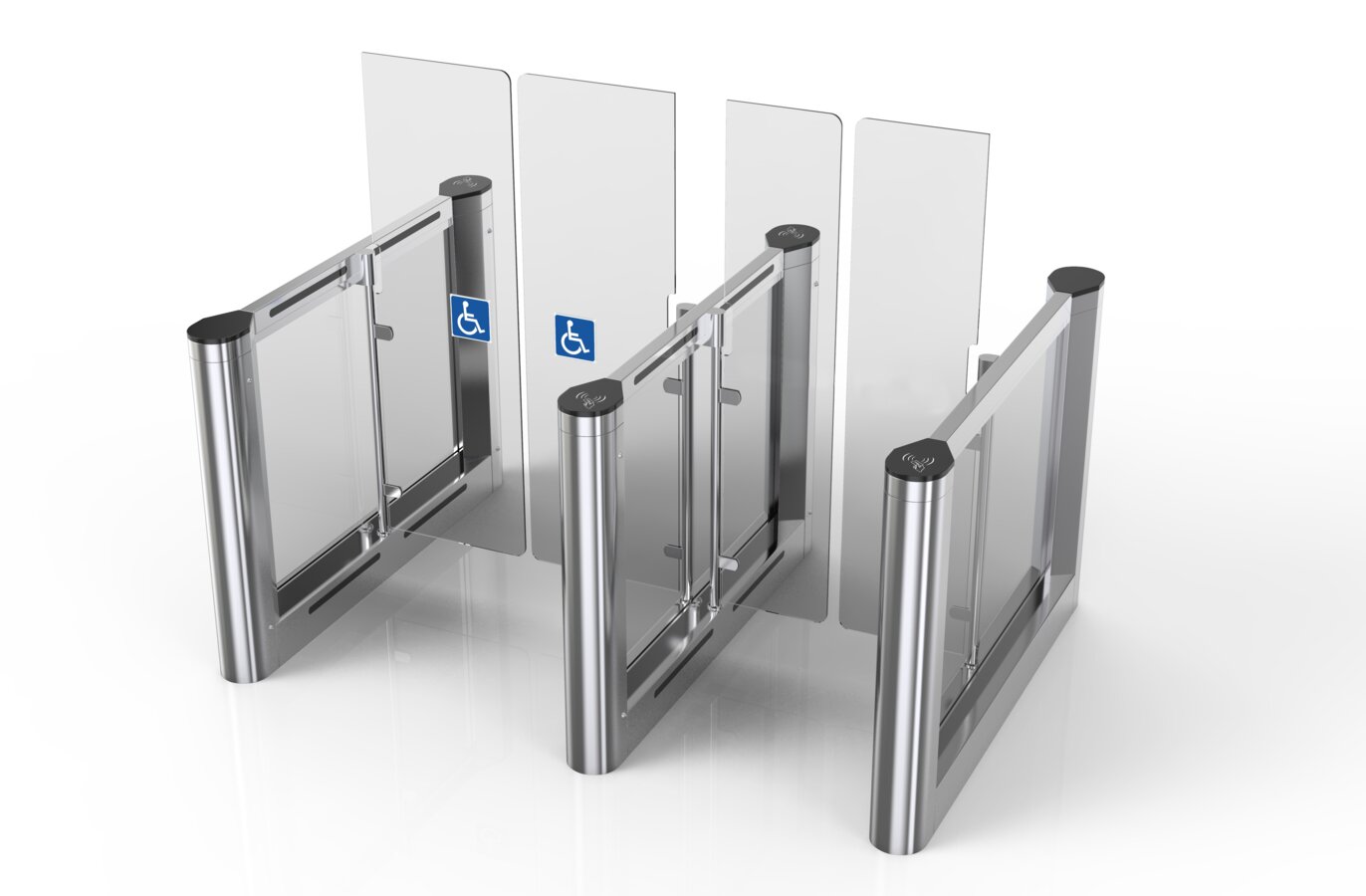

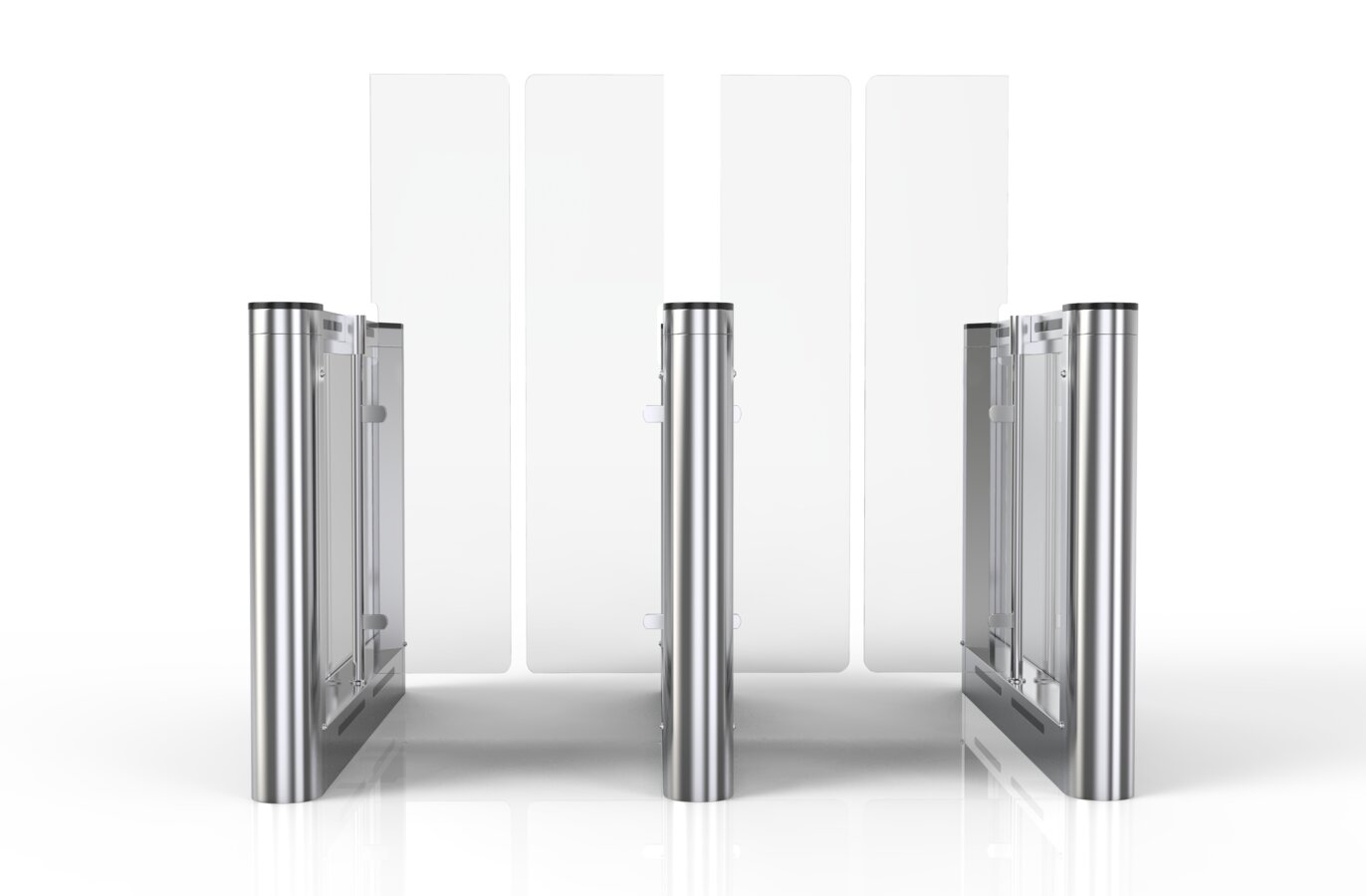

BS-DS9000 is a sensory gate with a plexiglass wing with the option of extending the wing up to 1800mm high (by default it is 900mm high). The width of the passage may be from 550-900 mm, which meets the standards of passage for people on a wheelchair. It can work both in one and two directions.
PRODUCT MAIN FEATURES:
- Long lifetime and high reliability
- Low noise
- Automatic lock function (if a passing person does not pass the gate within 5 seconds (can be adjusted), the arms will be blocked
- Passage will be opened automatically in case of power failure
- Anti-burglar function - turnstile is defaultly closed, it can be opened after recieving a opening signal
- Alarm function in case of an attempt to pass through the gate illegally (optional)
- The mechanism will not be damaged if the arm meets resistance

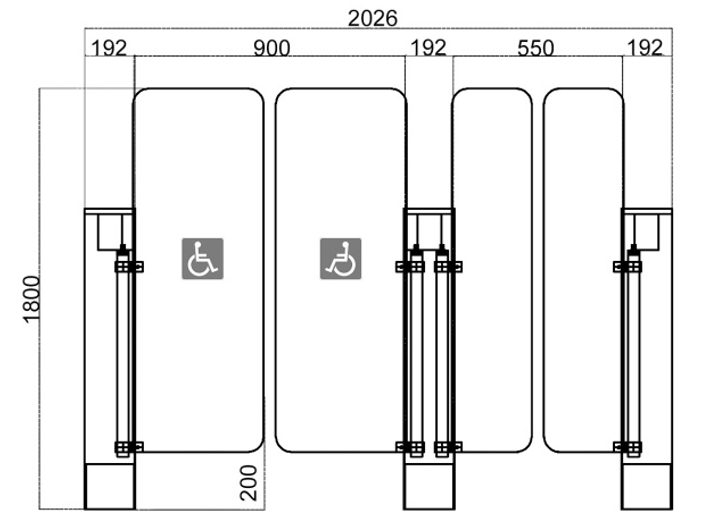

DIMENSIONS
TECHNICAL DATA
| Material | Stainless steel, plexiglass |
| Gate module dimensions | 1440*192*1000mm |
| Weight | 75kg |
| Passage width | 550-900mm |
| Passage direction | Unidirectional / Bidirectional |
| Arm height | 900-1800mm |
| Power supply | AC220V/110V, 50/60Hz |
| Operational voltage | 24V DC |
| Power consumption | 40W |
| Working temperature | -20°C - 75°C |
| Humidity | 95% |
| Working environment | External (IP65) / Internal |
| Throughput | 40-45 people per minute |
| Emergency function | Passage will be opened automatically in case of power failure |
| Communication | Dry contact, relay signal, RS485 |
