Speedgate BS-SF100L
Price 7146,30 € (23% VAT included)
5810,00 € net price
DESCRIPTION
Speedgate BS-SF100L is a modern swing barrier gate equipped with a BLDC motor and gearbox designed for intensive and long-lasting operation, available in either AISI 304 stainless steel or electrostatic powder-coated steel; it offers advanced security customization including free entry/exit modes, motor speed adjustment, smooth operation mode, impact response control, anti-passback protection, panic opening direction and automatic opening during power loss. Standard 8 mm plexiglass wings (optional 10 mm or colored versions) and an adjustable passage width of 450–900 mm make the SF 100 suitable for a wide range of entrance applications, while emergency conditions automatically trigger full opening until the situation normalizes.
PRODUCT MAIN FEATURES:
-
Available in stainless steel (AISI 304) or powder-coated body
-
8 mm plexi wings (optional 10 mm or colored plexi)
-
BLDC motor + gearbox with integrated encoder
-
Adjustable passage width: 450–900 mm
-
Extensive safety and logic configuration menu
-
Anti-tailgating and reverse-direction protection
-
Automatic opening during emergency or power loss
-
RS485 communication (optional TCP/IP)
-
Passage monitoring with paired sensors
-
Fast and quiet operation (0.5–1.2 sec)
-
IP54 protection rating

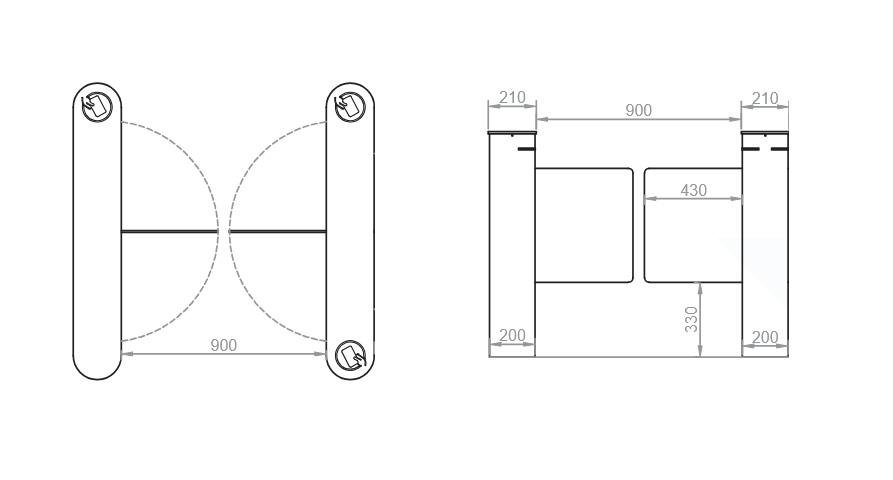

DIMENSIONS

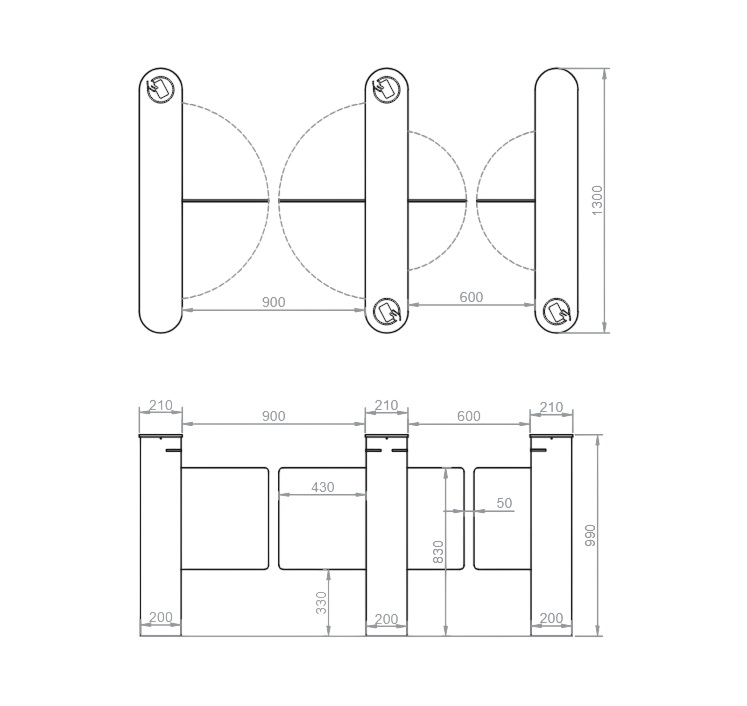

DIMENSIONS (double)
TECHNICAL DATA
| Body Material | AISI 304 stainless steel or electrostatic powder-coated steel |
| Wing Material | 8 mm plexi (optional 10 mm / colored plexi) |
| Top Cover | 8 mm plexi (optional 8 mm tempered, ground glass) |
| Passage Width | 450–900 mm |
| Drive Mechanism | BLDC motor & gearbox with integrated encoder |
| Opening/Closing Time | 0.5–1.2 sec |
| Power Supply | 230 VAC, 50/60 Hz |
| Internal PSU | 24V |
| Sensors | 3 sensors (depending on model) |
| IP Rating | IP54 |
| Communication | RS485, optional TCP/IP |
| Warranty | 2 years |
