Swing gate BU-DS225GL-BK
Price 2460,00 € (23% VAT included)
2000,00 € net price
DESCRIPTION

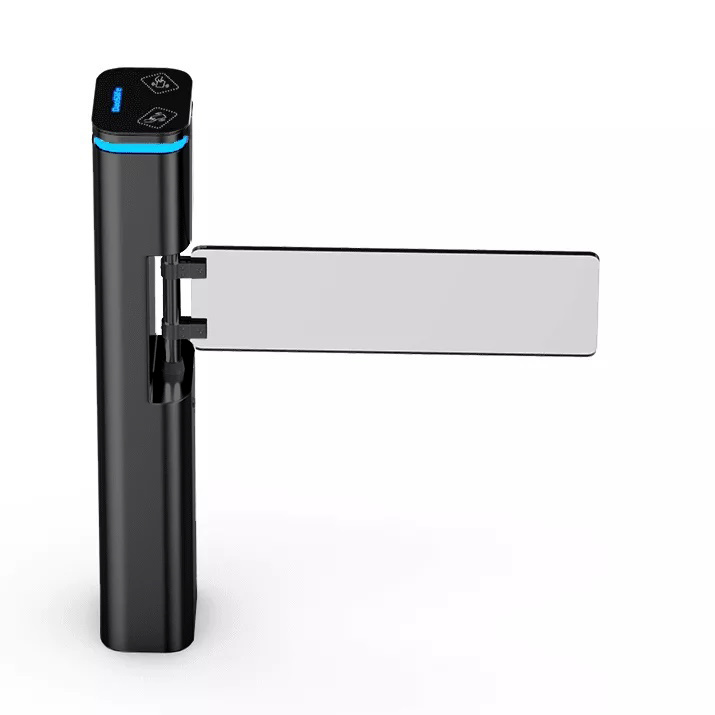

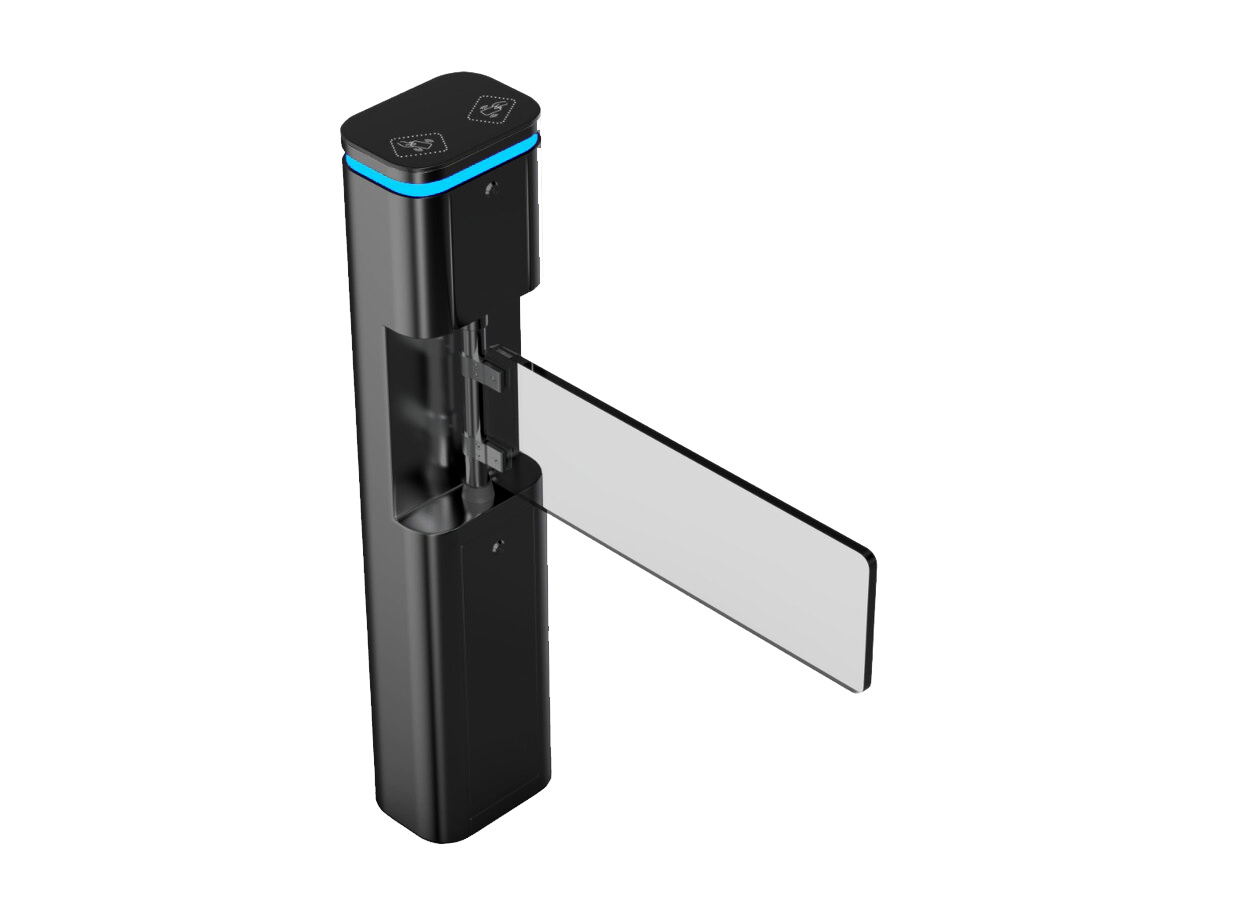

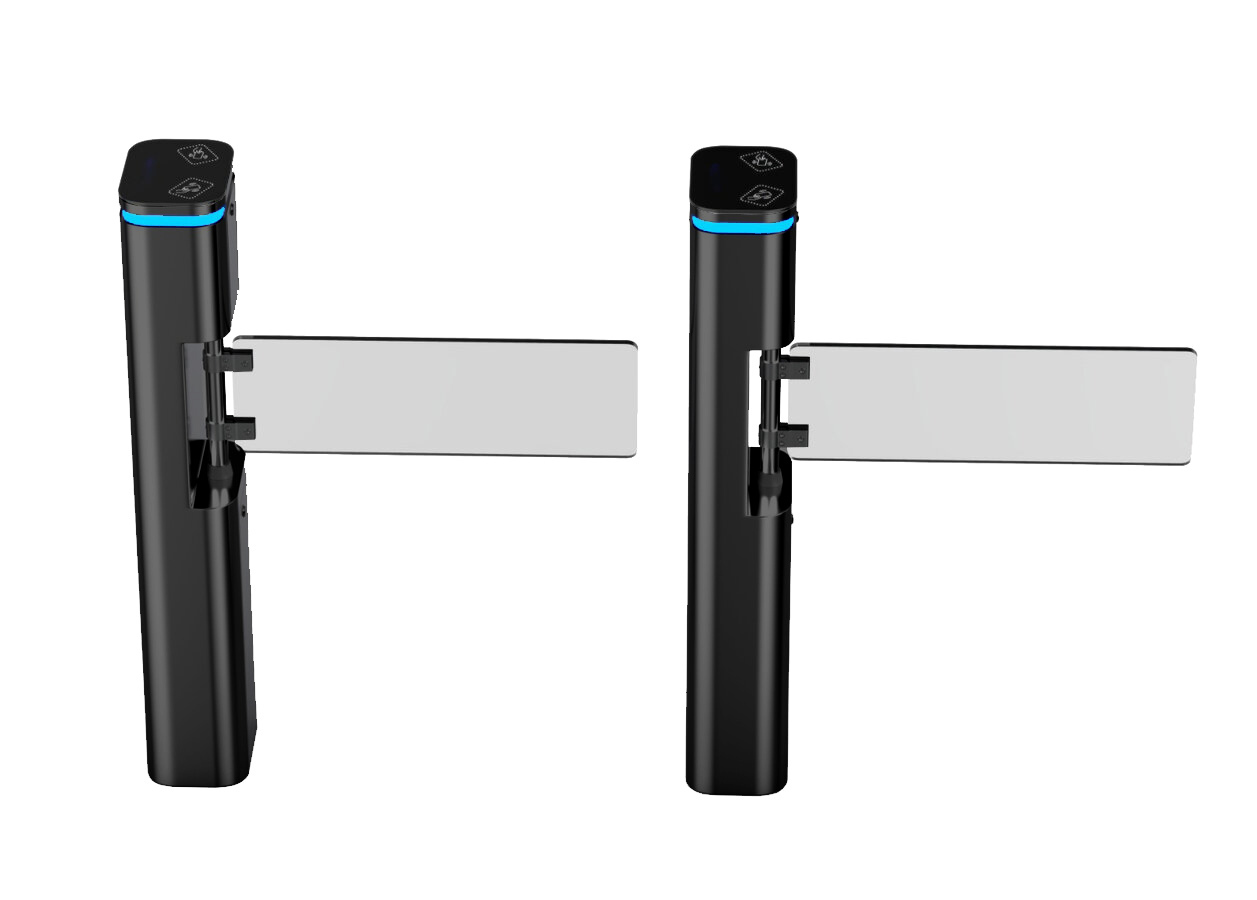

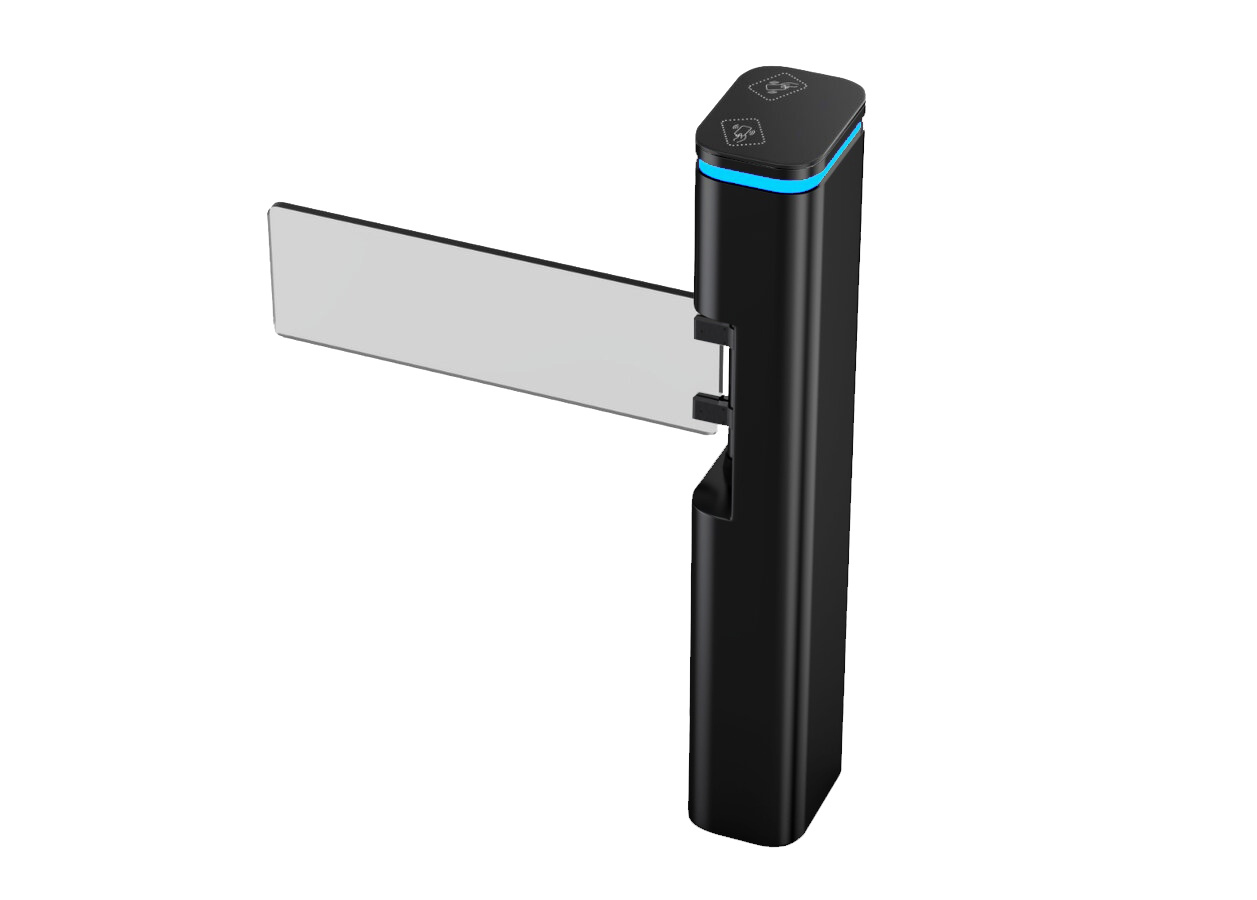

BU-DS225GL-BK is an automatic swing gate with an attractive appearance and reliable operation. The arm is made of plexiglass. The passage width of 900 mm makes the gate suitable for disabled people in a wheelchair. Suitable for both indoor and outdoor installation. The gate can operate both unidirectionally and bidirectionally.
PRODUCT MAIN FEATURES:
- Long lifetime and high reliability
- Low noise
- Alarm function in case of an attempt to pass through the gate illegally
- Only one person can pass through the gate in one cycle
- Automatic lock function (if a passing person does not pass the gate within 5 seconds (can be adjusted), the arms will be blocked
- Anti-burglar function - turnstile is defaultly closed, it can be opened after recieving an opening signal
- Passage will be opened automatically in case of power failure
- Easy installation
DIMENSIONS
TECHNICAL DATA
| Finish | Stainless steel |
| Arm material | Plexiglass |
| Dimensions | 230*1015*1050mm |
| Weight | 25kg |
| Passage width | ≤900mm |
| Passage direction | Unidirectional / Bidirectional |
| Power supply | AC220V/110V, 50/60Hz |
| Voltage | 24V DC |
| Power consumption | 20W |
| Working temperature | -20 °C - 75 °C |
| Humidity | 0 ~ 95% |
| Working environment | Internal / External |
| Throughput | 35-40 people per minute |
| LED indicator | Yes |
| Emergency function | Passage will be opened automatically in case of power failure |
| Communication | Dry contact, relay signal, RS485 |
