User Manual for BU-DS225GL
Swing gate BU-DS225GL
Price 2066,40 € (23% VAT included)
1680,00 € net price
DESCRIPTION
BU-DS225GL is an automatic swing gate with an attractive appearance and reliable operation. The arm is made of plexiglass. The passage width of 900 mm makes the gate suitable for disabled people in a wheelchair. Suitable for both indoor and outdoor installation. The gate can operate both unidirectionally and bidirectionally.
PRODUCT MAIN FEATURES:
- Long lifetime and high reliability
- Low noise
- Alarm function in case of an attempt to pass through the gate illegally
- Only one person can pass through the gate in one cycle
- Automatic lock function (if a passing person does not pass the gate within 5 seconds (can be adjusted), the arms will be blocked
- Anti-burglar function - turnstile is defaultly closed, it can be opened after recieving an opening signal
- Passage will be opened automatically in case of power failure
- Easy installation

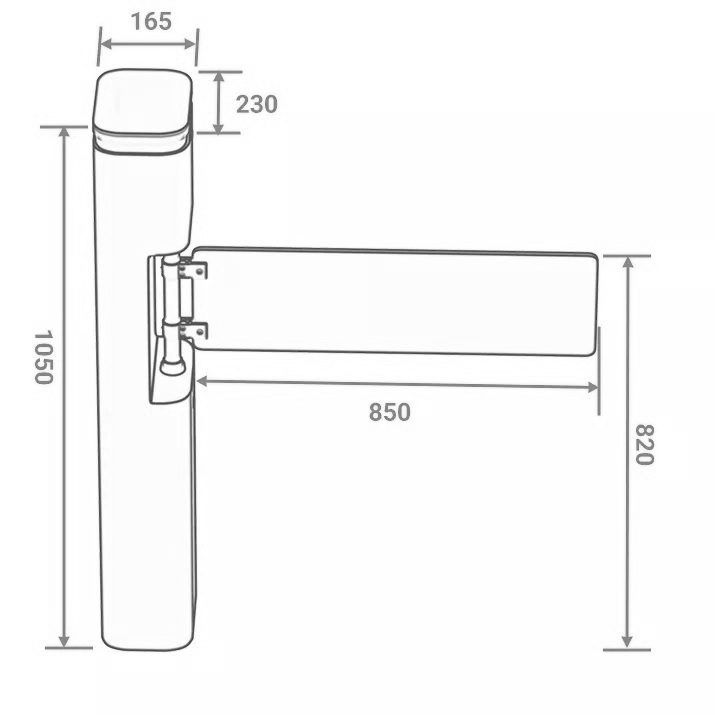

DIMENSIONS
TECHNICAL DATA
| Finish | Stainless steel |
| Arm material | Plexiglass |
| Dimensions | 230*1015*1050mm |
| Weight | 25kg |
| Passage width | ≤900mm |
| Passage direction | Unidirectional / Bidirectional |
| Power supply | AC220V/110V, 50/60Hz |
| Voltage | 24V DC |
| Power consumption | 20W |
| Working temperature | -20 °C - 75 °C |
| Humidity | 0 ~ 95% |
| Working environment | Internal / External |
| Throughput | 35-40 people per minute |
| LED indicator | Yes |
| Emergency function | Passage will be opened automatically in case of power failure |
| Communication | Dry contact, relay signal, RS485 |
