User Manual for Swing gate BU-DS225ST
Swing gate BU-DS225ST
Price 2091,00 € (23% VAT included)
1700,00 € net price
DESCRIPTION
BU-DS225ST is an automatic swing gate with an attractive appearance and reliable operation. The goal arm is made of stainless steel. The 900 mm wide passage makes the gate suitable for disabled people in a wheelchair. It is suitable for both internal and external installation. The gate can operate both one-way and two-way.
PRODUCT MAIN FEATURES:
- Long lifetime and high reliability
- Low noise
- Alarm function in case of an attempt to pass through the gate illegally
- Only one person can pass through the gate in one cycle
- Automatic lock function (if a passing person does not pass the gate within 5 seconds (can be adjusted), the arms will be blocked
- Anti-burglar function - turnstile is defaultly closed, it can be opened after recieving an opening signal
- Passage will be opened automatically in case of power failure
- Easy installation

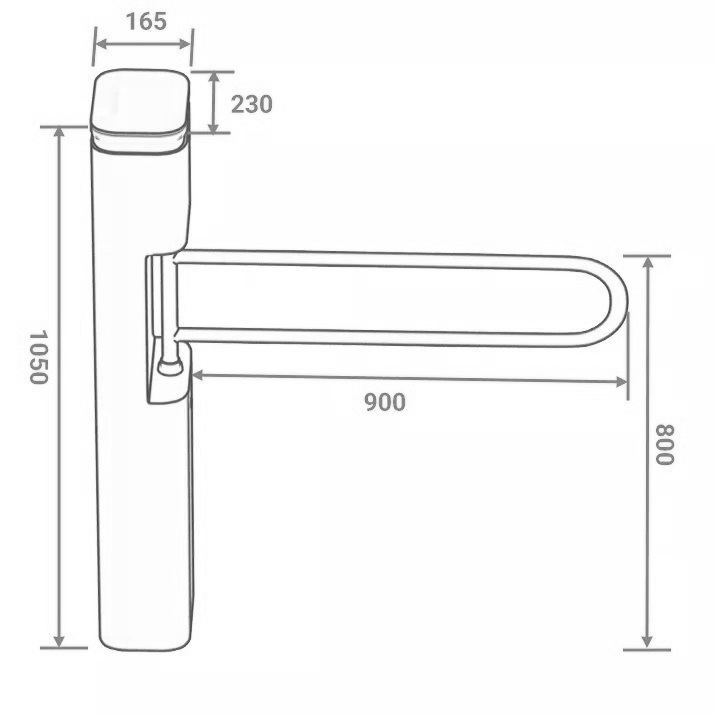

DIMENSIONS
TECHNICAL DATA
| Finish | Stainless steel |
| Arm material | Plexiglass |
| Dimensions | 230*1065*1050mm |
| Weight | 25kg |
| Passage width | ≤900mm |
| Passage direction | Unidirectional / Bidirectional |
| Power supply | AC220V/110V, 50/60Hz |
| Voltage | 24V DC |
| Power consumption | 20W |
| Working temperature | -20 °C - 75 °C |
| Humidity | 0 ~ 95% |
| Working environment | Internal / External |
| Throughput | 35-40 people per minute |
| LED indicator | Yes |
| Emergency mode | Passage will be opened automatically in case of power failure |
| Communication | Dry contact, signal relay, RS485 |
