User Manual for BU-DS8000

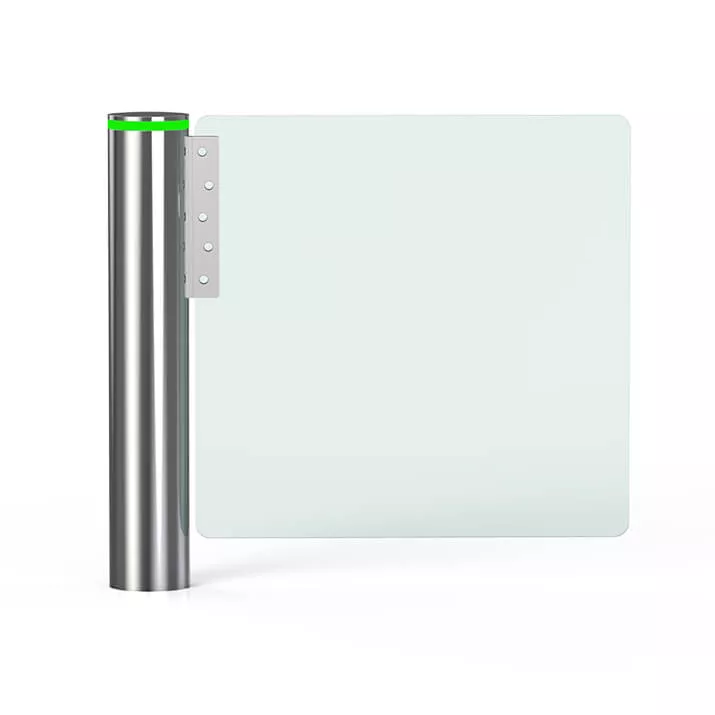

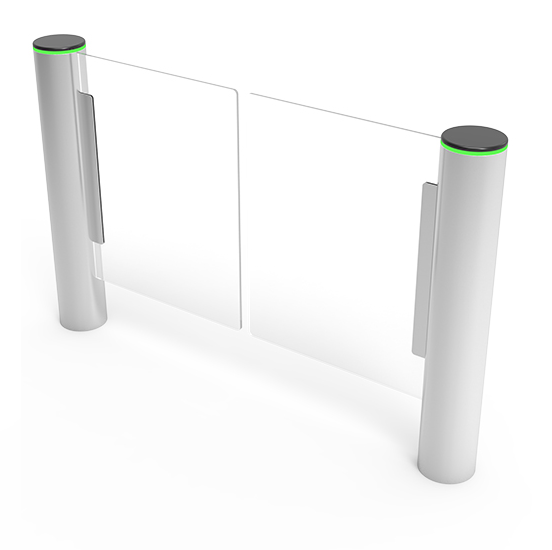

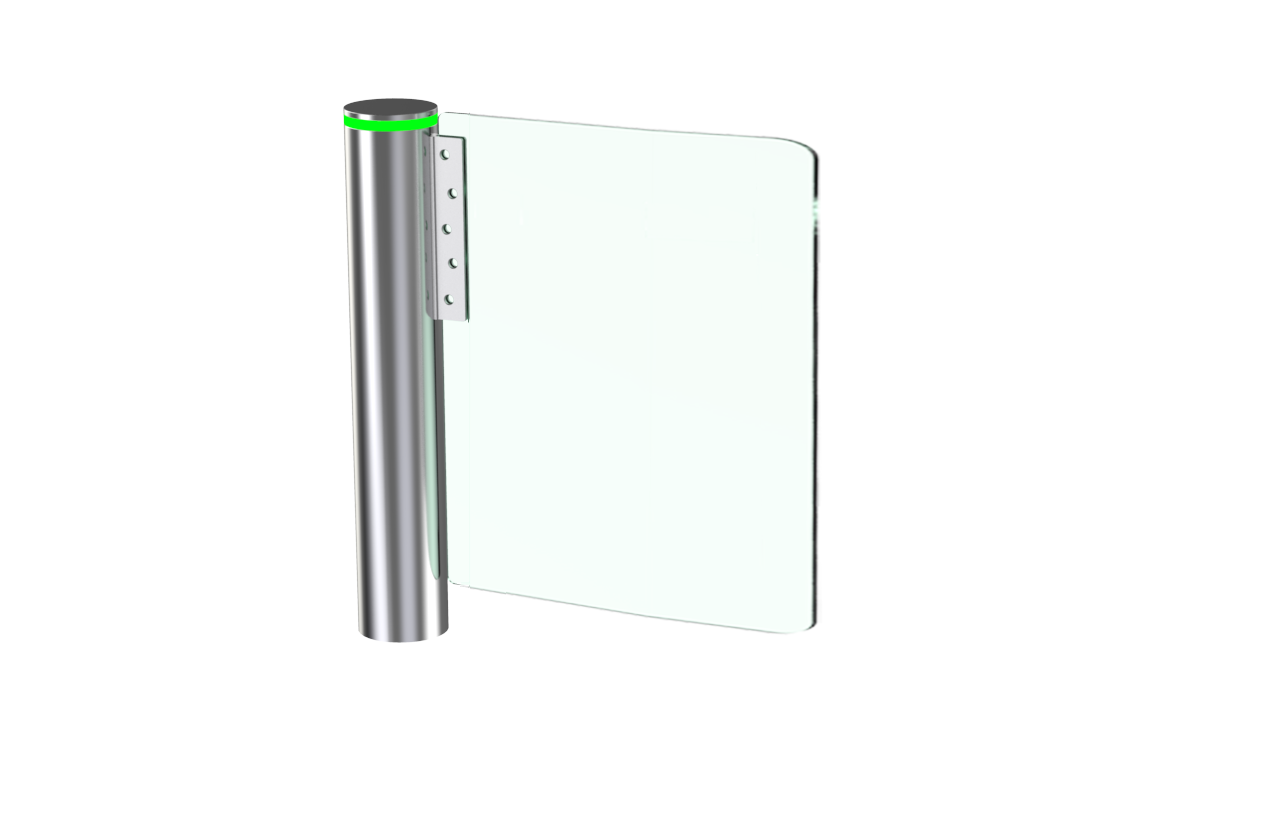

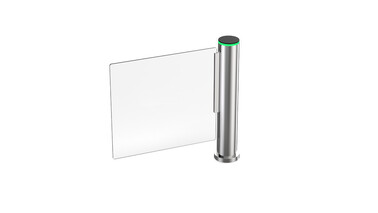

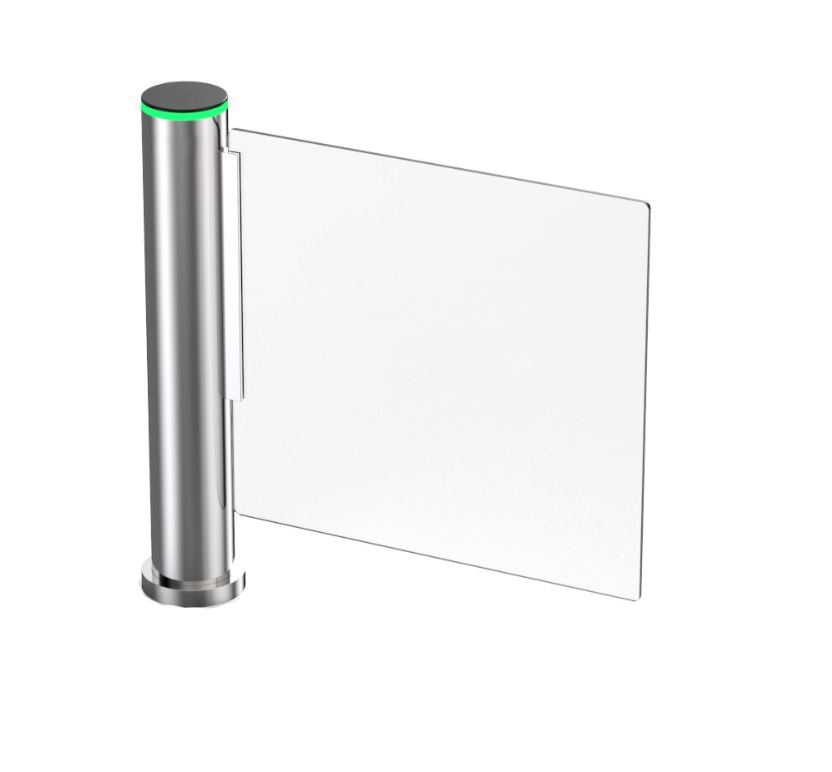

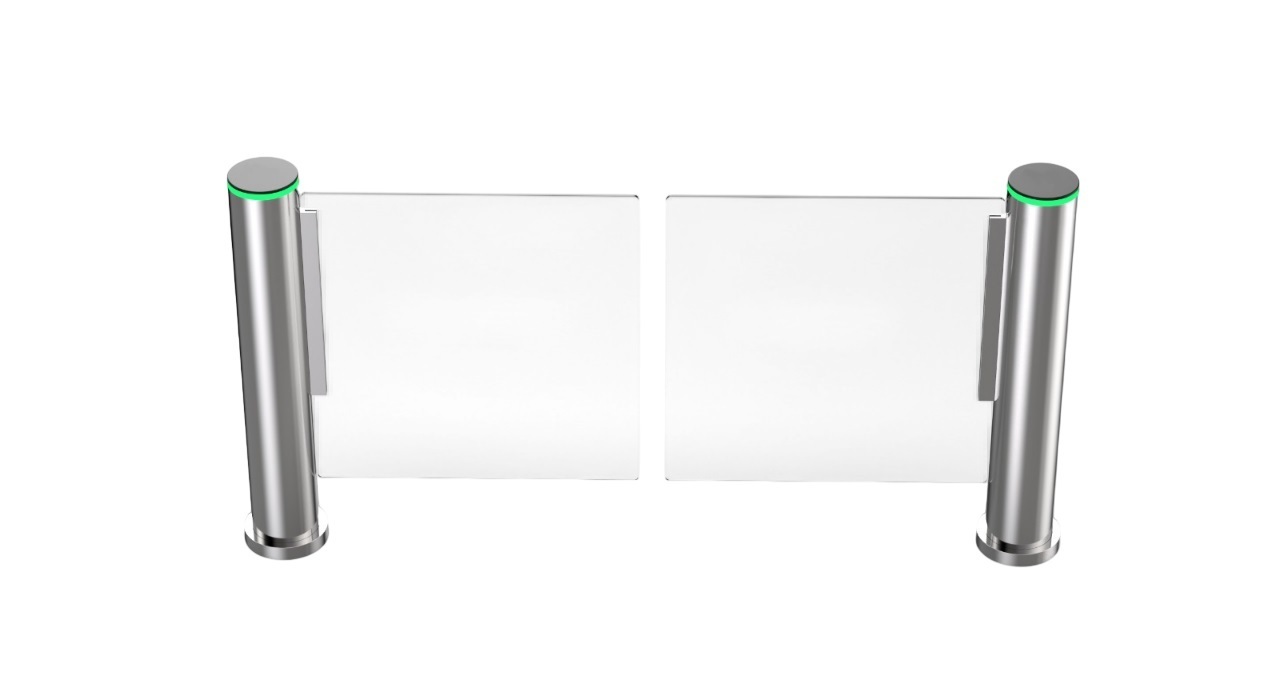

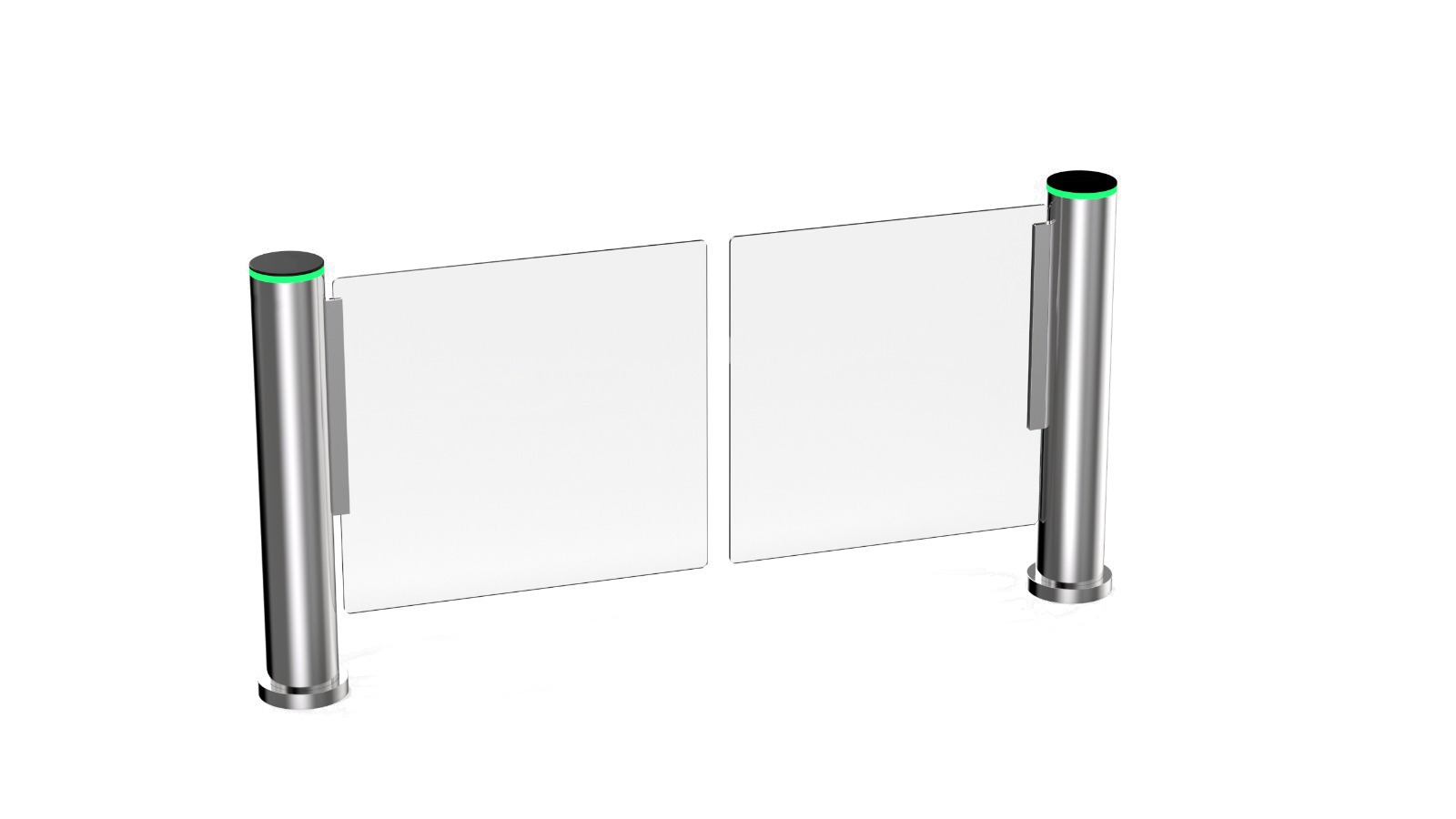

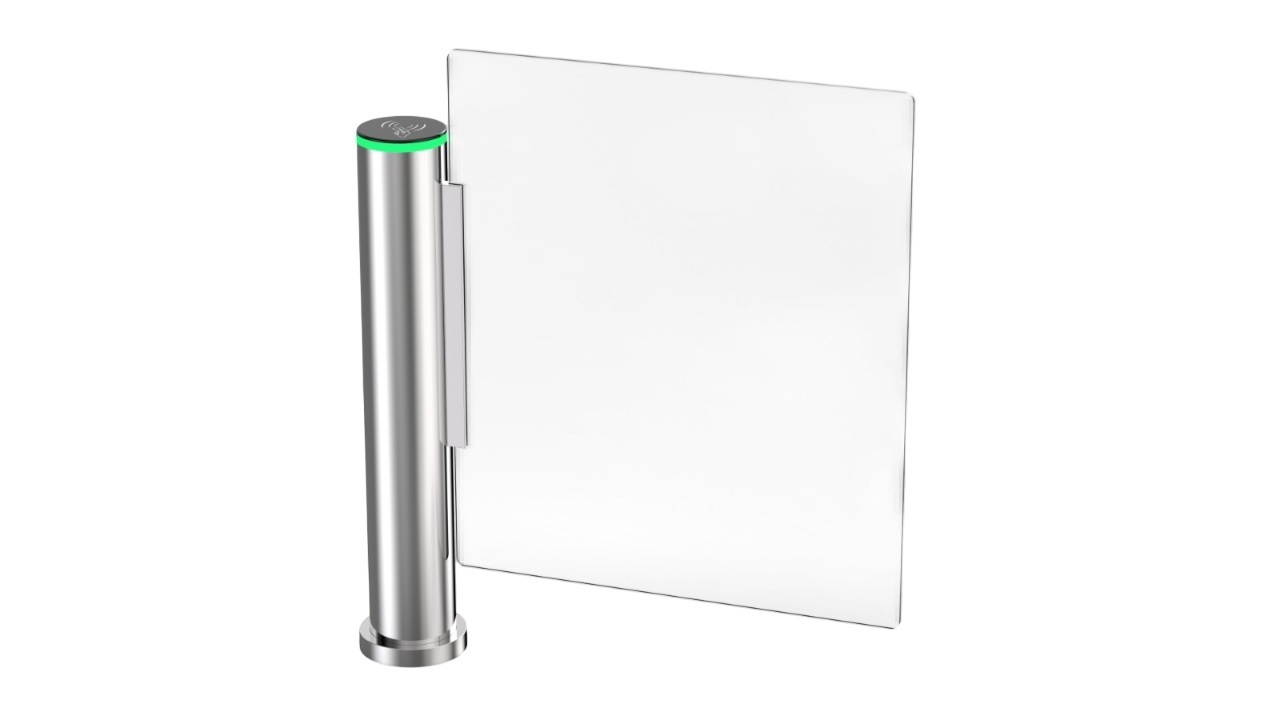

Swing gate BU-DS8000
Price 3628,50 € (23% VAT included)
2950,00 € net price
Description
BU-DS8000 is an elegant tilting gate with a passage width of 900mm, which complies with the standards of passage for people on wheelchairs. In an emergency, the device can be used as an emergency exit. It can work both in one and two directions.
PRODUCT MAIN FEATURES:
- Long lifetime and high reliability
- It has an alarm function in case of unauthorized passage through the gate
- Anti-burglar function (turnstile is defaultly closed unless it get opening signal)
- Anti-trailing function guarantee that none will pass through the turnstile without using RFID card
- If the passenger does not pass through the gate within 5 seconds (can be adjusted), the passage will be locked automatically
- Passage will be opened automatically in case of power failure

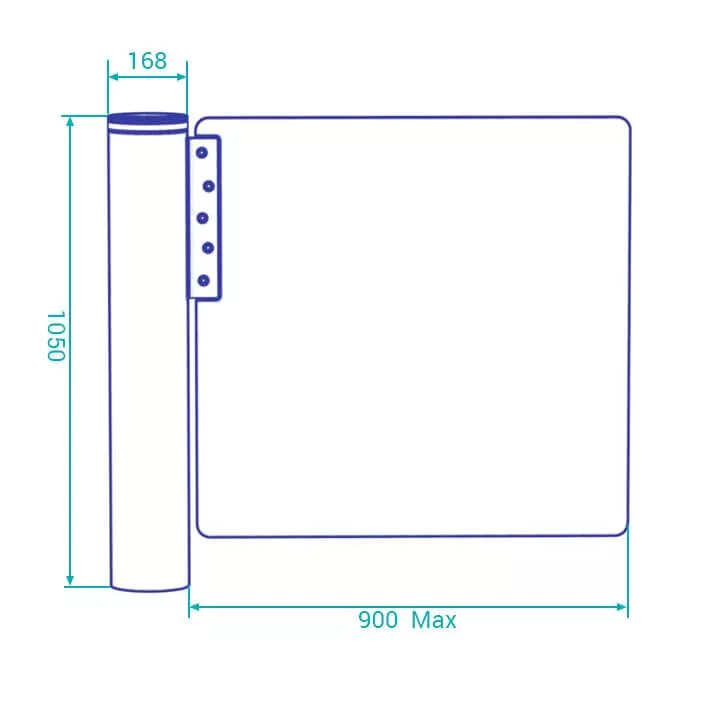

DIMENSIONS
TECHNICAL DATA
| Materials | Stainless steel 304 (and plexiglass) |
| Weight | 60kg |
| Passage width | 600-900mm |
| Passage direction | Unidirectional / Bidirectional |
| Power supply | AC220V/110V, 50/60Hz |
| Operational voltage | 24V DC |
| Power consumption | 40W |
| Working temperature | -15°C - 60°C |
| Humidity | 95% |
| Working environment | External / Internal |
| Throughput | 30 people per minute |
| Emergency function | Passage will be opened automatically in case of power failure |
| Communication | Dry contact, relay signal, RS485 |
