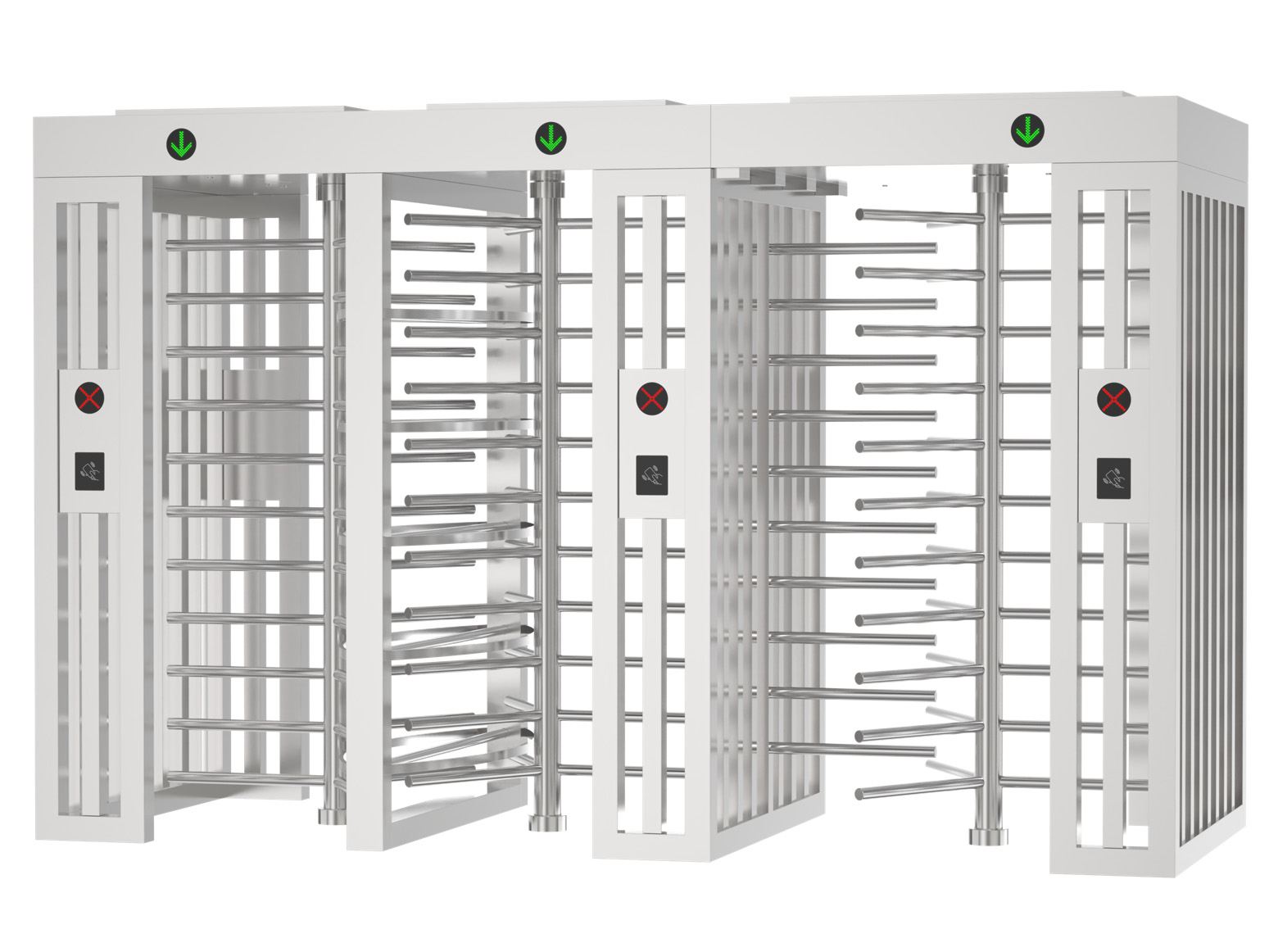

Triple full height turnstile BW-403FS
Price 16 457,40* € (23% VAT included)
13 380,00* € net price
*price applies to the turnstile with semi-automatic drive
DESCRIPTION
BW-403FS Triple Full Height Turnstile is a canopied pedestrian access control system consisting of three independent passage lanes. Its AISI 304 stainless-steel structure is designed for intensive indoor and outdoor operation. The turnstile supports single- or bi-directional passage and can be integrated with various access control systems. In an emergency, the arms are automatically released to provide free passage.
PRODUCT MAIN FEATURES:
- Three independent passage lanes in one canopied structure.
- Manufactured from brushed AISI 304 stainless steel.
- Single- or bi-directional operation.
- Anti-tailgating function allowing one person per cycle.
- Compatible with readers and virtually any access control system.
- Automatic arm release in emergency situations.

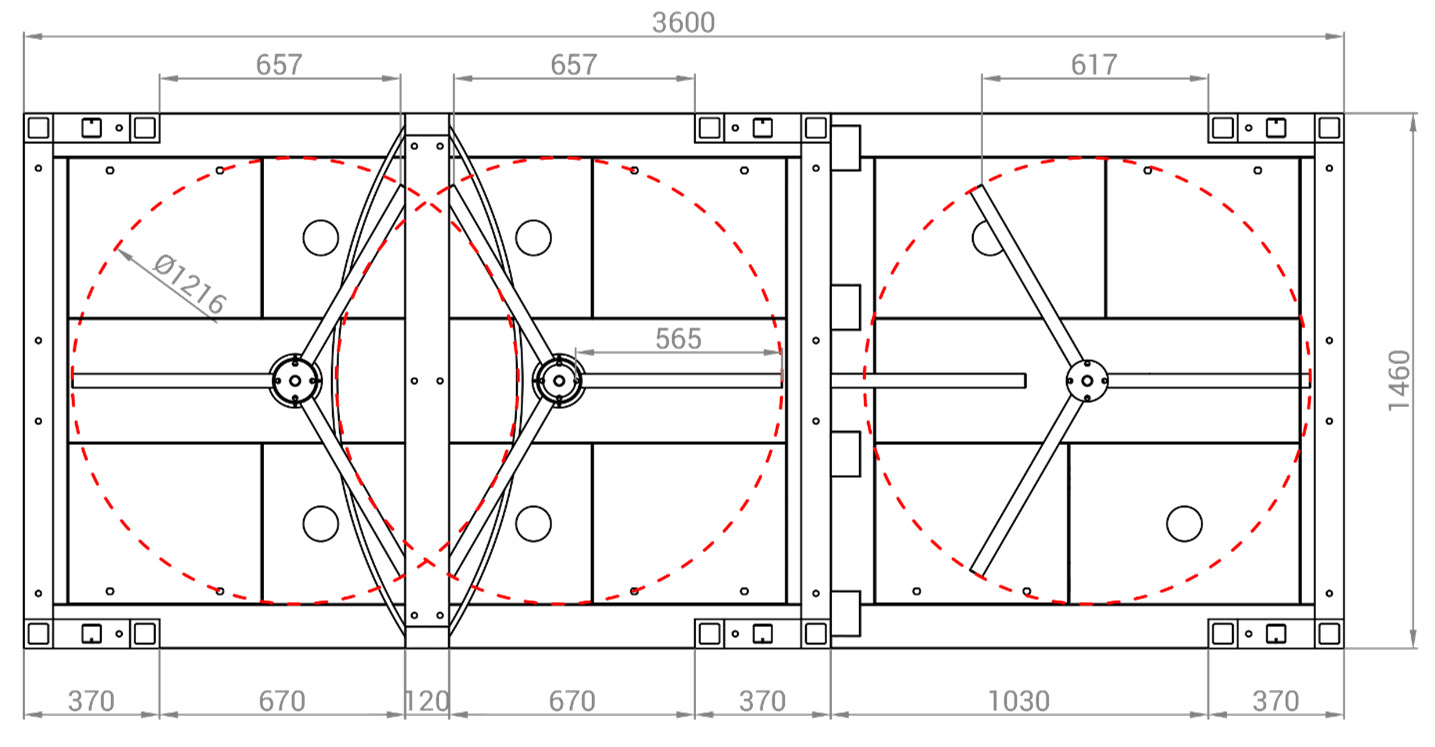

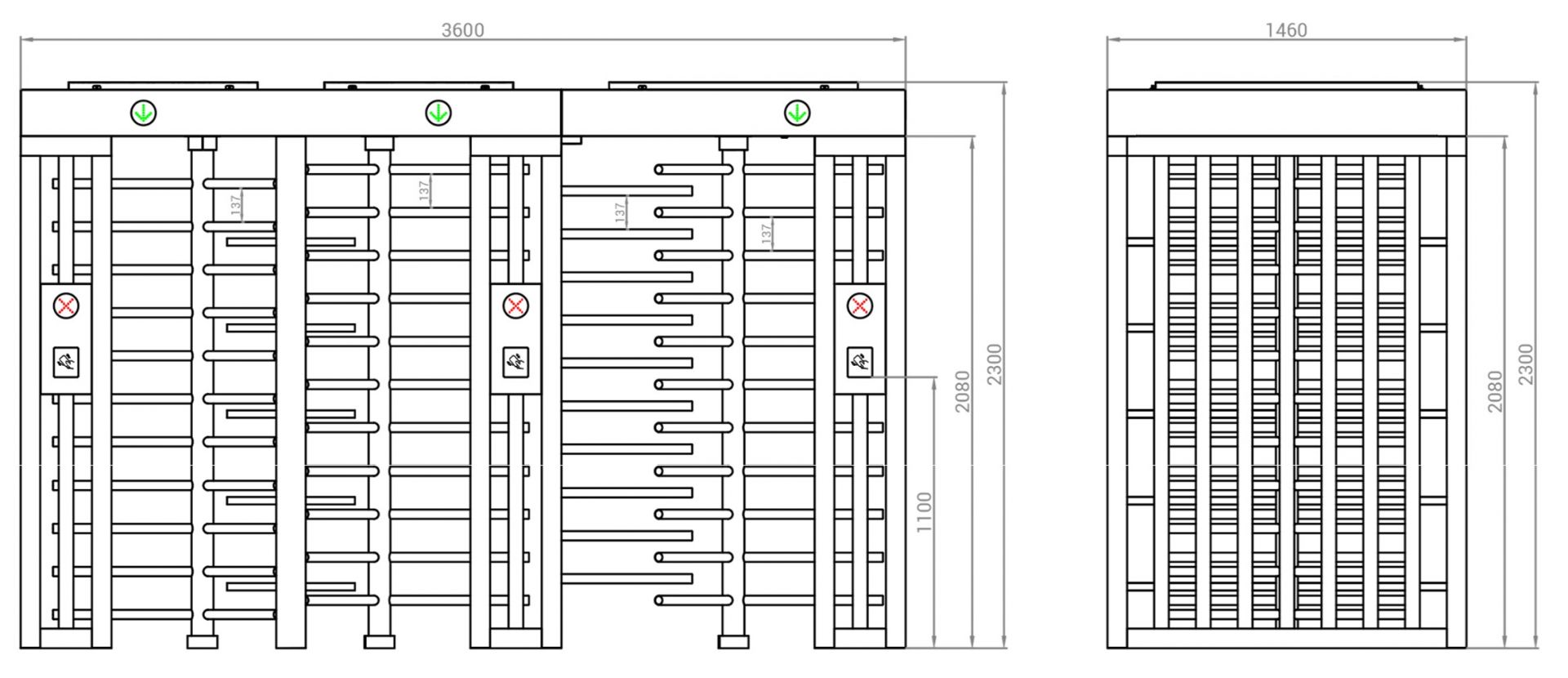

DIMENSIONS
TECHNICAL DATA
| Device type | Triple full-height turnstile with canopy |
| Number of lanes | 3 |
| Framework material | AISI 304 stainless steel |
| Dimensions | 3600 × 1460 × 2300 mm |
| Inner height | 2080 mm |
| Net weight | 400 kg |
| Passage widths | 657 + 657 + 617 mm |
| Arm width | 565 mm |
| Passage direction | Single-directional or bi-directional |
| Flow rate | 30 + 30 + 30 people/min |
| Power supply | AC 220/110 V, 50/60 Hz |
| Operating voltage | 24 V DC |
| Power consumption | 40 + 40 + 40 W |
| Mechanism durability | 10 million cycles |
| Operating temperature | -20°C to 70°C |
| Operating humidity | 0–95%, no freezing |
| Protection rating | IP65 |
| Working environment | Indoor / outdoor |
| Communication | Dry contact, relay signal, RS485 |
| Indication | Red and green LED indicators |
| Emergency operation | Arms open automatically |
| Card reader mounting | Under the cabinet top, max. 100 × 60 × 25 mm |
| Construction | Fully welded |
| Compliance | CE, RoHS, FCC |
| Warranty | 3 years |
