Triple full height turnstile BW-413
Price 13 327,05* € (23% VAT included)
10 835,00* € net price
*price applies to the turnstile with semi-automatic drive
DESCRIPTION

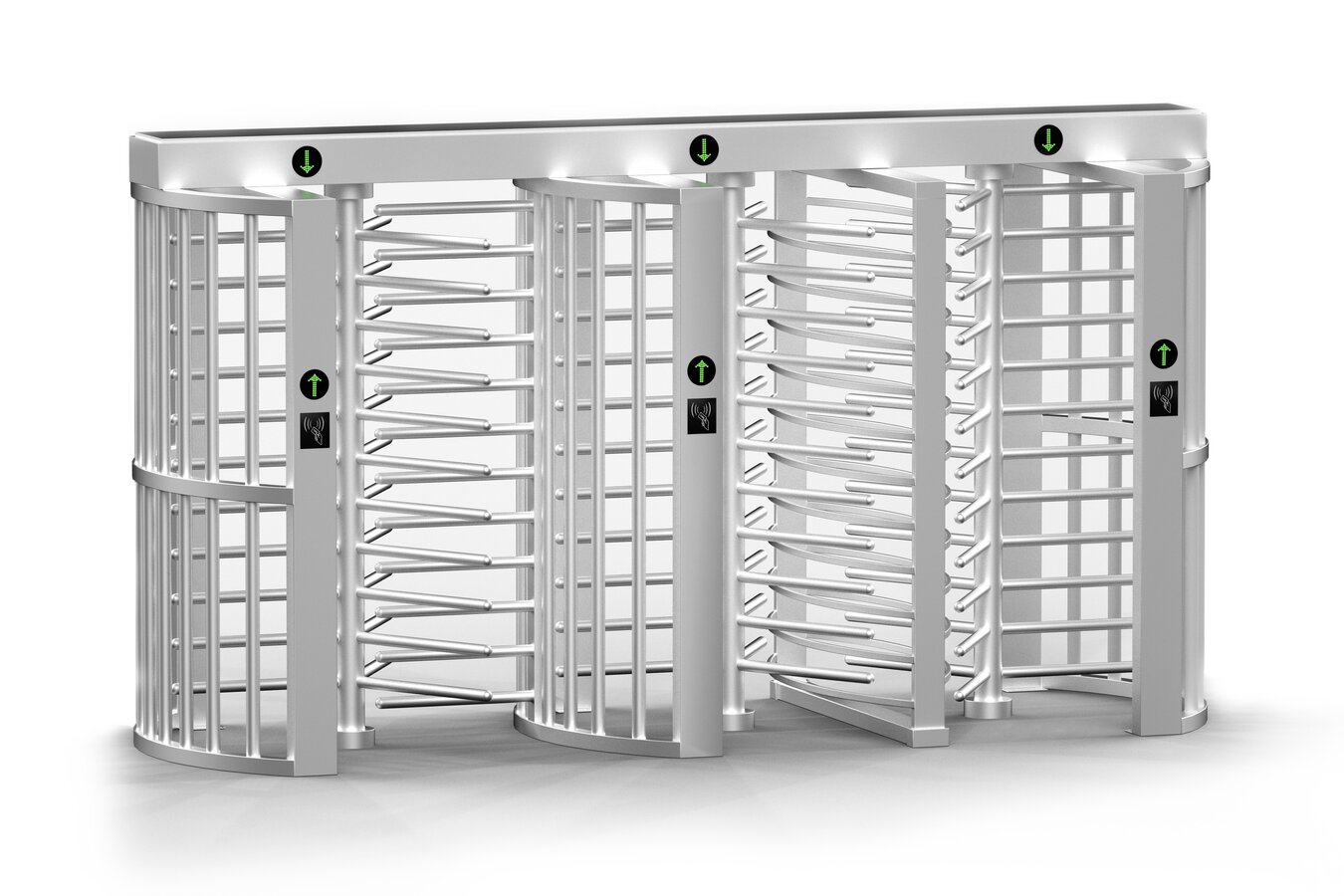

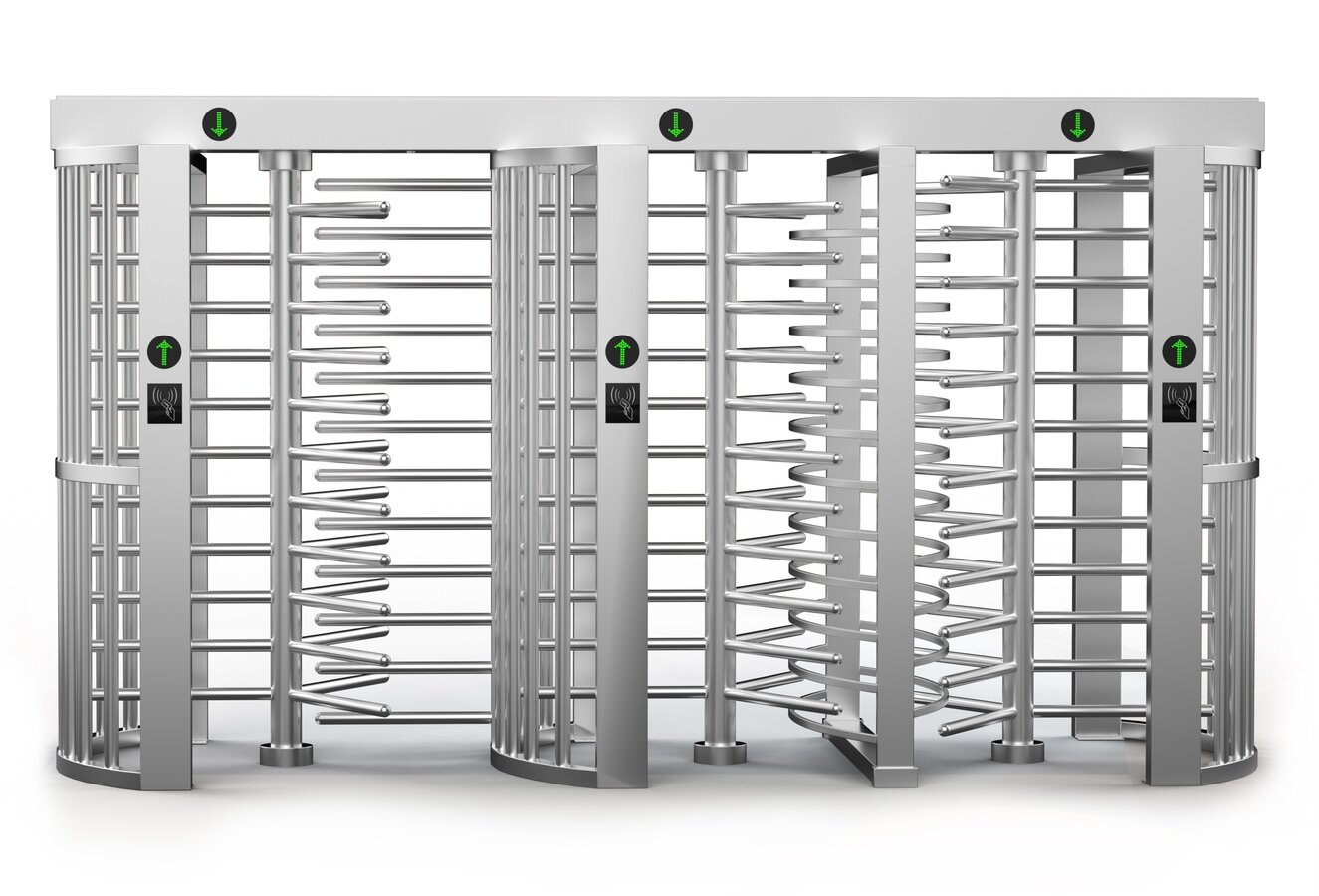

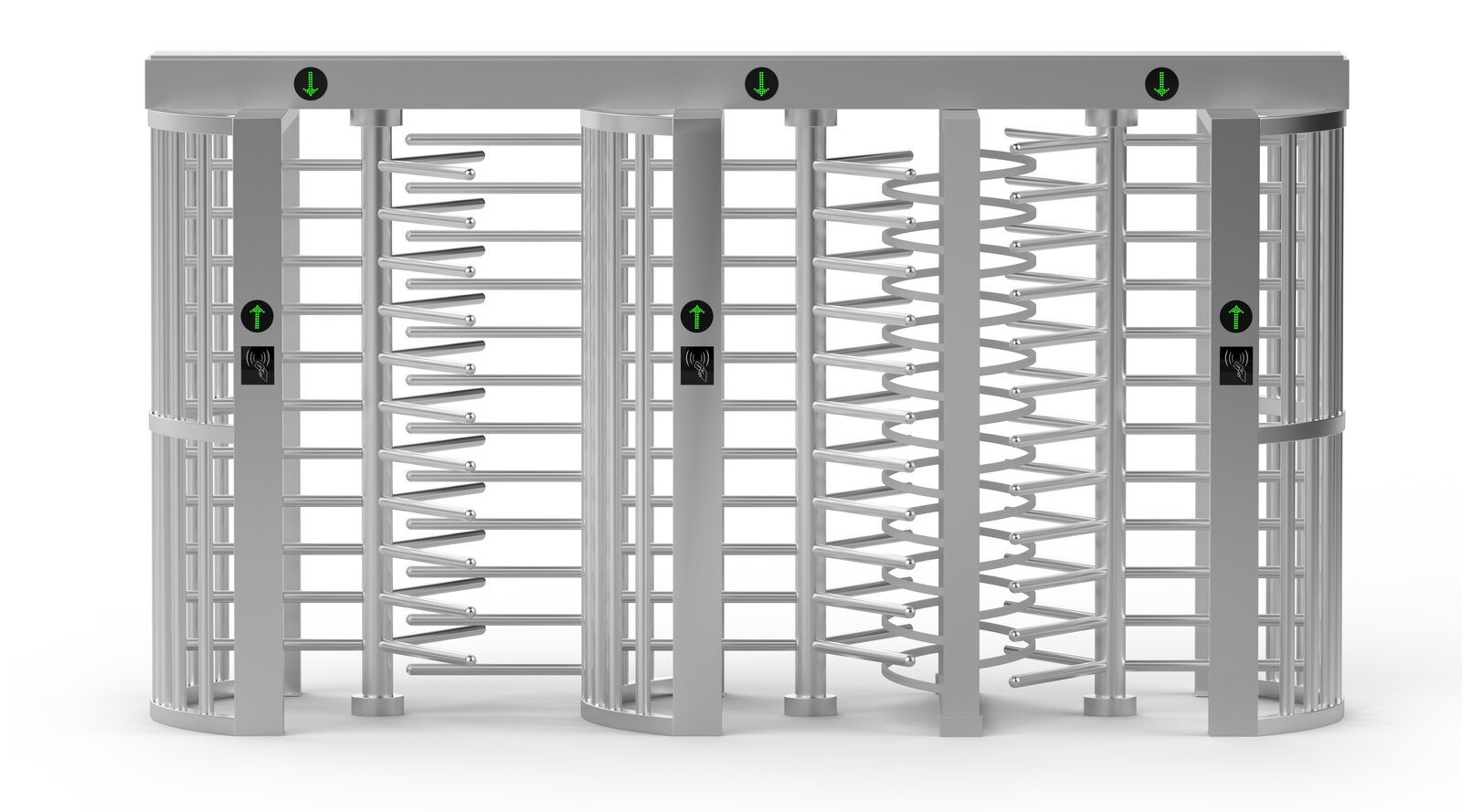

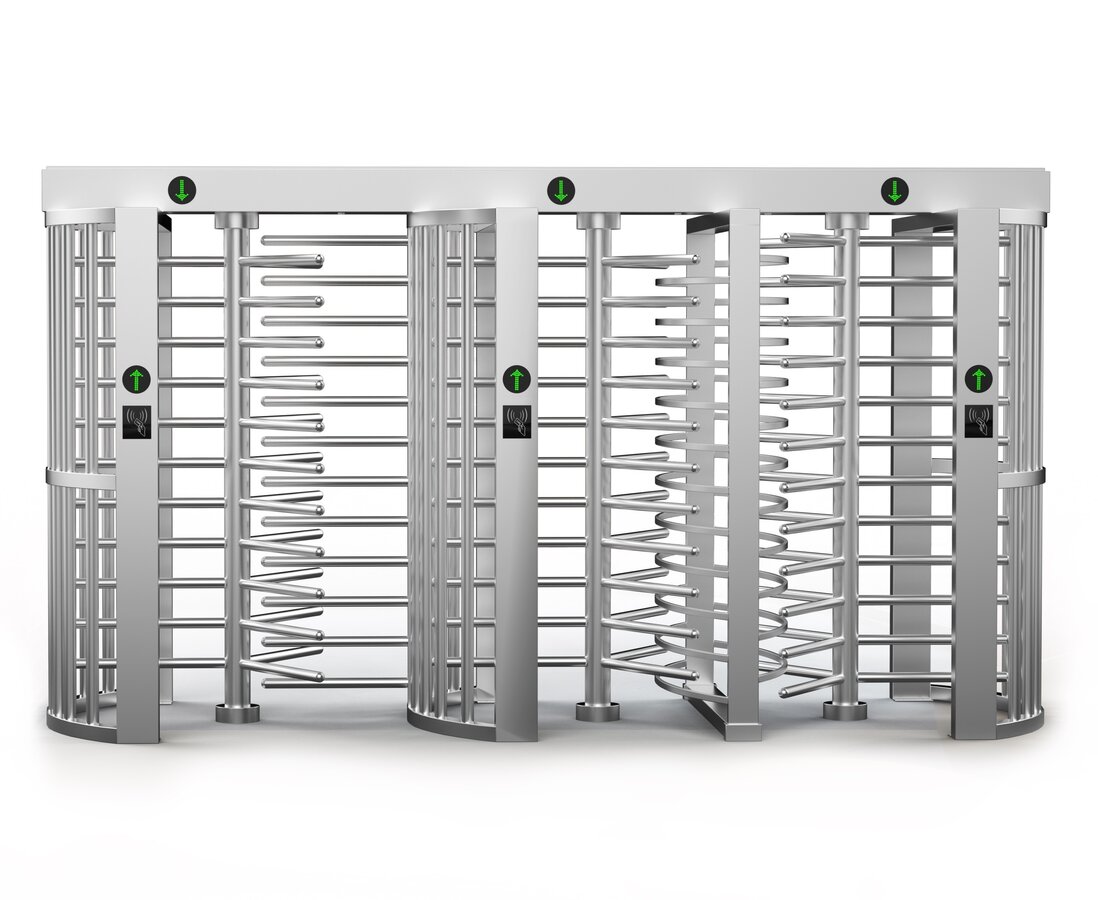

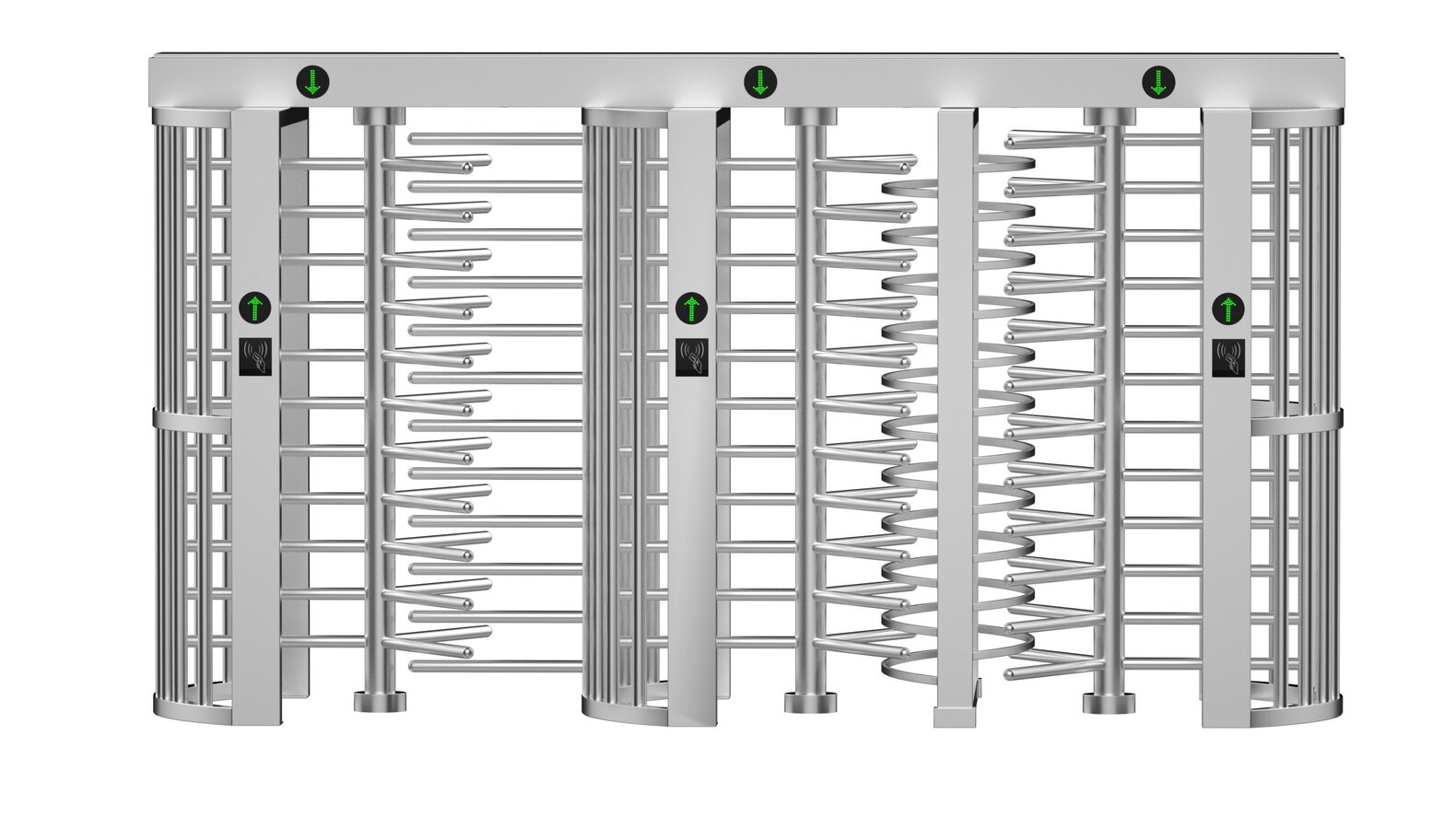

BW-413 is a triple full height turnstile. It is made of brushed stainless steel which makes it durable and will fit to every environment thanks to its minimalistic design. It will work greatly in places that requires high security level e.g. embassies, jails, oil refineries, stadiums etc. Can work unidirectional and bidirectional.
PRODUCT MAIN FEATURES:
- Long lifetime and high reliability
- Automatic lock function (if a passing person does not pass the gate within 5 seconds (can be adjusted), the arms will be blocked
- Passage will be opened automatically in case of power failure
- Mechanism is equipped in automatic, regulated hydraulic motor
- Turnstile has 3 passages 650mm width each

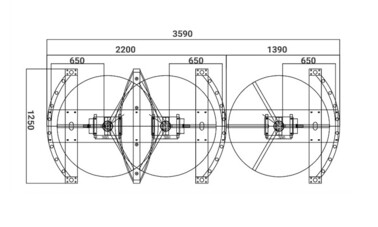

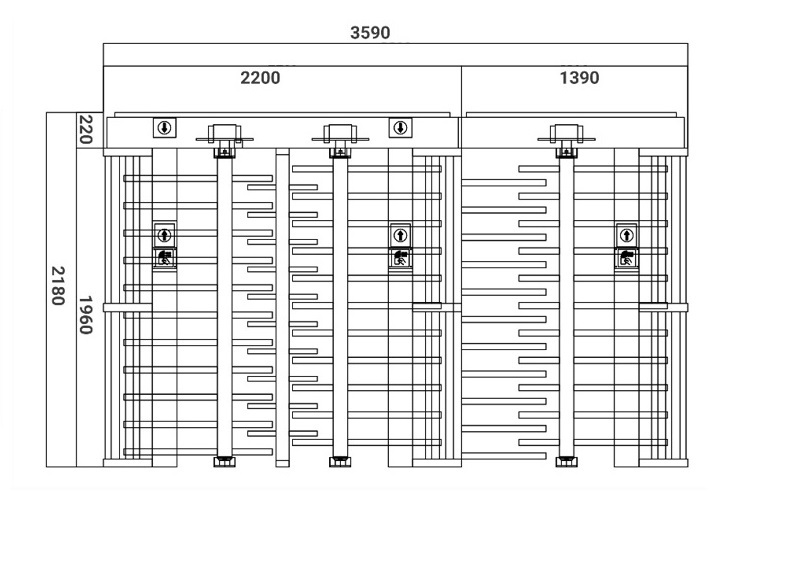

DIMENSIONS
TECHNICAL DATA
| Materials | Brushed stainless steel |
| Dimensions | 3590 * 1250 * 2180mm |
| Weight | 400kg |
| Passage width | 3 * 650mm |
| Passage direction | Unidirectional / Bidirectional |
| Power supply | AC220V/110V, 50/60Hz |
| Operational voltage | 24V DC |
| Power consumption | 40W |
| Working temperature | -15°C - 60°C |
| Humidity | 95% |
| Working environment | External / Internal |
| Throughput | 35-40 people per minute |
| Emergency function | Passage will be opened automatically in case of power failure |
| Communication | Dry contact, relay signal, RS485 |
