Catalog card BO-DS112 PL
Tripod BO-DS112
Price 2404,65* € (23% VAT included)
1955,00* € net price
*price applies to the turnstile with semi-automatic drive
DESCRIPTION
The BO-DS112 turnstile is an elegant access control solution that can aesthetically fit into any room. The device is made of stainless steel and has an LED strip indicating whether or not access has been granted. You can set the gate to open unidirectionally or bidirectionally. The BO-DS112 turnstile is resistant to weather conditions, so it can be installed both inside and outside the building.
PRODUCT MAIN FEATURES:
- Long service life
- High operational reliability
- The device is characterized by quiet operation
- Automatic lock after 5 seconds (can be changed) if the passenger does not pass through the gate
- Anti-trailing: Only one person passes at a time
- Automatic lowering of the arms in the event of a power cut
- LED lamps (red × means no access; green → means open input)

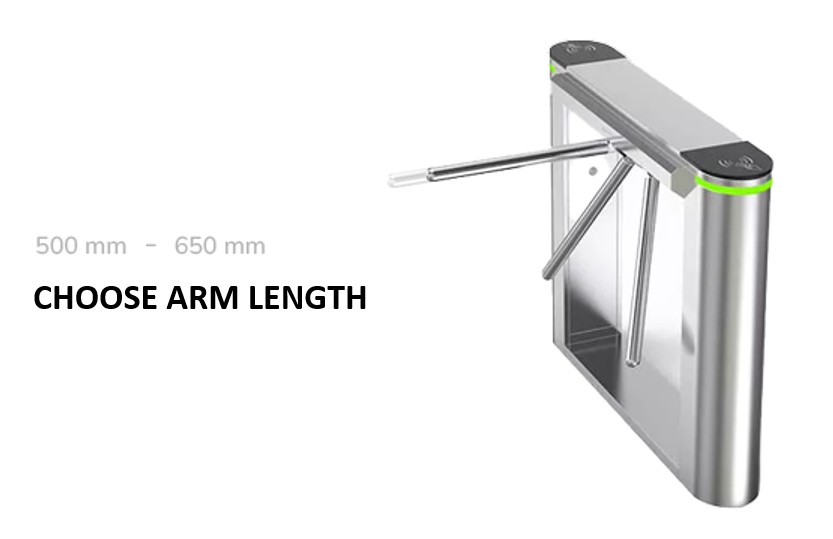

- Arm length can range from 500mm up to 650mm
- The gate can work inside and outside the building

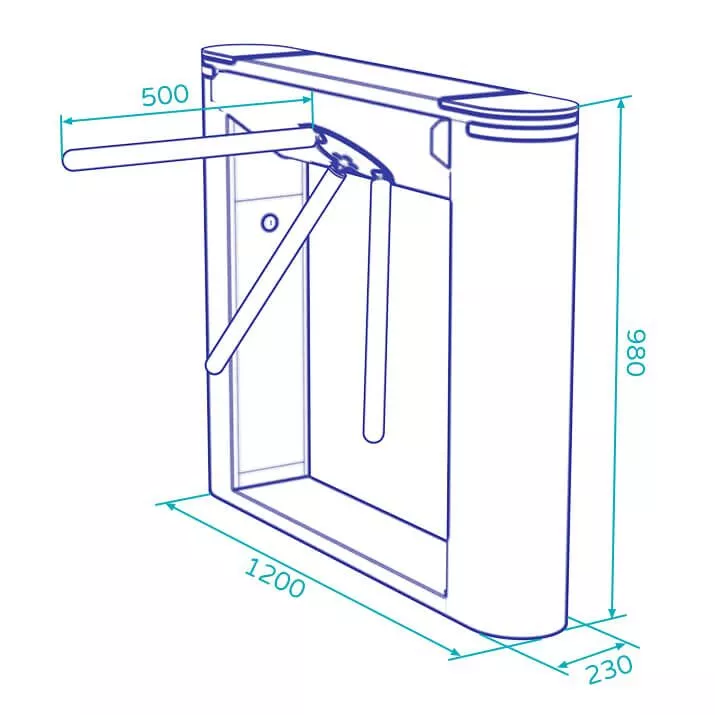

DIMENSIONS
TECHNICAL DATA
| Material | Stainless steel 304 |
| Dimensions | 1200*230*980mm |
| Weight | 50kg |
| Passage width | 550mm (Arm length: 500mm) |
| Passage direction | Unidirectional or bidirectional |
| Power supply | AC 220V/110V, 50/60Hz |
| Operational voltage | 24V DC |
| Power consumption | 40W |
| Working temperature | -20°C up to 75°C |
| Humidity | 0 ~ 95% |
| Working environment | Internal, external |
| Throughput | 35-40 persons per minute |
| LED strip | Yes |
| Emergency mode | In case of power failure arms will be folded automaticaly |
| Communication | Dry contact, relay signal, RS485 |
