Datasheet for BO-DS5000
Tripod BO-DS5000
Price 1457,55* € (23% VAT included)
1185,00* € net price
*price applies to the turnstile with semi-automatic drive
DESCRIPTION

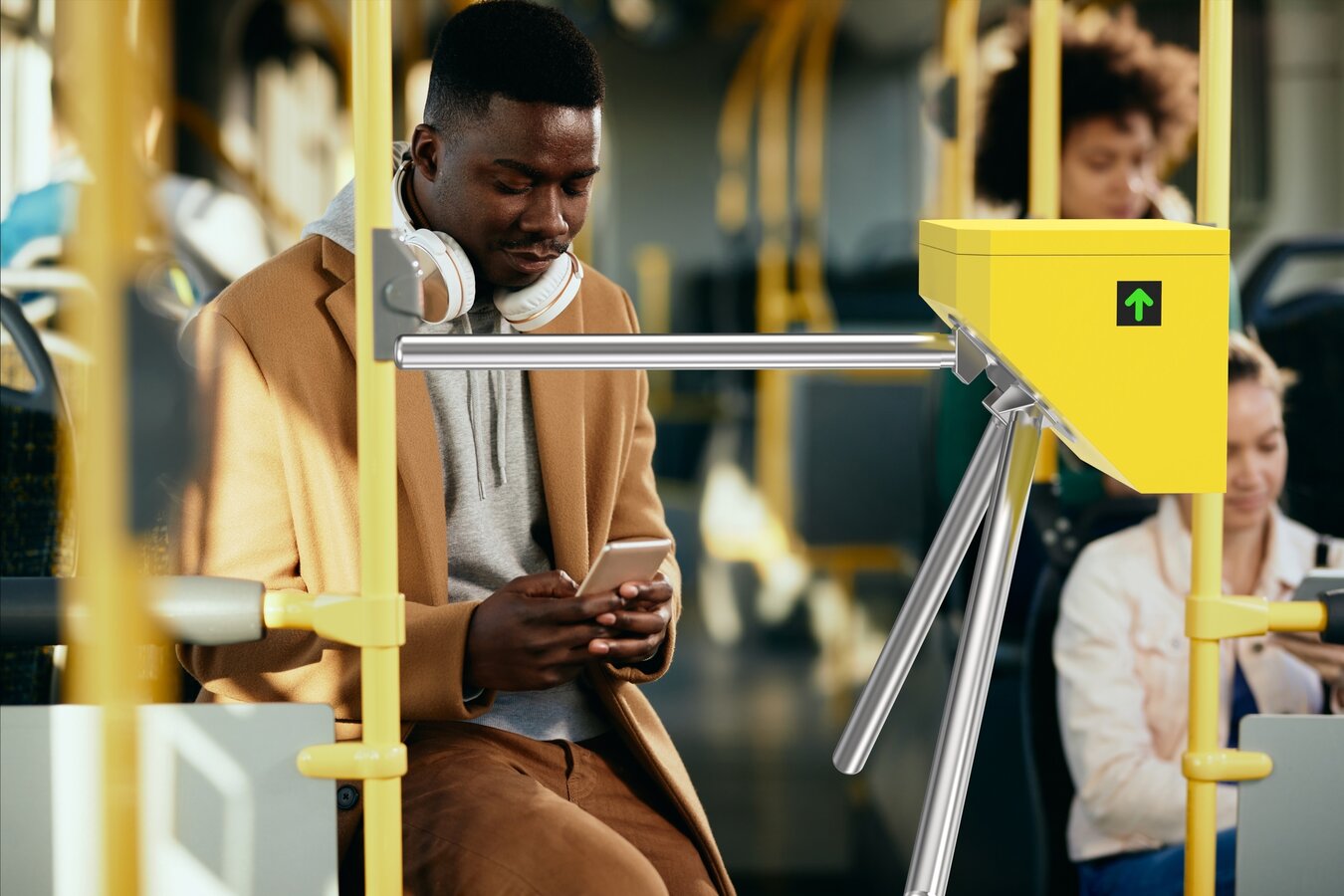

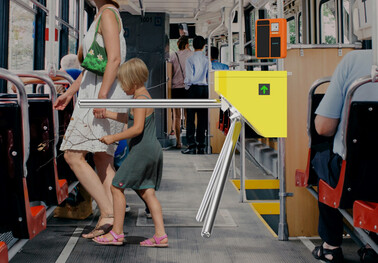

BO-DS5000 is a tripod turnstile which is characterized by low energy consumption and compact size so it can be installed in places such as city buses. Device works with many external devices such as e.g. display, reader, coin collector etc. Turnstile can work both unidirectionally and bidirectionally.
PRODUCT MAIN FEATURES:
- Long lifetime and high reliability
- Low noise
- Low energy consumption
- Semi-automatic drive (default), motorized drive (to order)
- It has IP65 protection class
- LED indicators indicates current turnstile status
- Passage will be opened automatically in case of power failure
- Only one person will pass through the gate in one cycle
- Housing is made of steel, arms are made of stainless steel
- Possibility to work both unidirectionally and bidirectionally

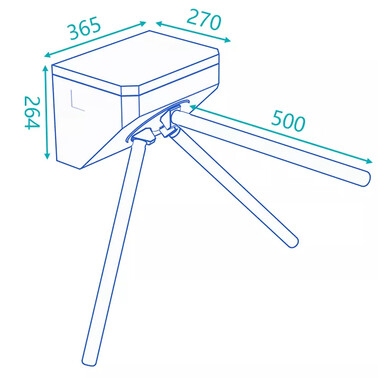

DIMENSIONS
TECHNICAL DATA
| Dimensions | 270 * 365 * 264 mm |
| Housing material | Steel |
| Arms material | Stainless steel |
| Weight | 25kg |
| Passage width | 500mm |
| Passage direction | Unidirectional / Bidirectional |
| Power supply | AC220V/110V, 50/60Hz |
| Voltage | 24V DC |
| Power consumption | 40W |
| Working temperature | -20°C - 75°C |
| Humidity | 95% |
| Working environment | Internal / External |
| Throughput | 35 people per minute |
| LED inidicator | Green - access has been granted, red - access denied |
| Communication | Dry contact, relay signal, RS485 |
| Integration | Any access control system |
