Tripod BO-DSN50-DB-BK

Price 3751,50* € (23% VAT included)

                3050,00* € net price

*price applies to the turnstile with semi-automatic drive

Ask for a product

DESCRIPTION

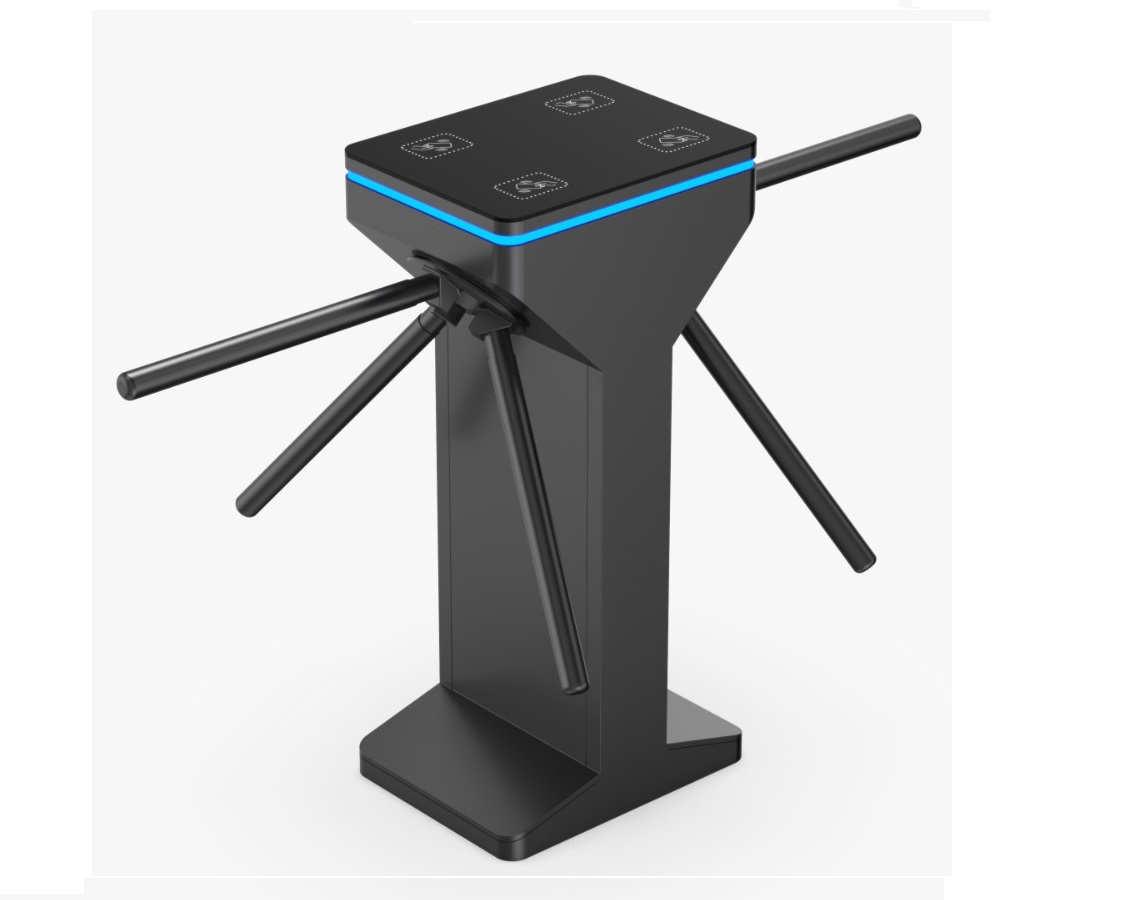

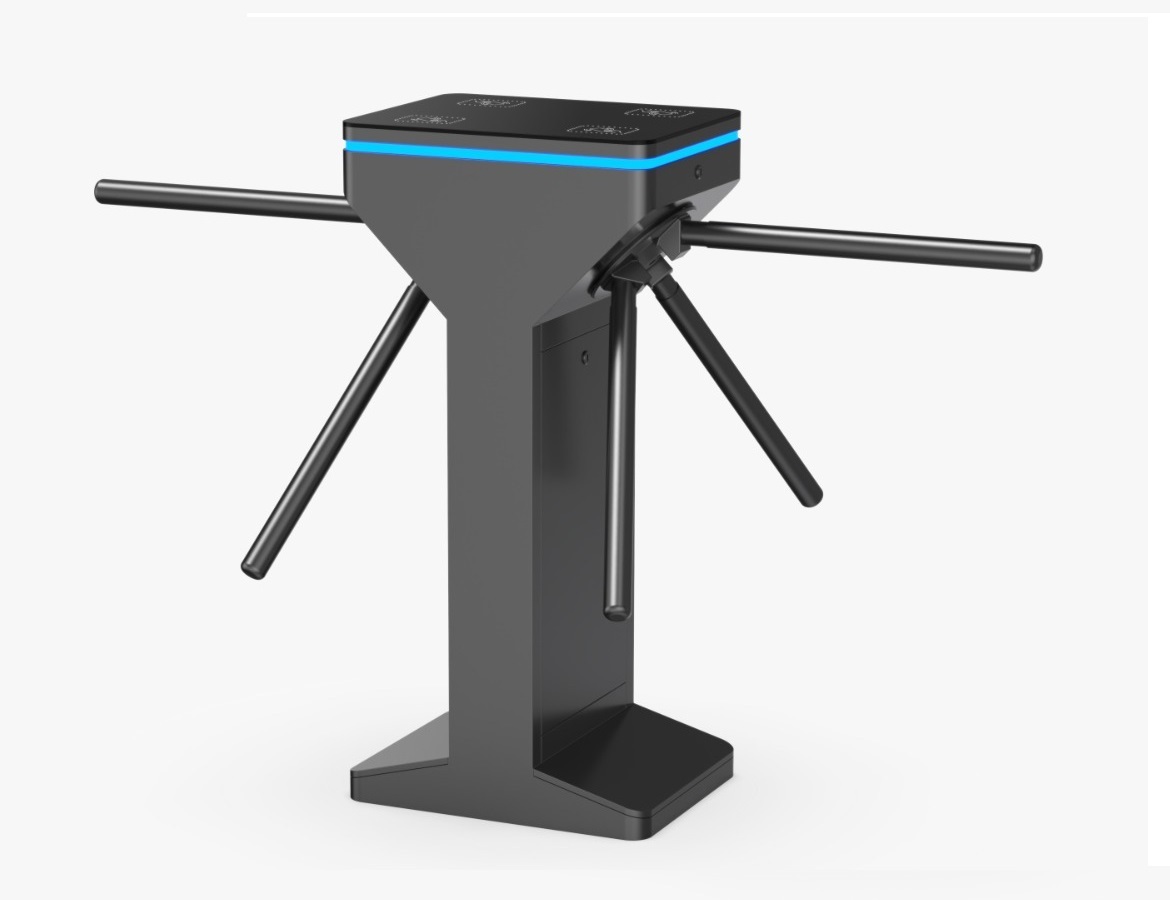

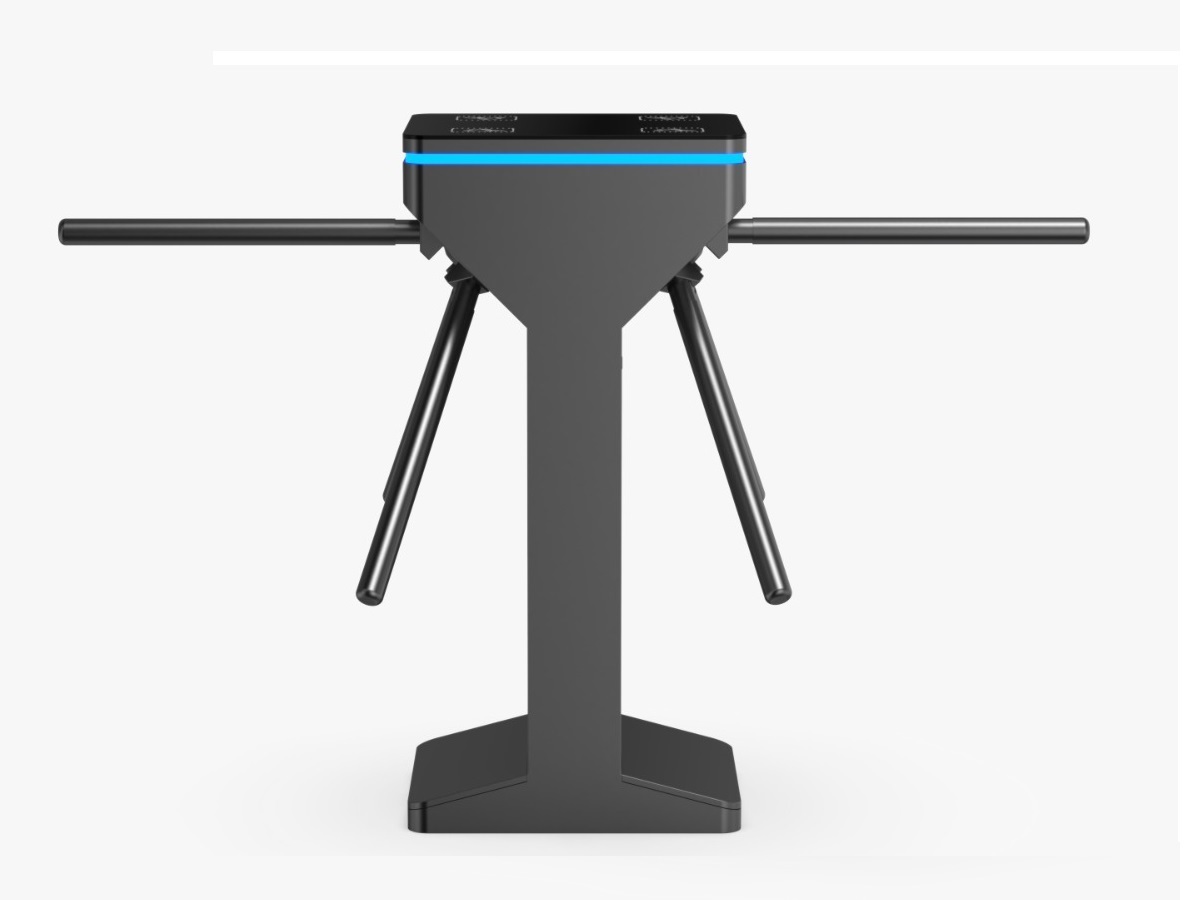

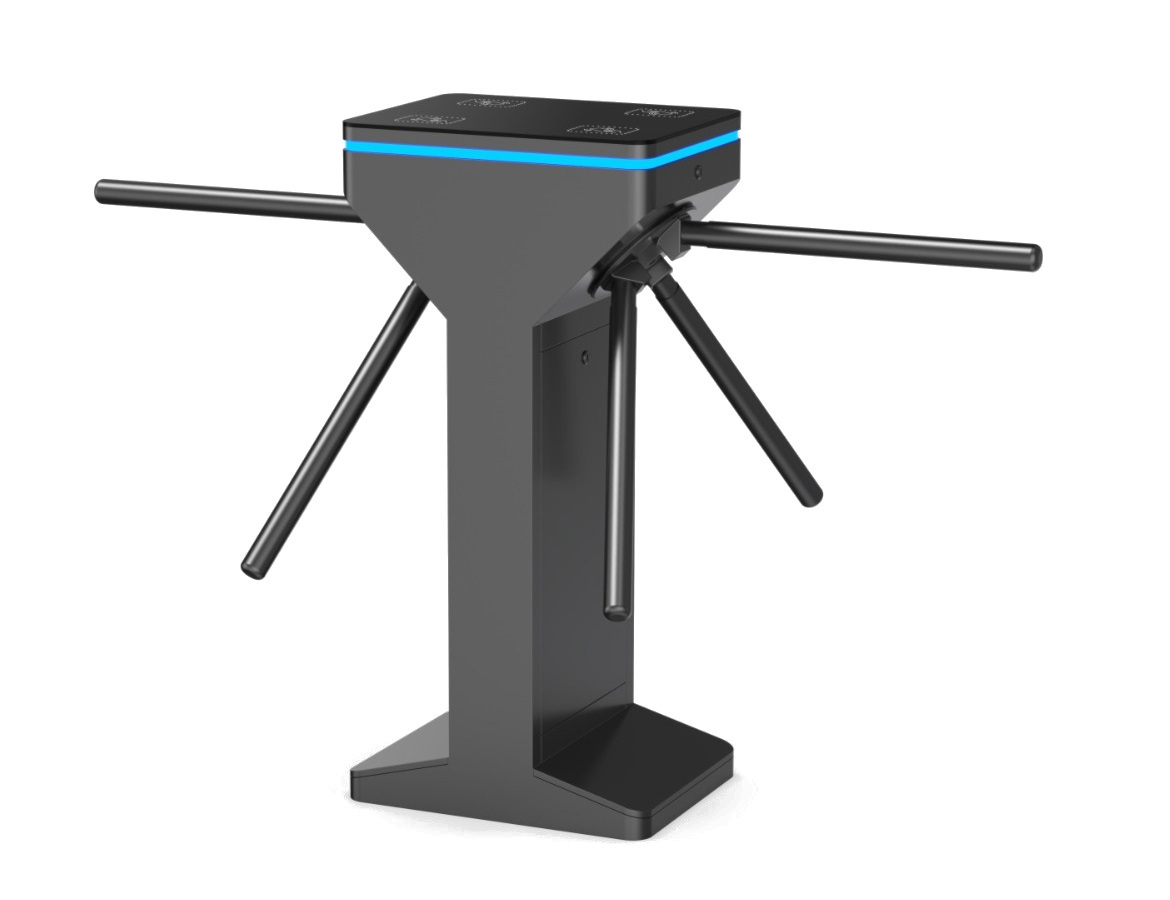

The Tripod BO-DSN50-DB-BK is a modern tripod turnstile featuring a dual-lane configuration within a single cabinet, providing two 550 mm passageways to significantly improve traffic efficiency while minimizing space usage. Its slim and elegant design makes it ideal for locations where aesthetics and functionality must coexist. The unit is equipped with a three-color LED indicator interface (blue, green, red), a temporary free-passage mode controlled by security personnel, and a counter output interface that records only actual passages rather than card swipes. Manufactured using mold-based production and robotic welding technology, the turnstile ensures long-term durability, precision, and reliable operation.

PRODUCT MAIN FEATURES:

• Dual-lane tripod turnstile in a single cabinet

• Slim and space-saving design with modern appearance

• Three-color LED indicators:

  • blue – power on / standby

  • green – valid access

  • red – invalid access

• Temporary free-passage mode for controlled mass entry

• Automatic reset function if passage is delayed

• Drop-arm function during power failure (fire safety compliant)

• Infrared sensors for illegal entry and reverse intrusion detection

• One-person-at-a-time passage control to prevent tailgating

• Accurate entry and exit counting based on actual passage

• Smooth, quiet operation with no mechanical impact

• Selectable single-direction or bi-directional operation

• Easy installation and low maintenance

• High reliability and long service life

• 3-year manufacturer warranty

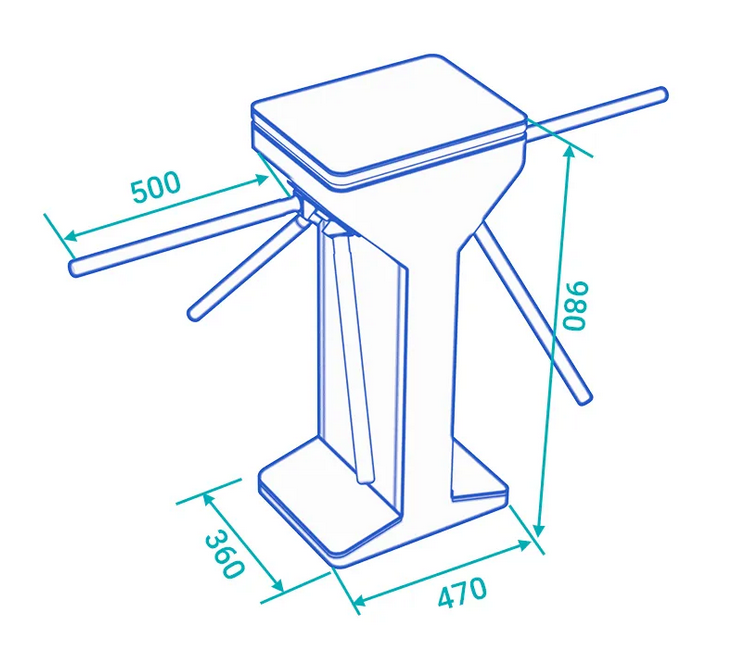

DIMENSIONS

TECHNICAL DATA
