Karta katalogowa bramka obrotowa BO-DSN50 PL
Tripod BO-DSN50
Price 2281,65* € (23% VAT included)
1855,00* € net price
*price applies to the turnstile with semi-automatic drive
DESCRIPTION

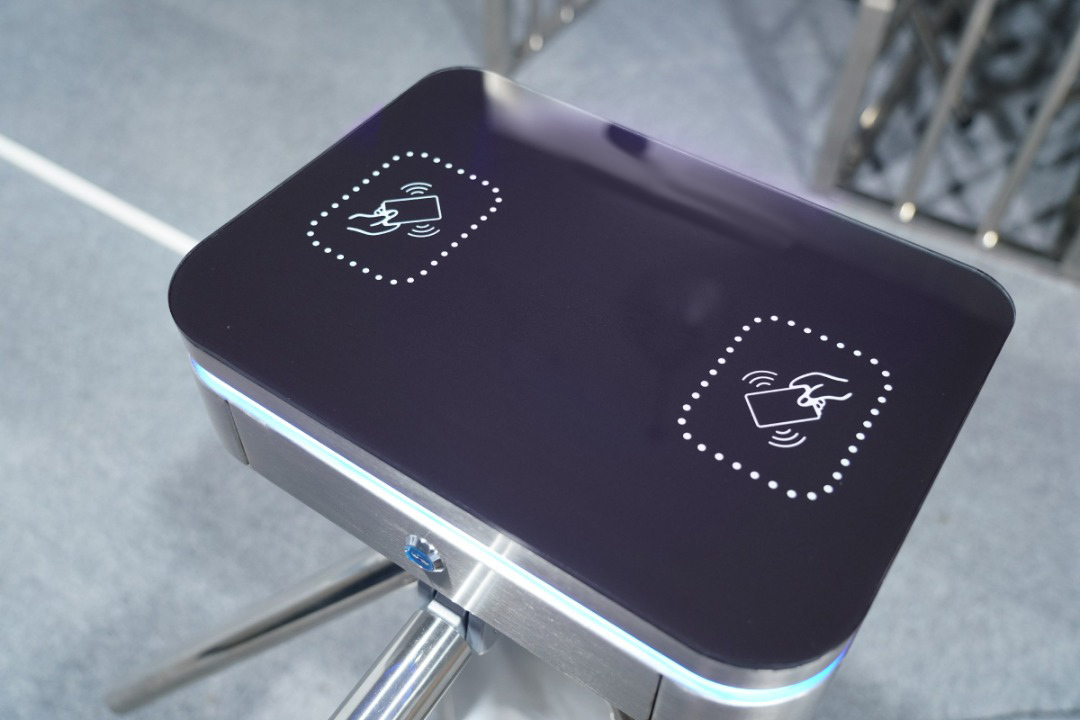

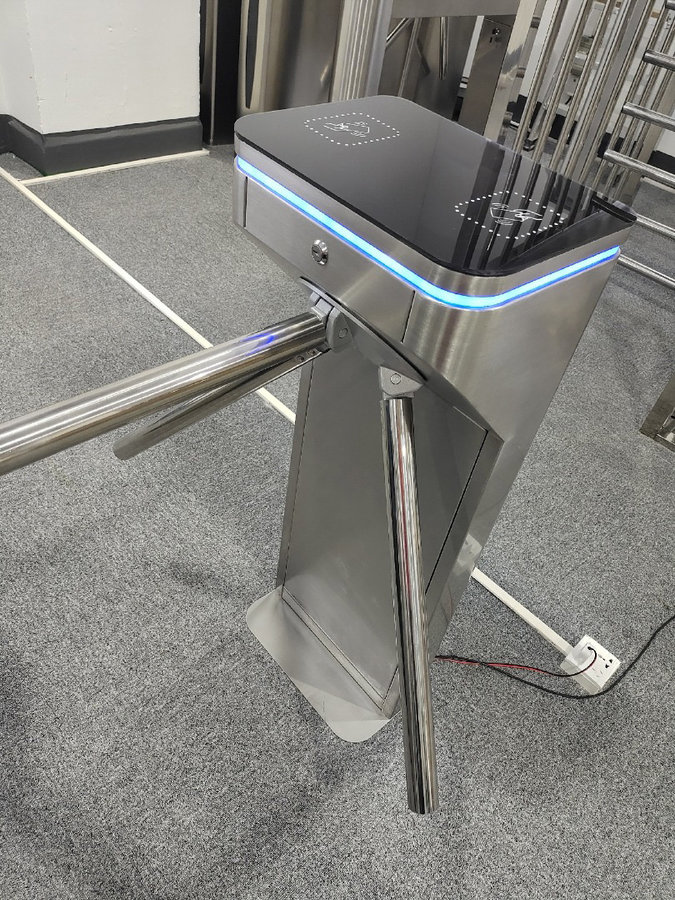

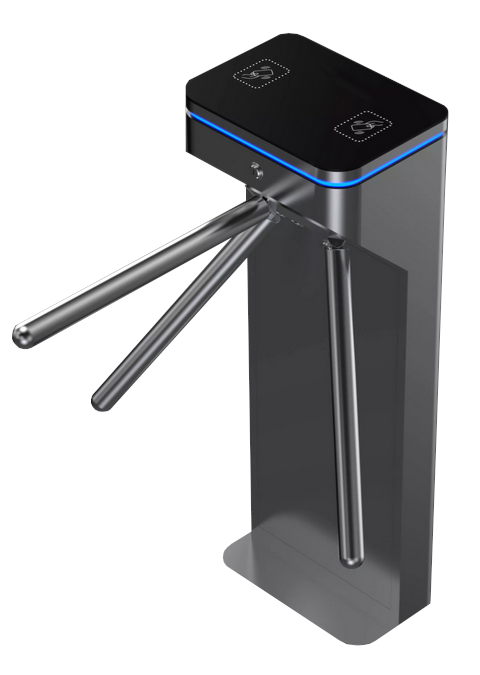

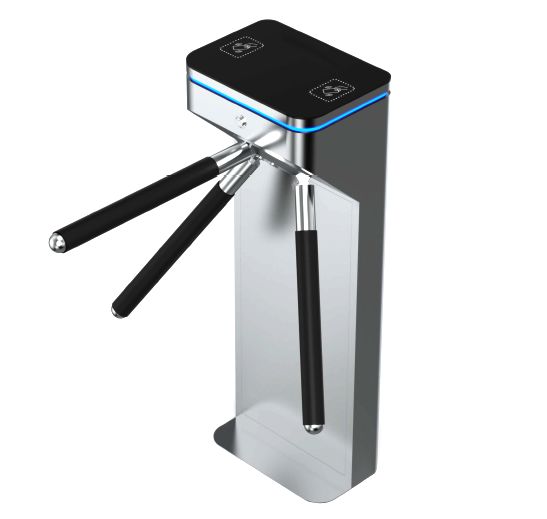

The BO-DSN50 turnstile is characterized by a compact design that allows you to save space without losing the possibility of introducing access control. The device is made of stainless steel and tempered glass. An additional advantage is the strip of LED lamps, which give the gate a modern and elegant design.
PRODUCT MAIN FEATURES:
- Long service life
- High operational reliability
- The device is characterized by quiet operation
- Traffic can be unidirectional as well as bidirectional (depending on the version)
- Automatic lock after 5 seconds (can be changed) if the passenger does not pass through the gate
- Anti-trailing: Only one person passes at a time
- Automatic lowering of the arms in the event of a power cut
- LED lamps (red × means no access; green → means open input)
- The gate can work inside and outside the building

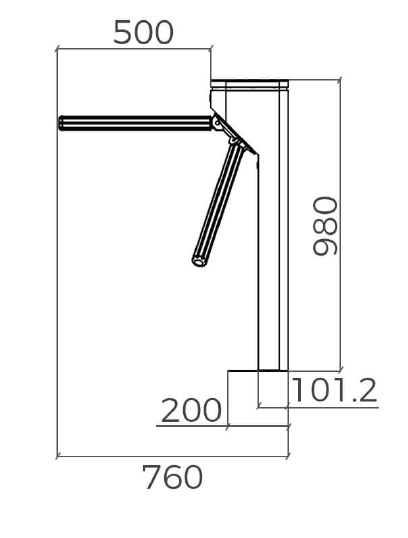

DIMENSIONS
TECHNICAL DATA
| Body material | Stainless steel 304, high quality black tempered glass |
| Arms material | Stainless steel 304 with rubber gasket |
| Dimensions | 360*760*980mm |
| Weight | 35kg |
| Passage width | 550mm (Arms length: 500mm) |
| Passage direction | Unidirectional or bidirectional |
| Power supply | AC 220V/110V, 50/60Hz |
| Operational voltage | 24V DC |
| Power consumption | 20W |
| Working temperature | -20°C up to 75°C |
| Humidity | 0 ~ 95% |
| Working environment | Internal, external |
| Throughput | 40 persons per minute |
| LED strip | Strip of LED lamps (front+top+side) |
| Emergency mode | In case of power failure arms will be folded automaticaly |
| Integration | With any access control system |
| Communication | Dry contact, relay signal, RS485 |
