Karta-katalogowa-Bramka obrotowa BS-DSQ10
Tripod BS-DSQ10
Price 2 632,20* € (23% VAT included)
2140.00* € net price
*price applies to the turnstile with semi-automatic drive
DESCRIPTION
The BS-DSQ10 is a robust tripod turnstile designed for effective access control in sites with medium to high pedestrian traffic. The construction allows only one person per cycle, preventing unauthorized tailgating. Suitable for indoor and outdoor installation, the turnstile features automatic arm drop during power failure (fire safety compliant) and seamless integration with access control systems.
PRODUCT MAIN FEATURES:
-
Tripod turnstile – one person per cycle
-
Effective anti-tailgating protection
-
Selectable single-direction or bi-directional operation
-
Smooth and quiet operation
-
LED indicators showing passage status
-
Automatic arm drop in case of power failure (fire safety compliant)
-
Integration with RFID, biometric, and access control systems

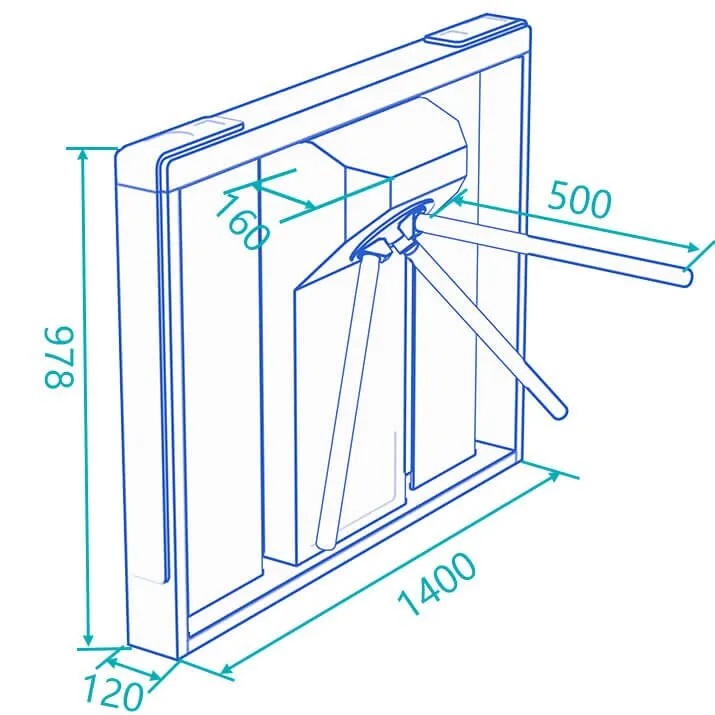

DIMENSIONS
TECHNICAL DATA
| Framework Material | Steel with white and black stoving varnish |
| Swipe Card Panel Material | Tempered glass |
| Arm Material | 304 stainless steel |
| Dimensions (L×W×H) | 1400 × 120 × 978 mm |
| Weight | 75 kg / pc |
| Passage Width | 550 mm (arm length: 500 mm) |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 10 million cycles |
| Power Supply | AC 220V / 110V, 50/60 Hz |
| Operating Voltage | 24 V DC |
| Power Consumption | 20 W |
| Operating Temperature | –20 °C to +75 °C |
| Operating Humidity | 0–95% (no freeze) |
| Working Environment | Indoor / Outdoor |
| Flow Rate | Up to 35 people per minute |
| LED Indicator | Yes |
| Emergency Mode | Arms drop automatically |
| Communication | Dry contact, relay signal, RS485 |
