Tripod BO-CRB100
Price 2681,40* € (23% VAT included)
2180,00* € net price
*price applies to the turnstile with semi-automatic drive
DESCRIPTION

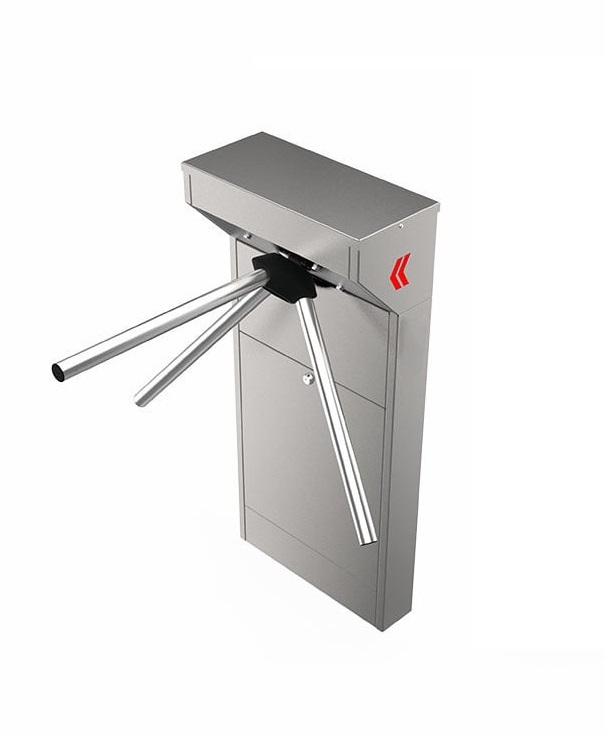

The BO-CRB100 turnstile is a modern access control solution designed with durable AISI 304 stainless steel and thermally treated anodized aluminum arms. Its construction ensures resistance to outdoor conditions, stable operation and a clean, elegant design. The unit allows adjustable bidirectional passage, memory mode and transition signaling. A bidirectional LED display is included as standard. In emergency situations (fire alarm), the arms switch to free-rotation mode (NC), allowing rapid evacuation.
PRODUCT MAIN FEATURES:
-
AISI 304 stainless steel body resistant to outdoor conditions
-
Durable anodized and thermally treated aluminum arms
-
Adjustable passage direction in both ways
-
Transition signaling A→B / B→A (5VDC)
-
Adjustable transition time
-
Audible warning function
-
Standard two-way LED display
-
Emergency mode: arms switch to free-rotation (NC)
-
Low power consumption (3.7W during transition, 4W on standby)
-
Suitable for indoor and outdoor environments
-
Compatible with any access control system

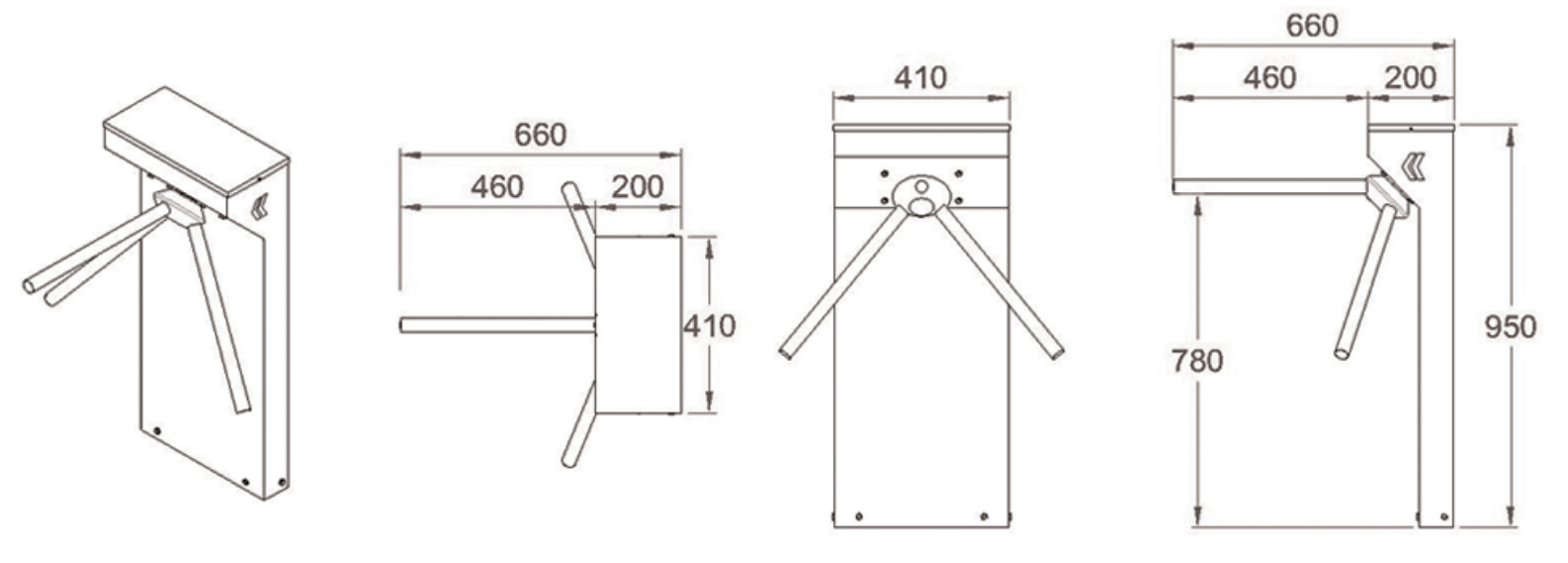

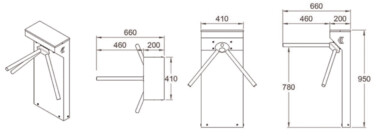

DIMENSIONS
TECHNICAL DATA
| Body material | AISI 304 stainless steel |
| Arms material | Anodized and thermally treated aluminum |
| Passage Direction | One-way or two-way, adjustable |
| Operation | Manual driving |
| Functions | A→B / B→A transition signals (5VDC), adjustable transition time, memory mode, audible alarm |
| Emergency Mode | Free-rotation (NC) triggered by fire alarm |
| Power Supply | 100–230 VAC, 47–60 Hz |
| Power Consumption | 3.7W during passage / 4W in standby |
| Operating Temperature | -10°C to +70°C (optional heater: down to -30°C) |
| Passage Speed | Up to 26 people/min |
| Passage Width | 450–500 mm |
| LED Display | Standard in both directions |
| Weight | ~24 kg |
| Security Level | Deterrent |
| Areas of Use | Indoor and outdoor applications |
| Options (change the price) | Glass top cover, reader units, pushbutton, remote control, angled cover |
