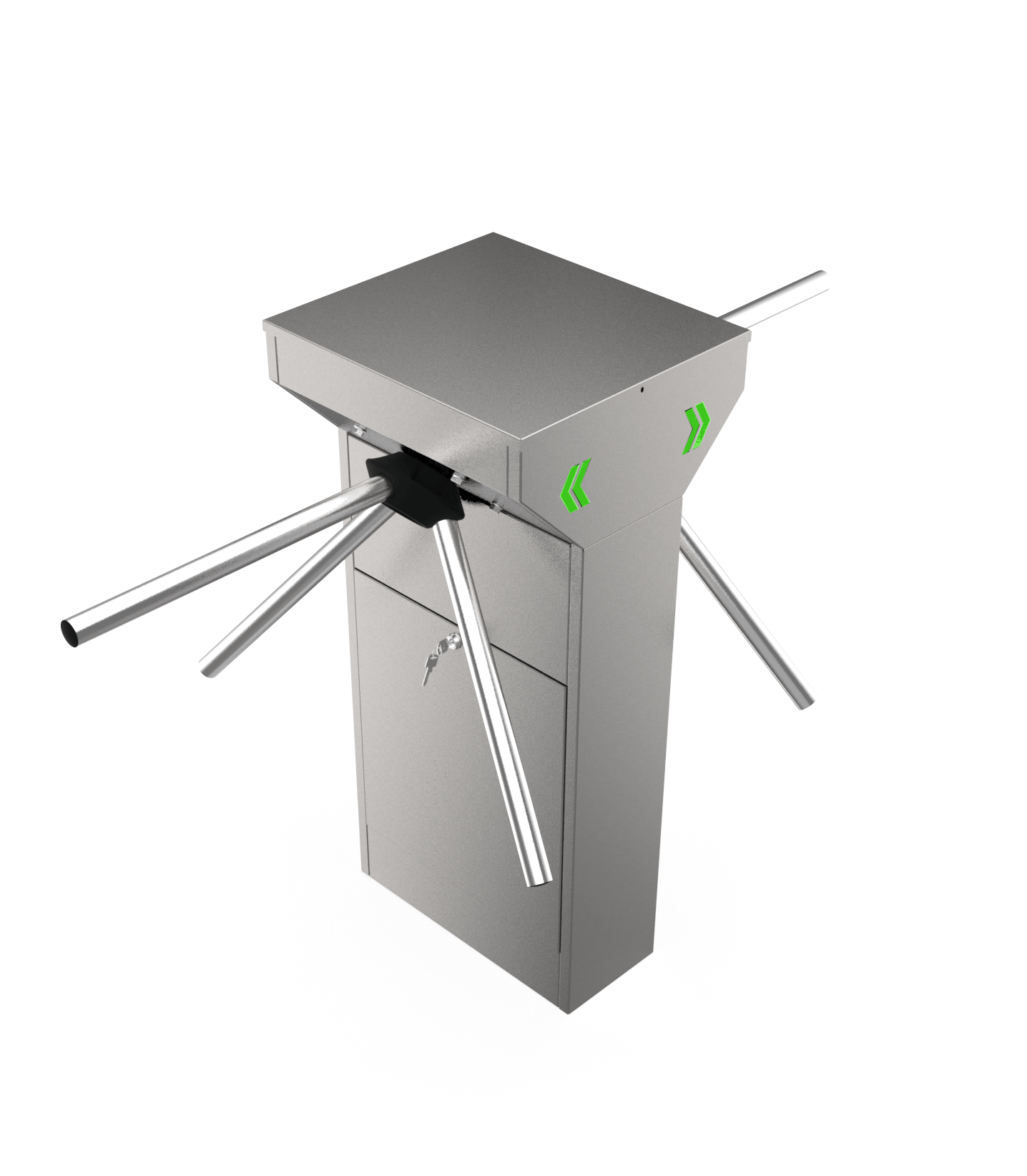

Tripod BO-CRB100 Double
Price 4034,40* € (23% VAT included)
3280,00* € net price
*price applies to the turnstile with semi-automatic drive
DESCRIPTION
The BO-CRB100 Double is a dual-module access control turnstile constructed from AISI 304 stainless steel with anodized, thermally treated aluminum arms, offering high durability, outdoor resistance and increased throughput in a compact design; the system provides adjustable bidirectional passage, memory mode, transition signaling and a bidirectional LED display, while in emergency situations (fire alarm) the arms automatically switch to free-rotation mode (NC) to allow fast and safe evacuation.
PRODUCT MAIN FEATURES:
-
Dual configuration for increased throughput
-
AISI 304 stainless steel body, resistant to outdoor conditions
-
Anodized and thermally treated aluminum arms
-
Adjustable bidirectional passage
-
Transition signaling A→B and B→A (5VDC)
-
Adjustable transition time
-
Memory mode
-
Audible alarm
-
Standard bidirectional LED display
-
Emergency free-rotation mode (NC)
-
Low power consumption: 3.7W during passage / 4W standby
-
Suitable for indoor and outdoor installations

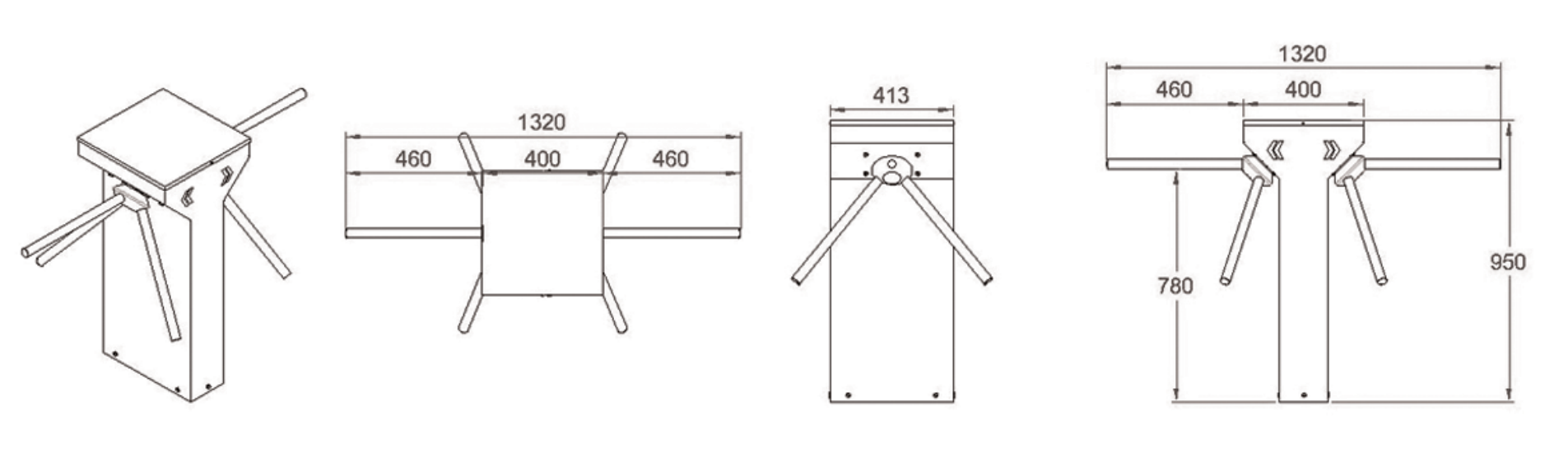

DIMENSIONS
TECHNICAL DATA
| Body material | AISI 304 stainless steel |
| Arms material | Anodized and thermally treated aluminum |
| Passage Direction | Bidirectional, adjustable |
| Operation | Manual driving |
| Functions | Transition signals A→B / B→A (5VDC), adjustable time, memory mode, audible alarm |
| Emergency Mode | Free-rotation (NC) triggered by fire alarm |
| Power Supply | 100–230 VAC, 47–60 Hz |
| Power Consumption | 3.7W during passage / 4W in standby |
| Operating Temperature | -10°C to +70°C (optional heater: down to -30°C) |
| Passage Speed | Up to 26 people/min |
| Passage Width | 450–500 mm |
| LED Display | Standard in both directions |
| Weight | ~24 kg |
| Security Level | Deterrent |
| Areas of Use | Indoor and outdoor applications |
| Options (change the price) | Glass top cover, reader units, push-button, remote control, angled cover |
