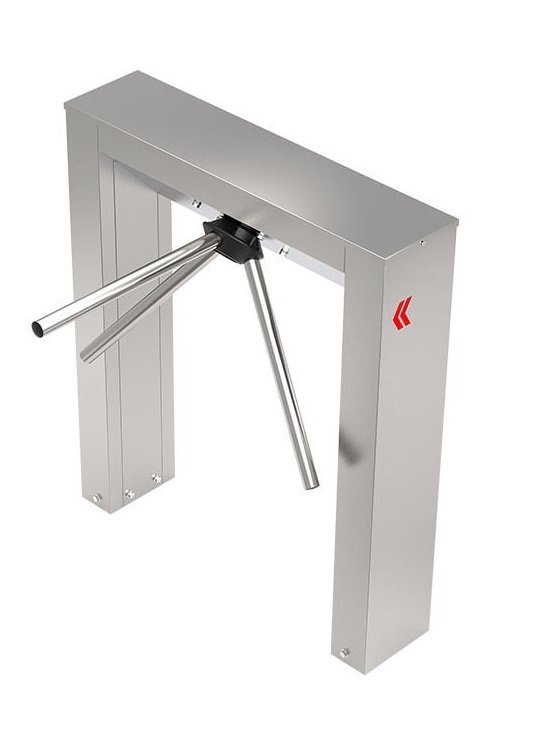

Tripod BO-CRB200
Price 2792,10* € (23% VAT included)
2270,00* € net price
*price applies to the turnstile with semi-automatic drive
DESCRIPTION
The BO-CRB200 turnstile is a robust and modern access control solution built from outdoor-resistant AISI 304 stainless steel with anodized and thermally reinforced aluminum arms; it ensures high durability, smooth operation and full control over passage direction, offering adjustable passage timing, memory mode, A→B/B→A signaling and a standard bidirectional LED display, while in emergency scenarios (fire alarm) the arms automatically switch to free-rotation mode (NC) for fast and safe evacuation.
PRODUCT MAIN FEATURES:
-
AISI 304 stainless steel body suitable for outdoor conditions
-
Anodized and thermally reinforced aluminum arms
-
Adjustable bidirectional passage
-
A→B and B→A transition signaling (5VDC)
-
Adjustable transition time and memory mode
-
Audible warning
-
Standard bidirectional LED display
-
Emergency free-rotation mode (NC)
-
Very low power consumption
-
Suitable for indoor and outdoor use
TECHNICAL DATA
| Body material | AISI 304 stainless steel |
| Arms material | Anodized and thermally treated aluminum |
| Passage Direction | Bidirectional, adjustable |
| Operation | Manual driving |
| Functions | A→B / B→A (5VDC) signals, adjustable timing, memory mode, audible warning |
| Emergency Mode | Free-rotation (NC) triggered by fire alarm |
| Power Supply | 100–230 VAC, 47–60 Hz |
| Power Consumption | 3.7W during passage / 4W in standby |
| Operating Temperature | -10°C to +70°C (optional heater: down to -30°C) |
| Passage Speed | Up to 26 people/min |
| Passage Width | 450–500 mm |
| LED Display | Standard in both directions |
| Weight | ~24 kg |
| Security Level | Deterrent |
| Areas of Use | Indoor and outdoor applications |
| Options (change the price) | Top glass cover with print, reader apparatus, pushbutton module, remote control, angled cover |
