Tripod BO-CRB200 Double
Price 4157,40* € (23% VAT included)
3380,00* € net price
*price applies to the turnstile with semi-automatic drive
DESCRIPTION
The BO-CRB200 Double is a dual-module access control turnstile designed for increased throughput and outdoor durability, built from AISI 304 stainless steel with anodized and thermally reinforced aluminum arms; it offers adjustable bidirectional passage, adjustable transition time, memory mode, A→B/B→A signaling and a standard bidirectional LED display, while in emergency conditions (fire alarm) the arms automatically switch to free-rotation mode (NC), ensuring fast and safe evacuation.
PRODUCT MAIN FEATURES:
-
Dual-module design for increased throughput
-
AISI 304 stainless steel body resistant to outdoor conditions
-
Anodized and thermally reinforced aluminum arms
-
Adjustable bidirectional passage
-
A→B and B→A transition signaling (5VDC)
-
Adjustable transition time and memory mode
-
Audible warning function
-
Standard bidirectional LED display
-
Emergency free-rotation mode (NC)
-
Very low power consumption
-
Suitable for indoor and outdoor use

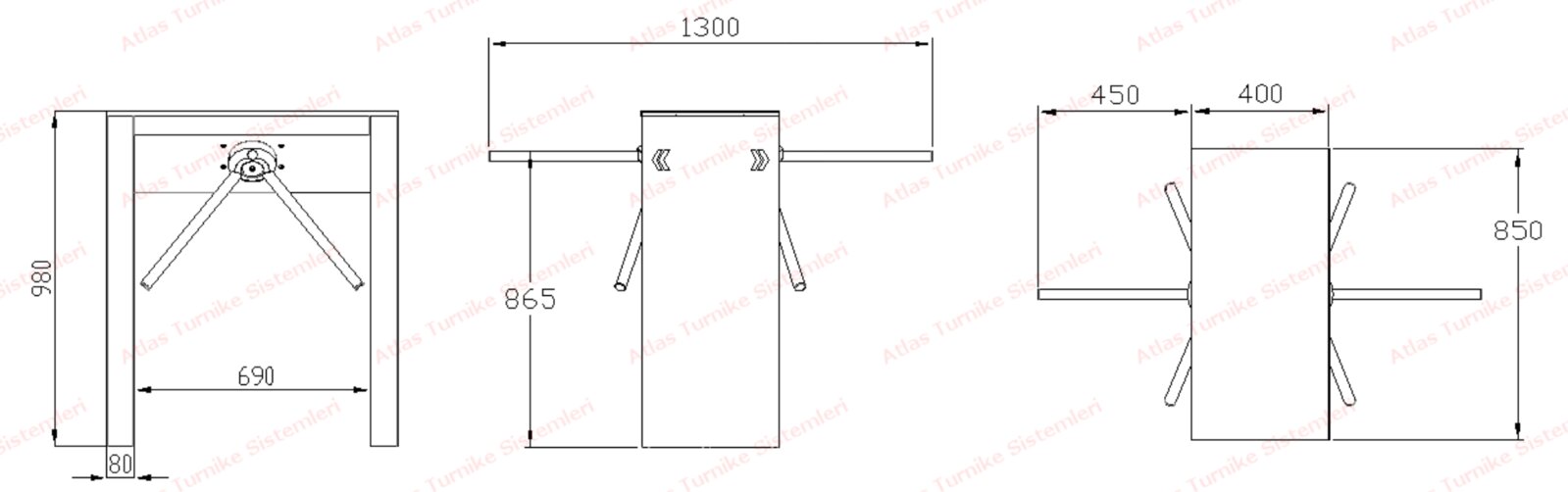

DIMENSIONS
TECHNICAL DATA
| Body material | AISI 304 stainless steel |
| Arms material | Anodized and thermally treated aluminum |
| Passage Direction | Bidirectional, adjustable |
| Operation | Manual driving |
| Functions | A→B / B→A transition signals (5VDC), adjustable transition time, memory mode, audible alarm |
| Emergency Mode | Free-rotation (NC) triggered by fire alarm |
| Power Supply | 100–230 VAC, 47–60 Hz |
| Power Consumption | 3.7W during passage / 4W in standby |
| Operating Temperature | -10°C to +70°C (optional heater: down to -30°C) |
| Passage Speed | Up to 26 people/min |
| Passage Width | 450–500 mm |
| LED Display | Standard in both directions |
| Weight | ~24 kg |
| Security Level | Deterrent |
| Areas of Use | Indoor and outdoor applications |
| Options (change the price) | Top glass cover with print, reader apparatus, pushbutton module, remote control, angled cover. |
