Karta katalogowa bramofurta niska BF-DZ402 PL

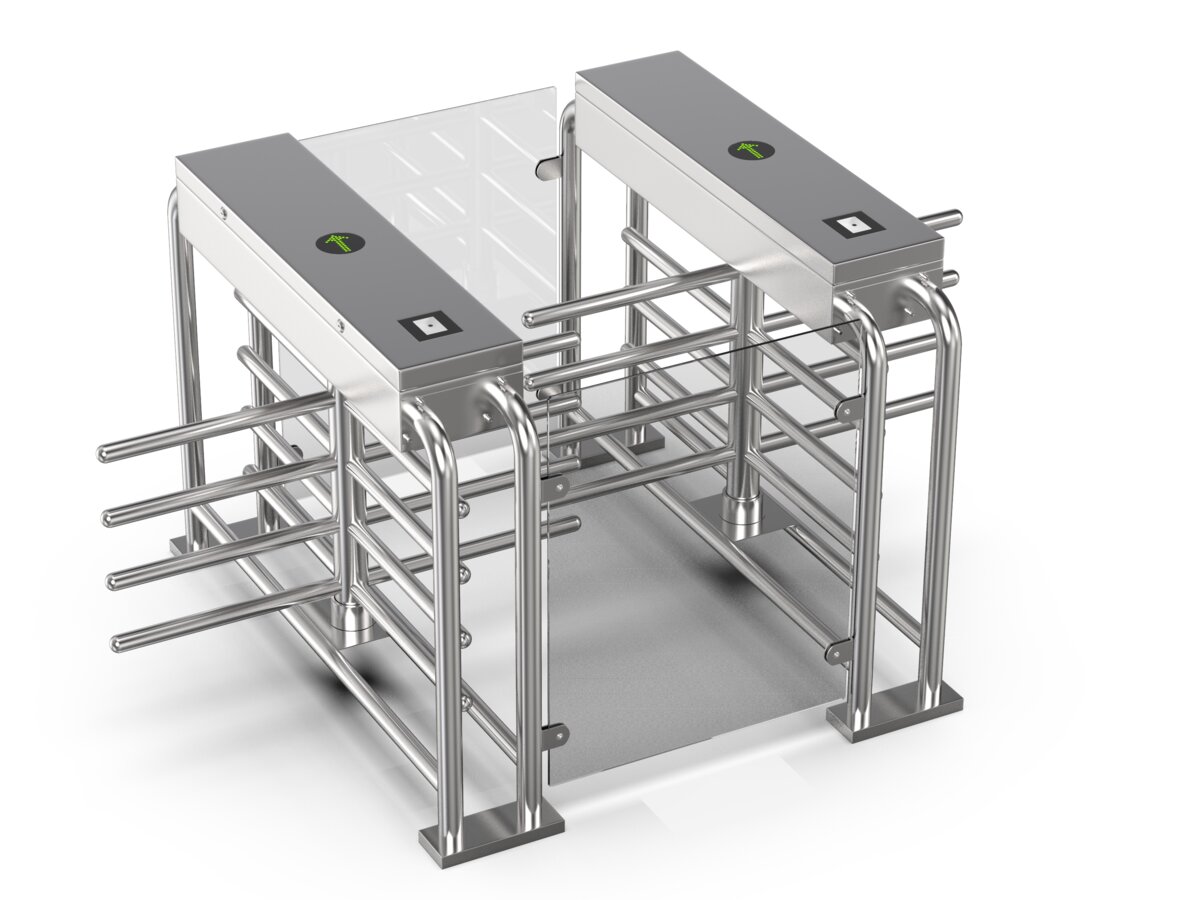

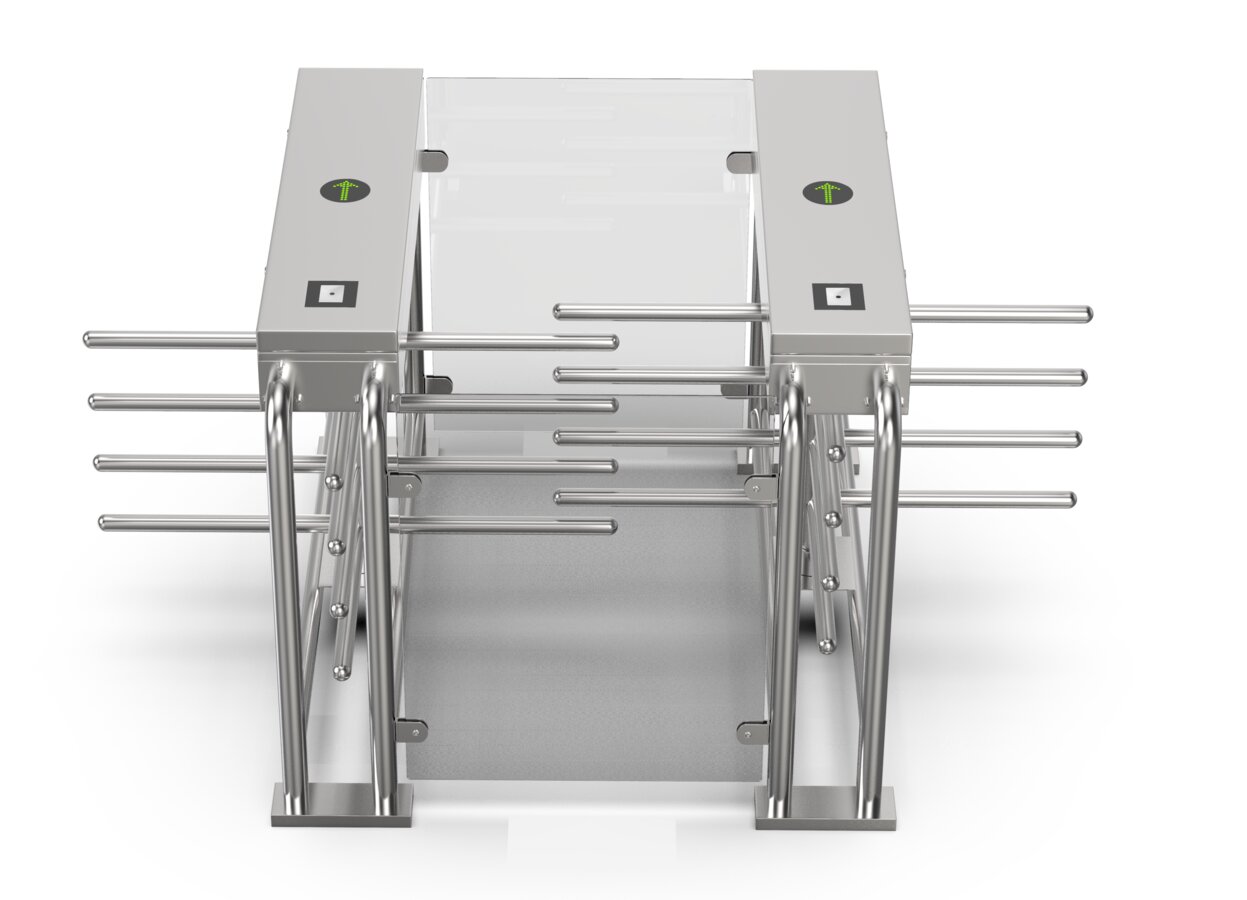

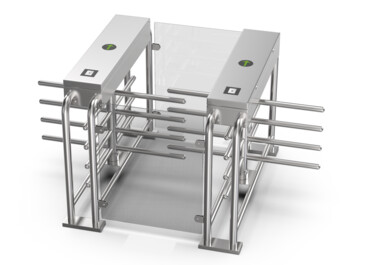

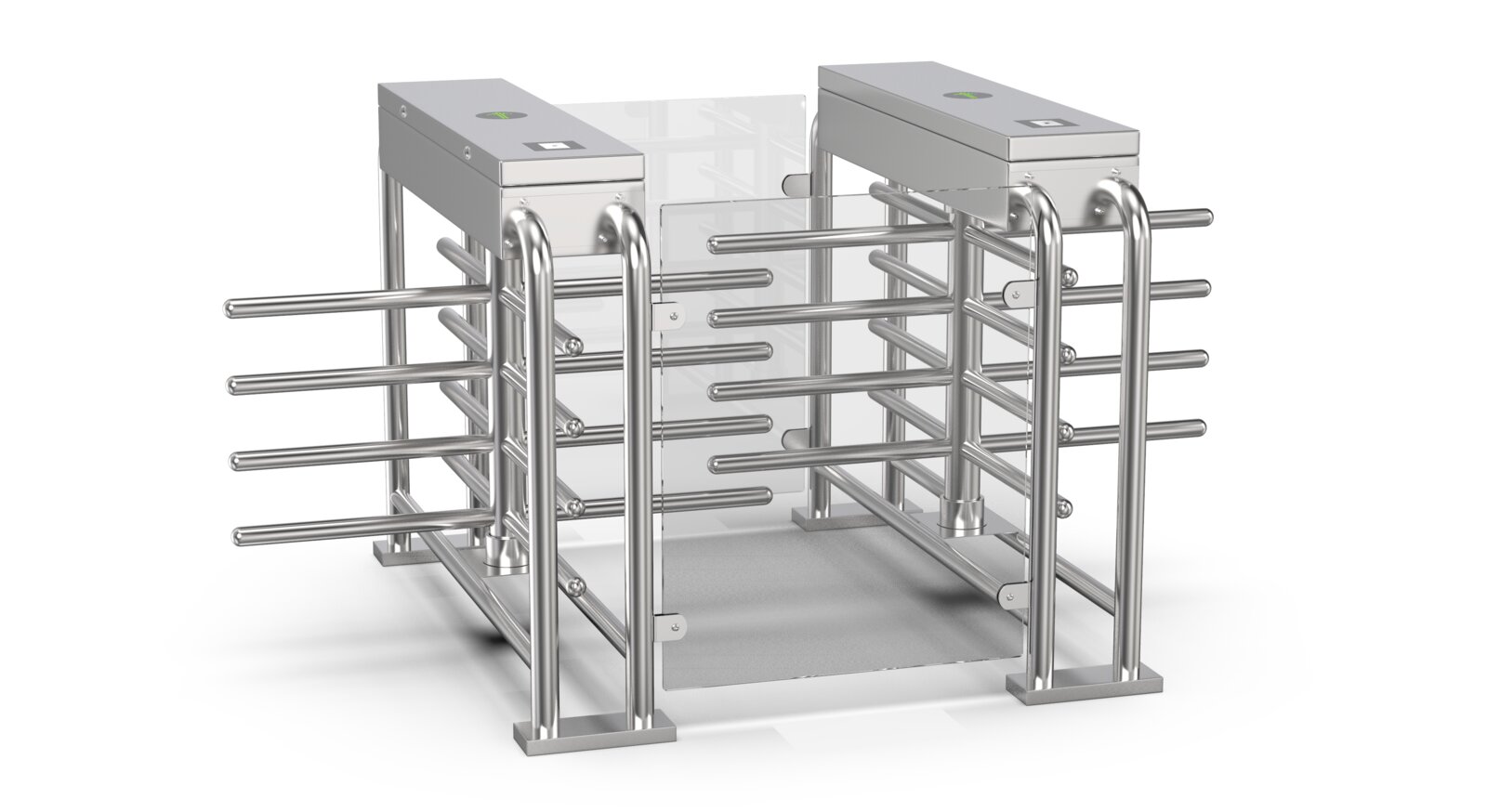

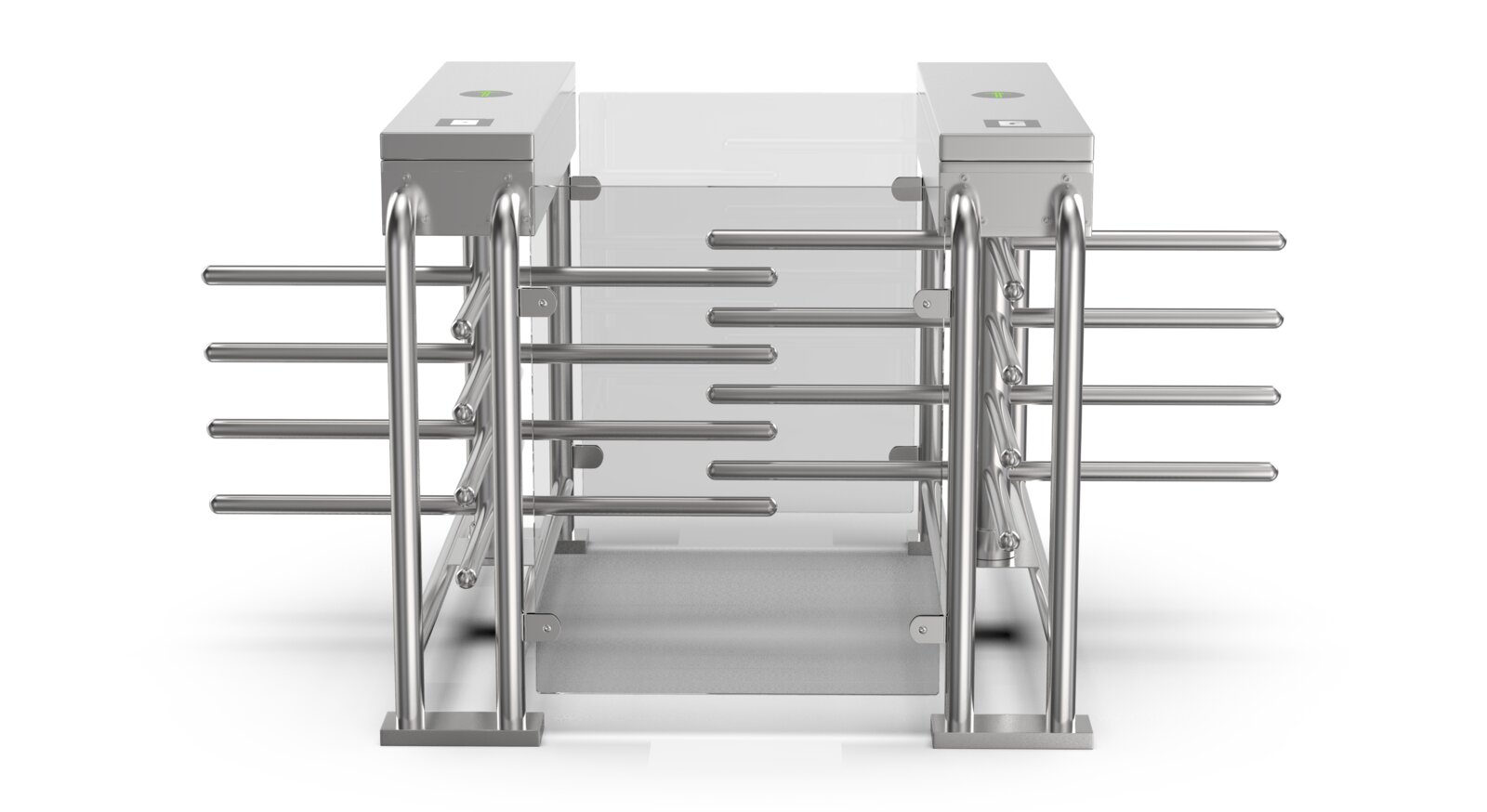

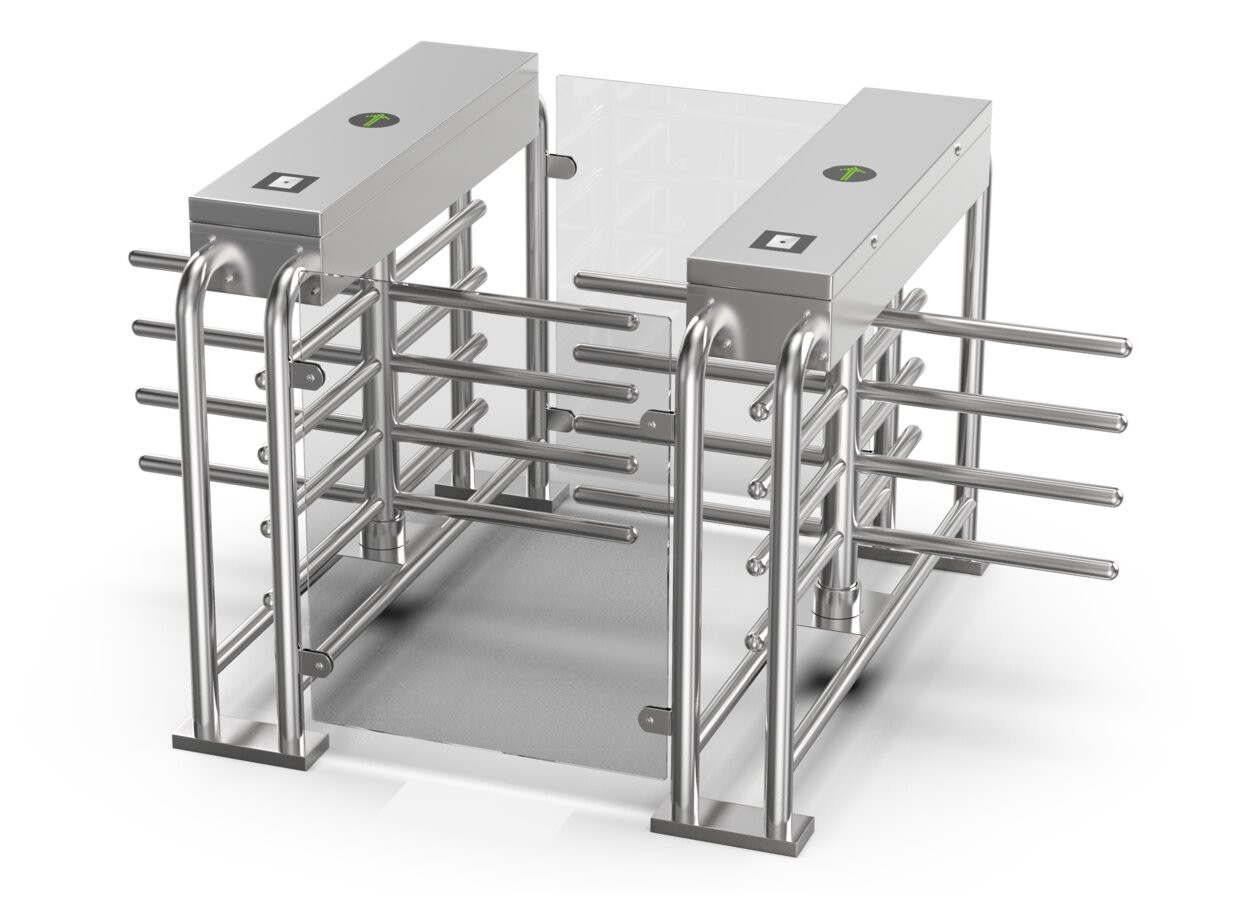

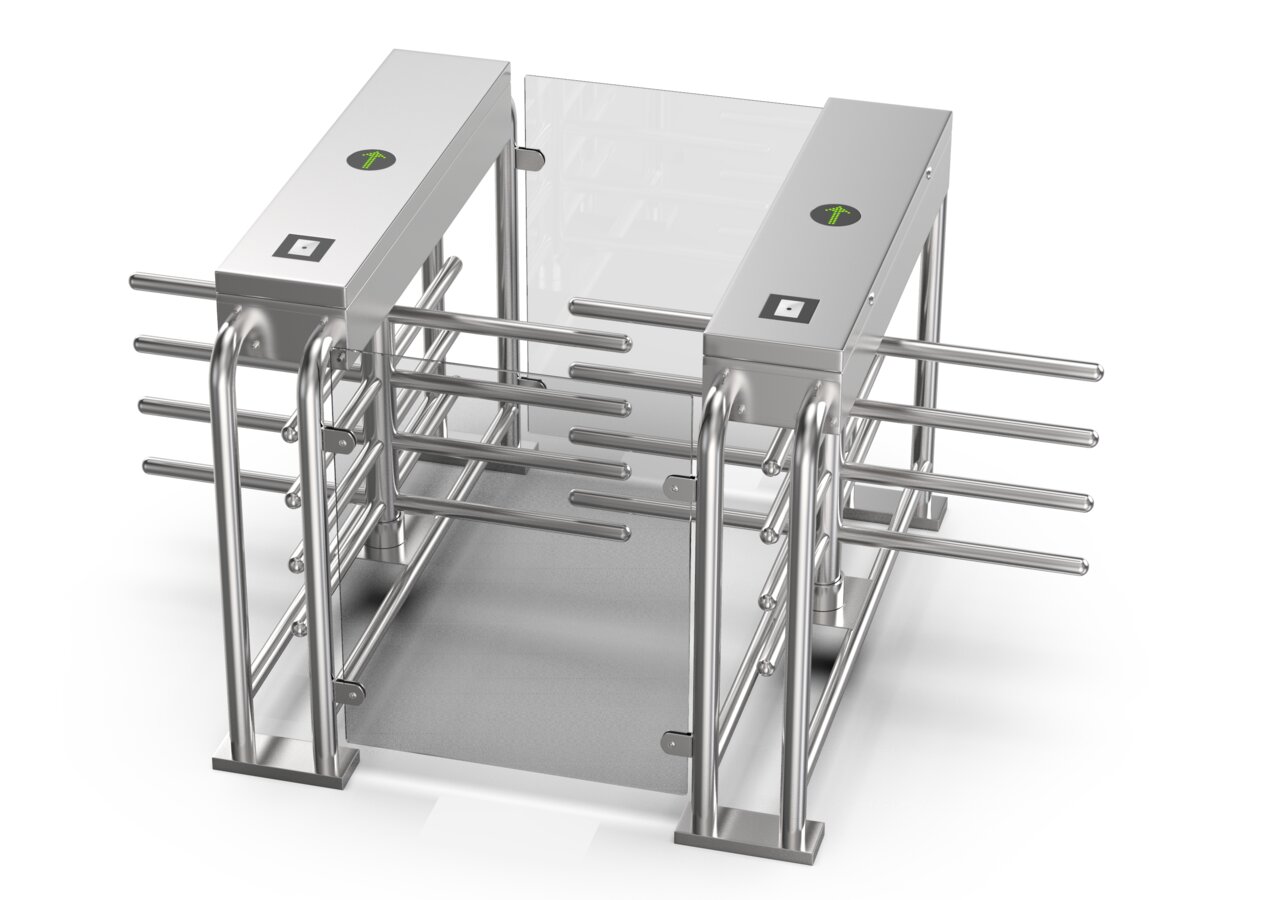

Low door wicket BF-DZ402
Price 4852,35 € (23% VAT included)
3945,00 € net price
DESCRIPTION
BF-DZ402 is a low door wicket made of brushed stainless steel. It has many advanced features such as anti-trailing or the function of opening the door in the event of a power loss. It consists of two modules. It is suitable for installation in both indoor and outdoor environments.
PRODUCT MAIN FEATURES:
- Long lifetime and high reliability
- Low noise
- The device is equipped with an adjustable hydraulic motor
- Automatic lock function (if a passing person does not pass the gate within 5 seconds (can be adjusted), the arms will be blocked
- Passage will be opened automatically in case of power failure
- It has an anti-trailing function - only one person will be able to pass through the gate during one opening
DIMENSIONS
TECHNICAL DATA
| Materials | Brushed stainless steel |
| Dimensions | 2200*1449*1100mm |
| Weight | 200kg |
| Passage width | 2 * 565.5mm |
| Passage direction | Unidirectional / Bidirectional |
| Power supply | AC220V/110V, 50/60Hz |
| Operational voltage | 24V DC |
| Power consumption | 40W |
| Working temperature | -15°C - 60°C |
| Humidity | 95% |
| Working environment | External / Internal |
| Throughput | 35-40 people per minute |
| Emergency function | Passage will be opened automatically in case of power failure |
| Communication | Dry contact, relay signal, RS485 |
