Datasheet for BW-402FS Canopy Full Height Turnstile

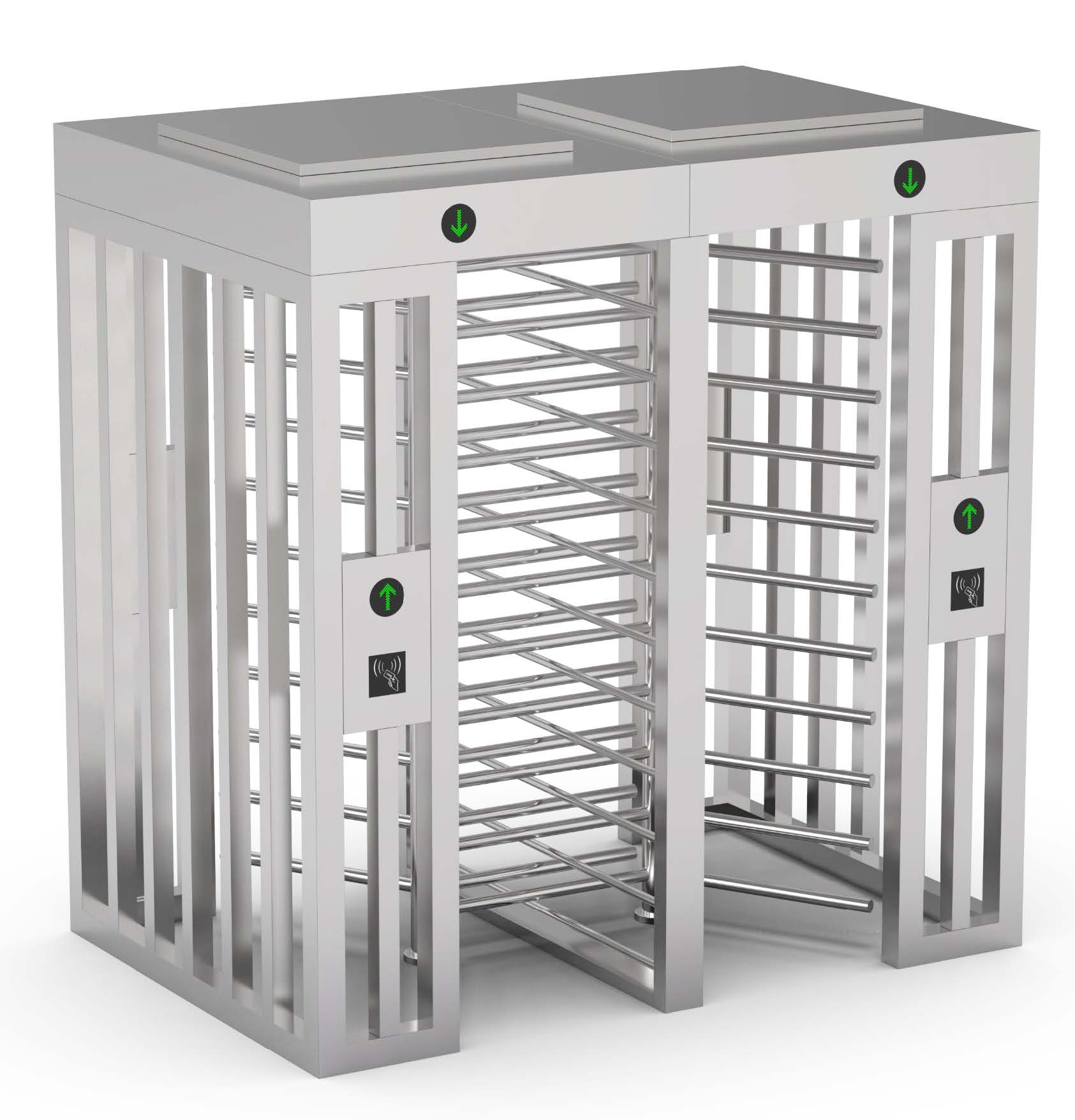

Double full height turnstile BW-402FS
Price 10 061,40* € (23% VAT included)
8100,80* € net price
*price applies to the turnstile with semi-automatic drive
DESCRIPTION
The BW-402FS is a full height turnstile providing the highest quality access control. This model is equipped with two passage segments, each with a passage width of 650mm. Turnstile is made of brushed stainless steel, which ensures a durable look for a very long time. Can work in both directions.
PRODUCT MAIN FEATURES:
- Long lifetime and high reliability
- Low noise
- Mechanism is equipped Mechanizm wyposażony jest w automatyczny, regulowany silnik hydrauliczny
- Automatic lock function (if a passing person does not pass the gate within 5 seconds (can be adjusted), the arms will be blocked
- Just one person can pass through the gate at one time
- Passage will be opened automatically in case of power failure
DIMENSIONS

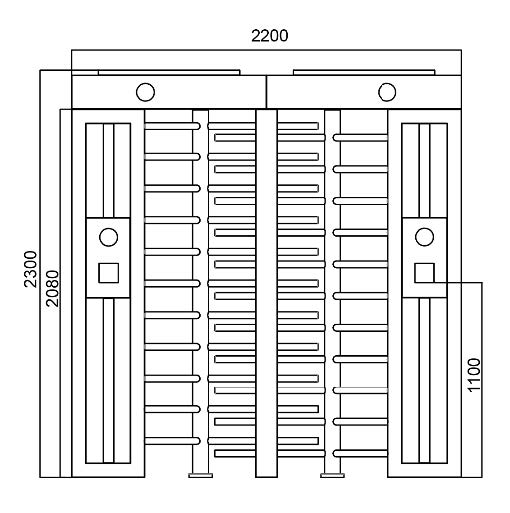

Front view
Side view
Top view
TECHNICAL DATA
| Materials | Stainless steel 304 |
| Dimensions | 2200 * 1460* 2300mm |
| Weight | 400kg |
| Passage width | 2 * 625mm |
| Passage direction | Single directional / Bi-directional |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -15°C - 60°C |
| Operation Humidity | 95% |
| Working Environment | Indoor / Outdoor |
| Flow Rate | 35-40 people per minute |
| Emergency function | Passage will be opened automatically in case of power failure |
| Communication | Dry contact, relay signal, RS485 |
