Datasheet PL Curve Keypad

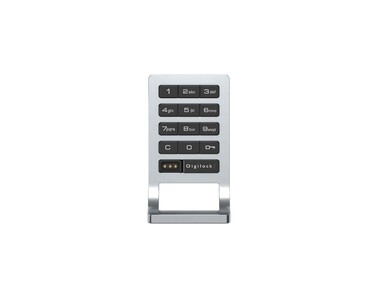

Cabinet lock Digilock Curve Keypad
Price 195,57 € (23% VAT included)
159,00 € net price
DESCRIPTION

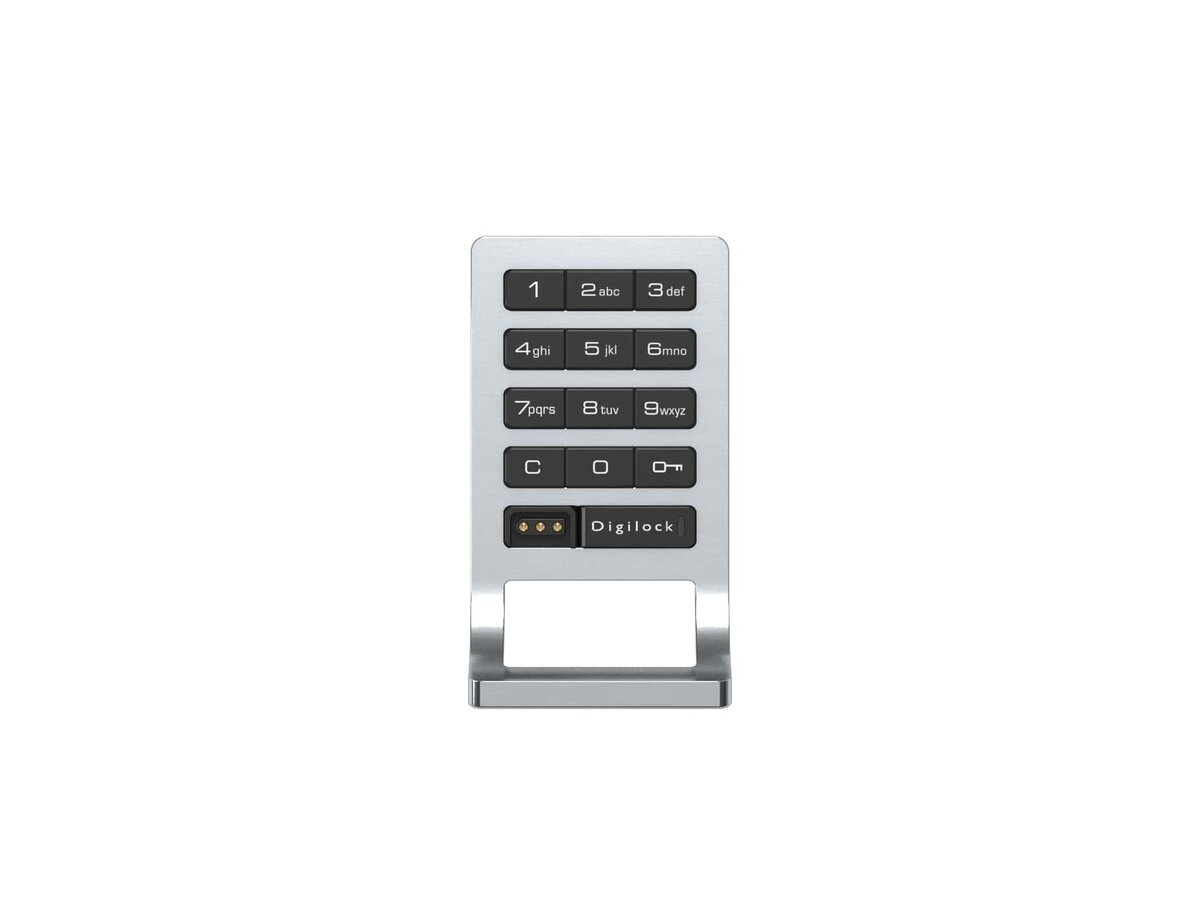

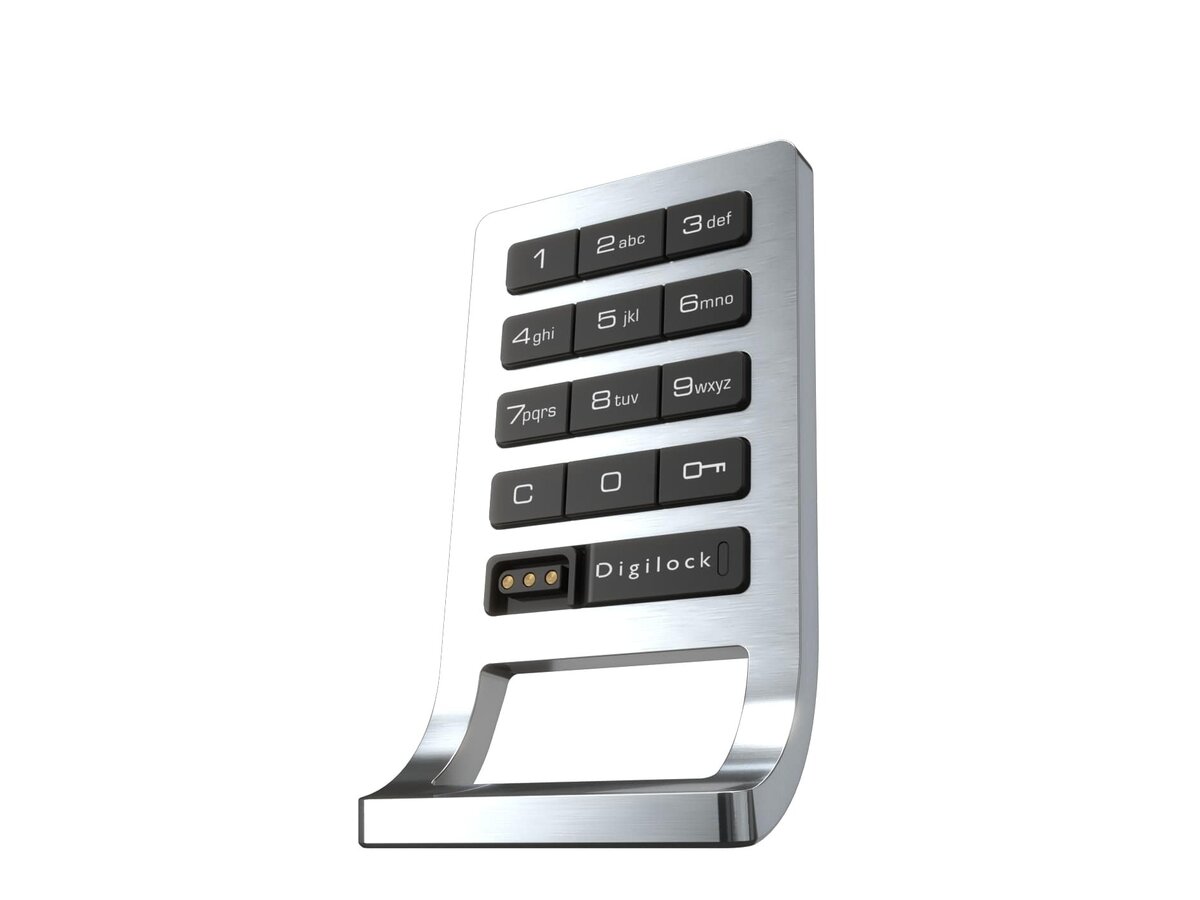

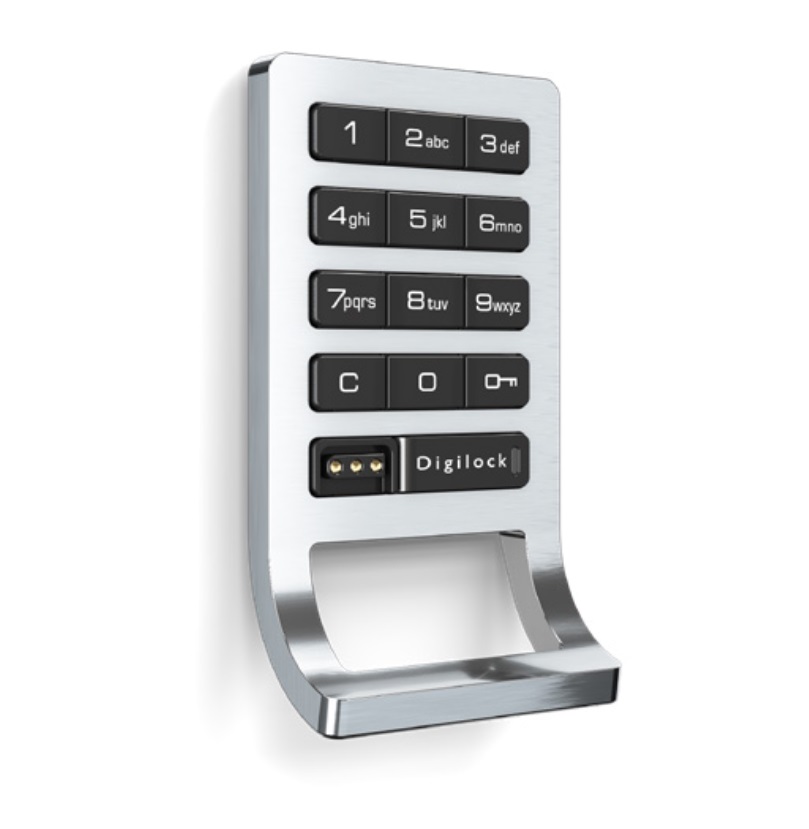

A modern electronic lock with a slim 0.33" (8.5 mm) profile and durable all-metal housing, available in brushed nickel or black finishes. It offers intuitive use with visual and audible indicators, advanced auto unlock, and full ADA compliance. The lock supports both shared and assigned modes, managed through the Basic or Advanced system. Easy to install (new or retrofit), powered by four AA batteries, and certified with IP55 protection, this lock is a reliable solution for modern access control.
Product main features:
- Ultra-slim profile – only 0.33" (8.5 mm)

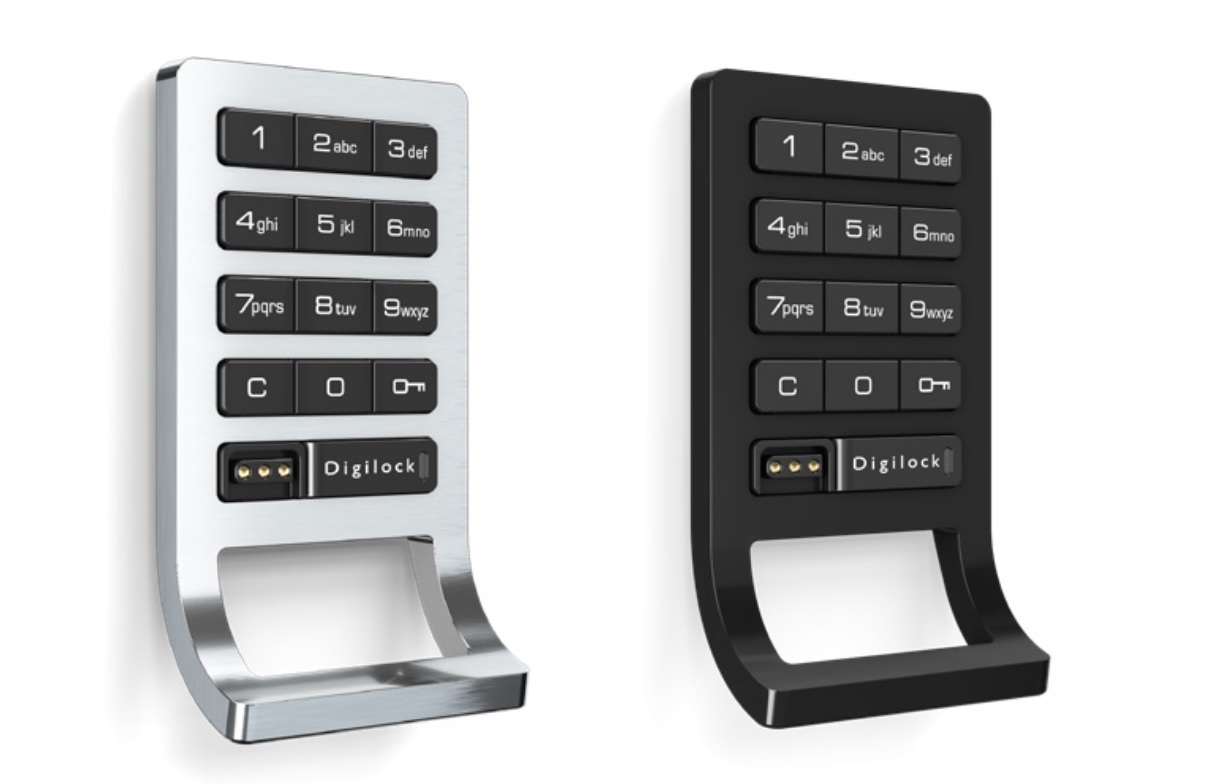

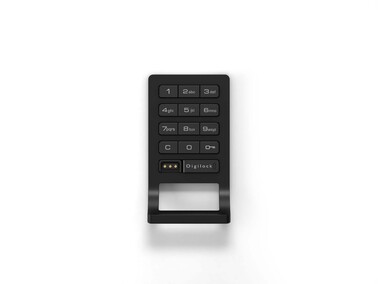

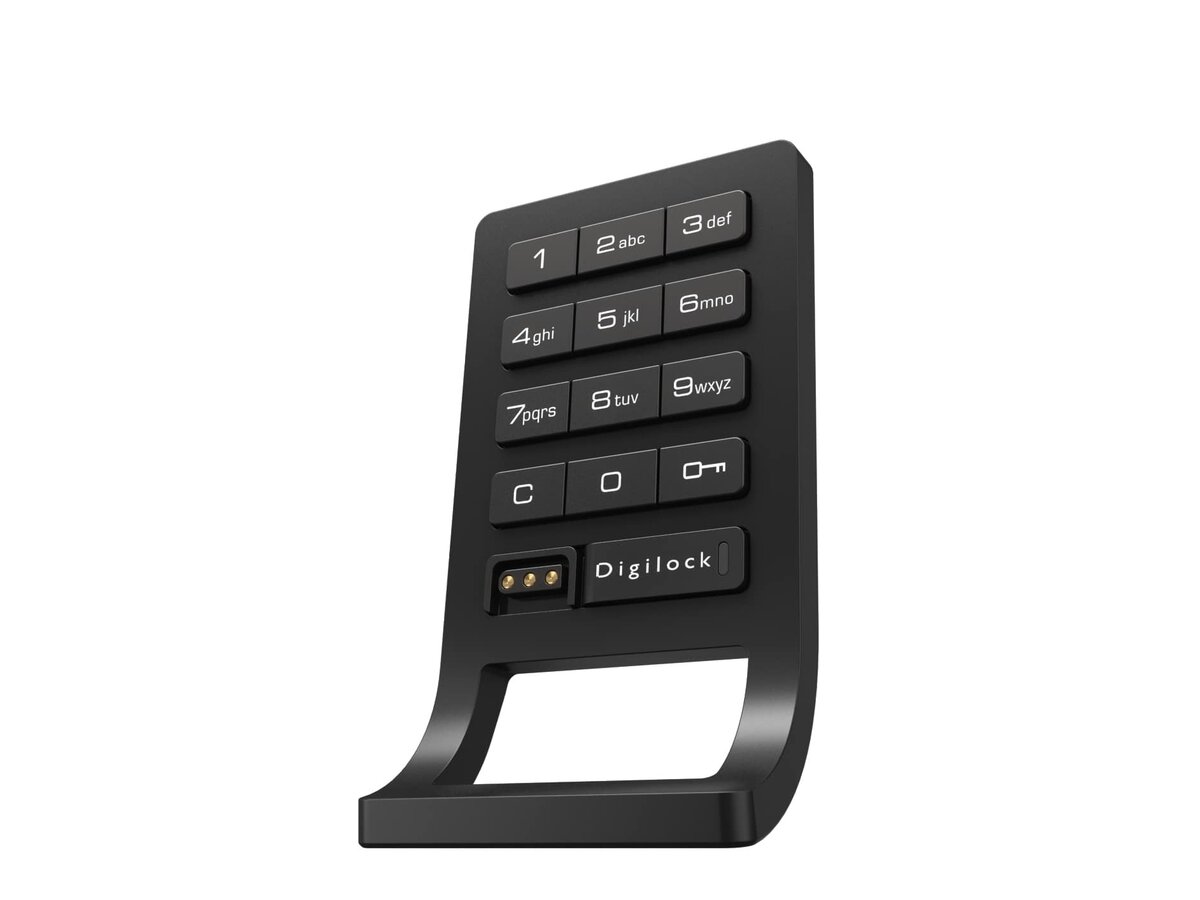

- Full metal housing (brushed nickel / black)
- IP55, FCC, CE, IC certified
- Auto unlock + visual and audible indicators
- ADA compliant, non-handed design
- Dual functionality – shared or assigned use
- 12.7 mm (½") motorized deadbolt locking mechanism
Two working modes:
- Permanently assigned - means that one user can operate one or more lockers
- The "first free" (pool) system - a system used in swimming pools, means that the locker is always open and the new user can choose any locker. After entering the code or presenting the card (depending on the lock model), the cabinet remains closed. At the end of the stay, the user opens the locker and leaves it open for another new user.
|
Deadbolt |
|
1/2 ”(12.7 mm) mechanical latch, designed to operate in" first free "mode and permanently assigned |
|
Deadlatch |
|
|
Dimensions

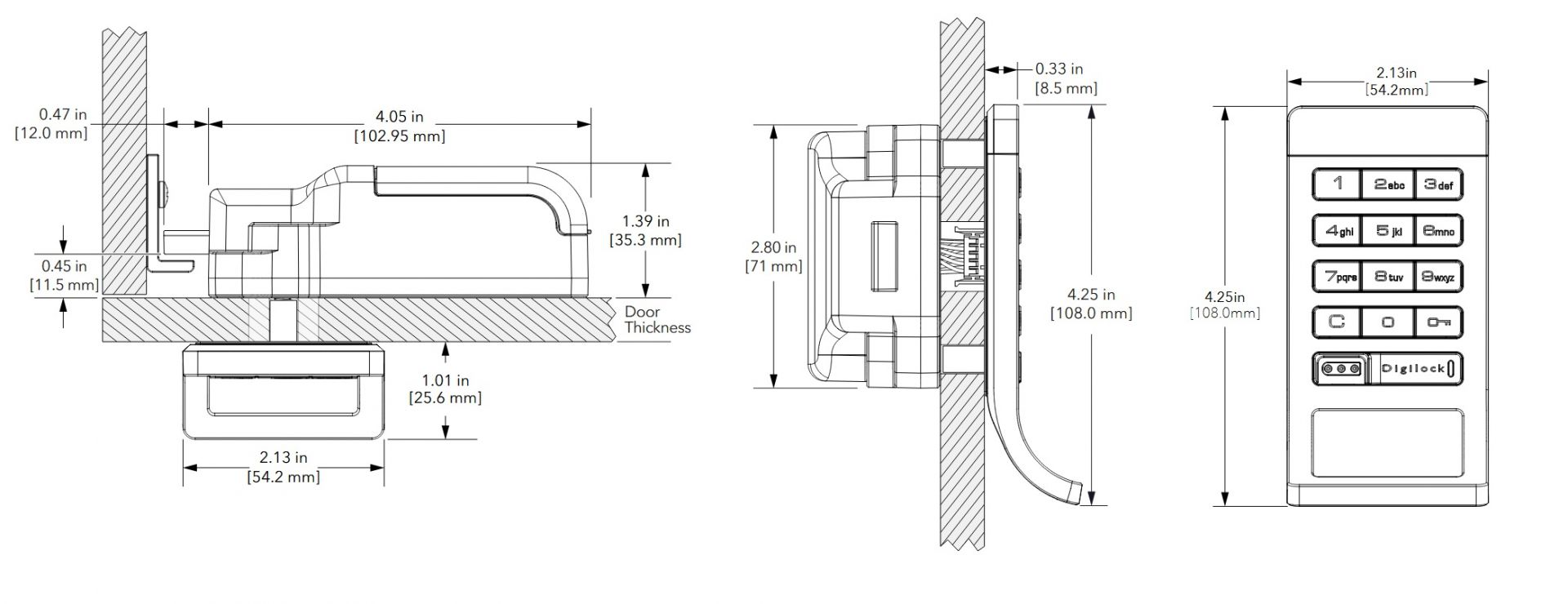

Top View-Cable | Side View-Cable | Front View

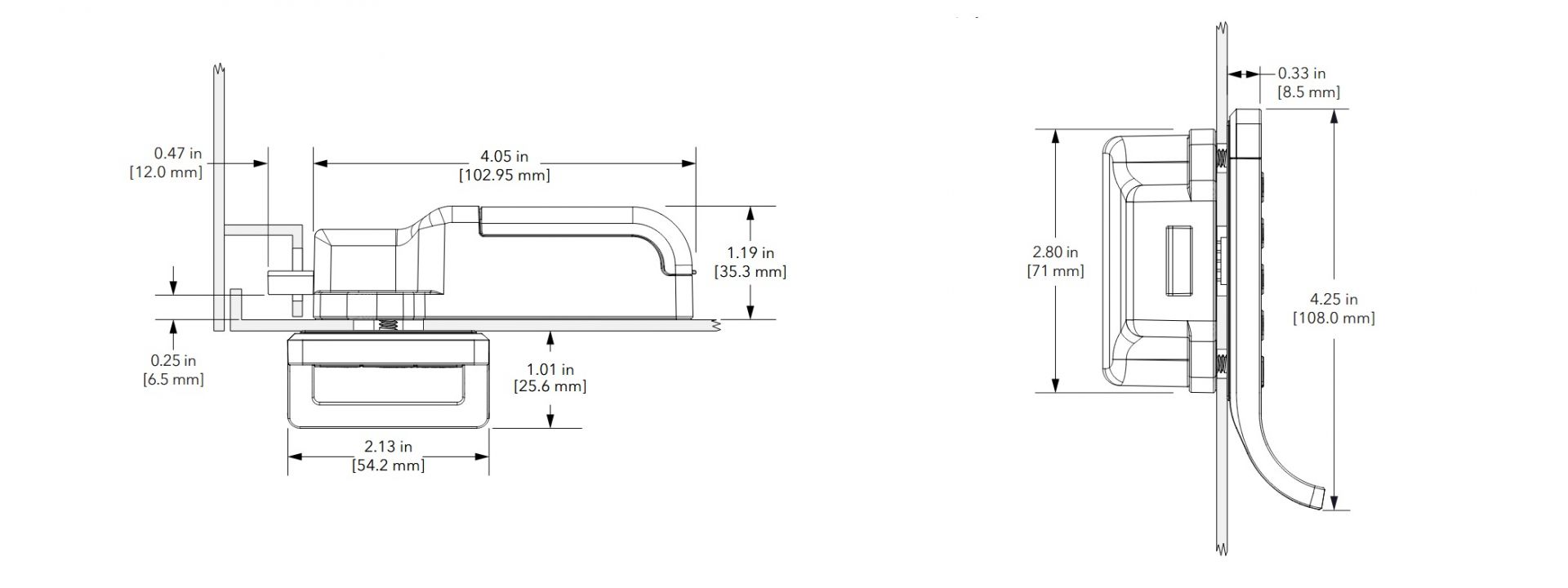

Top View-Pin Connector | Side View-Pin Connector
Technical data
| Housing | All-metal, brushed nickel / black |
| Profile | 0.33" (8.5 mm) |
| Front panel dimensions | 98.3 × 54.4 mm |
| Locking mechanism | 12.7 mm (½") motorized deadbolt |
| Functionality | Shared / assigned mode |
| Management | Basic / Advanced system |
| Additional features | Auto unlock, LED + sound indicators, ADA compliant, non-handed |
| Power | 4 × AA premium batteries |
| Certifications | IP55, FCC, CE, IC |
| Warranty | 2 years |
| Support | On-site updates, lifetime support |
