Datasheet PL Curve RFID
Cabinet lock Digilock Curve RFID
Price 207,87 € (23% VAT included)
169,00 € net price
DESCRIPTION

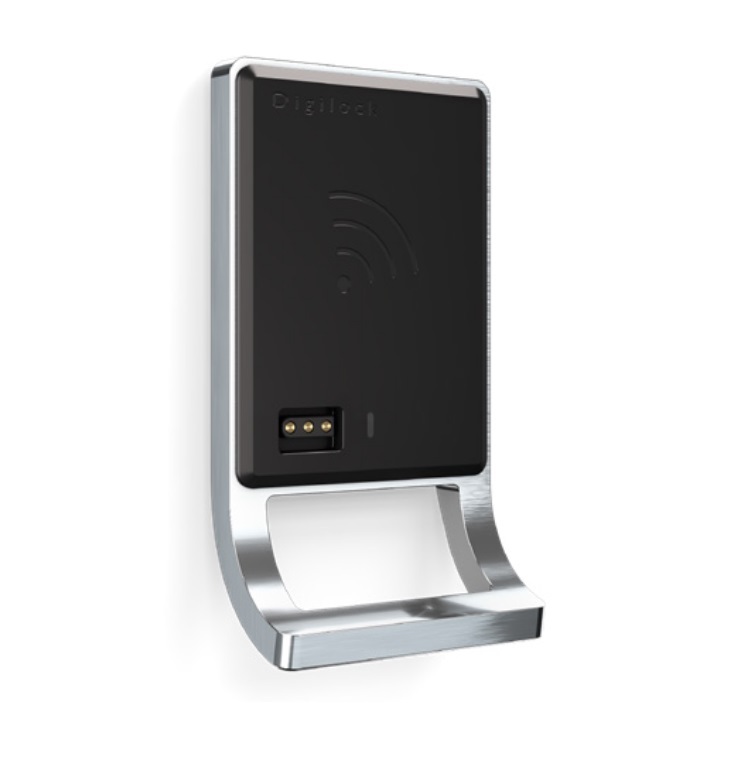

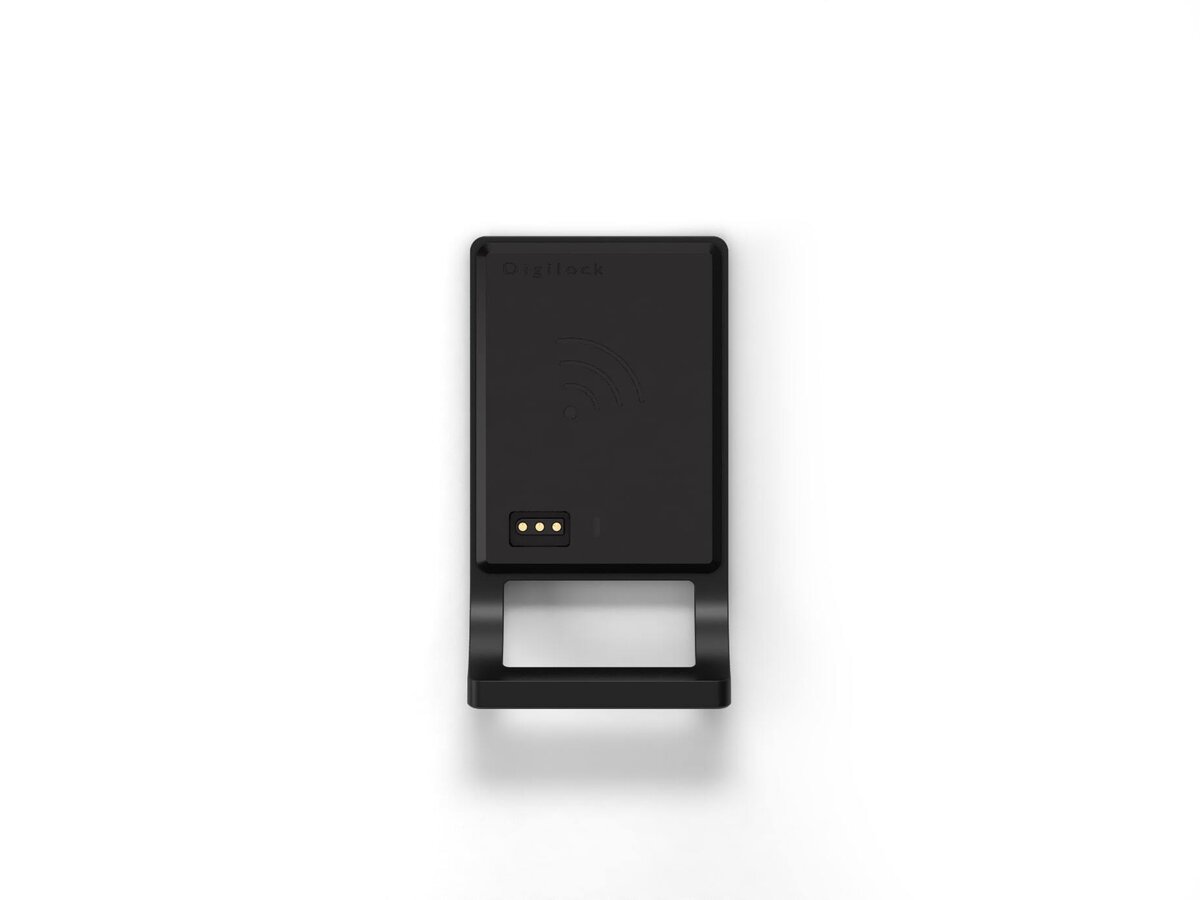

13.56 MHz RFID electronic lock with an ultra-slim 0.41" (10.35 mm) profile and a robust all-metal housing, available in brushed nickel or black finishes. Capacitive wake enables touchless activation, while auto-unlock plus visual and audible indicators make operation simple. The lock supports shared or assigned use and is managed via the Basic or Advanced system. With IP55 protection and ADA compliance, it’s a dependable choice for modern access control.
Product main features:
- 0.41" (10.35 mm) profile — ultra-slim design
- 13.56 MHz RFID; compliant with ISO 14443A/B, ISO 15693; HID™ iCLASS™, MIFARE® (Classic 1K/4K, Ultralight, DESFire EV1/EV2, Plus S), FeliCa, LEGIC Advant, HID™ SEOS™
- Capacitive wake for touchless activation
- Auto unlock, visual LED and audible indicators

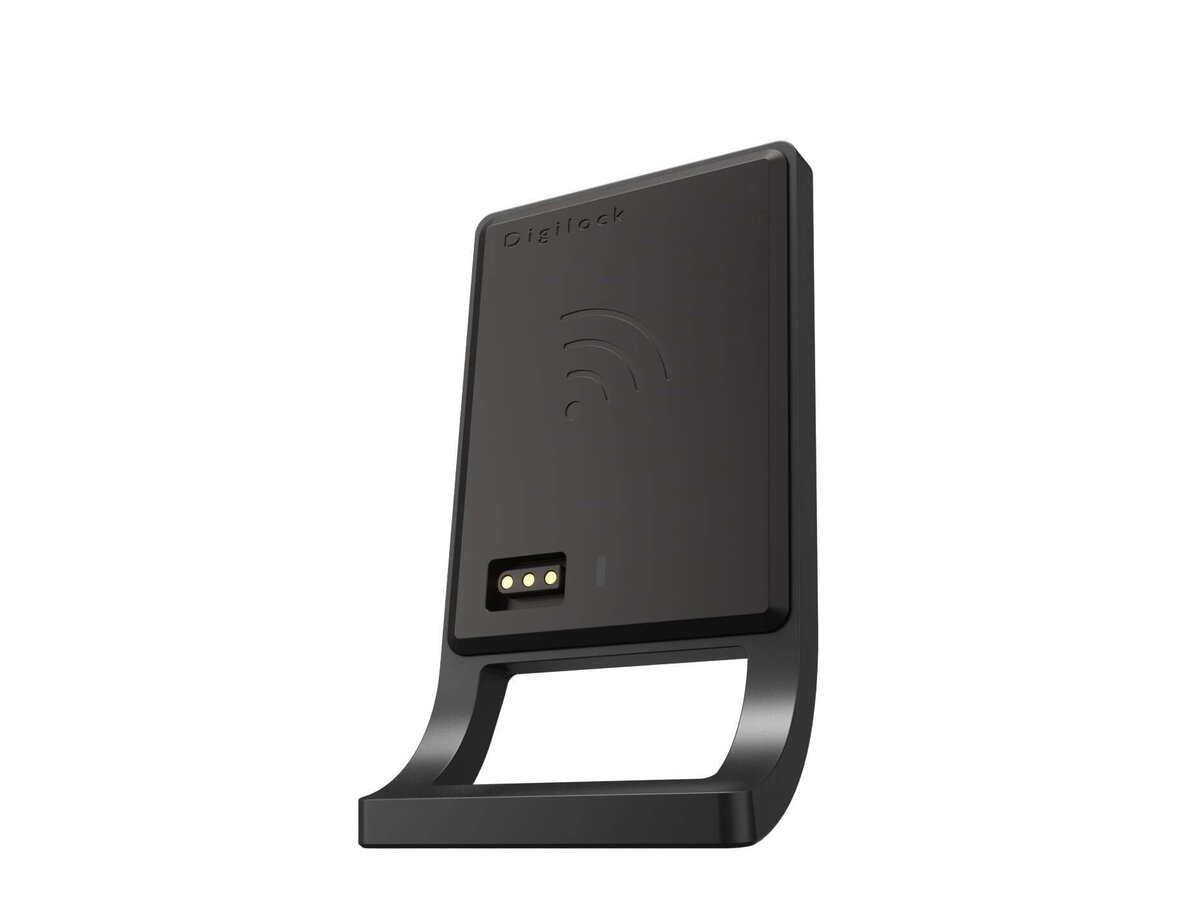

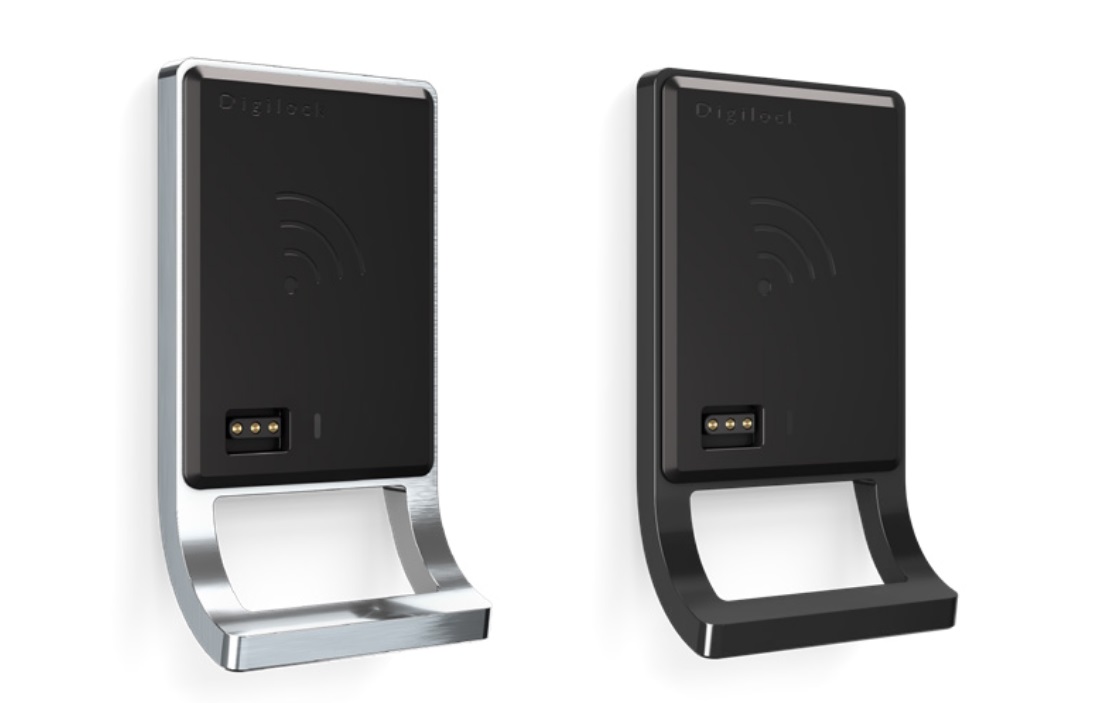

- All-metal housing; finishes: Brushed Nickel / Black
- Non-handed, ADA compliant
- Shared or assigned functionality; management via Basic/Advanced
- 12.7 mm (½") motorized deadbolt
- Power: 4× AA premium batteries
- IP55 rating; FCC, CE, IC certifications
Two working modes:
- Permanently assigned - means that one user can operate one or more lockers
- The "first free" (pool) system - a system used in swimming pools, means that the locker is always open and the new user can choose any locker. After entering the code or presenting the card (depending on the lock model), the cabinet remains closed. At the end of the stay, the user opens the locker and leaves it open for another new user.
|
Deadbolt |
|
1/2 ”(12.7 mm) mechanical latch, designed to operate in" first free "mode and permanently assigned |
|
Deadlatch |
|
Equipped with a 1/2 ”(12.7 mm) motorized latch, designed with specific utility functions in mind. |
Dimensions
Top View-Cable | Side View-Cable | Front View
Top View-Pin Connector | Side View-Pin Connector
Technical data
| Connectivity | Bluetooth Low Energy (BLE) |
| Certifications | IP55, FCC, CE, IC |
| Housing | All-metal, finishes: brushed nickel or black |
| Profile | 0,41" (10,35 mm) |
| Panel dimensions | 98,3 × 54.4 mm |
| Locking mechanism | 12.7 mm (½") motorized deadbolt |
| Operation | RFID card |
| Management | DigiLink® cloud application |
| Additional features | Capacitive wake, auto unlock, LED + audible indicators, ADA compliant, non-handed |
| Power supply | 4 × AA premium batteries |
| Modes / management | Shared or assigned; Basic or Advanced system |
| Installation | New or retrofit, snap-lock cable connector or pin connector |
| Warranty | 2 years |
| Support | On-site updates, lifetime support |
