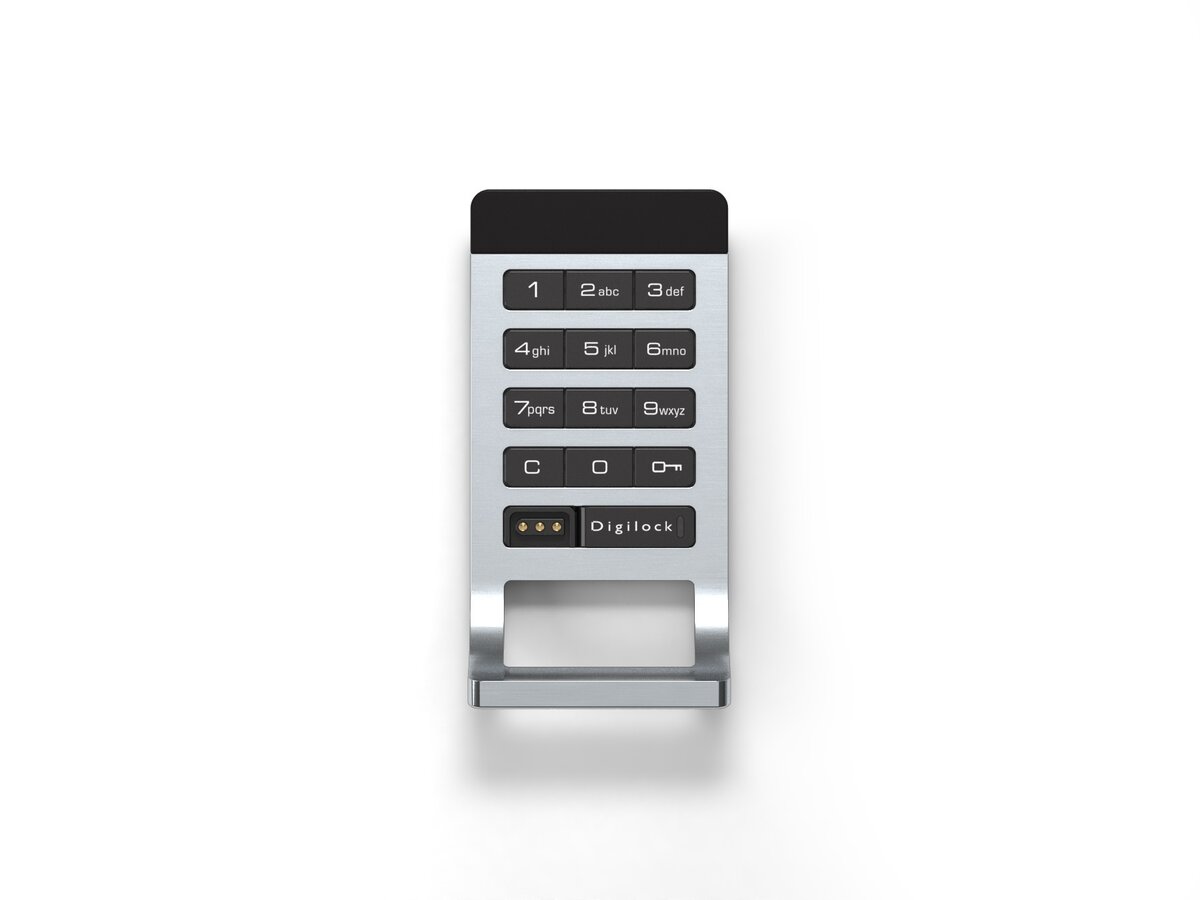

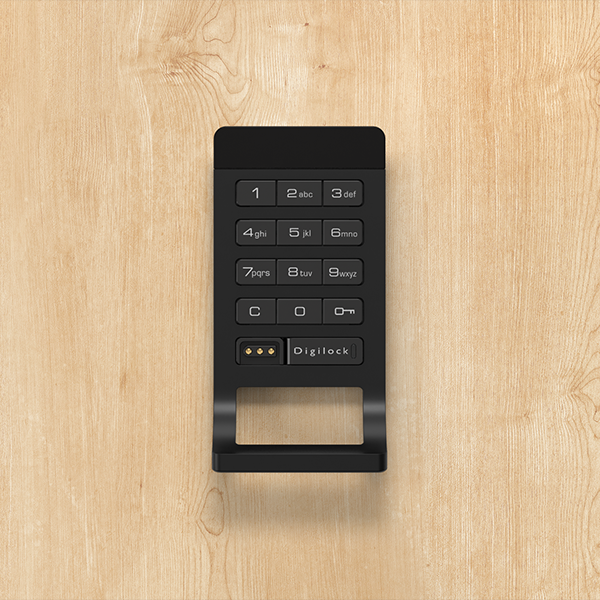

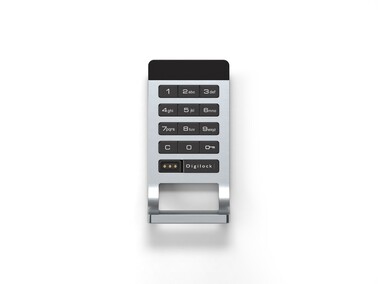

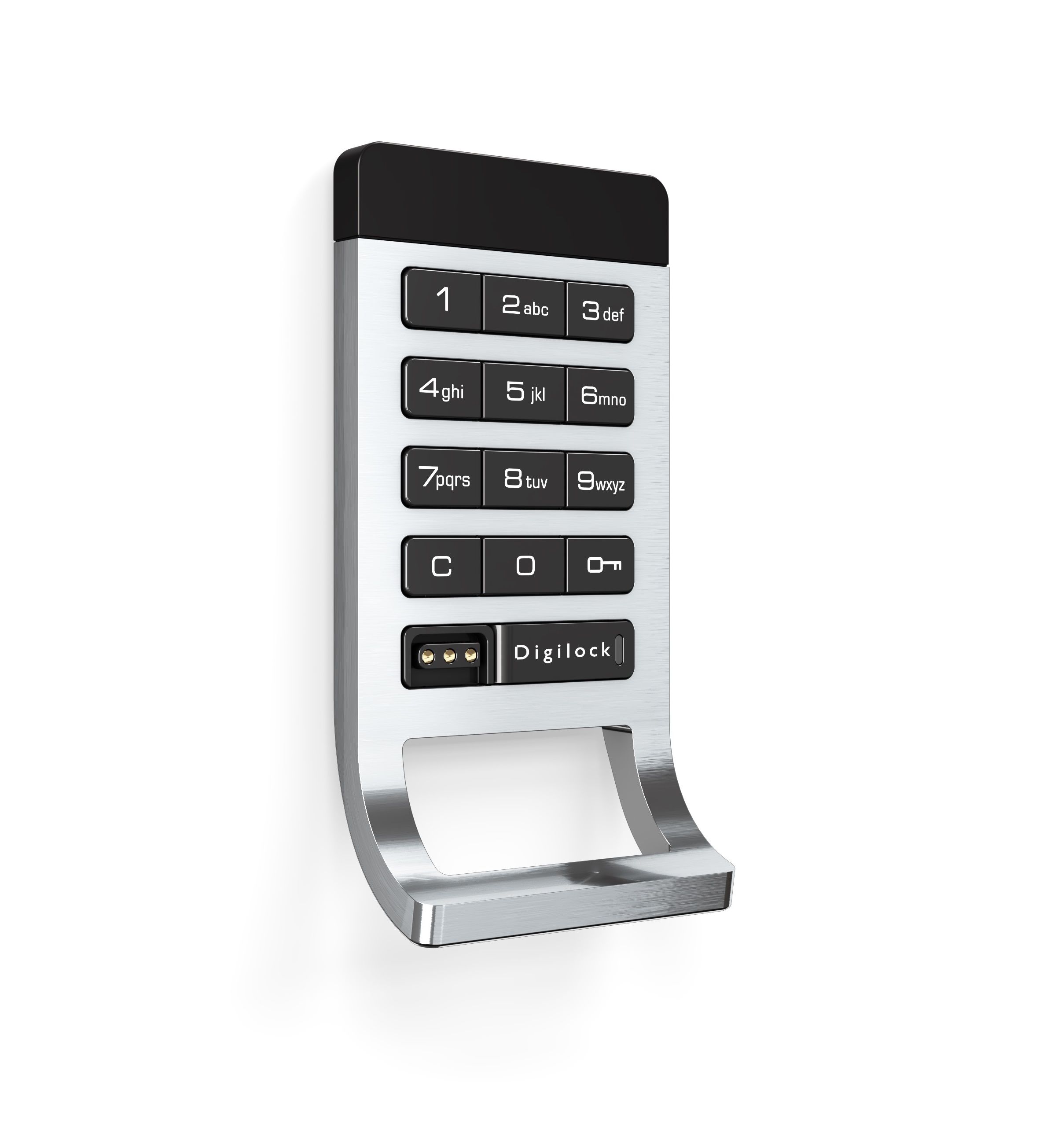

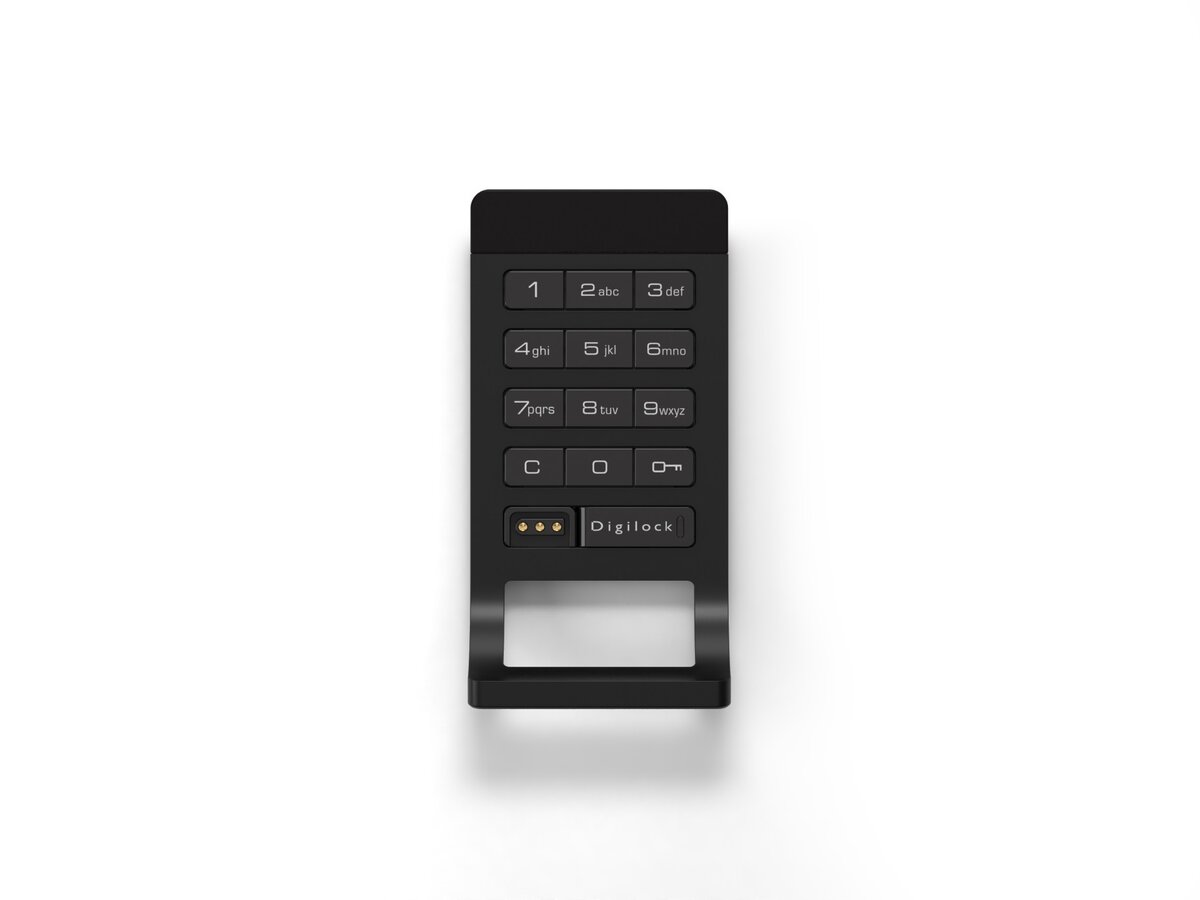

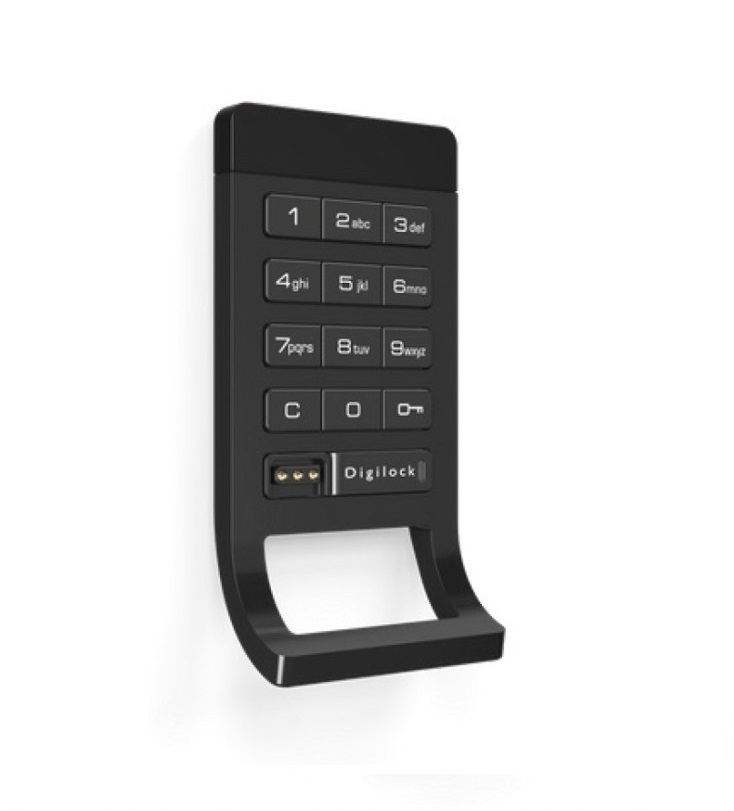

Digilock Curve Keypad Online
Price 193,11 € (23% VAT included)
157,00 € net price
DESCRIPTION
A modern electronic lock with Bluetooth Low Energy (BLE) connectivity, designed for maximum convenience and security. Its ultra-slim 8.5 mm profile and robust all-metal housing, available in two elegant finishes – brushed nickel or black – make it a perfect fit for any environment. The lock offers intuitive operation via PIN code or Mobile ID, and full integration with the DigiLink® cloud-based management platform, enabling seamless user and access control. With advanced auto-unlock functionality, visual and audible indicators, and ADA compliance, this lock meets the highest standards of modern access control solutions.
Product main features:
- Wireless connection via BLE

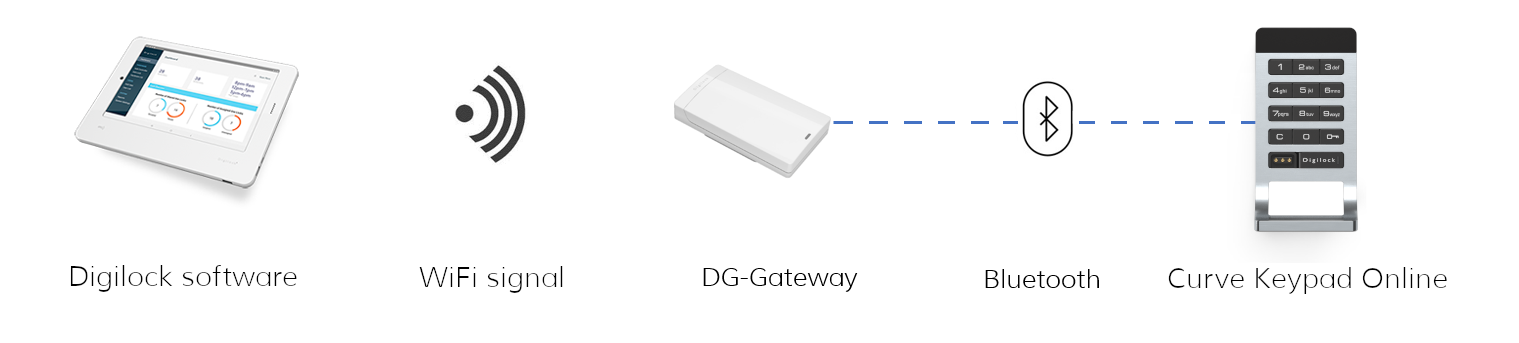

- Management from anywhere in the world via the DigiLink cloud
- The device works on an application compatible with the DigiLink cloud and on a keypad code
- It has a latching cable connector or a pin connector
- The device is suitable for installation in new and existing installations
- The housing is made of metal
- Slim profile 0.41" (10.35 mm)
- IP55 protection rating, FCC, CE and IC certifications
Two working modes:
- Permanently assigned - means that one user can operate one or more lockers
- The "first free" (pool) system - a system used in swimming pools, means that the locker is always open and the new user can choose any locker. After entering the code or presenting the card (depending on the lock model), the cabinet remains closed. At the end of the stay, the user opens the locker and leaves it open for another new user.
|
Deadbolt |
|
1/2 ”(12.7 mm) mechanical latch, designed to operate in" first free "mode and permanently assigned |
|
Deadlatch |
|
|
Dimensions
Top View-Cable | Side View-Cable | Front View
Top View-Pin Connector | Side View-Pin Connector
Technical data
| Connectivity | Bluetooth Low Energy (BLE) |
| Certifications | IP55, FCC, CE, IC |

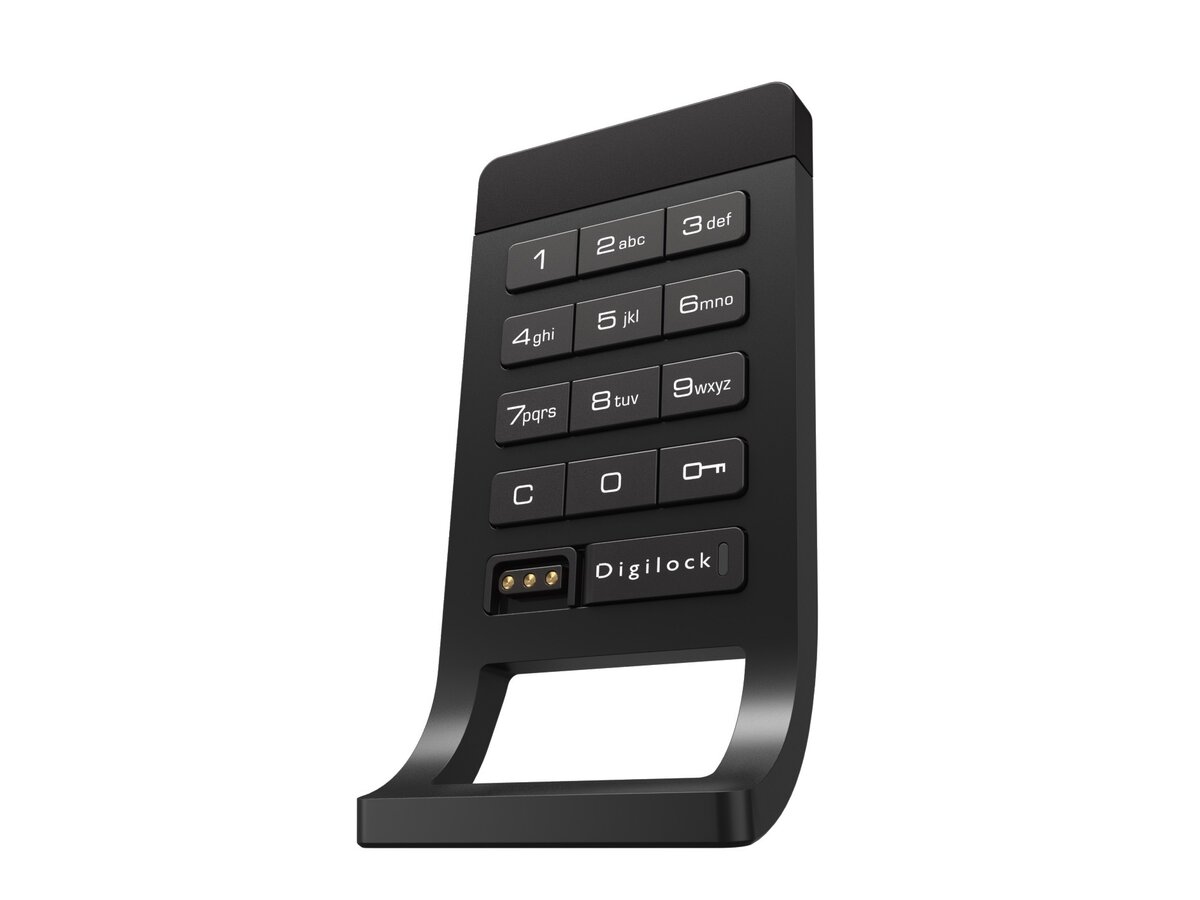

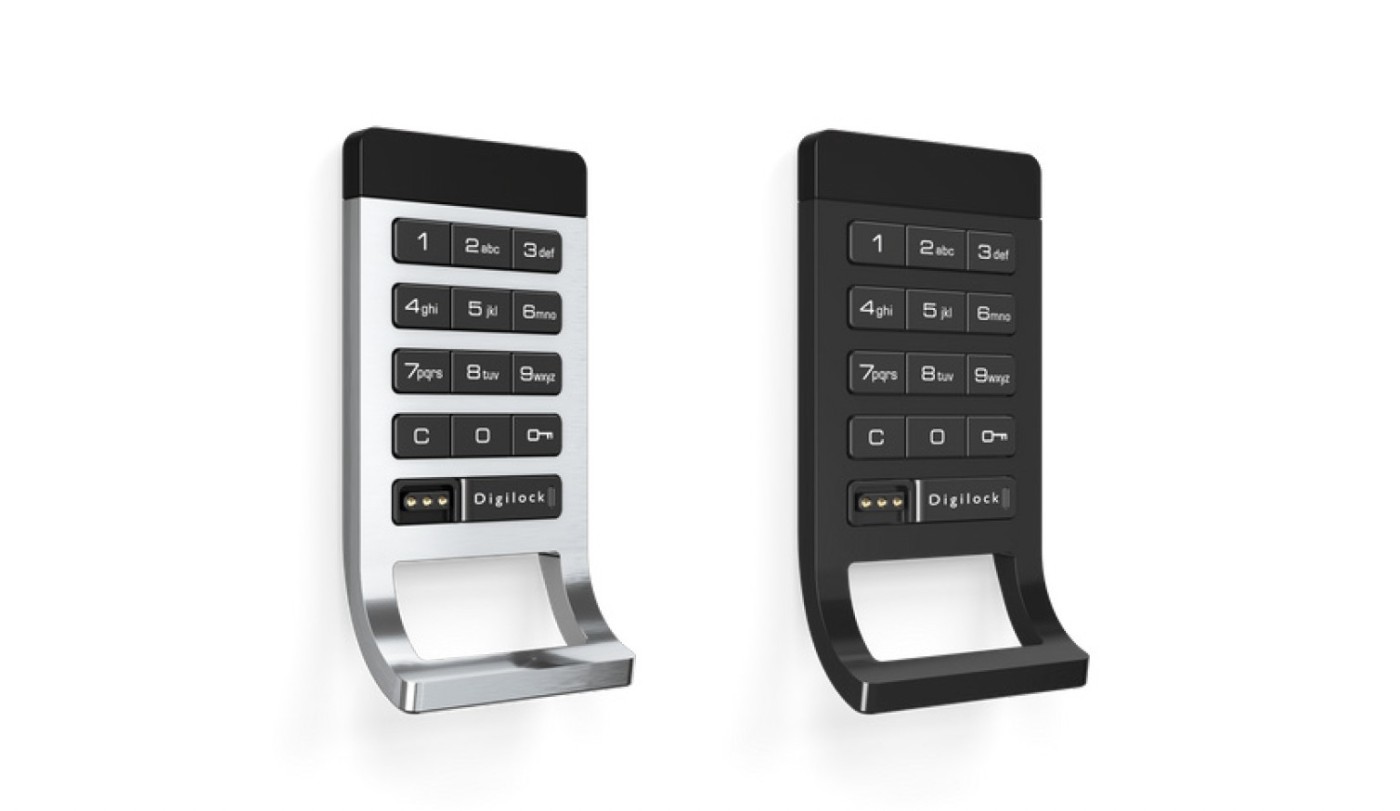

| Housing | All-metal, finishes: brushed nickel or black |
| Profile | 0.33" (8.5 mm) |
| Panel dimensions | 108 × 54.2 mm |
| Locking mechanism | 12.7 mm (½") motorized deadbolt |
| Operation | User PIN / Mobile ID |
| Management | DigiLink® cloud application |
| Additional features | Auto unlock, LED + sound indicators, ADA compliant, non-handed |
| Power supply | 4 × AA premium batteries |
| Installation | New or retrofit, snap-lock cable connector or pin connector |
| Warranty | 2 years |
| Support | On-site updates, lifetime support |
