Install guide VersaMini-RFID ENG

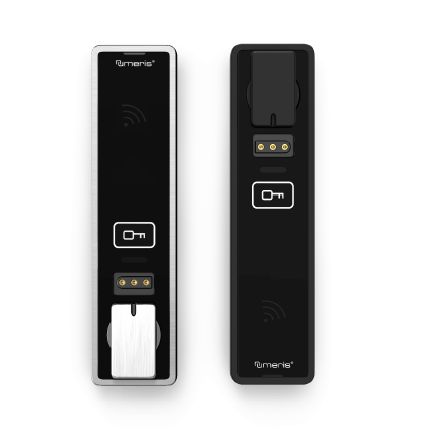

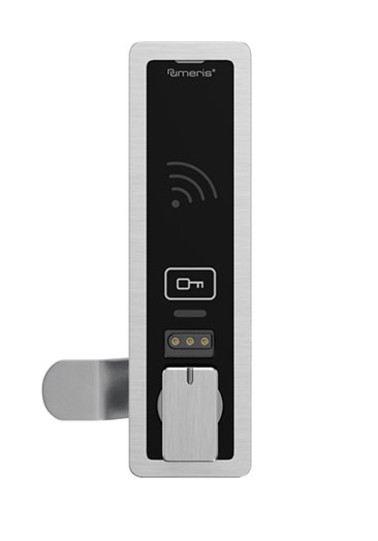

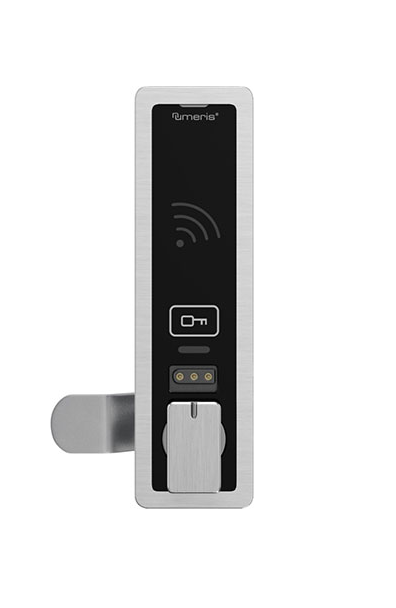

Cabinet lock Digilock Versa Mini RFID
Price 107,01 € (23% VAT included)
87,00 € net price
Description
The Digilock Versa Mini RFID cabinet lock is a cam lock that works on the Mifare13.56MHz and iClassic cards, it is a more compact solution than the Digilock Versa Standard lock. The device can also be managed using electronic keys and a mobile application. The lock functions by means of an automatic spring latch, it will be perfect for both new and existing installations.
Mifare card 13,56MHz and iClassic card
|
Product main features:
- The device works with the iClassic and Mifare 13.56MHz proximity card
- The lock works by means of an automatically locking spring latch
- Electronic key management available
- Possible access via the mobile application

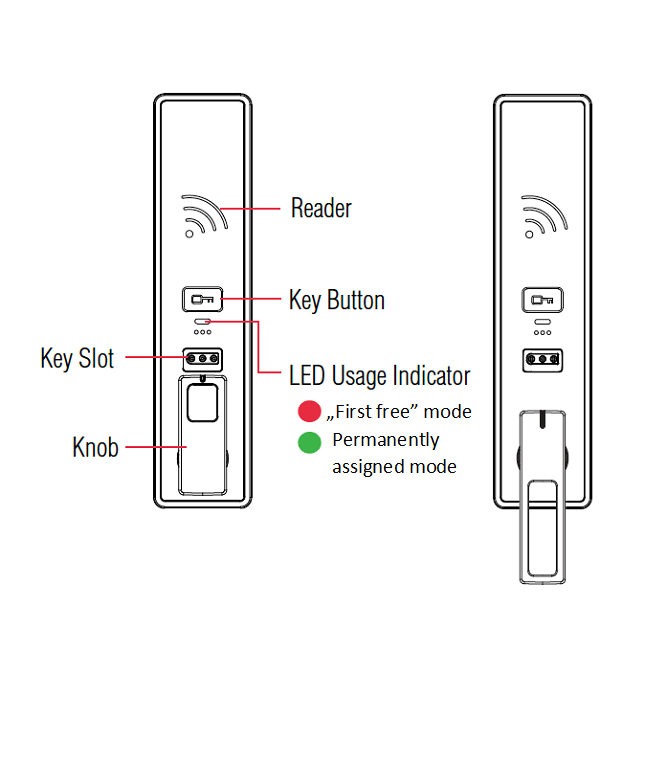

Working in two modes:
- Permanently assigned - means that one user can operate one or more lockers
- The "first free" (pool) system - a system used in swimming pools, means that the locker is always open and the new user can choose any locker. After entering the code or presenting the card (depending on the lock model), the cabinet remains closed. At the end of the stay, the user opens the locker and leaves it open for another new user.

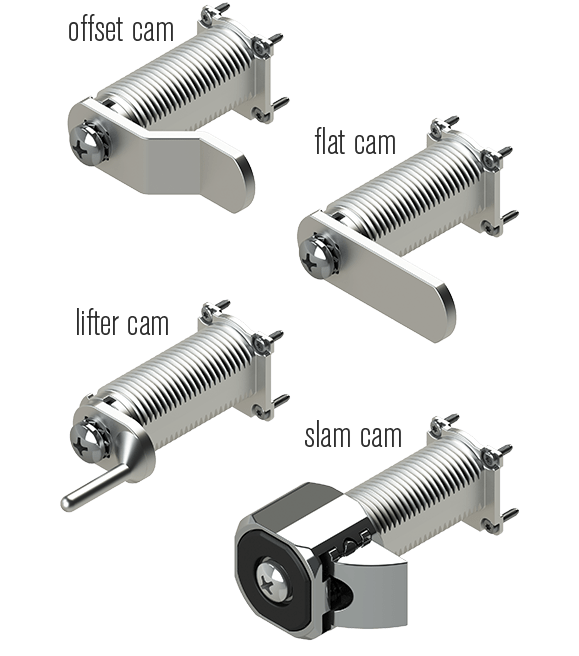

Available cam configurations

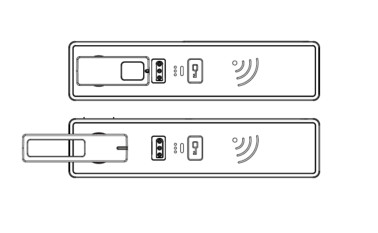

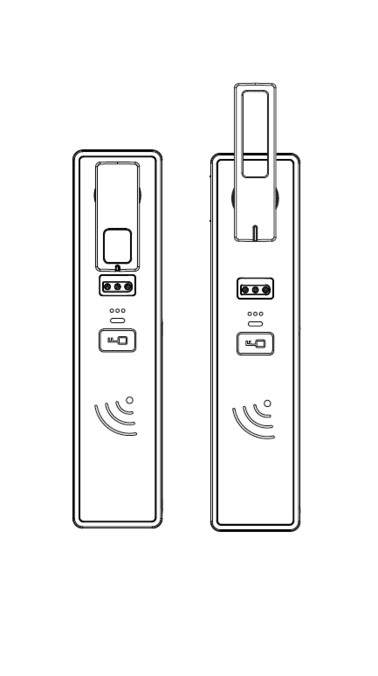

Available configurations of Versa Mini
|
Top |
|
|
Bottom |
|
|
Left |
|
|
Right |
|
|
Electronic key management |
|
Electronic keys offer external power, audit and override capabilities for a reliable management system that greatly increases productivity and reduces cost |
|
App management |
|
Locks have the ability to program and manage the locks using a mobile device. The mobile application enables simplified programming, management and audit trail. |
Technical data:
- iClass and Mifare (13.56 MHz)
- Cam locking mechanism
- Working in "first free" and permanently assigned modes
- Housing made of metal
- Black or brushed nickel finish
- Various configurations available
- Surface mounting
- Designed for new or modernized installations
- Fits doors of different thicknesses
- Protection class IP55
- Certifications: FCC, CE, CI
- ADA compliant models available
- Power supply: CR2450 lithium battery * 2
- Battery life: 115,000 cycles
