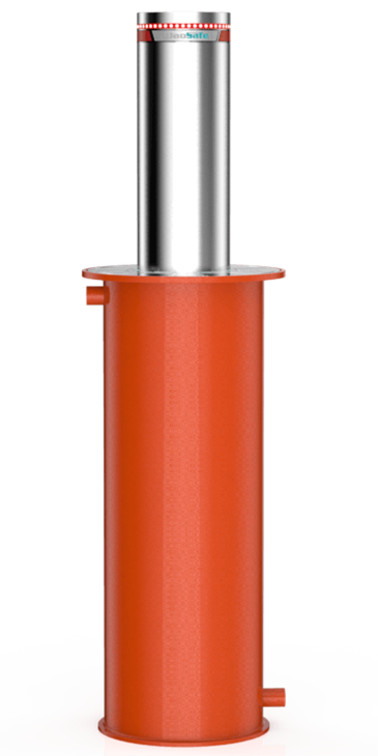

Bollard - automatic safety bollard SB1005

Price 2730,60 € (23% VAT included)
2220,00 € net
Description
Product main features:
- Oil-immersed hydraulic integrated actuator, low/high temperature resistant, stable performance
- Passed the international SGS IP68 protection grade certification, can be immersed in water to work
- PLC intelligent controller can easily integrate with IR, loop detector, or other access control system
- Fast lifting speed, 2.5s for up, 2s for down
- Optional heating function for extremely cold area
- 304 stainless steel for cylinder & inside parts
- Flange groove design for aesthetics and skid proof
- Piston rod is treated with QPQ salt bath nitriding, more hardness and anti-rust capability
- Multiple color LED with various dynamic mode
- LED timing auto On/Off function
- 3M-DG3 reflective tape, visual range 600m
- Motor idling protection function

Technical data
|
Bollards |
Rising Time | 2.5s |
| Dropping Time | 2s | |

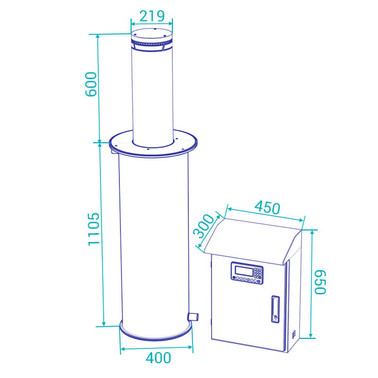

| Dimension | φ400 * 1105mm | |
| Height Aboveground | 600mm (800mm Optional) | |
| Height Underground | 1105mm | |
| Cylinder Diameter | 219mm (273/324mm Optional) | |
| Cylinder Thickness | 6mm (8/10/12mm Optional) | |
| Weight | 130kg | |
| Material of Cylinder | 304 Stainless steel | |
| Flange Thickness | 10mm | |
| Pre-embedded Section | Q235 Steel (A3) | |
| Material of Actuator | 304 Stainless steel with spraying plastics | |
| Diameter of Piston Rod | 18mm | |
| Reflective Tape | 3M-DG3, 50mm | |
| LED Warning Light | RGB, various dynamic mode |
|

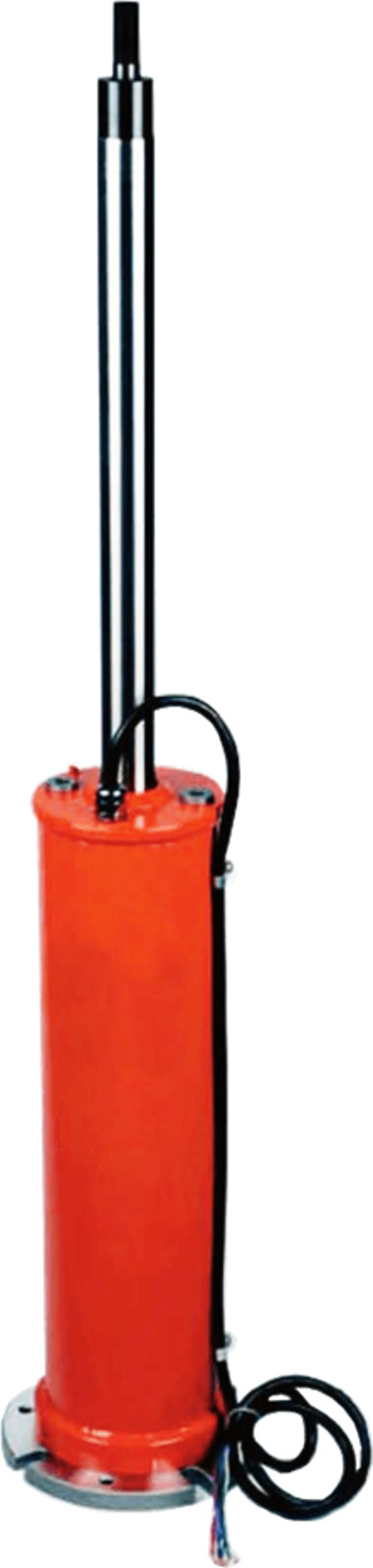

Hydraulic Actuator |
Actuator Type | Oil-immersed |
| Lifting Force | 130kg | |
| Protection Rate | IP68 | |
| Power Supply | 220V/110V AC | |
| Power Consumption | 350W | |
| Overheating Protection | 75℃ | |
| Ambient temperature | -40℃ ~ 55℃ | |
| Oil Tank Capacity | 4L | |
| Heating Unit | Optional |
|

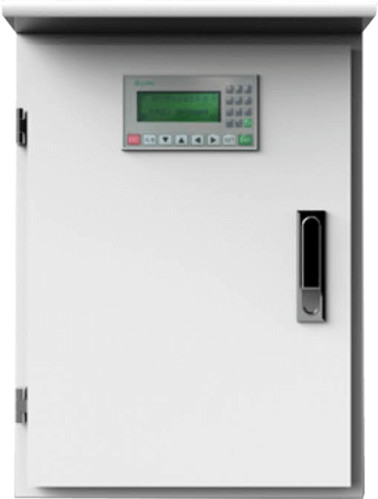

PLC Control Box |
Control System | TouchWin PLC with Display |
| Controller Box | Spray paint (Outdoor use) | |
| Self-testing Program | Yes | |
| LED Light Auto On/Off | Yes | |
| Emergency Rise/Drop | Yes | |
| Air Leakage Switch | Yes (CHNT Brand) | |
| Power Supply | 220V/110V AC | |
| Remote Control Distance | 100m (Bollard) / 30m (LED) |
