Office lock for a card UZ-CX2172



Price 613,77* € (23% VAT included)

                499,00* € net price

*the price is for the standalone version



Ask for a product



Description

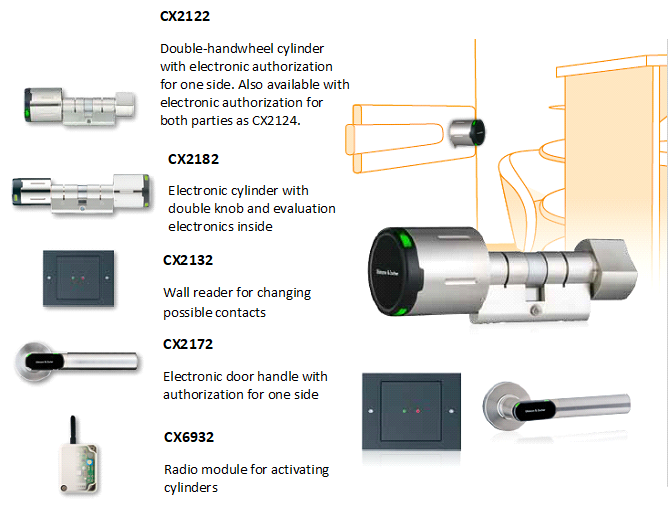

UZ-CX2172 is an innovative Uhlmann & Zacher contactless card lock, made in Germany. Its minimalist design makes it suitable for virtually any modern interior. The UZ-CX2172 is a lock that works with a card, chip, key ring and a Bluetooth application. The compact design allows for quick and easy replacement on virtually any door. German quality and precision of workmanship ensure long and safe operation for many years. The card lock enables operation in autonomous, system and mixed modes. Uhlmann & Zacher card locks work both offline and online.



WORKS FOR:


RFID CARD

BLUETOOTH APP

EMERGENCY KEY

REMOTE






Product main features:

  • Modern, minimalist design in stainless steel
  • Intuitive operation thanks to precise LED signaling
  • Management via Bluetooth app
  • Operation via radio network: offline or online
  • The handle works on the Mifare Classic card, Mifare DESfire 13.56MHz, Legic prime and advant 13.56MHz, EM / HITAG, 125 kHz, 868MHz radio transmitter
  • Complies with common European lock standards
  • Existing locks can be used
  • Possibility to choose various forms of handles (form L, form U)
  • A handle suitable for all wooden, steel and aluminum doors with a narrow or wide frame, with a canopy larger than 20 mm
  • Electronic handle suitable for all doors with a thickness from 30 mm to 110 mm
  • No wiring required
  • Version with Bluetooth® Low Energy available
  • Certified for fire and smoke-tight doors in accordance with DIN EN 1634
  • Certified for emergency exit locks according to DIN EN 179
  • Suitable for use on glass doors (round rosette)
  • Possibility of PVD coating in various color variants





Working modes:

  • Autonomous - 1000 users
  • System simple - Keyng1 software up to 1000 users
  • Advanced system mode - Keyvi software up to 60,000 users
  • Bluetooth managing - Clex App software
  • App managing - ÜManagement 2.0 Software





Lock versions available





With one-sided access control









With two-sided access control









For indoor use, IP54









For outdoor use IP66







With a puncture for a profile insert (various distances 72, 85, 90, 92mm)







No puncture for a profile insert (various distances 72, 85, 90, 92mm)







Different pin thickness







  1. Mechanical handle (from inside)
  2. Locking screw
  3. Mounting screws
  4. Handle mounting bracket
  5. The spindle of the handle
  6. Stem reducer (only for 7mm)
  7. A handle with a card reader
  8. Handle electronics
  9. Battery compartment
  10. Battery
  11. Door handle (battery cover)
  12. Locking screw





Set contains:

  • The external handle CX2172 with a proximity reader and a battery container
  • Internal mechanical handle
  • Round rosette with a custom-made punch
  • CR123A battery
  • Set of screws
  • Spindle (on request) - 7 | 8 | 8.5 | 9 | 10mm





Additional options





Cooperation with the pilot







Cooperation with a wireless relay module







Shape of the handle L1 (default)







Shape of the handle U1 (optional):

  • Price 45,51 € (23% VAT included)
  • Price 37,00  € net price







Shape of the handle U2 (optional):

  • Price 45,51 € (23% VAT included)
  • Price 37,00  € net price











Handle dimensioning





Shape of the handle L1, U1, U2 (front view)









Shape of the handle L1









Shape of the handle U1









Shape of the handle U2







Technical data

Available transponder versions Mifare Classic card, Mifare DESfire 13.56MHz, Legic prime and advant 13.56MHz, EM / HITAG, 125 kHz, 868MHz radio transmitter
Bluetooth managing Yes
Dimensions Compatibility with all European standards
Round rosette diameter 55mm
Power supply 1 x CR123A 3V battery
Battery endurance about 9 years



Temperature in operating mode

+ 5 ° C to + 55 ° C (internal version)

-25 ° C to + 65 ° C (outdoor version)

Storage temperature -40°C do +65°C
Appliance Steel, wooden doors (both external and internal, depending on the version of the device)





Standards

  • prEN 1687:2015
  • DIN EN 1906:2012
  • DIN EN 1634-2:2009
  • DIN EN 60529:2014
  • DIN EN 179:2008
  • 2014/53
