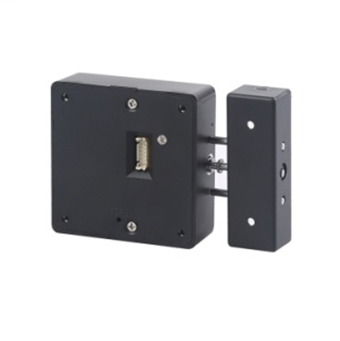

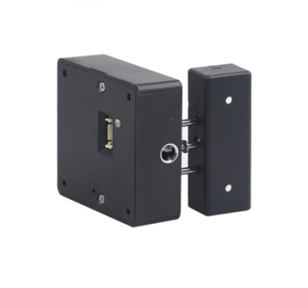

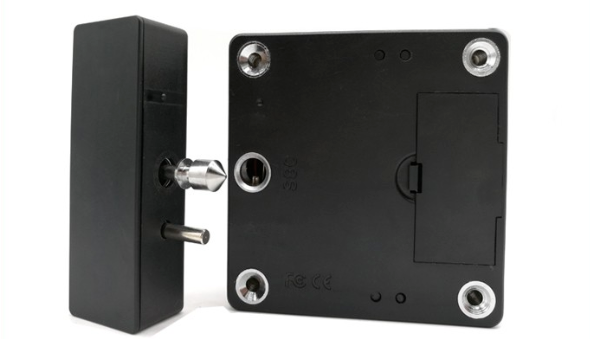

Hidden cabinet lock KR-SK80-A
Price 59,04 € (23% VAT included)
48,00 € net price
Description
Hidden electronic cabinet lock for Mifare 13,56MHz card is an ideal solution for pool cabinets, gym cabinets, employee cabinets, drawers, etc.
The lock software allows you to work in three modes:
- 1. Permanently assigned card - means that one user can operate one or more cabinets (eg card No. 5 opens the cabinet No. 5)
- The "first free" system - a system used in swimming pools, means that the cabinet is always open and a new user can choose any cabinet. When the card is zoomed in, the cabinet is closed. After finishing the stay, the user opens the cabinet and leaves it open to the next new user.
- One-time mode - means that users can only open the cabinet once.
Working of lock - video

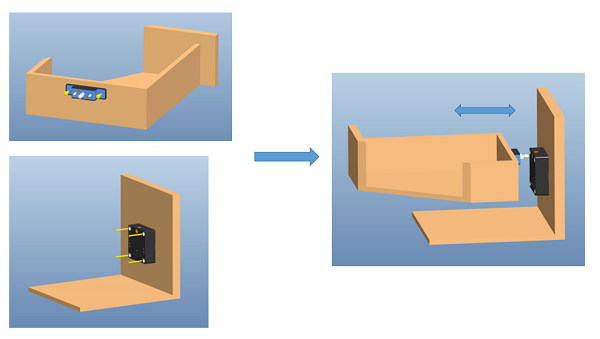

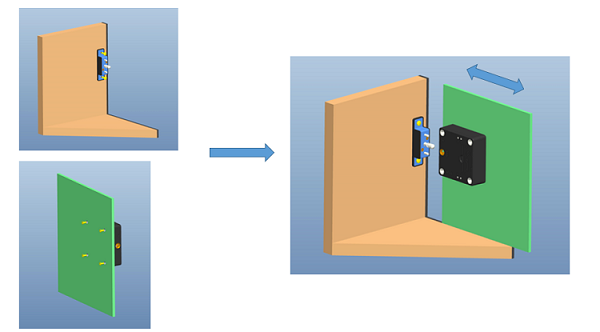

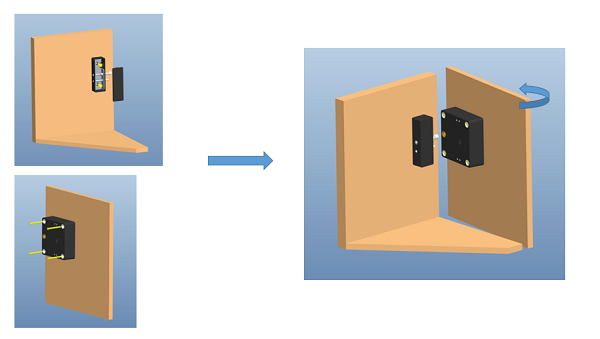

Possibilities of mounting
Additional options available

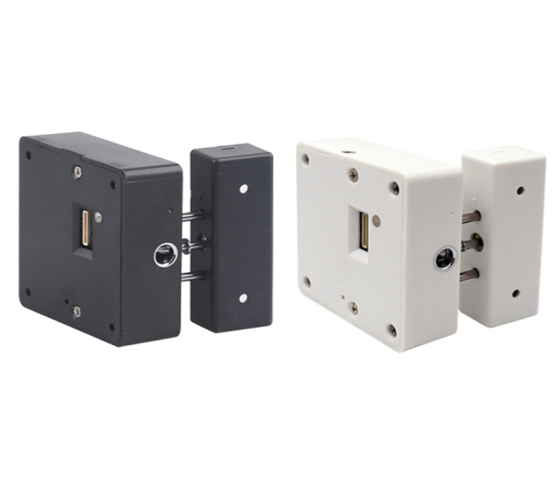

White colour |
|
Emergency / permanent power supply |
|
Emergency external power supply |
|
Handset for programming and reading events |
|
Technical data
Material | ABS |
Dimensions | Lock body (L x W x H): 80x80x27 mm Lock hook (L x W x H: 80x21,5x27 mm |
Weight | 200g (with lock hook) |
Battery | DC6V (4*1,5V AAA) |
Driven mode | Motor/serwo |
Static power consumption | 15uA |
Dynamic power consumption | 200uA |
Warning voltage | 4,5V |
Unlock way | Karta RFID 13,56MHz |
Response time | Less than 20ms |
Working temperature | -15°C - +55°C |
Working humidity | 5% ~ 95% RH |
Working life | Standby mode 1 year |
Application | School lockers, gym cabinets |
