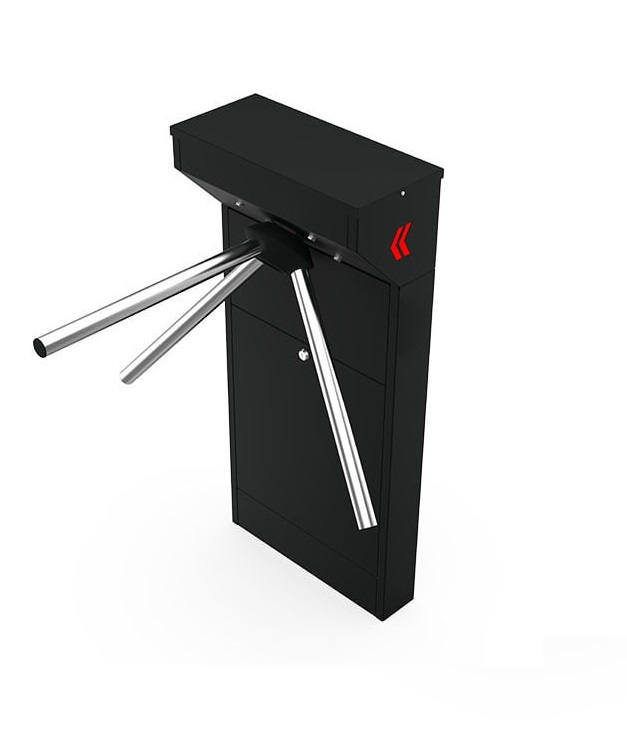

Tripod BO-CRB100 RAL Colour
Price 2484,60* € (23% VAT included)
2020,00* € net price
*price applies to the turnstile with semi-automatic drive
DESCRIPTION
The BO-CRB100 RAL Colour is a variant of the CRB100 turnstile featuring a 1.5 mm galvanized steel body coated with electrostatic powder paint in any RAL colour; it maintains strong outdoor resistance and durability thanks to its anodized, thermally reinforced aluminum arms, offering adjustable bidirectional passage, adjustable transition time, memory mode, A→B/B→A signaling and a standard bidirectional LED display, while in emergency situations (fire alarm) it automatically switches to free-rotation mode (NC) for fast and safe evacuation.
PRODUCT MAIN FEATURES:
-
1.5 mm galvanized steel body with powder-coated RAL colour finish
-
Anodized and thermally reinforced aluminum arms
-
Adjustable bidirectional operation
-
A→B and B→A signaling (5VDC)
-
Adjustable transition time
-
Memory mode
-
Audible warning
-
Bidirectional LED display (standard)
-
Emergency free-rotation mode (NC)
-
Low power consumption
-
Suitable for indoor and outdoor use

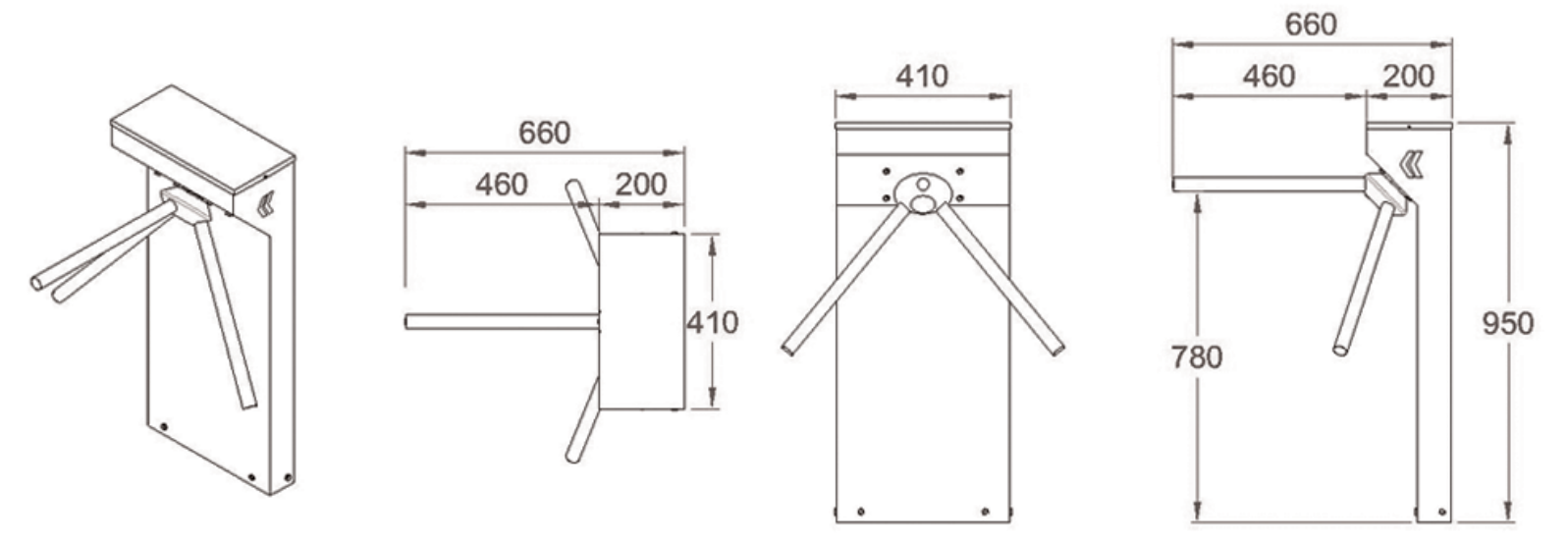

DIMENSIONS
TECHNICAL DATA
| Body material | 1.5 mm galvanized steel sheet, electrostatic powder coating (RAL colour) |
| Arms material | Anodized, thermally reinforced aluminum |
| Passage Direction | Bidirectional, adjustable |
| Operation | Manual driving |
| Functions | A→B/B→A (5VDC) signaling, adjustable timing, memory mode, audible warning |
| Emergency Mode | Free-rotation (NC) triggered by fire alarm |
| Power Supply | 100–230 VAC, 47–60 Hz |
| Power Consumption | 3.7W during passage / 4W in standby |
| Operating Temperature | -10°C to +70°C (optional heater: down to -30°C) |
| Passage Speed | Up to 26 people/min |
| Passage Width | 450–500 mm |
| LED Display | Standard in both directions |
| Weight | ~24 kg |
| Security Level | Deterrent |
| Areas of Use | Indoor and outdoor applications |
| Options (change the price) | Top glass cover with visual print, reader apparatus, pushbutton module, remote control, angled top cover |
