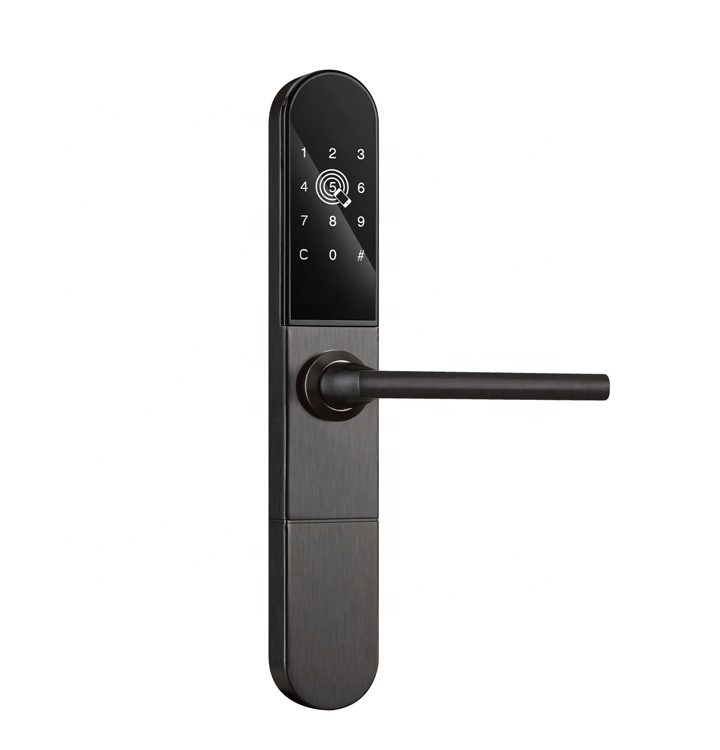

Remote lock for a code for apartment vG-BL3
Price 276,75 € (23% VAT included)
225,00 € net price
Description

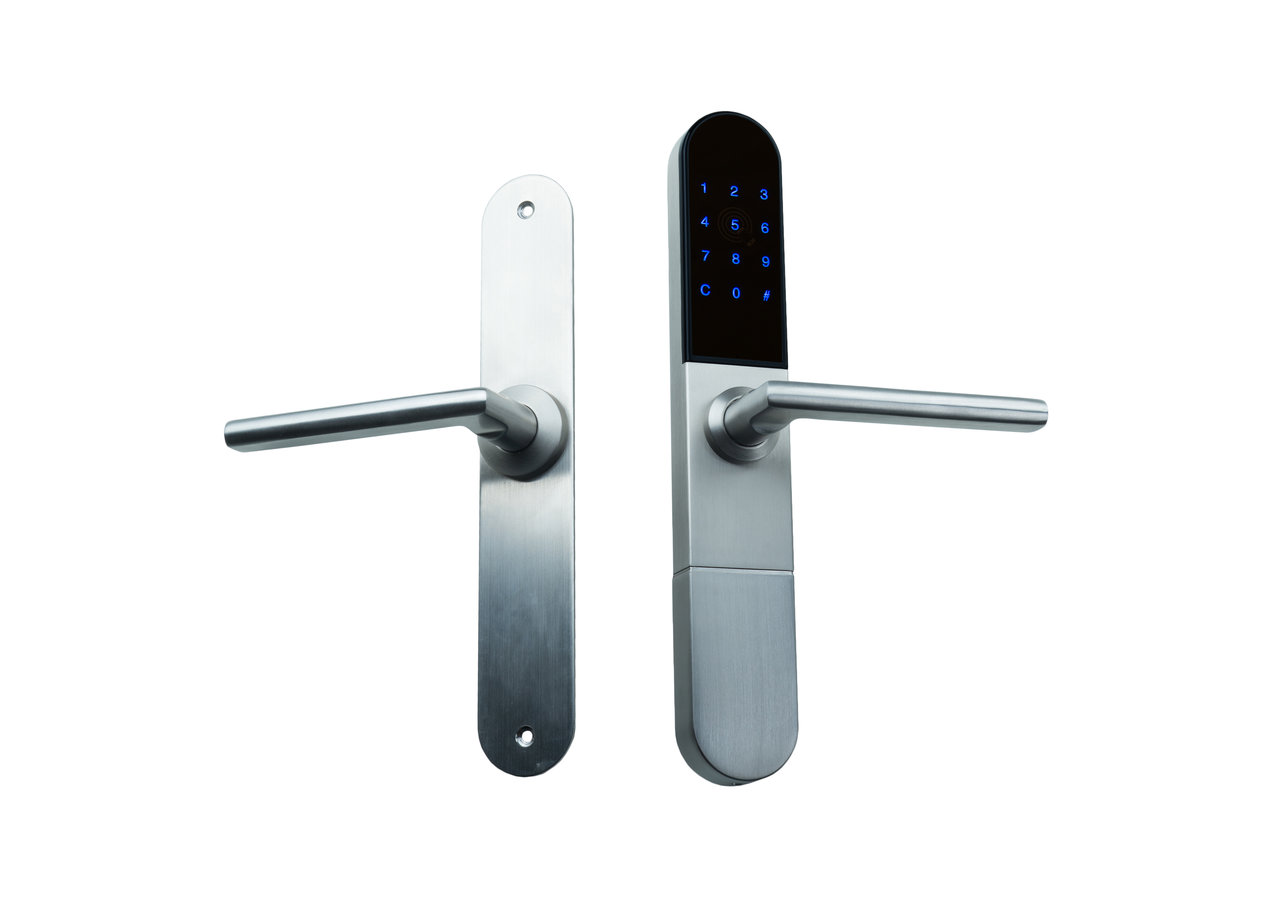

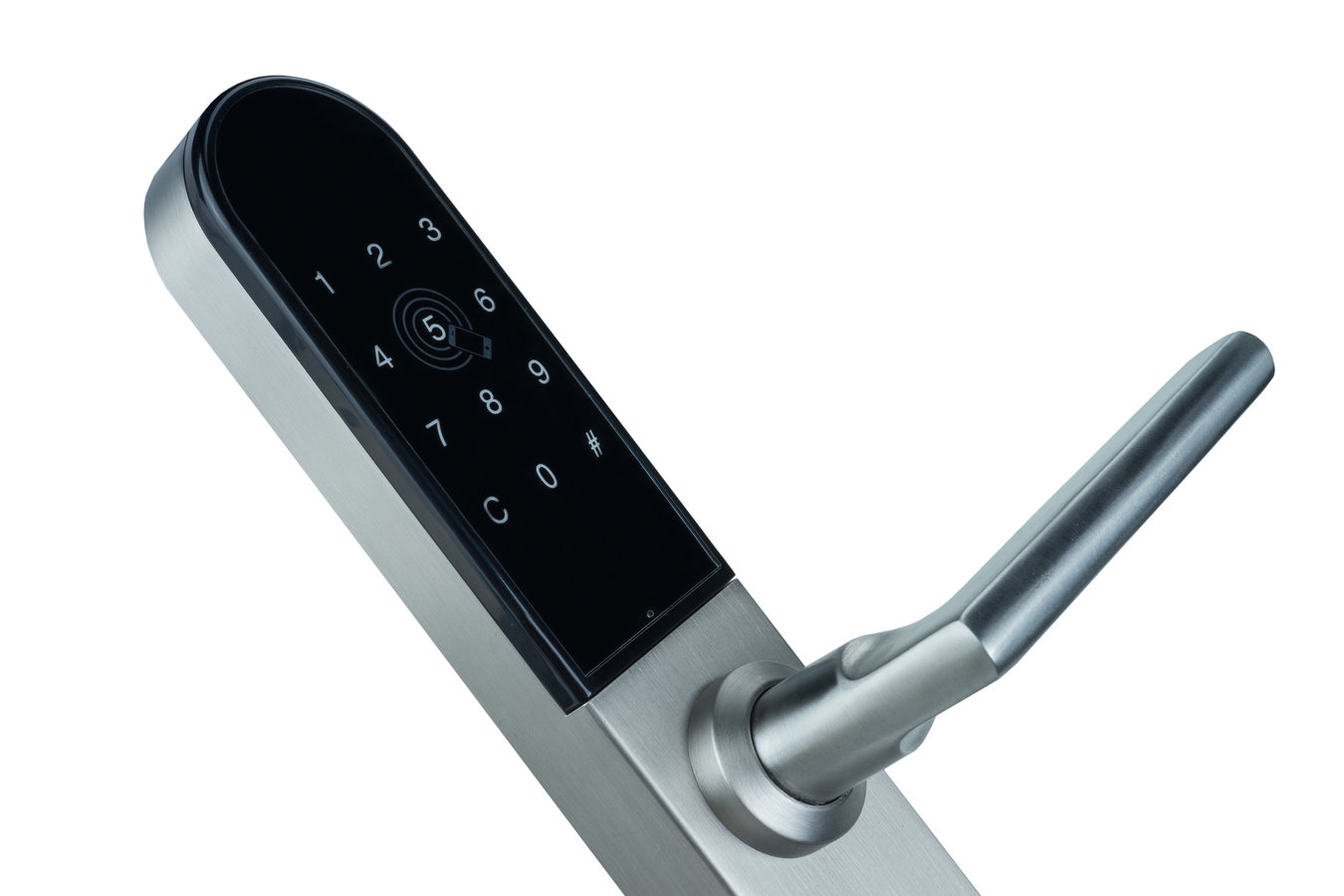

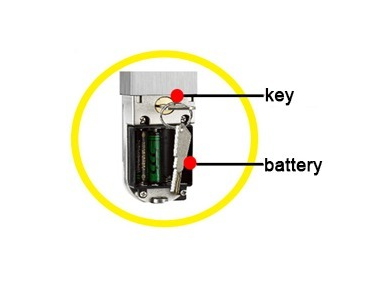

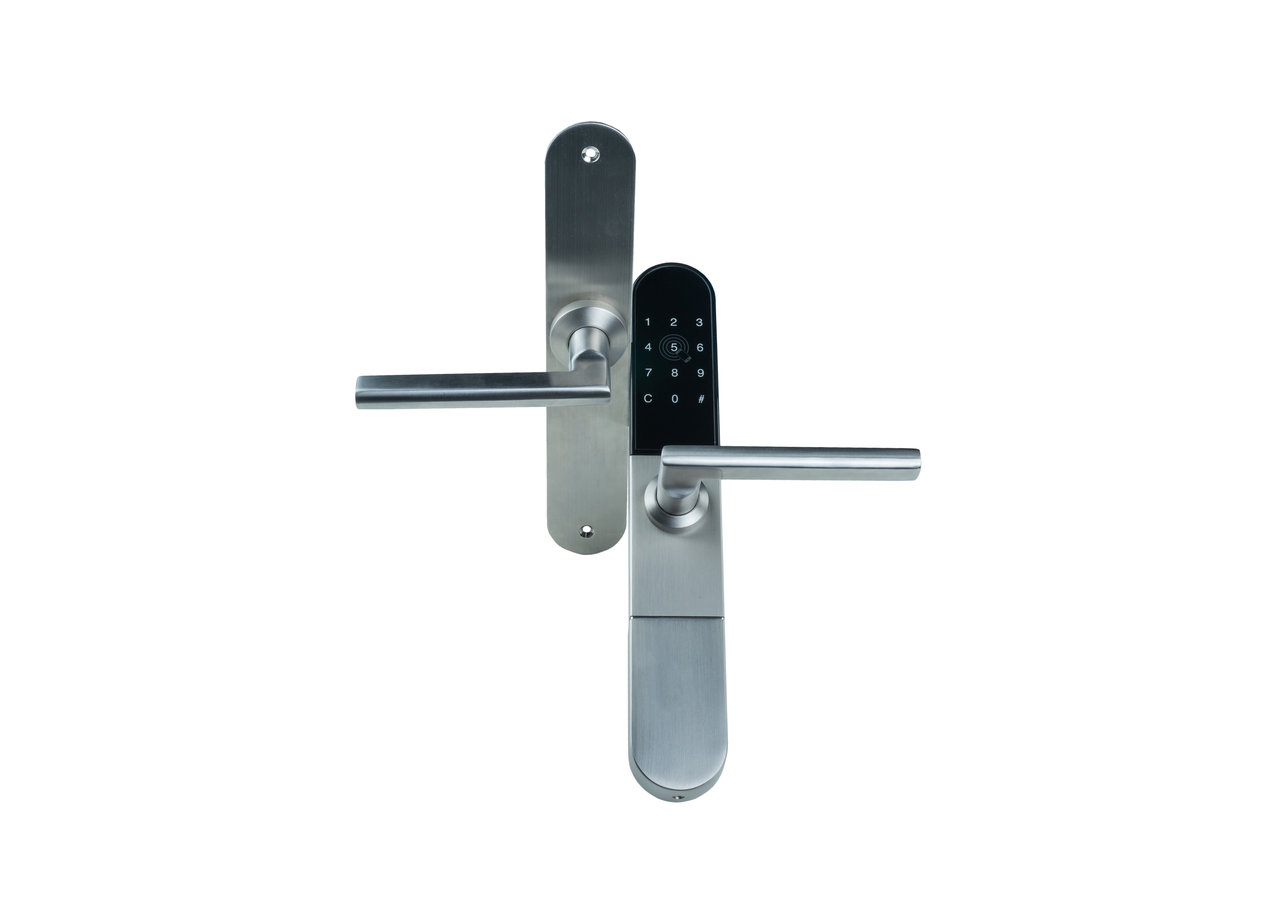

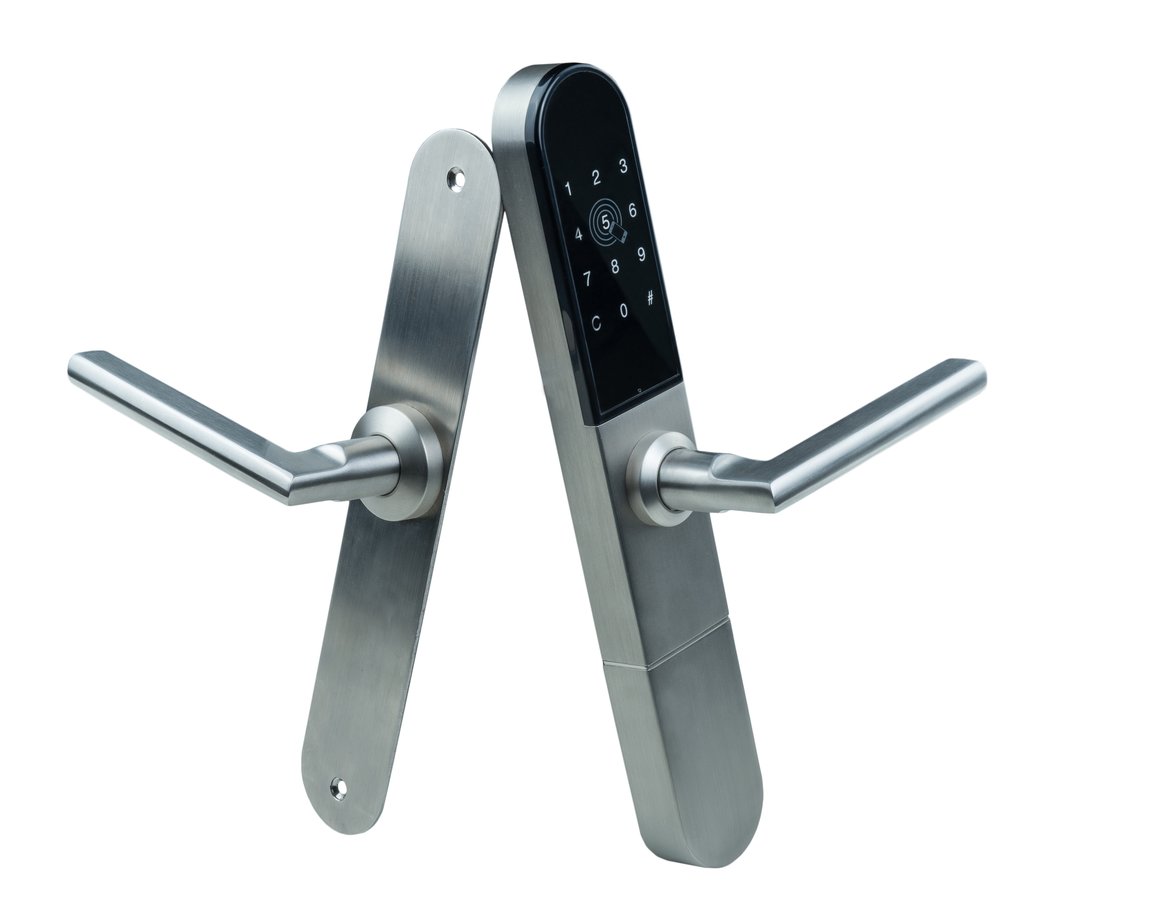

The vG-BL3 sms code handle is a modern and convenient solution for premises for short-term rental. It is characterized by a very simple installation, because all the main elements, including the reader with the keyboard, the servo-mechanism as well as the battery container, are located on the outside of the signboard. This means there is no need to drill through a wiring door. The vG-BL3 code lock is operated with the TTlock application, where you can generate codes for a specified period of time, add proximity cards, check the history of events, check the statistics of entries and presence of its users, and control the battery level. The vG-BL3 code lock fitting is oblong and wide enough to cover the old holes left by the previous plate. An additional advantage of the vG-BL3 model is a three-row numeric keypad - similar to that in telephones, which makes its operation even simpler and more intuitive. The SMS code lock has a built-in mechanical insert for emergency opening.
Remote lock is intended for internal use only
Works for:
PIN code
|
Mifare card 13,56MHz
|

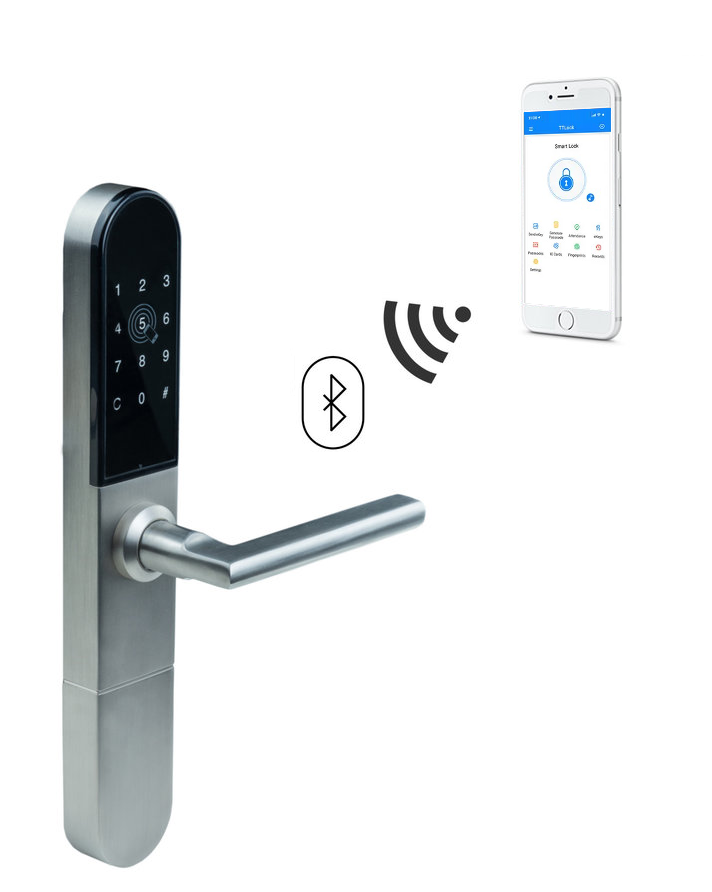

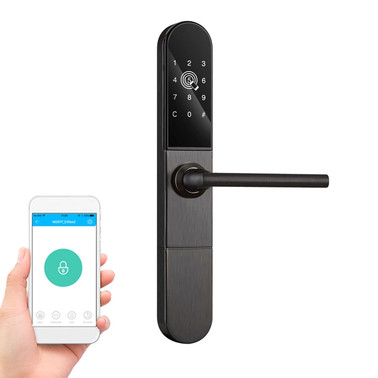

TTlock app
|
Emergency key
|
Fingerprint (to order)
|
Remote lock vG-BL3 presentation
Generating and sending the code - video

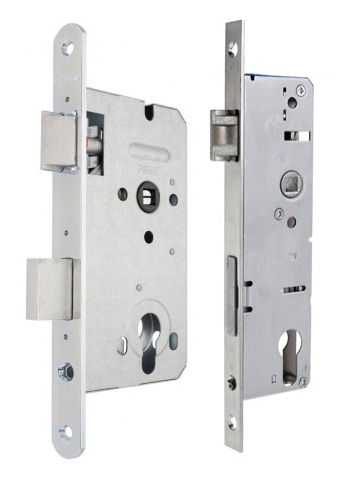

Works with the following mortise locks:
|
|
Any mechanical mortise lock |
|
|

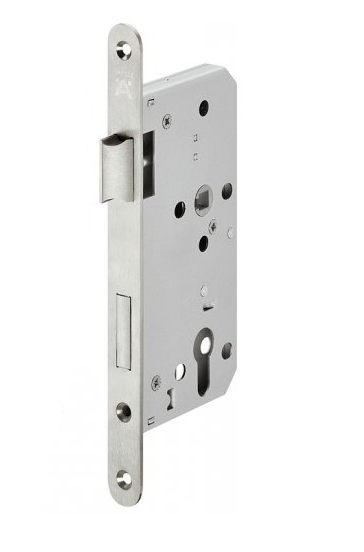

Fire mortise lock EI30 72 / 55-65 / 20 Startec
|
|
|

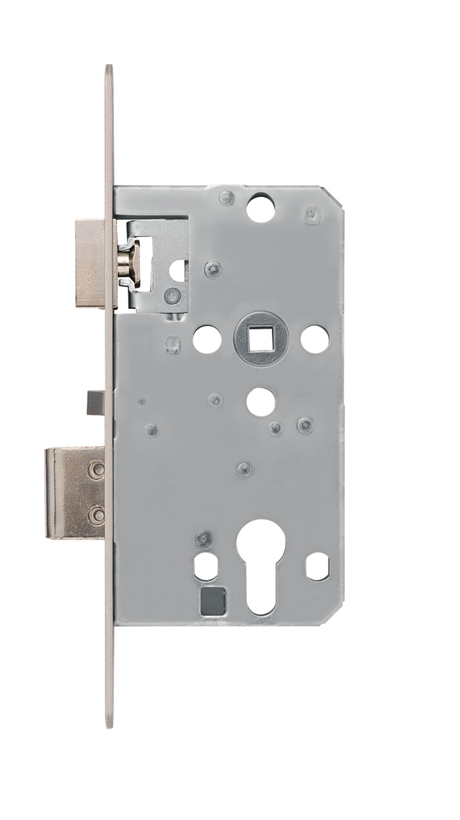

Self-locking lock TKZ40
|
Dimensions
Available colours
|

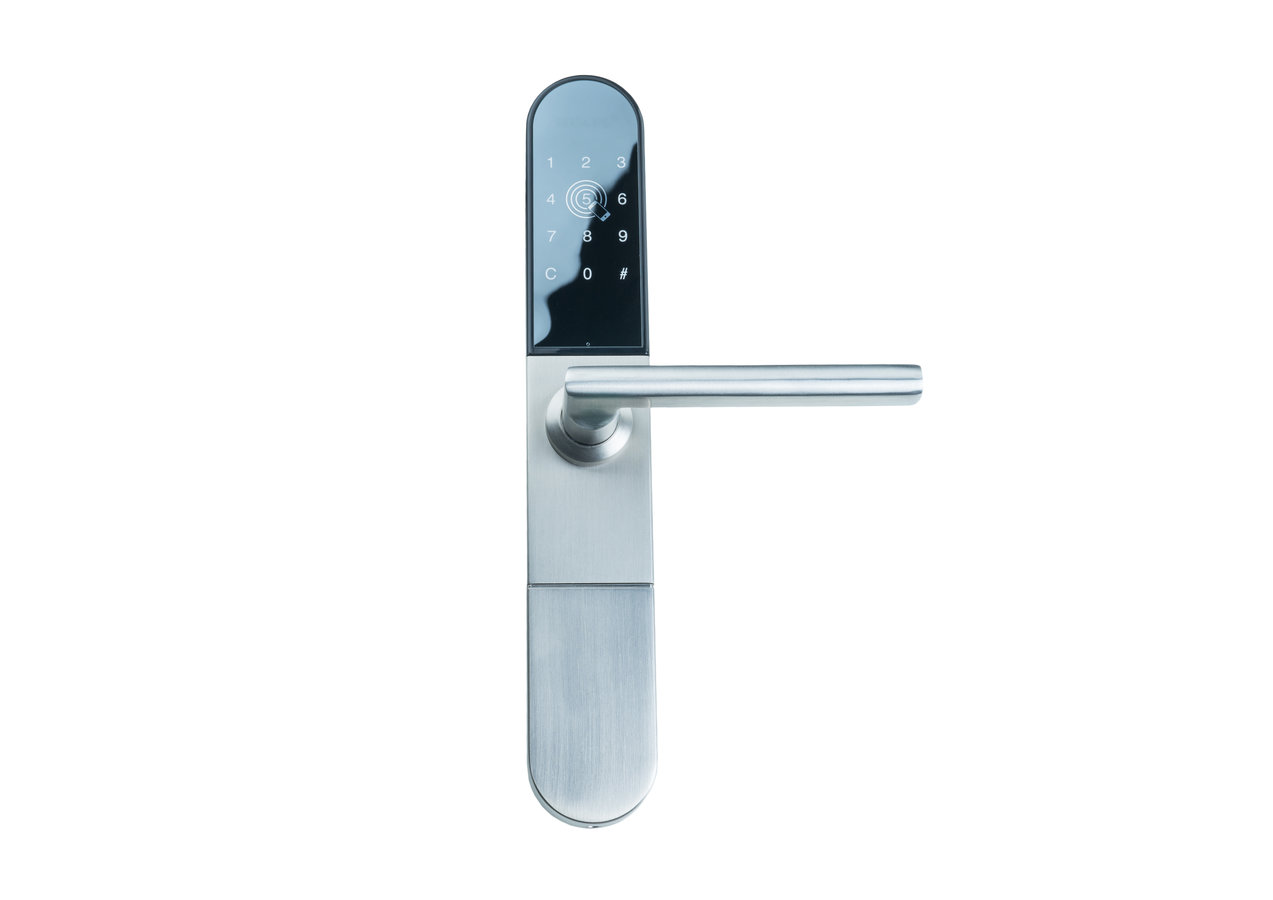

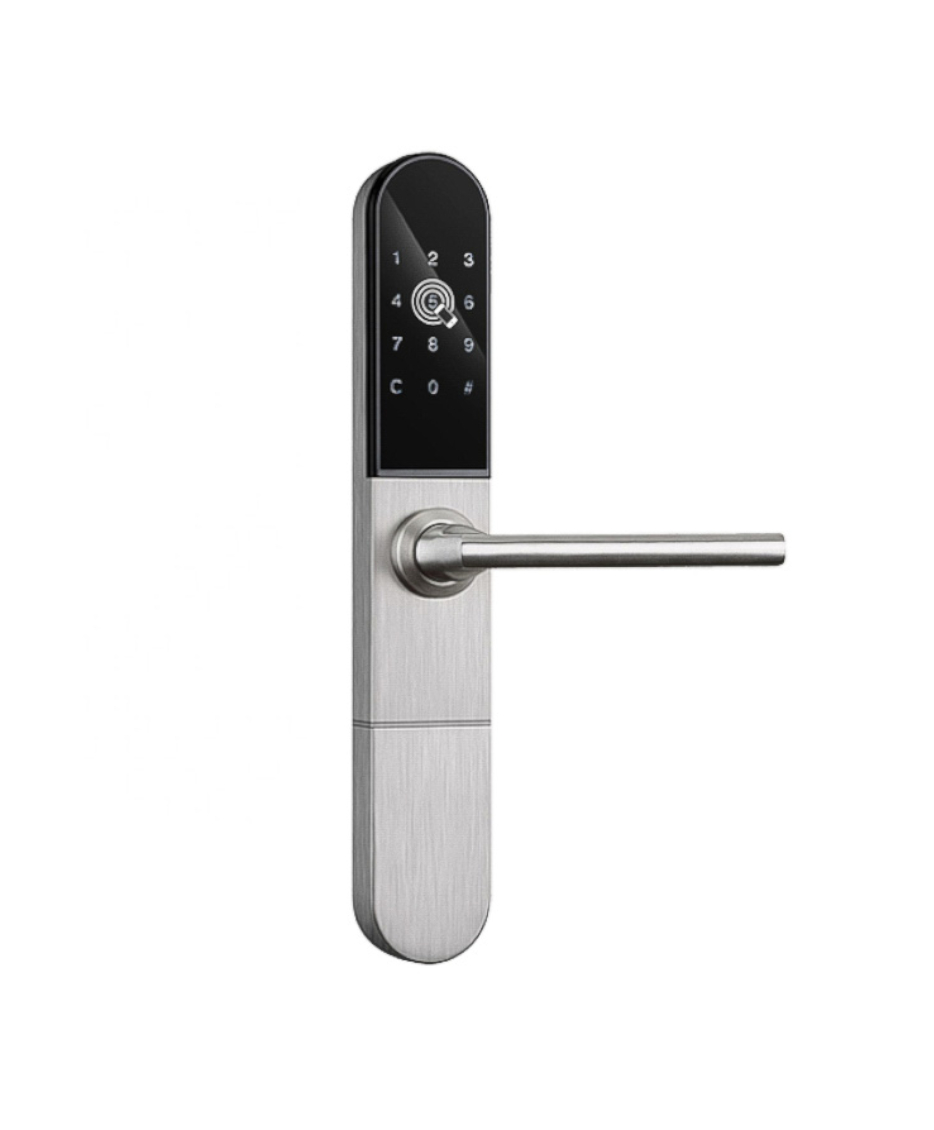

SILVER |

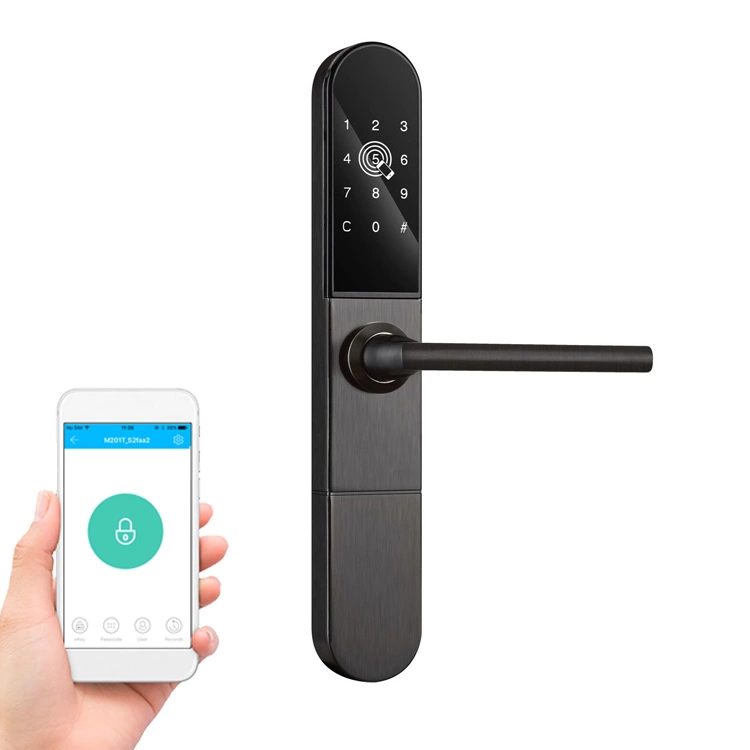

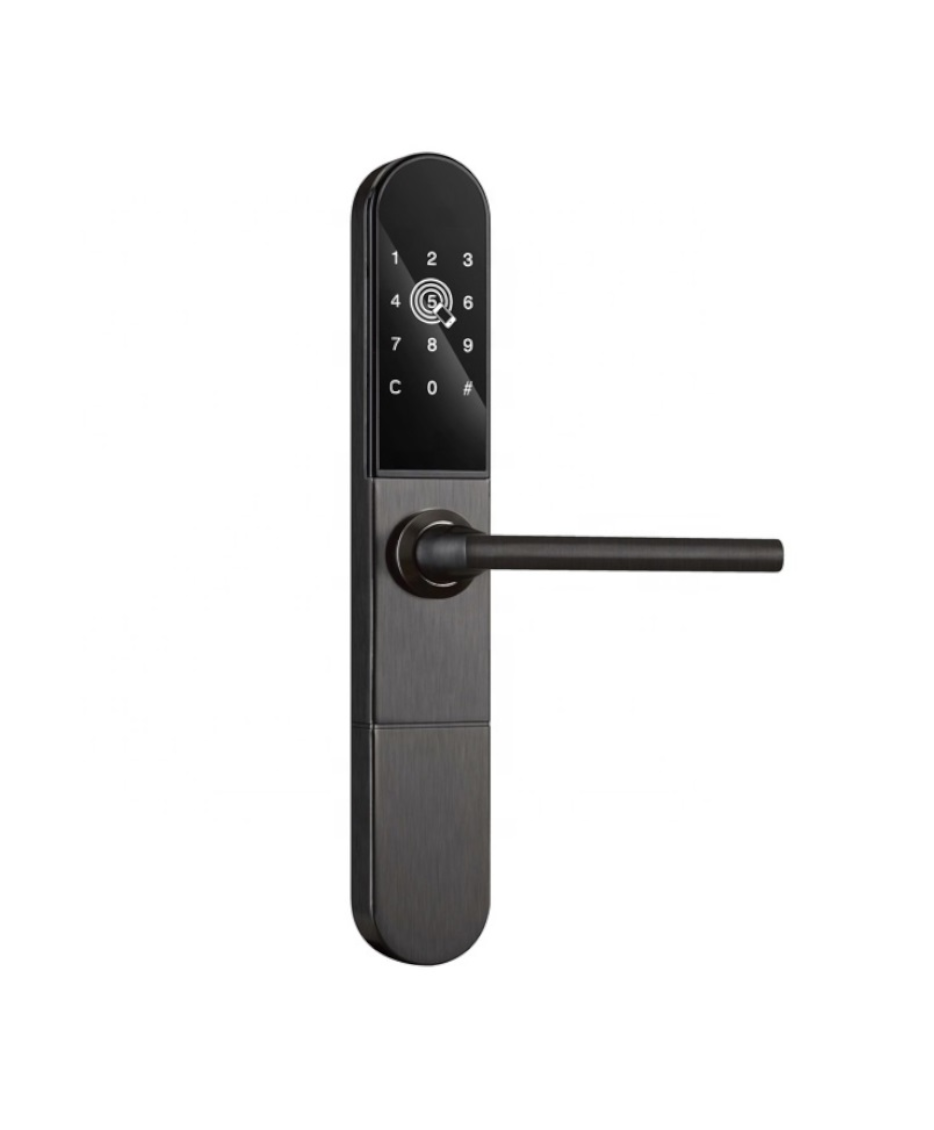

BLACK |

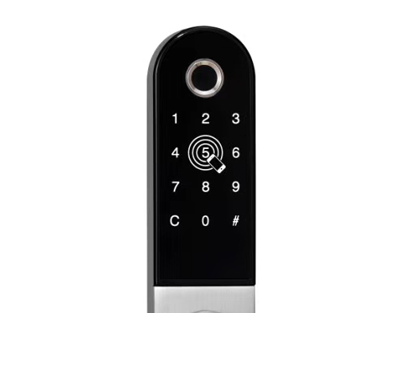

Available version with fingerprint (to order)
Technical data
| Communication | Bluetooth 4.0ble |
| Power supply | 6V (4xAAA alkalaine batteries) |
| Color | Silver, black – on order (longer waiting time) |
| Type | Overlay handle, fits every door, using the original mortise lock |
| Power consumption during operation | 200 mA |
| Power consumption at rest | Up to 18 uA |
| Types of open | TTlock APP, Mifare 13,56MHz card, combination code, emergency mechanical key, fingerprint (to order) |
| Autoblock | Yes, after 7 seconds |
| Thickness of the door | Min. 20 mm |
| Low battery alarm | Over 200 openings before discharge |
| Intended use | Interior use only |
| Recommendation | The installation of the handle is not recommended in areas with high traffic flow (up to 30 passages per day) |
| Warranty | 2 years |
