User Manual for BS-DS7100

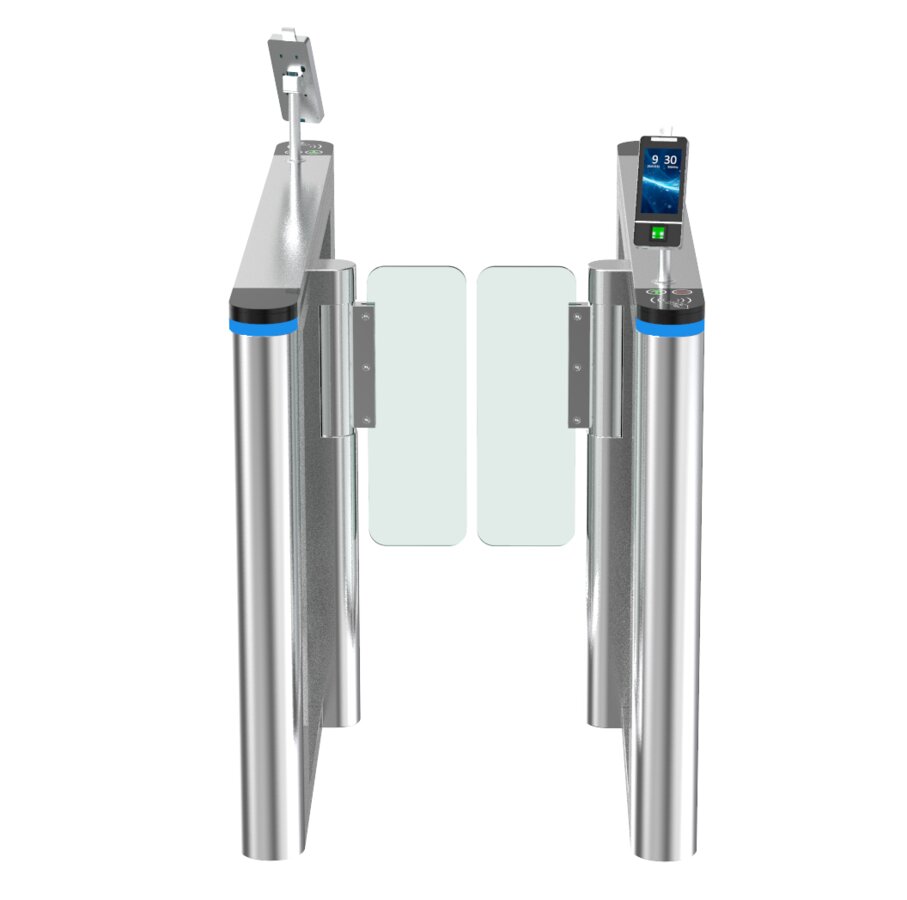

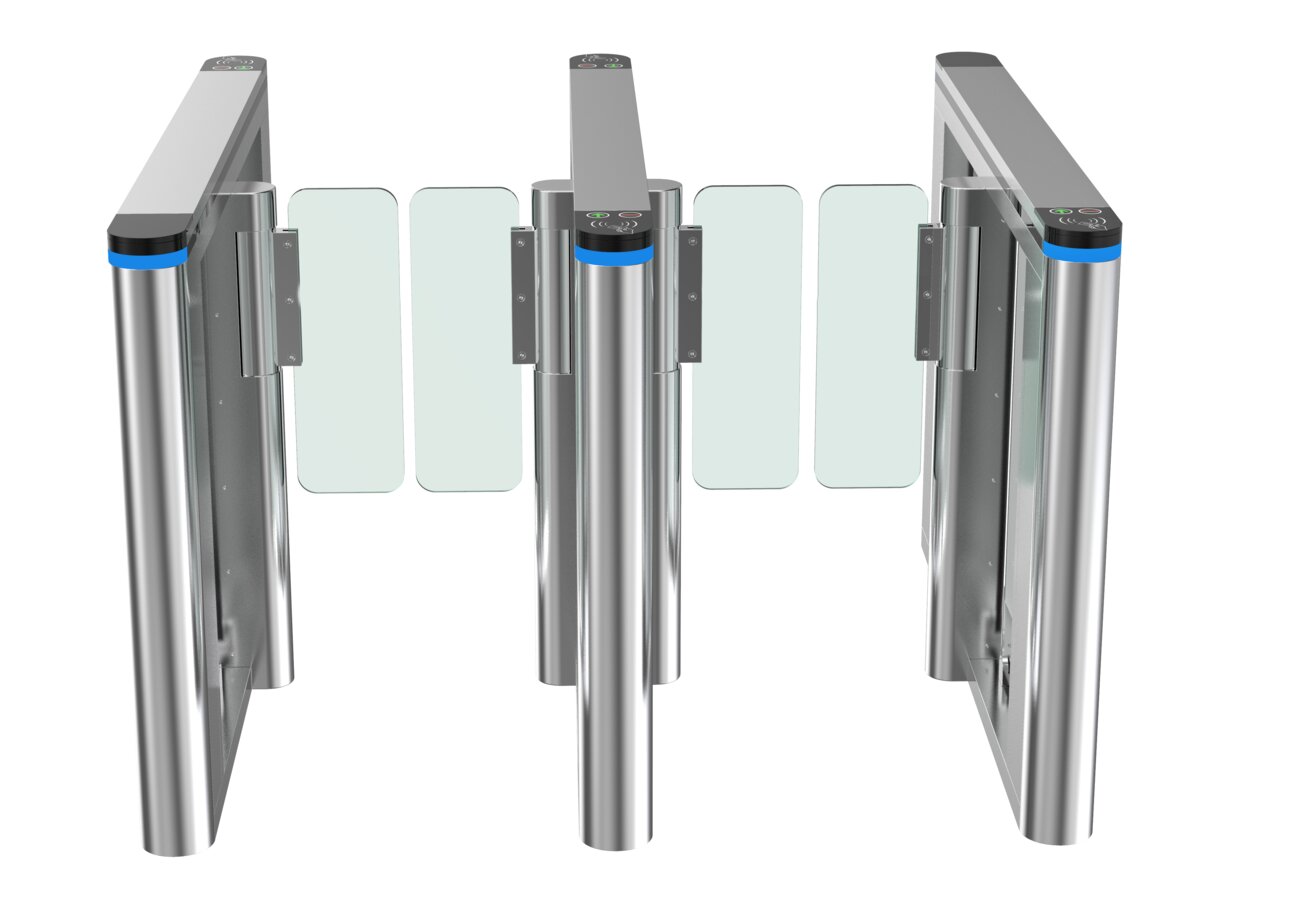

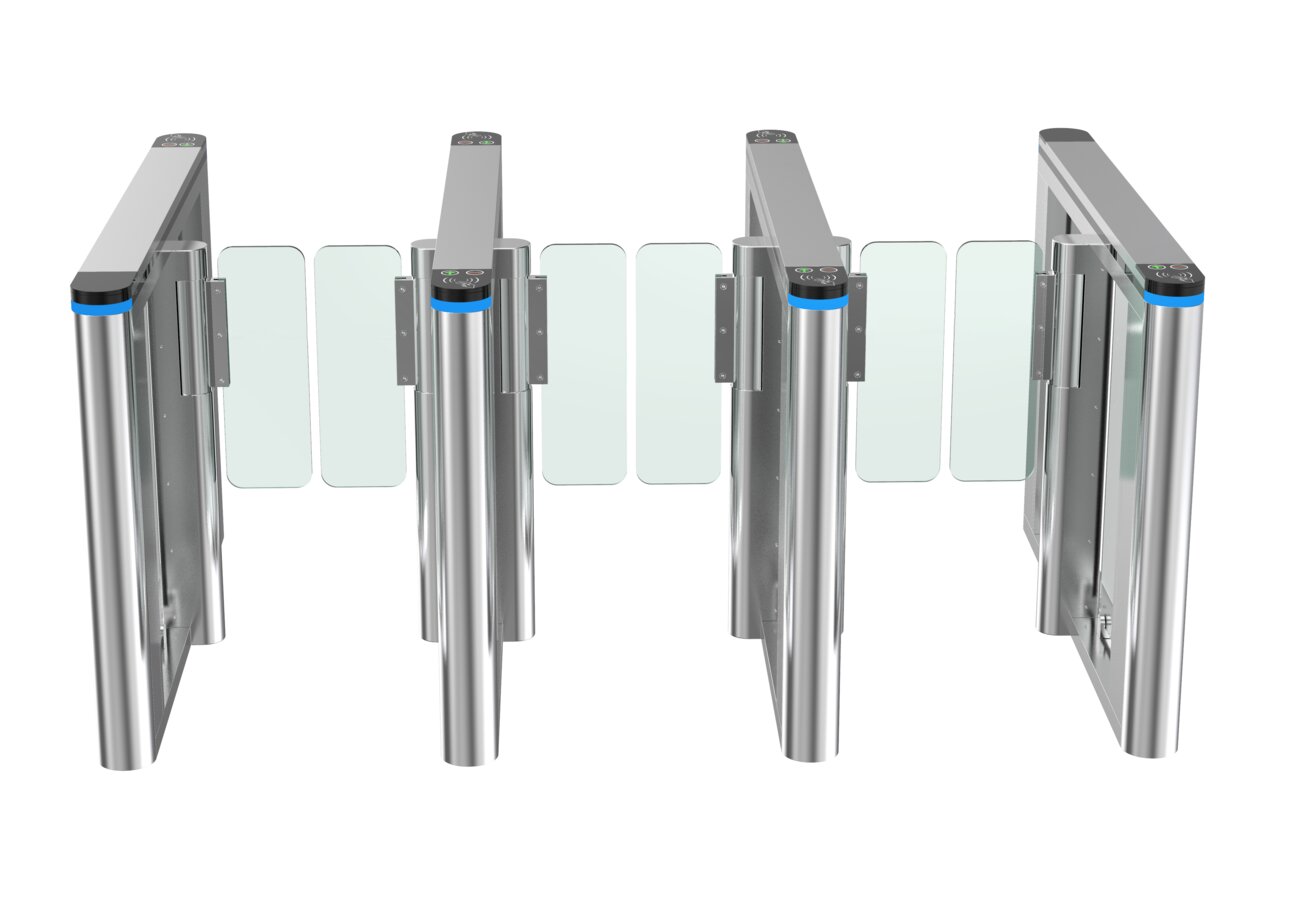

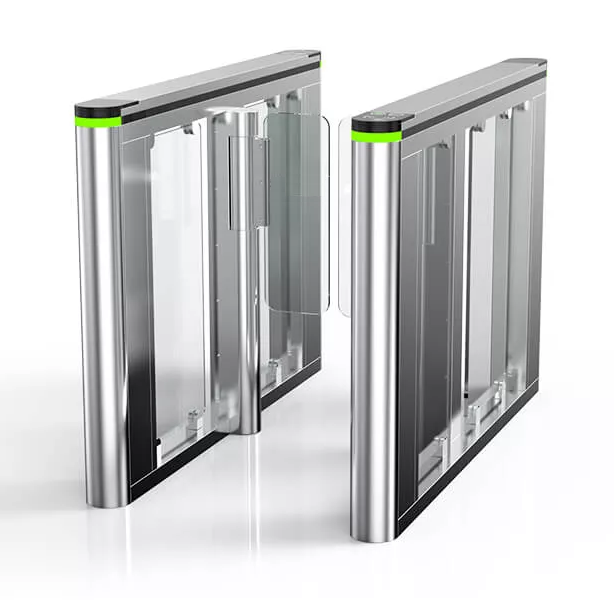

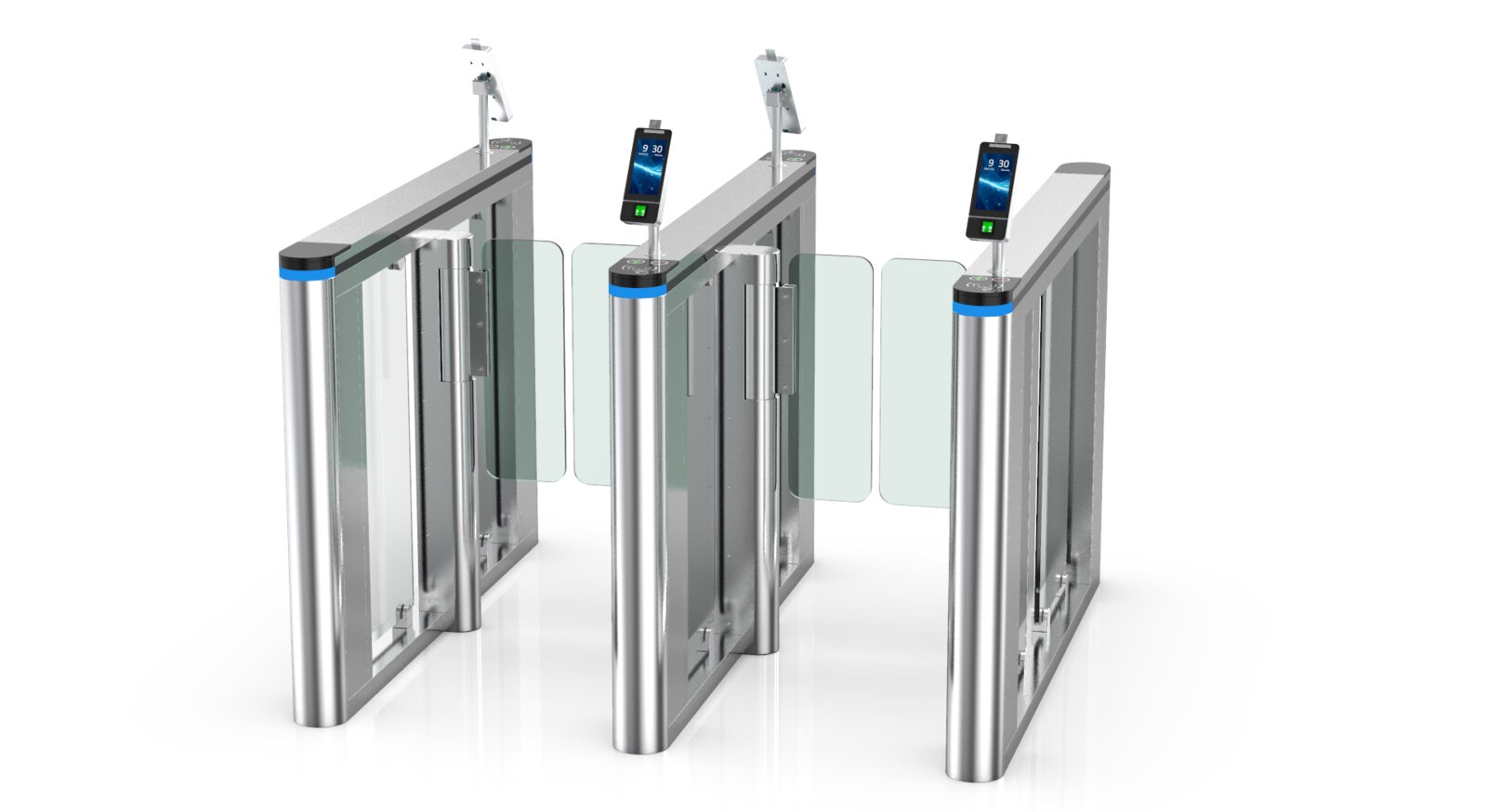

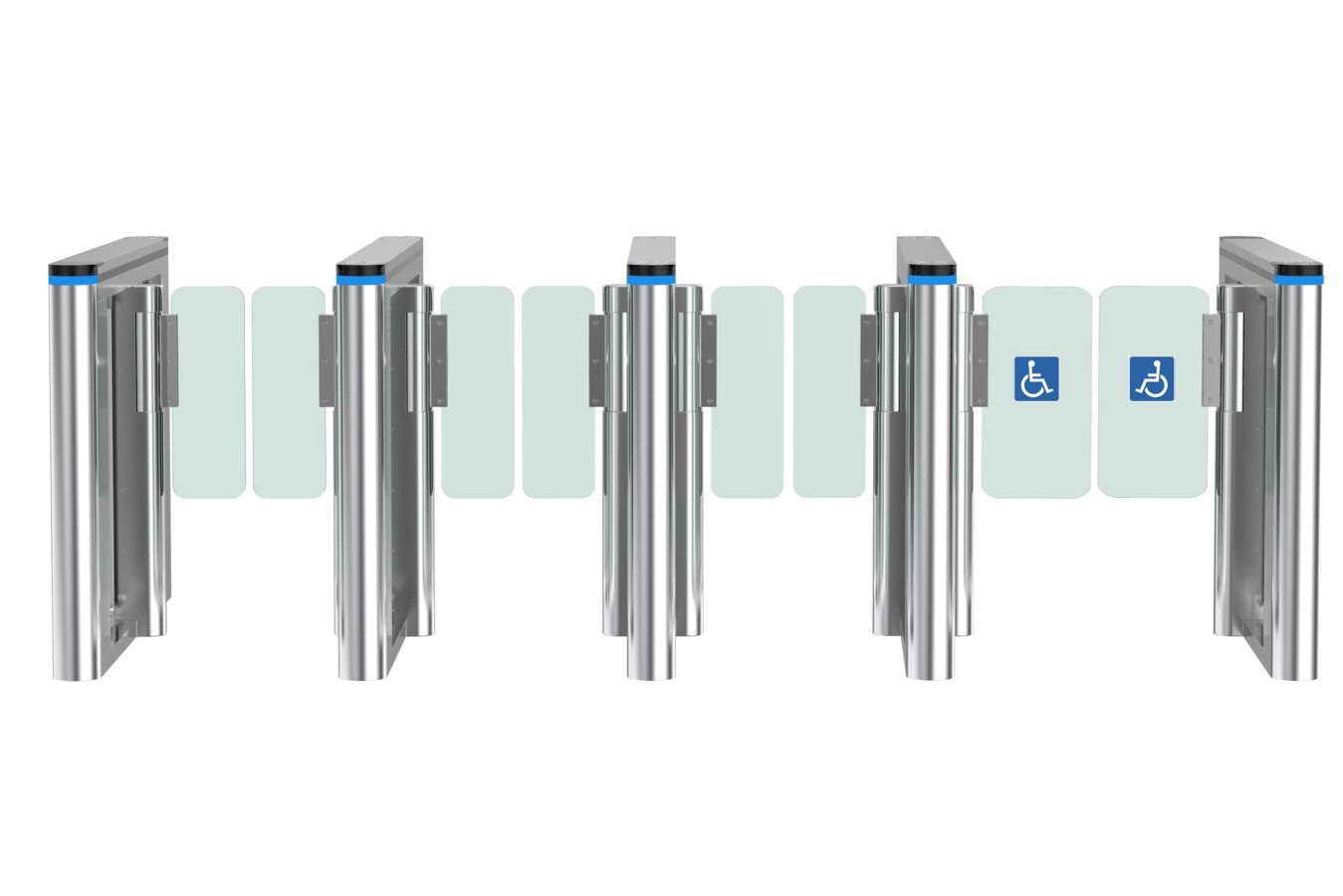

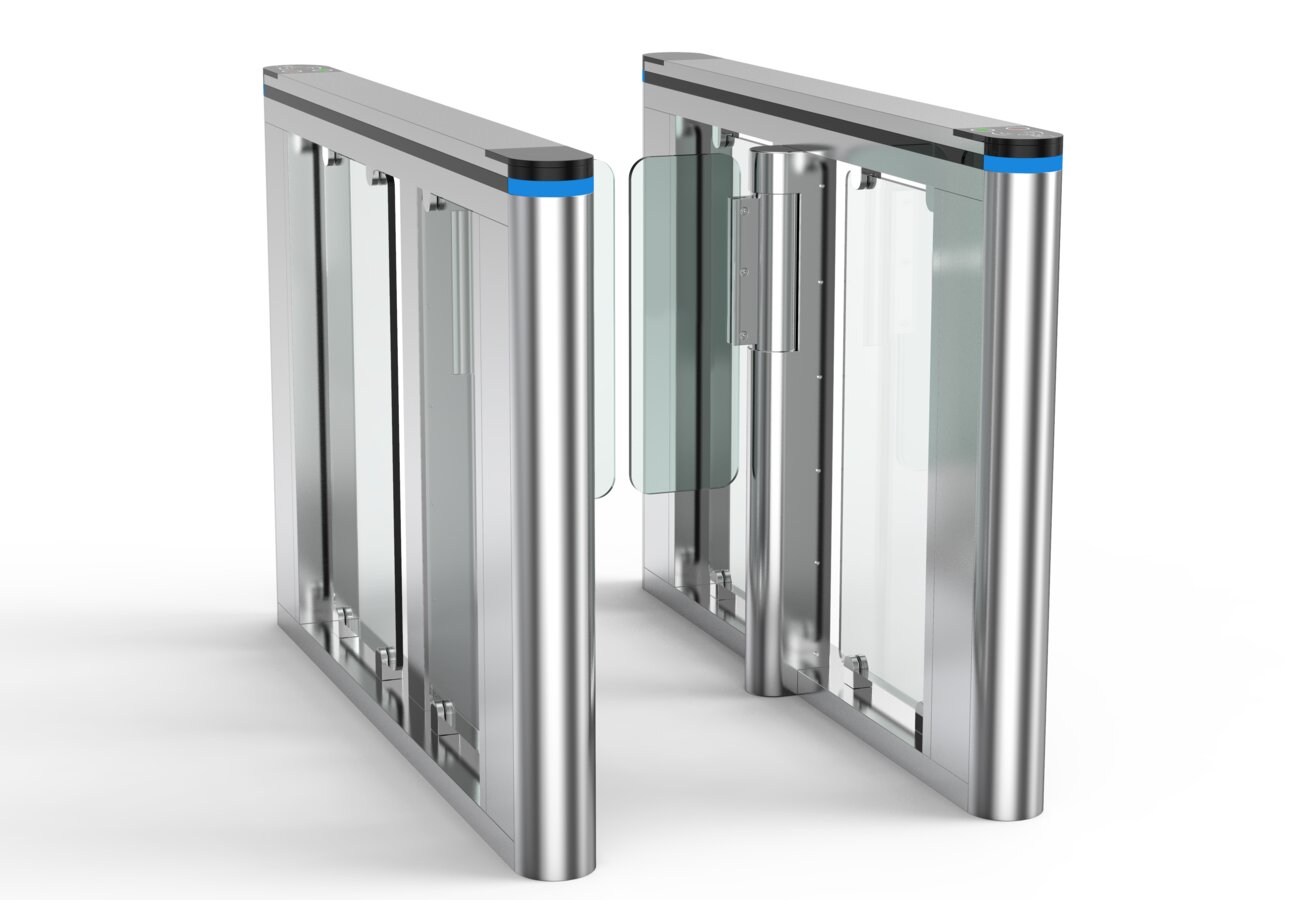

Speedgate BS-DS7100
Price 7662,90 € (23% VAT included)
6230,00 € net price
DESCRIPTION

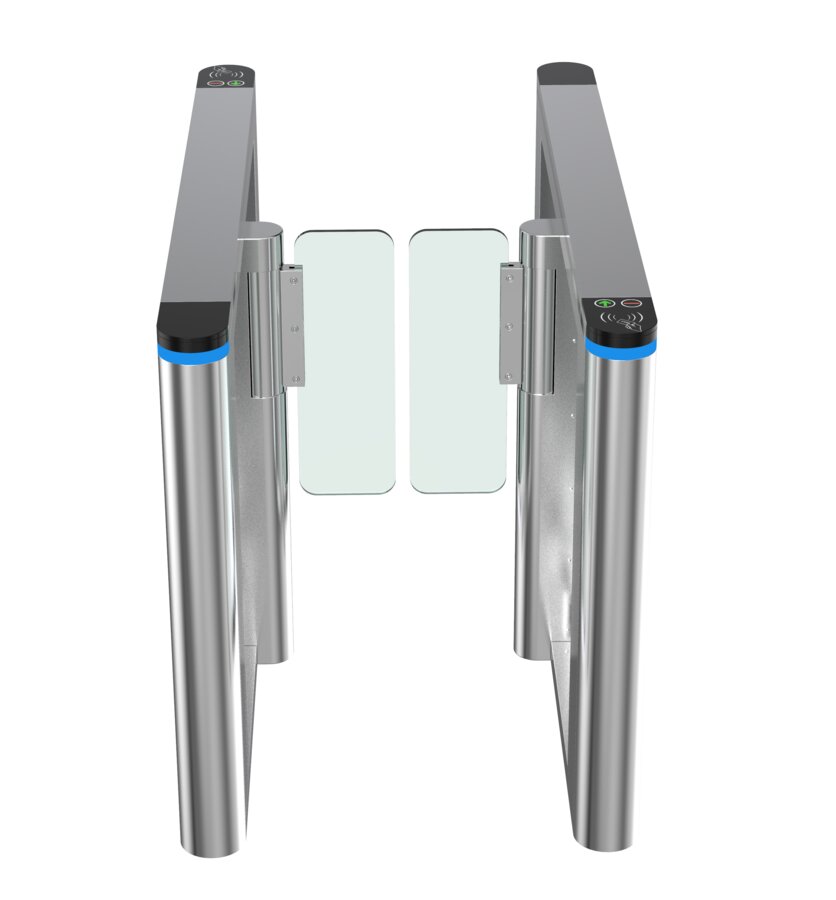

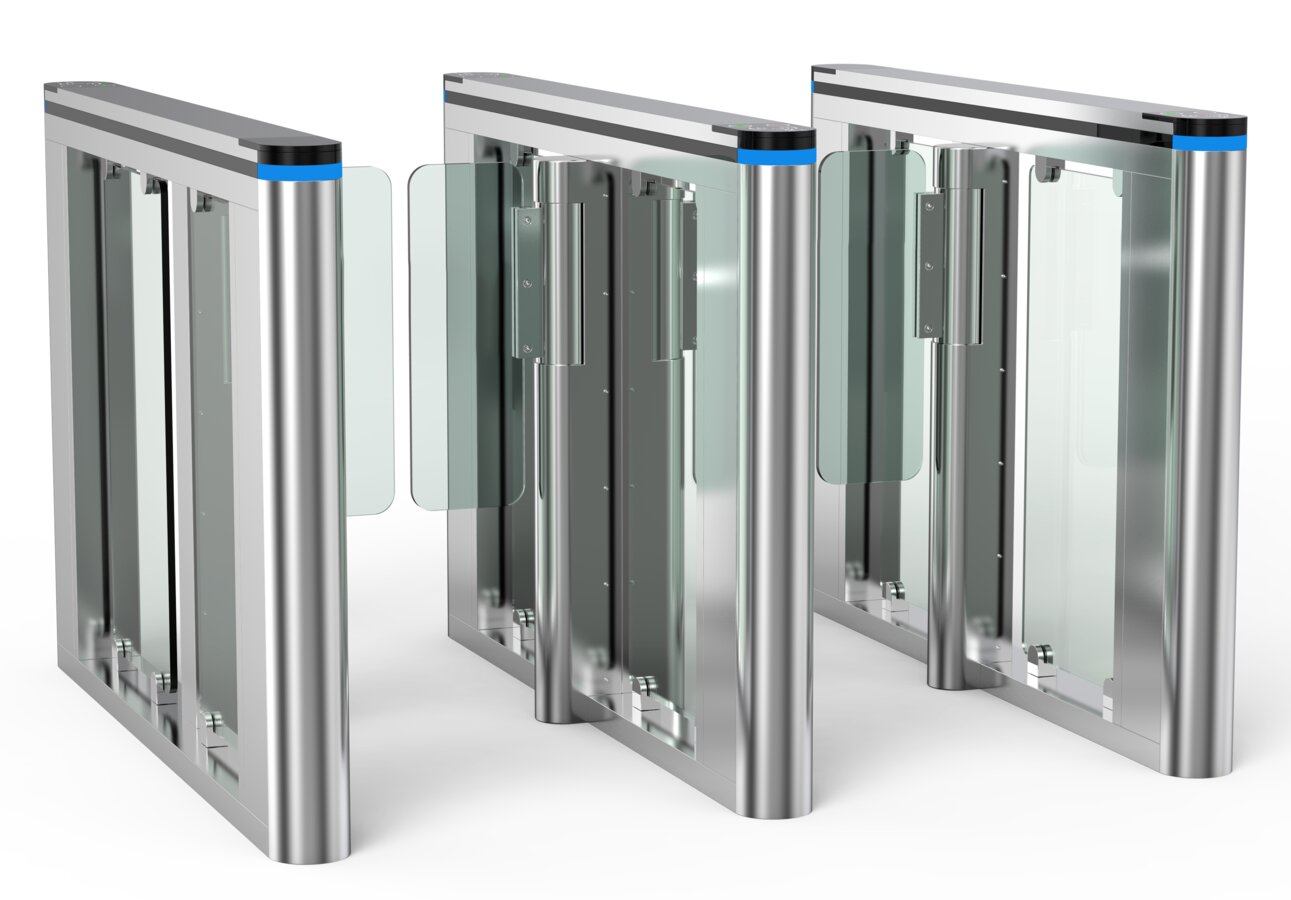

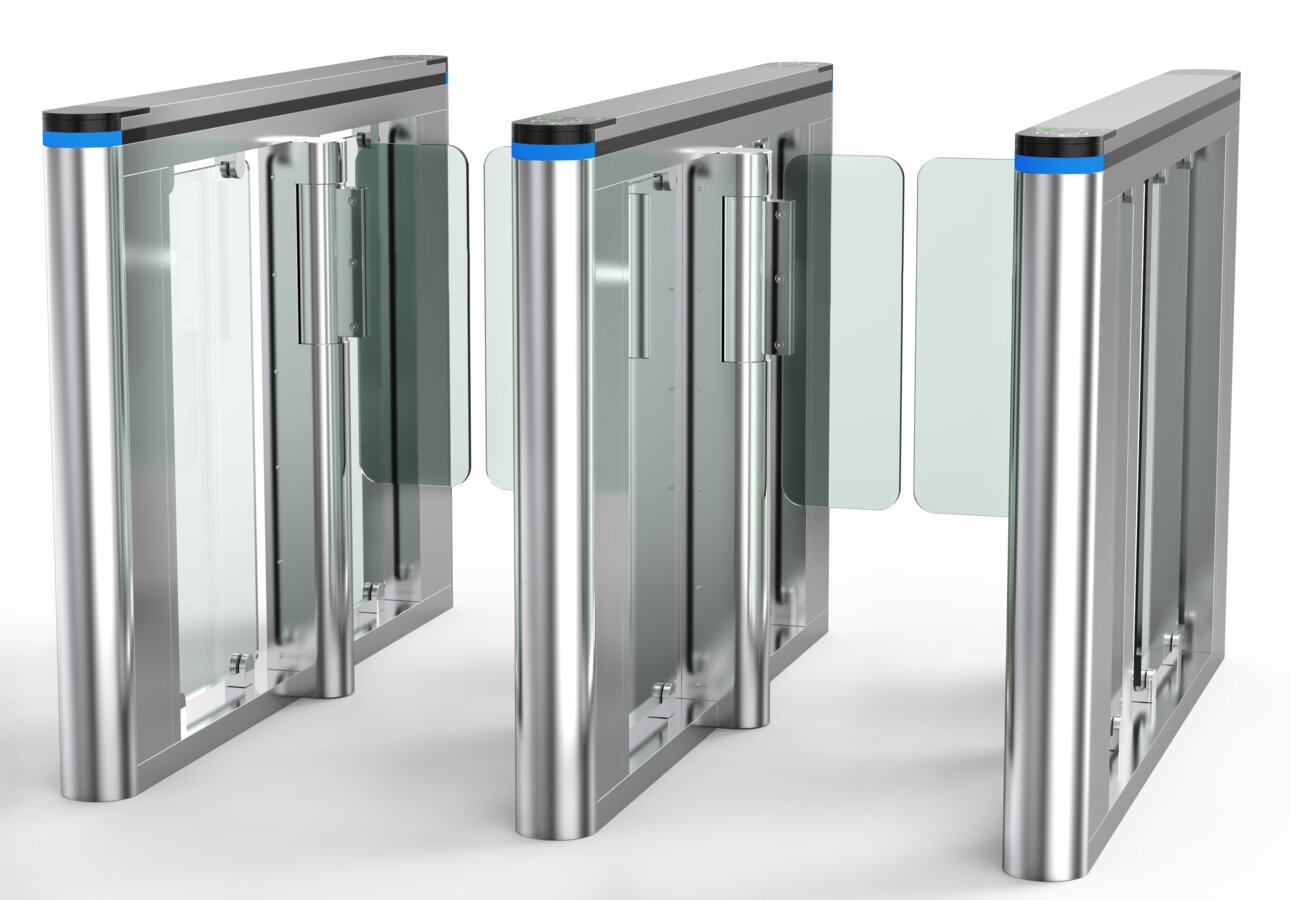

BS-DS7100 is a speedgate with a slim shape and modern design, thanks to which it can be installed in places requiring high aesthetics. It can work both unidirectionally and bidirectionally.
PRODUCT MAIN FEATURES:
- Long lifetime and high reliability
- Low noise
- High efficiency (even up to 50 people per minute)
- Automatic lock function (if a passing person does not pass the gate within 5 seconds (can be adjusted), the arms will be blocked
- Passage will be opened automatically in case of power failure
- Anti-burglar function - turnstile is defaultly closed, it can be opened after recieving a opening signal
- Alarm function in case of an attempt to pass through the gate illegally (optional)
- The mechanism will not be damaged if the arm meets resistance

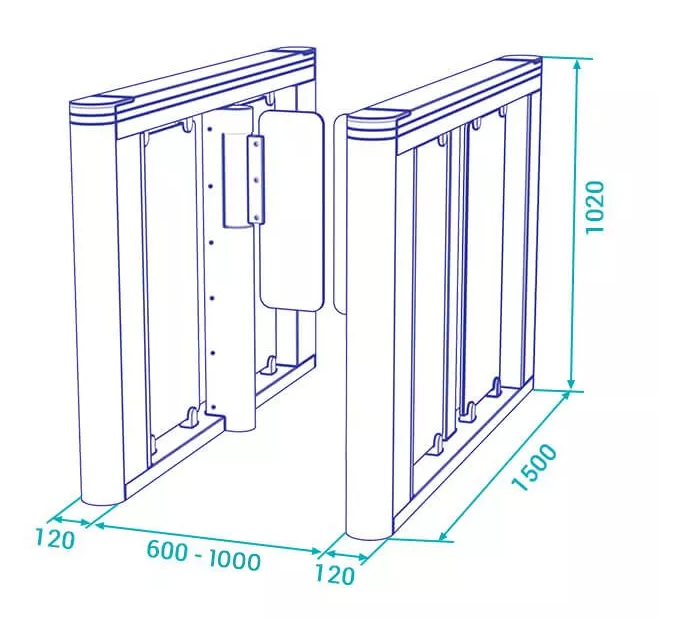

DIMENSIONS
TECHNICAL DATA
| Materials | Stainless steel 304 |
| Dimensions | 1500*120*1020mm |
| Weight | 80kg |
| Passage width | 600-1000mm |
| Passage direction | Unidirectional / Bidirectional |
| Power supply | AC220V/110V, 50/60Hz |
| Operational voltage | 24V DC |
| Power consumption | 40W |
| Working temperature | -15°C - 60°C |
| Humidity | 95% |
| Working environment | External / Internal |
| Emergency function | Passage is opened automatically in case of power failure |
| Communication | Dry contact, relay signal, RS485 |
