Karta katalogowa bramka sensoryczna BS-DSN70 PL

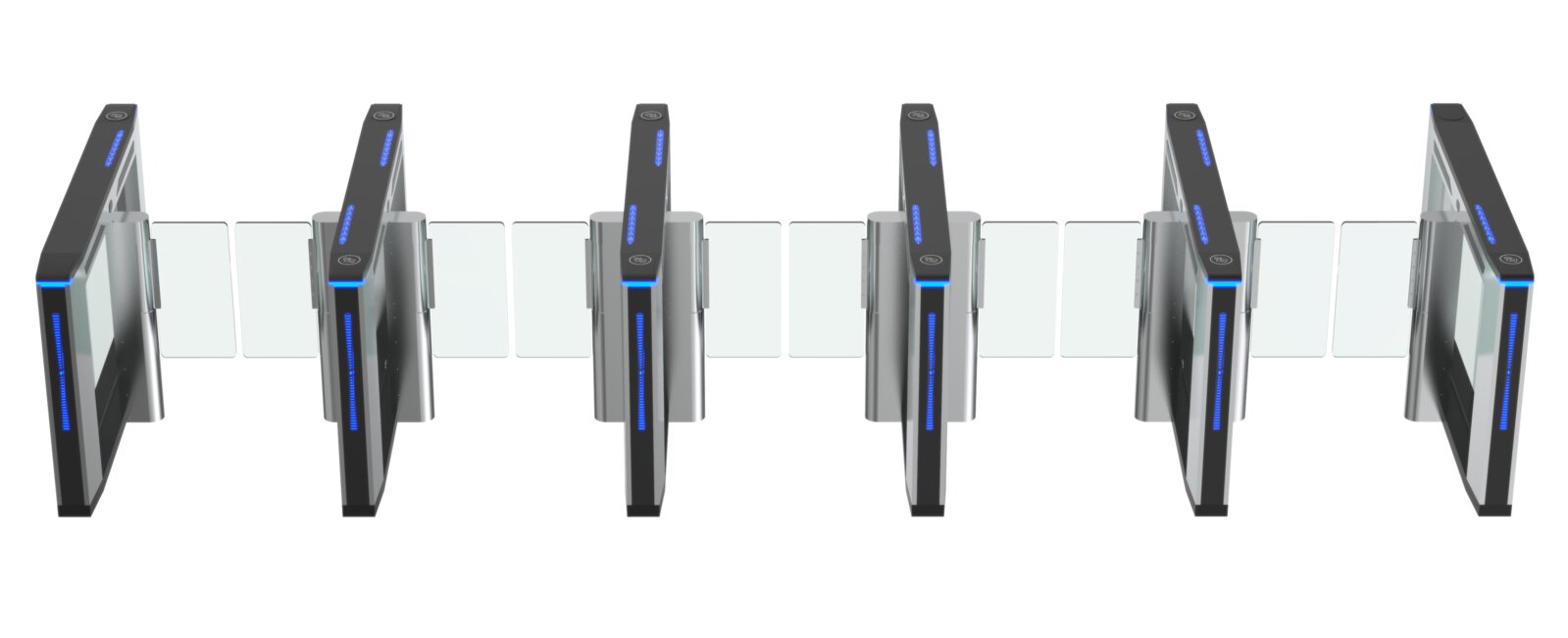

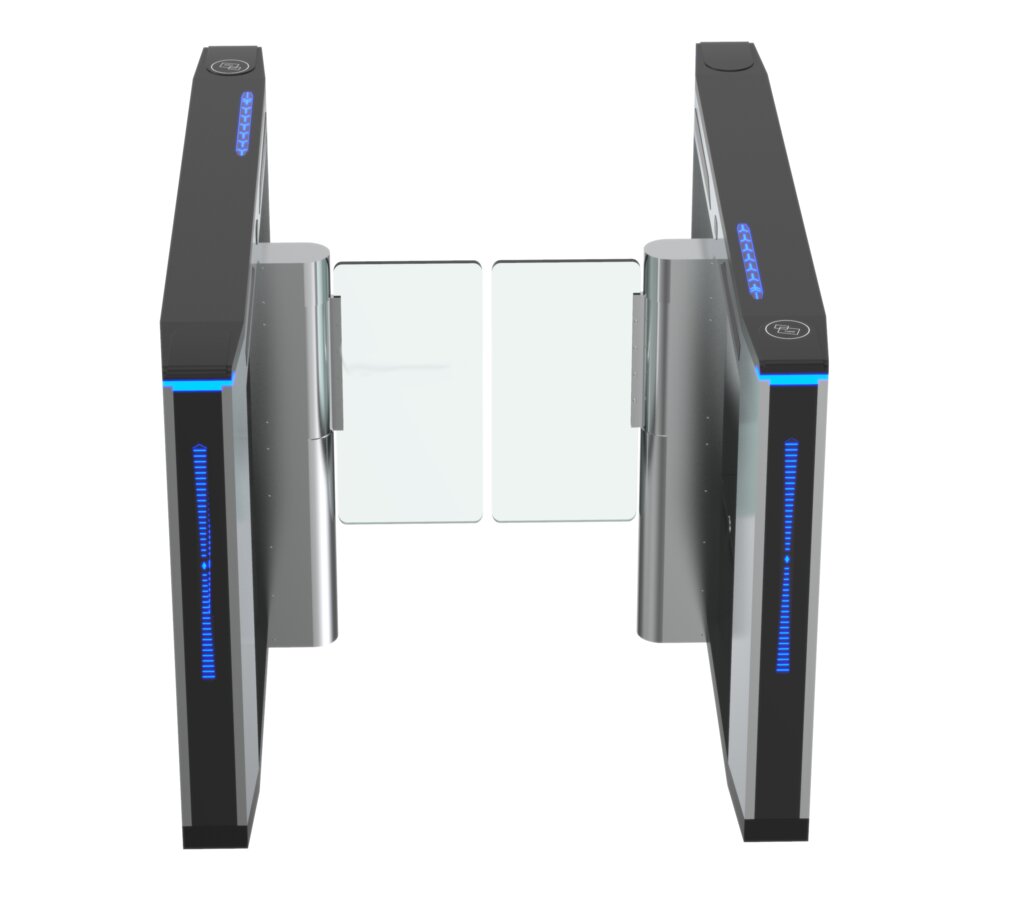

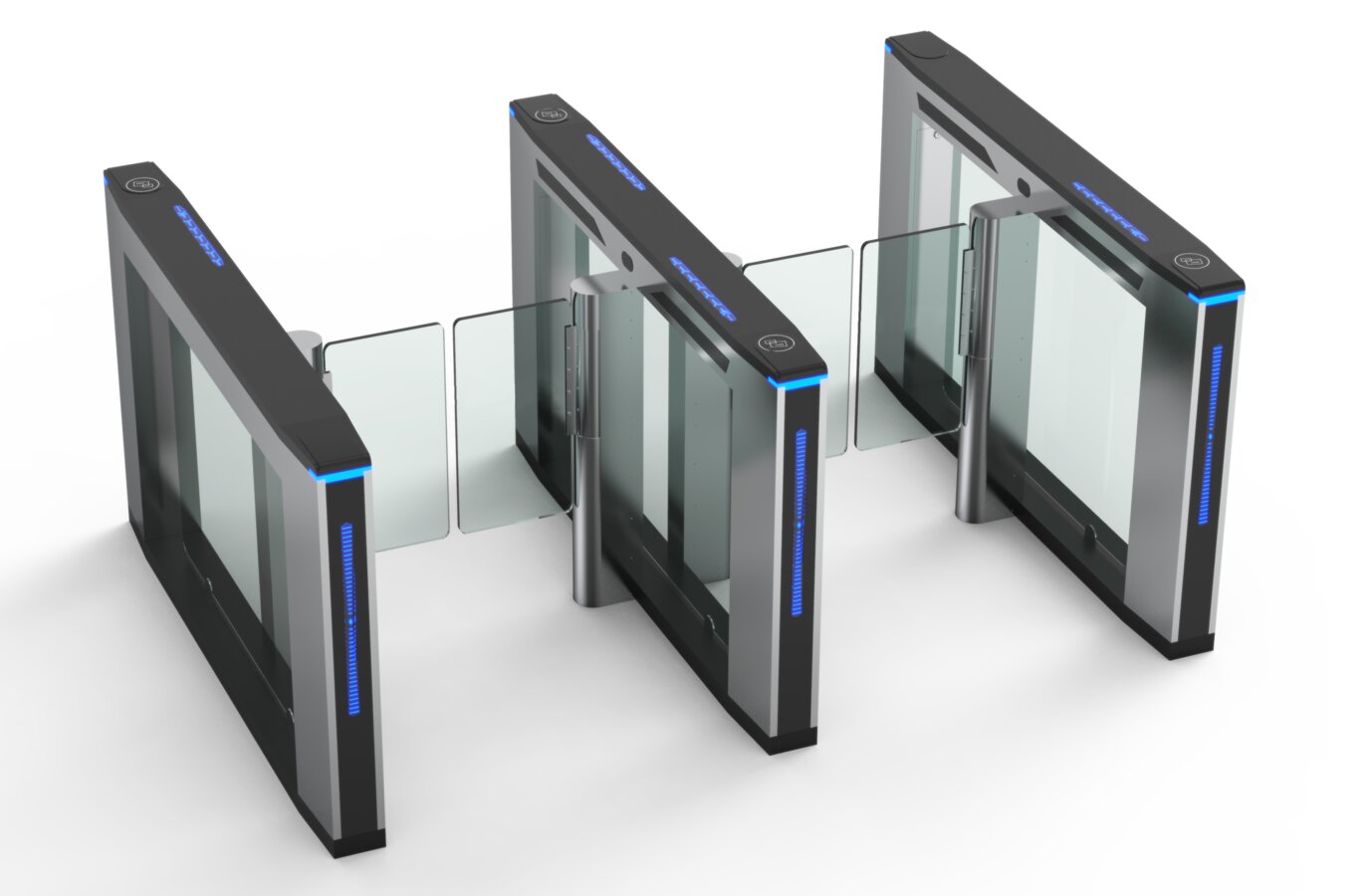

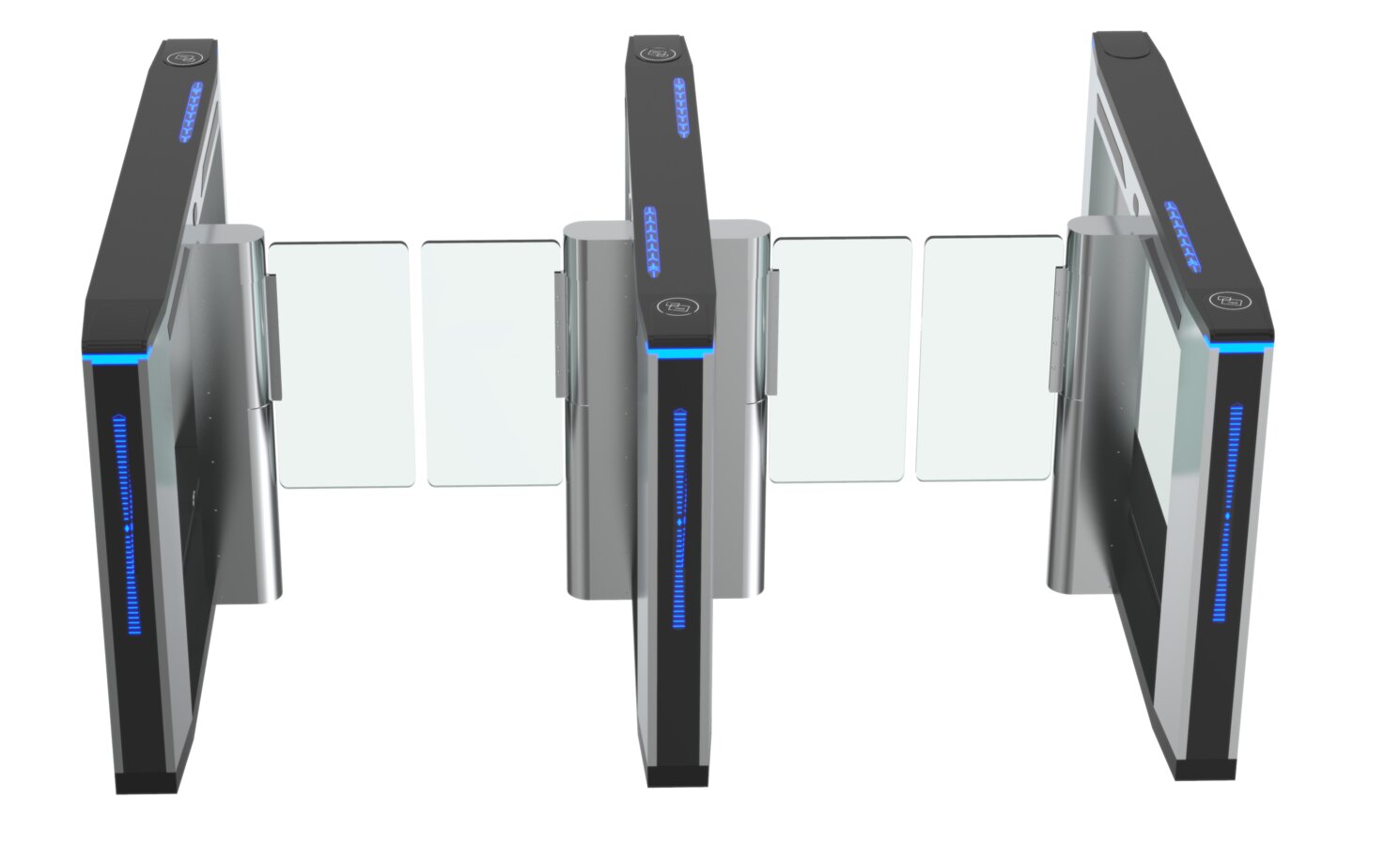

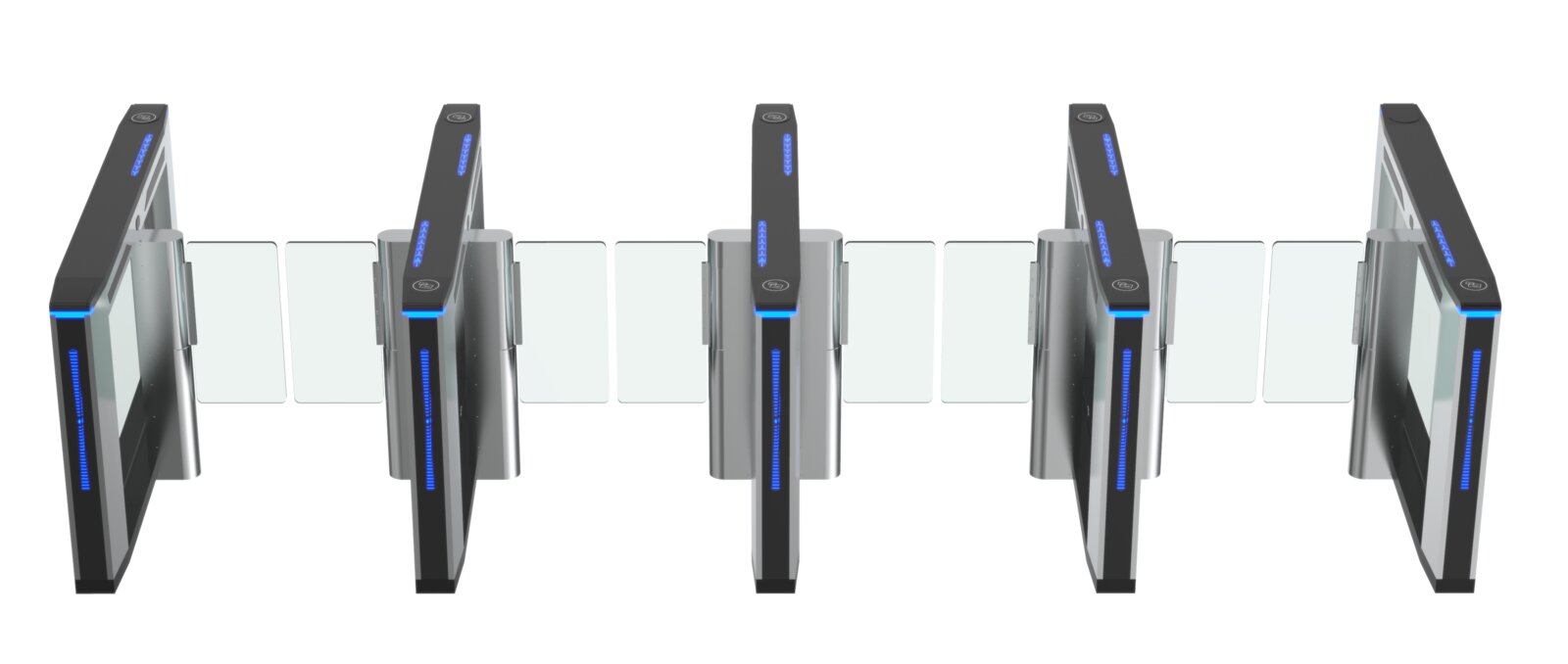

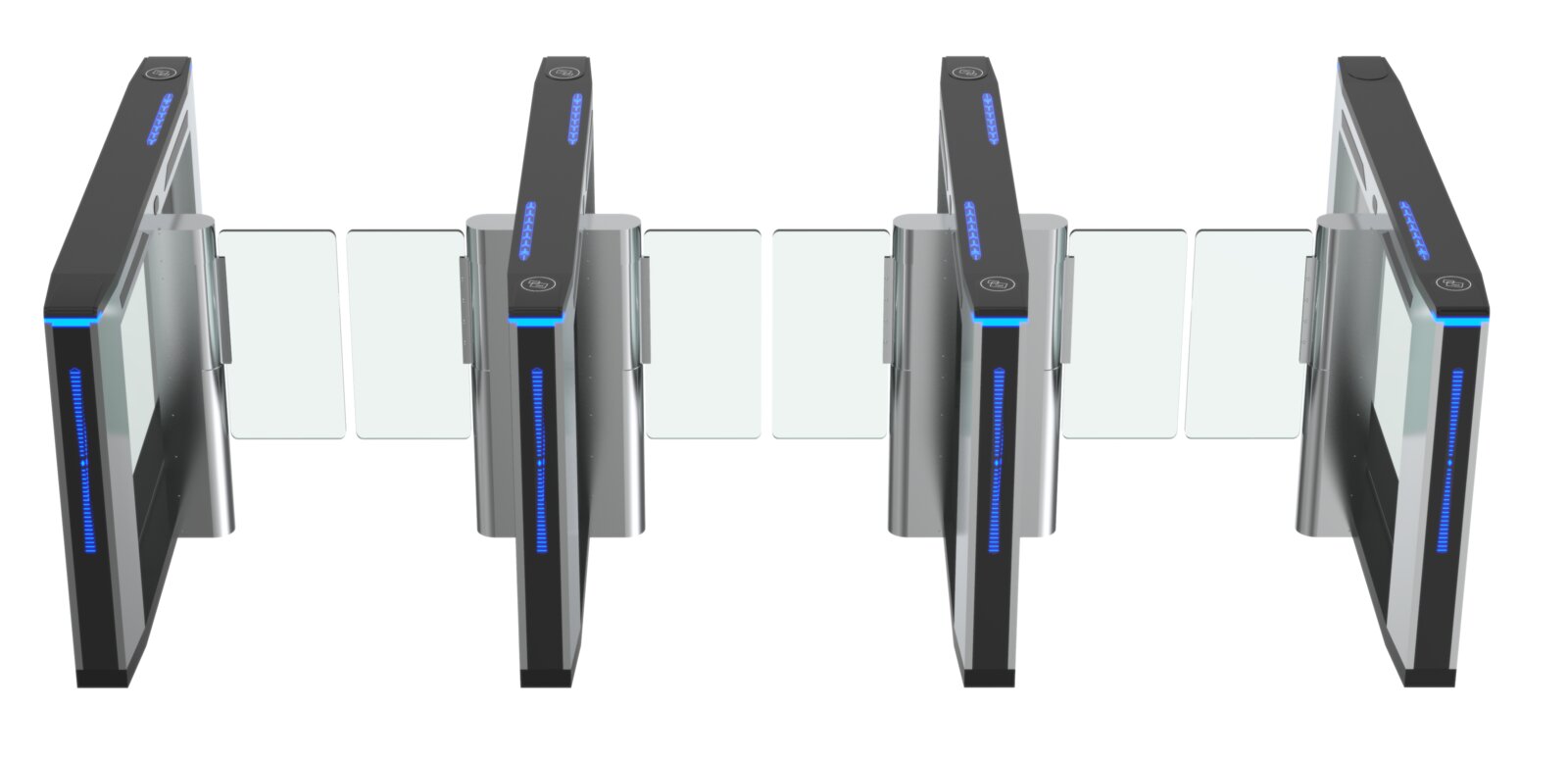

Speedgate BS-DSN70
Price 6728,10 € (23% VAT included)
5470,00 € net price
DESCRIPTION
The BS-DSN70 is a sensory gate with a modern design that will perfectly fit into any type of environment. The device is characterized by high efficiency (up to 55 people per minute) and compatibility with the standards of crossings for people on wheelchairs. It also has a futuristic design thanks to LED strips that signal the current status of the gate. It can work both in one and two directions.
PRODUCT MAIN FEATURES:
- Long lifetime and high reliability
- Low noise
- Automatic lock function (if a passing person does not pass the gate within 5 seconds (can be adjusted), the arms will be blocked
- Passage will be opened automatically in case of power failure
- Anti-burglar function - turnstile is defaultly closed, it can be opened after recieving a opening signal
- Alarm function in case of an attempt to pass through the gate illegally (optional)
- The mechanism will not be damaged if the arm meets resistance

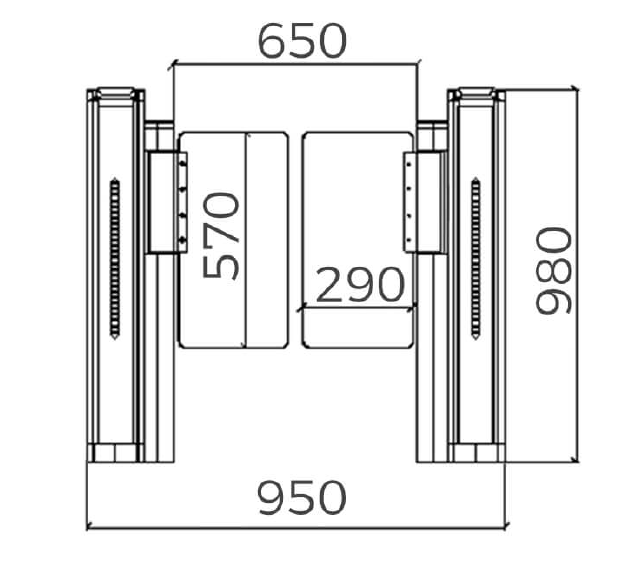

DIMENSIONS
TECHNICAL DATA
| Materials | Powder-coated brushed stainless steel (black color) |
| Dimensions | 1600*150*980mm |
| Weight | 85kg |
| Passage width | 650-1000mm |
| Passage direction | Unidirectional / Bidirectional |
| Power supply | AC220V/110V, 50/60Hz |
| Operational voltage | 24V DC |
| Power consumption | 90-100W |
| Working temperature | -20°C - 75°C |
| Humidity | 95% |
| Throughput | 55 people per minute |
| Emergency function | Passage will be opened automatically in case of power failure |
| Communication | Dry contact, relay signal, RS485 |
