User Manual for Tripod BO-HVK3G501
Tripod BO-HVK3G501
Price 3001,20 € (23% VAT included)
2440,00 € net price
Description

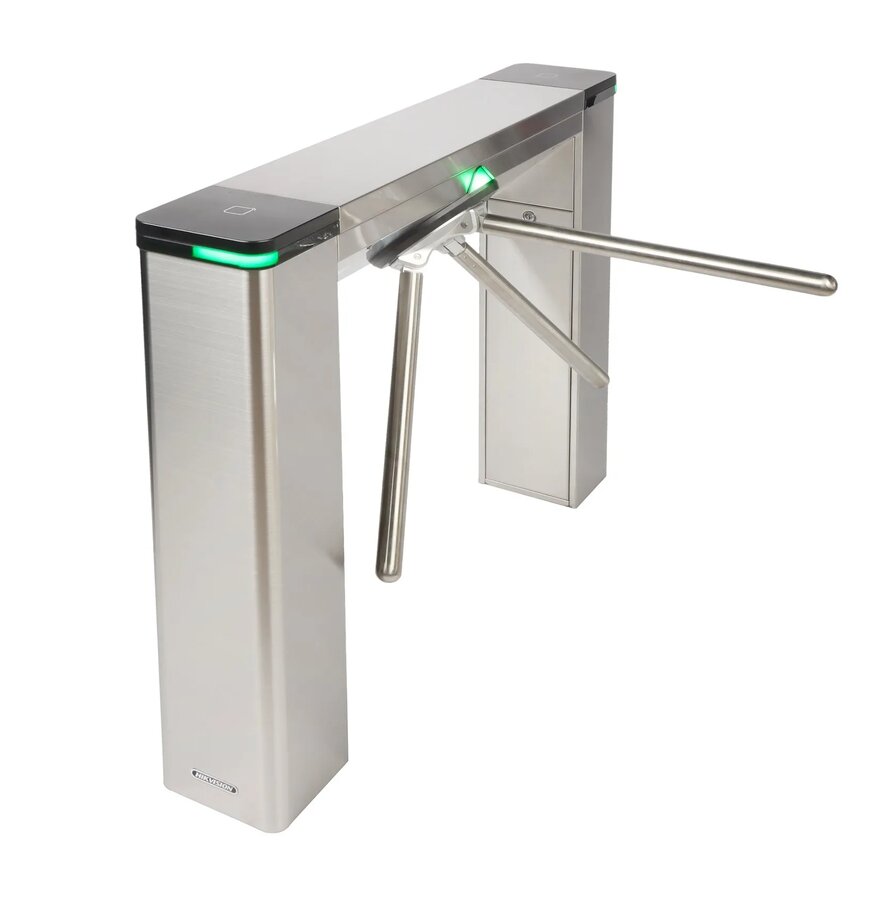

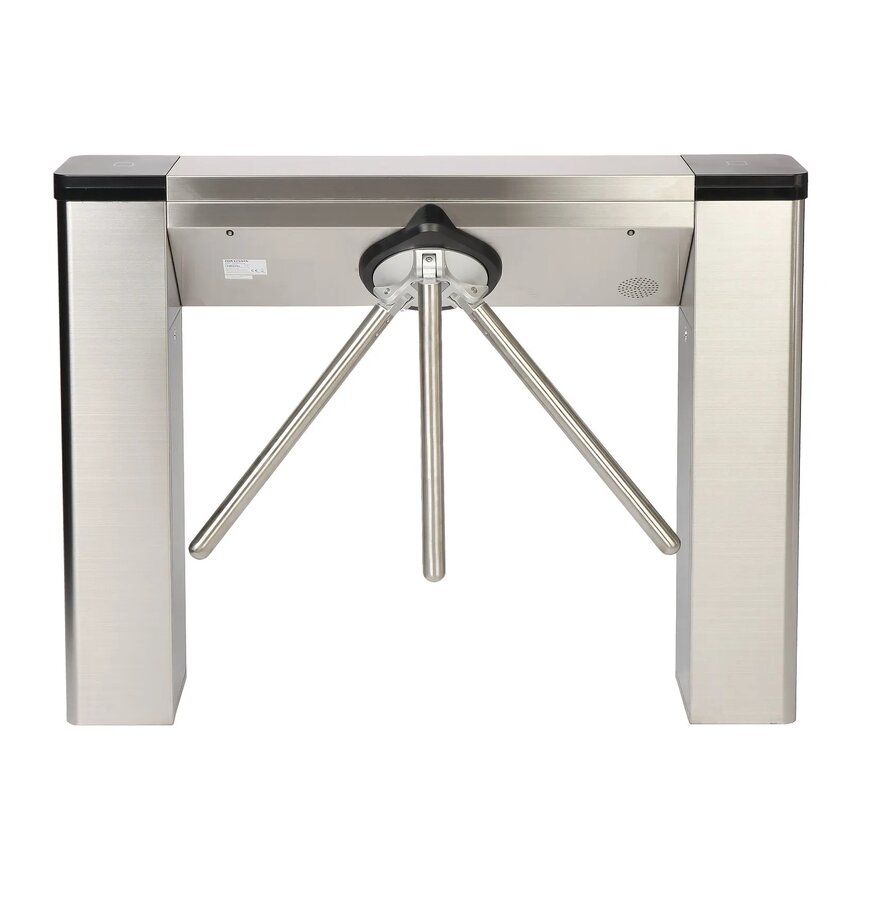

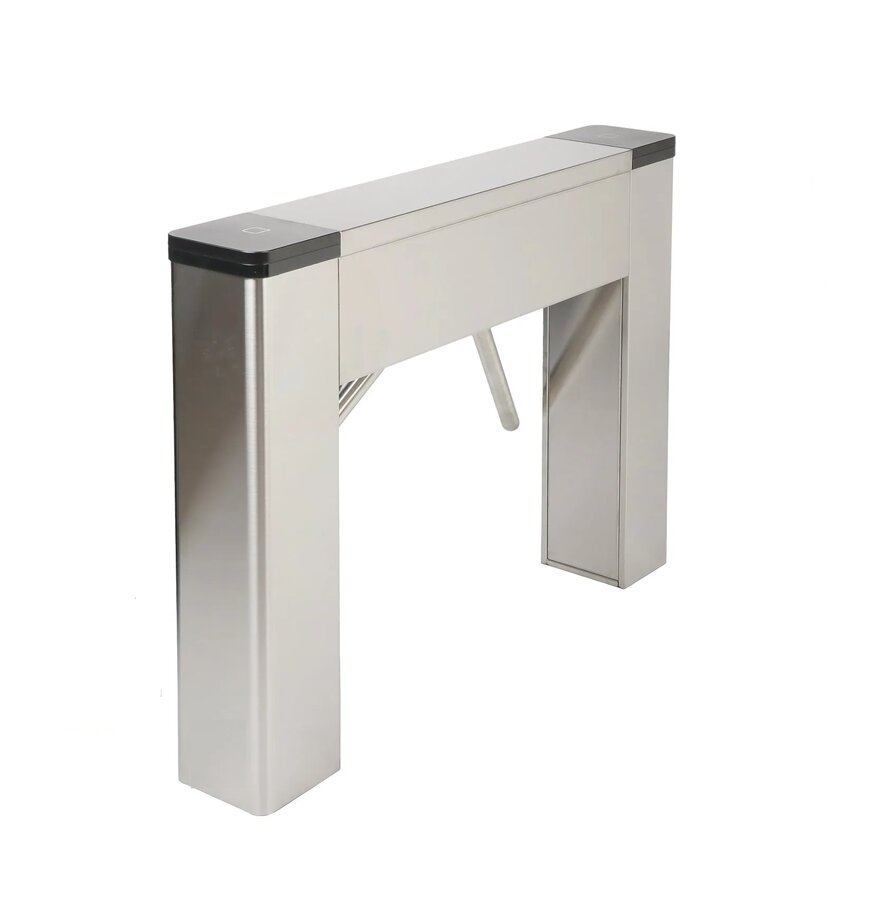

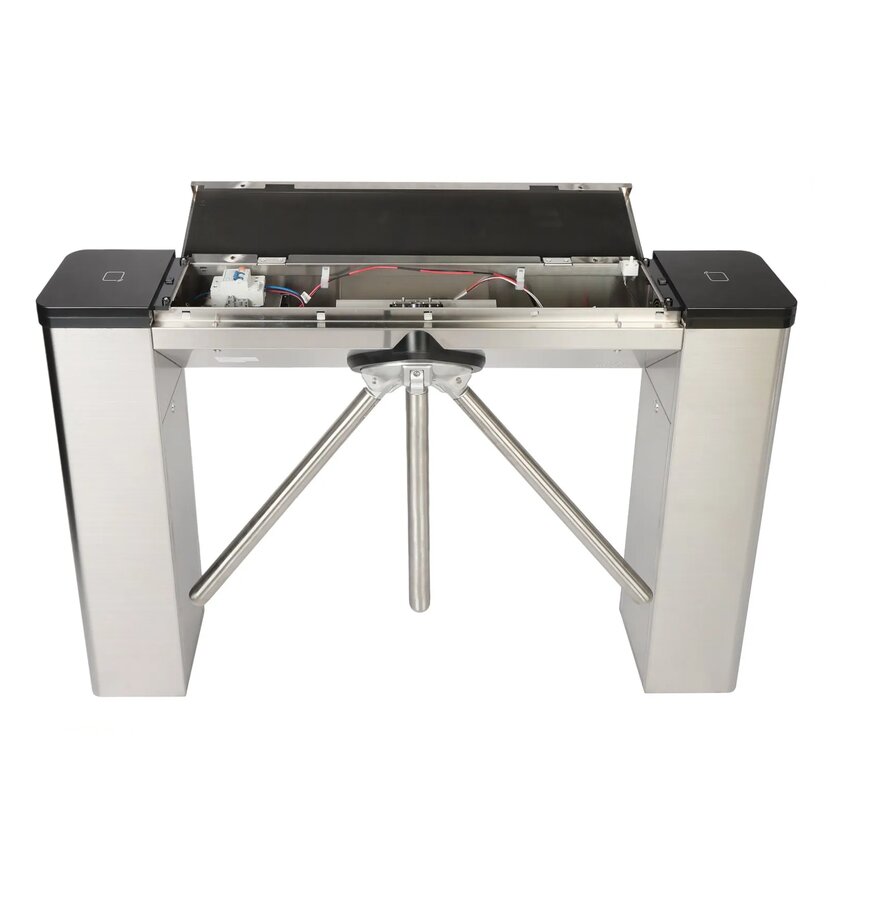

BO-HVK3G501 is a turnstile that can operate in both one-way and two-way modes. It is made of stainless steel, which ensures its durability and strength. The gateway has the option of TCP/IP communication, thanks to which it is possible to manage it via the network.
PRODUCT MAIN FEATURES:
- Built-in (Mifare) entry and exit
- Possibility to work unidirectionally and bidirectionally
- Encrypted TCP/IP network communication provides the ability to manage the gateway over the network
- Possibility to remote control

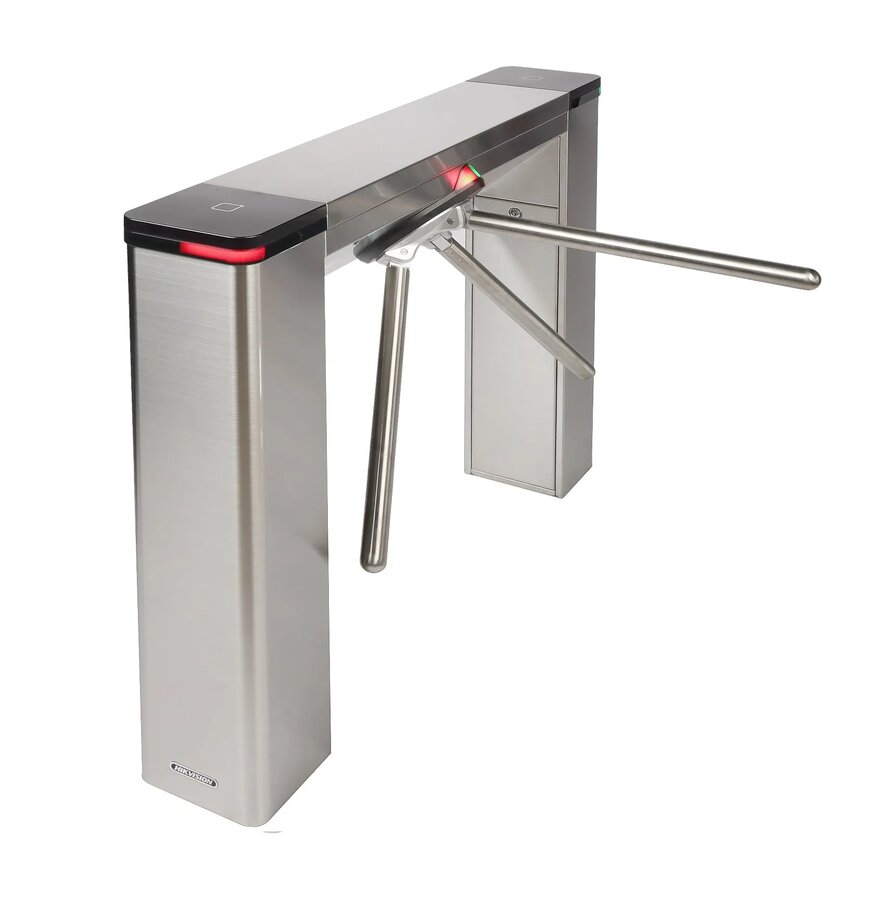

- LED display informs of actual state of the turnstile
- Passage will be opened automatically in case of power supply

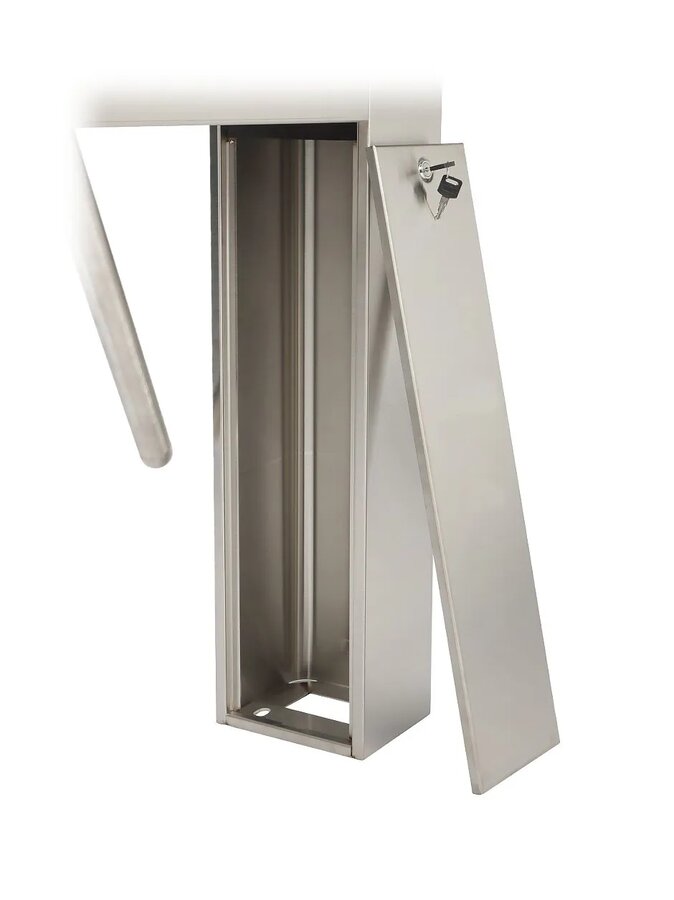

- Housing made of stainless steel: SUS304
- Possibility of voltage control or using the RS-485 interface
- Throughput: 35 people per minute
- Turnstile can work in both internal and external environment

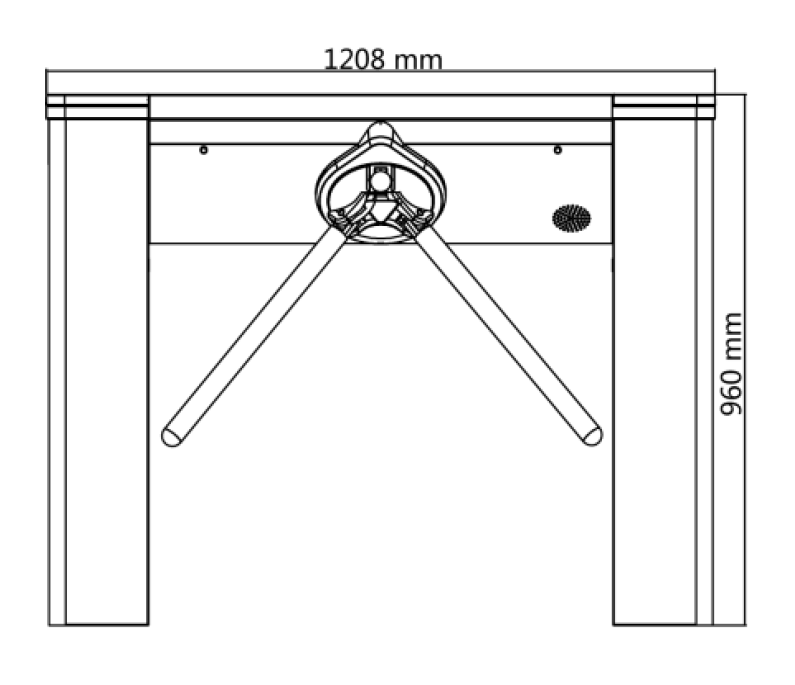

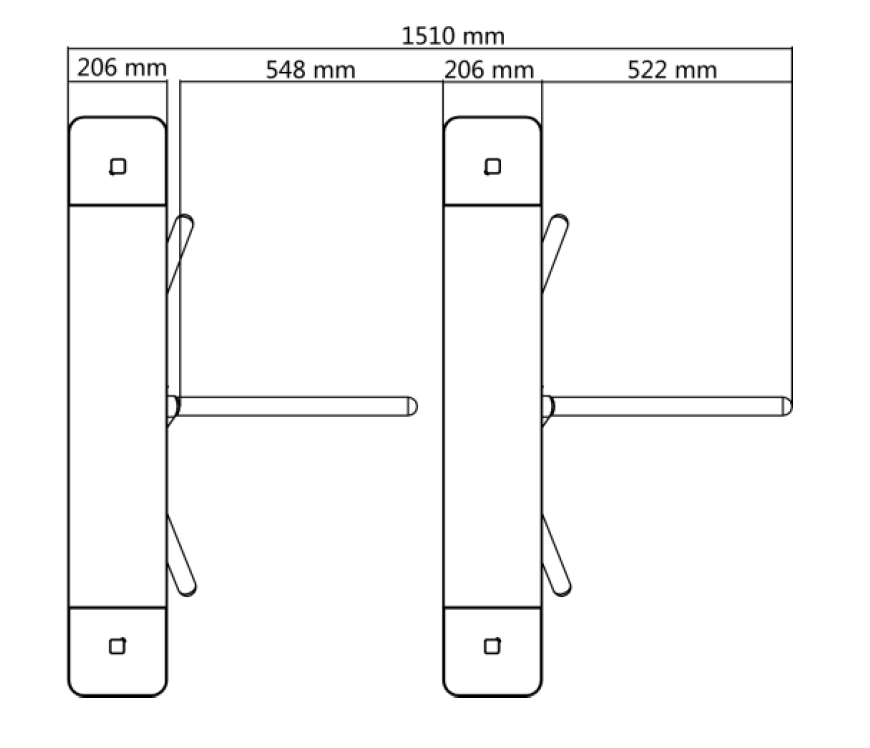

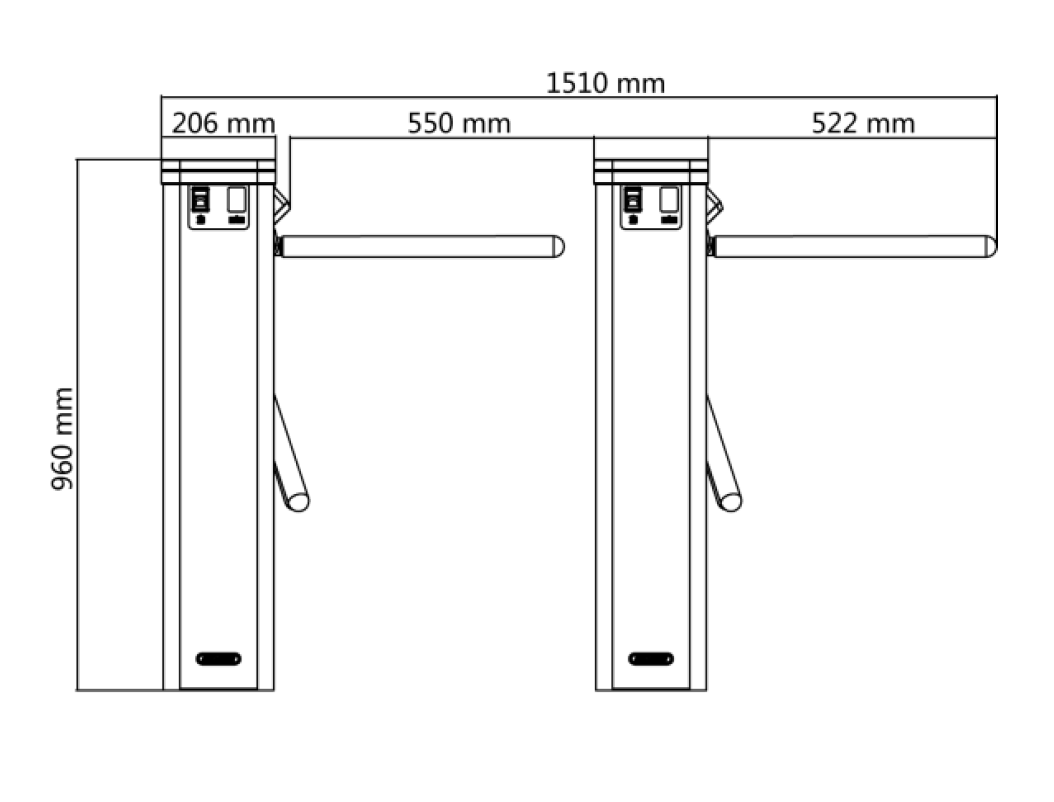

DIMENSIONS
TECHNICAL DATA
| Finish | Stainless steel SUS304 |
| Dimensions | 1208 * 960 * 728 mm |
| Weight | 41kg |
| Passage width | 550 mm (Arm length: 522 mm) |
| Passage direction | Unidirectional / Bidirectional |
| Power supply | 100 - 240 V AC ; 50 - 60 Hz |
| Working temperature | -20°C up to 65°C |
| Humidity | 0 ~ 95% |
| Working environment | Internal / External |
| Protection class | IP54 |
| LED lights | Entry / exit / blocked passage |
| Emergency mode | Passage will be opened automatically in case of power failure |
| Communication | TCP/IP, RS485, RS232 |
| Certificates | CE / FCC / CB / RoHS / REACH / WEEE |
